2005 SSANGYONG RODIUS Service Manual

0-7
AV SYSTEM
RODIUS 2005.07
8930-01

0-8
RODIUS 2005.07
8930-01
AV SYSTEM
2. DVD SYSTEM SIGNALS AND DATA PROCESSING

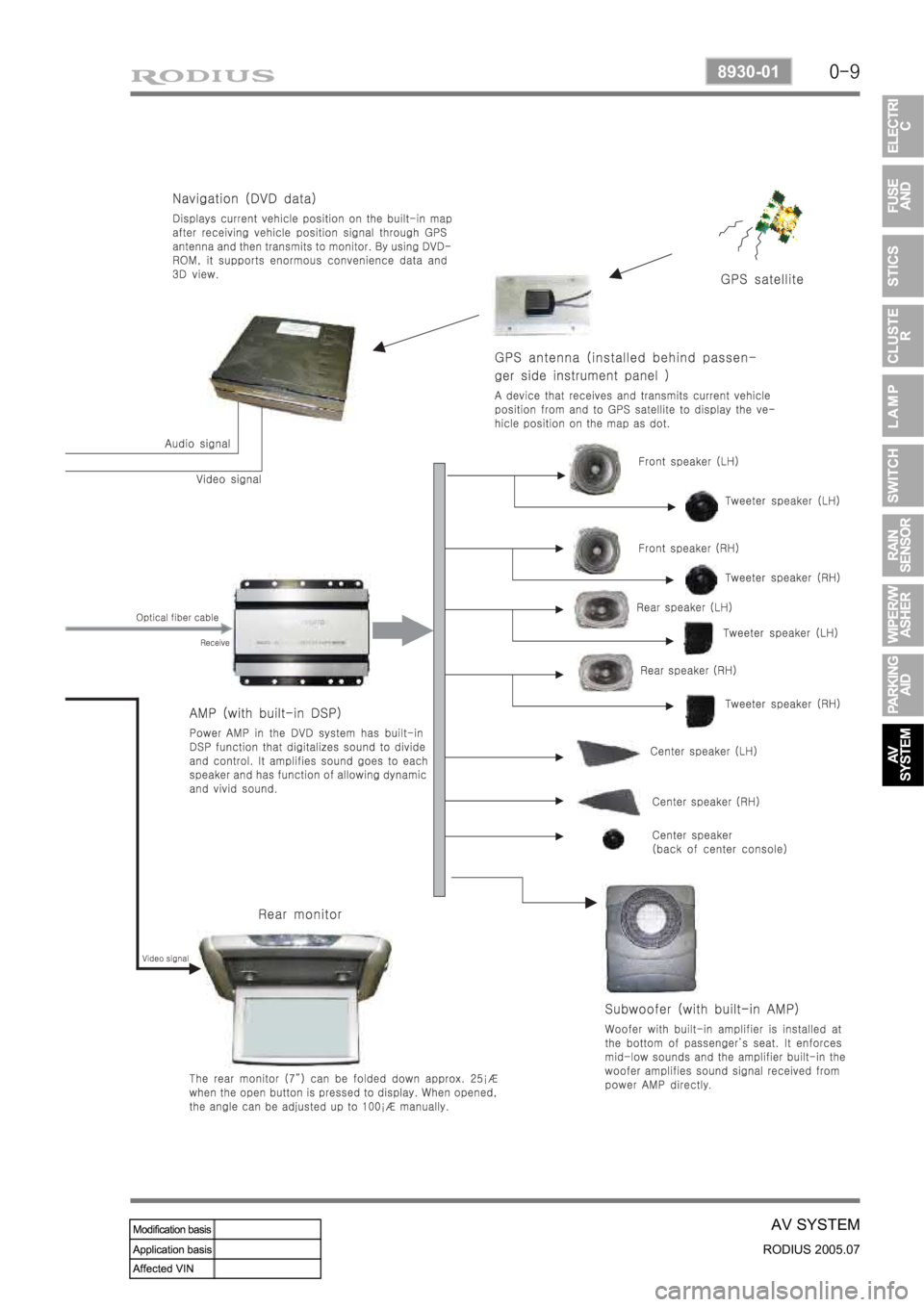

0-9
AV SYSTEM
RODIUS 2005.07
8930-01

0-3
AIR CONDITIONING SYSTEM
RODIUS 2005.07
6810-20
6910-20AIR CONDITIONING SYSTEM
1. FFH SPECIFICATION

0-4
RODIUS 2005.07
6810-20
AIR CONDITIONING SYSTEM
2. SYSTEM LAYOUT AND COMPONENTS
Front air conditioner module assembly - inside instrument panel

0-5
AIR CONDITIONING SYSTEM
RODIUS 2005.07
6810-20
Rear air conditioner module assembly - bottom of rear left

0-6
RODIUS 2005.07
6810-20
AIR CONDITIONING SYSTEM
3. FFF GENERAL INFORMATION
The system is to increase the coolant temperature quickly by firing diesel fuel in the burner that
is installed in engine cooling system when in winter time the ambient temperature and engine
coolant temperature is low. (Option)
FFH System consists of independent fuel lines, fuel pump, coolant circuit, coolant ciculation
pump, electrical glow plug and exhaust system by driver’s intention because FFH system
is automatically.
Operated according to the coolant temperature and the ambient temperature.
FFH system operates up to more than 2 minutes to burn the residual fuel inside the system
when driver stop the engine during its operation. Therefore, a certain period of FFH operation
after stopping the engine is not a malfunction.

0-7
AIR CONDITIONING SYSTEM
RODIUS 2005.07
6810-20
4. COMPONENTS AND LOCATIONS
