2005 SKODA SUPERB SymphonyTape Car Radio Manual

ŠkodaAuto
AUTORÁDIO SYMPHONY
AUTORADIO
CAR RADIOwww.skoda-auto.cz
www.skoda-auto.com Autorádio Symphony
Škoda Auto 08.03

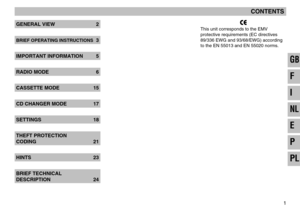

1
GENERAL VIEW2
BRIEF OPERATING INSTRUCTIONS3
IMPORTANT INFORMATION 5
RADIO MODE6

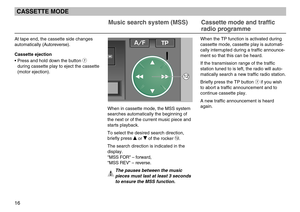

CASSETTE MODE15

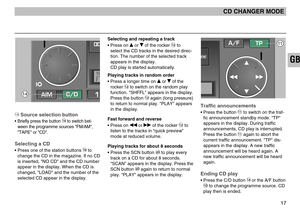

CD CHANGER MODE17

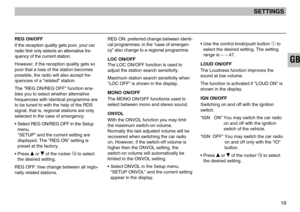

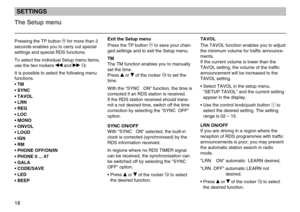

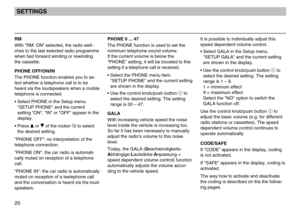

SETTINGS18

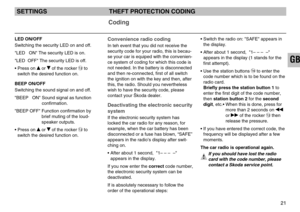

THEFT PROTECTION
CODING21

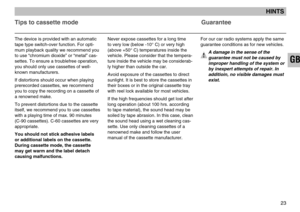

HINTS23

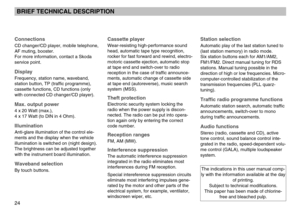

BRIEF TECHNICAL
DESCRIPTION24
CE
This unit corresponds to the EMV
protective requirements (EC directives
89/336 EWG and 93/68/EWG) according
to the EN 55013 and EN 55020 norms.

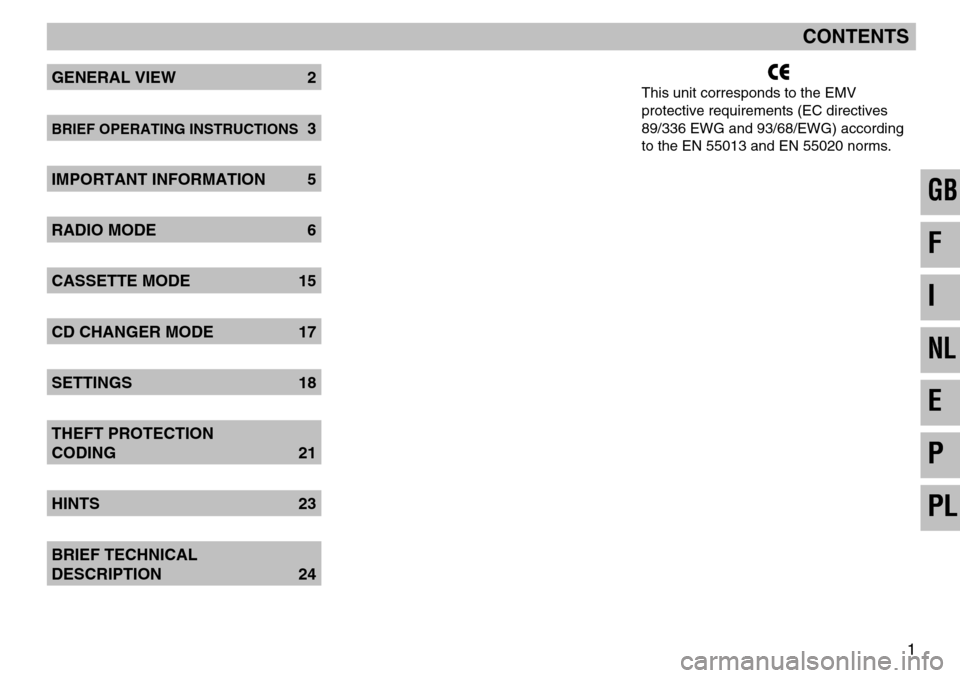

CONTENTS
GB
F
I
NL
E
P
PL

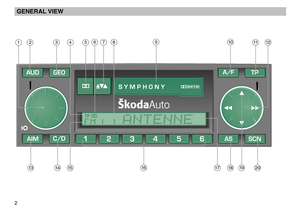

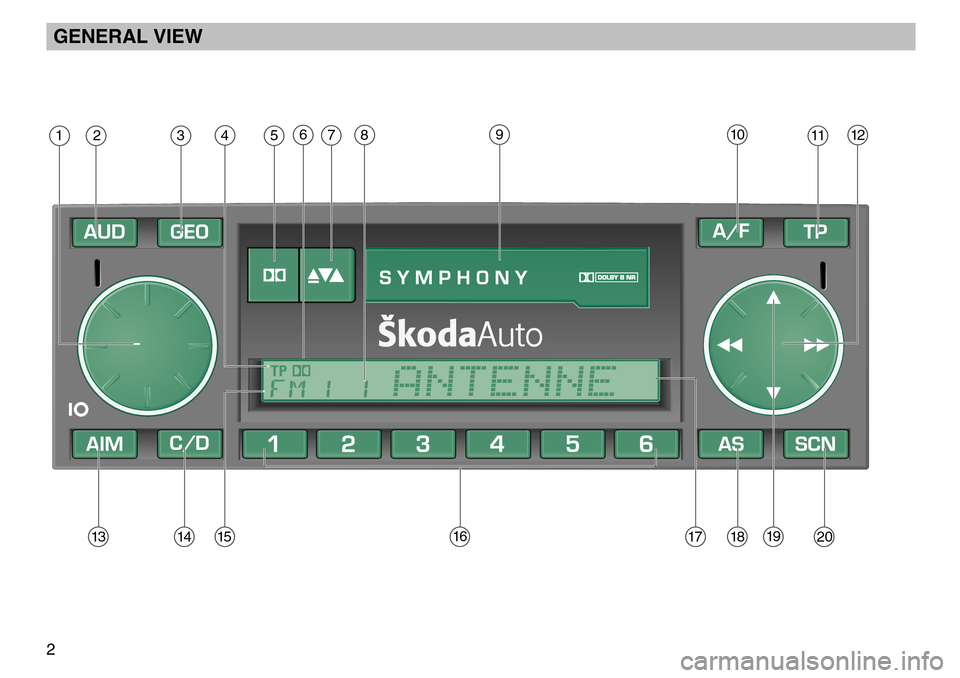

GENERAL VIEW
2
ANTENNE
TP
ANTENNE
TP
›1›2›3›5›11›10
›13›18›19›20›14›16›15
›6›7›9›4
›17
›8›12

GB

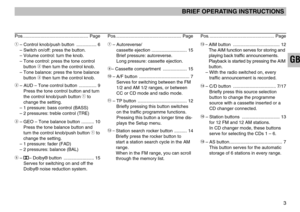

BRIEF OPERATING INSTRUCTIONS
3
Pos. ................................................... Page
1– Control knob/push button ................ 6
– Switch on/off: press the button.
– Volume control: turn the knob.
– Tone control: press the tone control button
2then turn the control knob.
– Tone balance: press the tone balance button
3then turn the control knob.

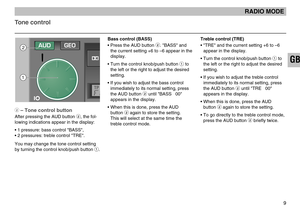

2– AUD – Tone control button .............. 9 Press the tone control button and turn
the control knob/push button
1to
change the setting.
– 1 pressure: bass control (BASS)
– 2 pressures: treble control (TRE)

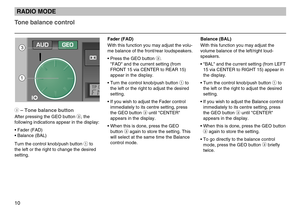

3– GEO – Tone balance button .......... 10 Press the tone balance button and
turn the control knob/push button
1to
change the setting.
– 1 pressure: fader (FAD)
– 2 pressures: balance (BAL)
5–
– Dolby® button ........................ 15
Serves for switching on and off the
Dolby® noise reduction system.
Pos. ................................................... Page
7– Autoreverse/ cassette ejection ............................ 15
Brief pressure: autoreverse.
Long pressure: cassette ejection.

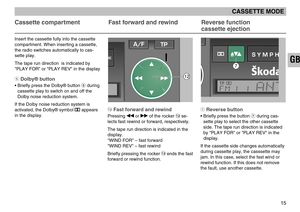

9– Cassette compartment ................... 15
ßI– A/F button ........................................ 7Serves for switching between the FM
1/2 and AM 1/2 ranges, or between
CC or CD mode and radio mode.

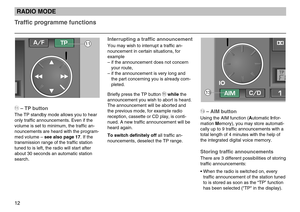

ß?– TP button ....................................... 12 Briefly pressing this button switches
on the traffic programme functions.Pressing this button a longer time dis-
plays the Setup menu.

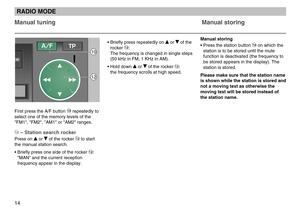

ß`– Station search rocker button .......... 14
Briefly press the rocker button to
start a station search cycle in the AM
range.
When in the FM range, you can scroll
through the memory list.
Pos. ................................................... Page
ßQ– AIM button ..................................... 12
The AIM function serves for storing and
playing back traffic announcements.
Playback is started by pressing the AIM
button.
– With the radio switched on, every traffic announcement is recorded.
ßW– C/D button .................................. 7/17Briefly press this source selection
button to change the programme
source with a cassette inserted or a
CD changer connected.

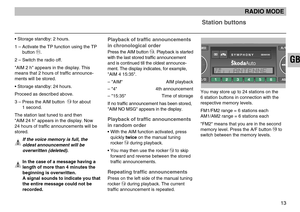

ßR– Station buttons .............................. 13for 12 FM and 12 AM stations.
In CD changer mode, these buttons
serve for selecting the CDs 1 – 6.
ßZ– AS button.......................................... 7This button serves for the automatic
storage of 6 stations in every range.

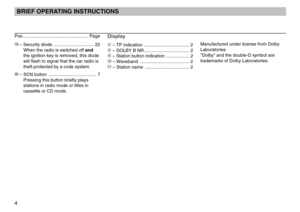

BRIEF OPERATING INSTRUCTIONS
4
Pos. ................................................... Page

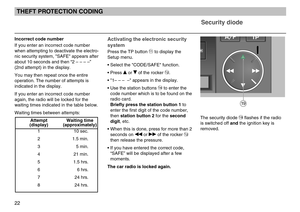

ßU– Security diode ................................ 22When the radio is switched off and
the ignition key is removed, this diode
will flash to signal that the car radio is
theft-protected by a code system.
´I– SCN button ...................................... 7Pressing this button briefly plays
stations in radio mode or titles in
cassette or CD mode.
Display
4– TP indication .................................... 2
6– DOLBY B NR.................................... 2
8– Station button indication .................. 2
ßE– Waveband ....................................... 2
ßT– Station name ................................... 2
Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.

GB
Operation while driving CD mode

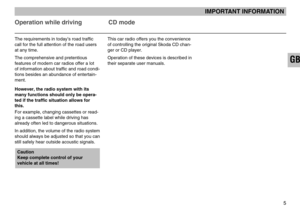

IMPORTANT INFORMATION
5
The requirements in today’s road traffic
call for the full attention of the road users
at any time.
The comprehensive and pretentious
features of modern car radios offer a lot
of information about traffic and road condi-
tions besides an abundance of entertain-
ment.
However, the radio system with its
many functions should only be opera-
ted if the traffic situation allows for
this.
For example, changing cassettes or read-
ing a cassette label while driving has
already often led to dangerous situations.
In addition, the volume of the radio system
should always be adjusted so that you can
still safely hear outside acoustic signals.
Caution
Keep complete control of your
vehicle at all times!
This car radio offers you the convenience
of controlling the original Skoda CD chan-
ger or CD player.
Operation of these devices is described in
their separate user manuals.

6

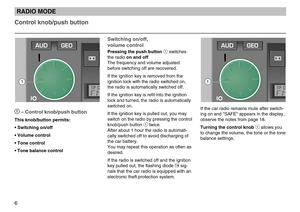

1– Control knob/push button
This knob/button permits:
• Switching on/off
• Volume control
• Tone control
• Tone balance control
TP
Switching on/off,
volume control
Pressing the push button1switches
the radio on and off
The frequency and volume adjusted
before switching off are recovered.
If the ignition key is removed from the
ignition lock with the radio switched on,
the radio is automatically switched off.
If the ignition key is refit into the ignition
lock and turned, the radio is automatically
switched on.
If the ignition key is pulled out, you may
switch on the radio by pressing the control
knob/push button
1twice.
After about 1 hour the radio is automati-
cally switched off to avoid discharging of
the car battery.
You may repeat this operation as often as
desired.
If the radio is switched off and the ignition
key pulled out, the flashing diode
ßUsig-
nals that the car radio is equipped with an
electronic theft protection system.
If the car radio remains mute after switch-
ing on and "SAFE" appears in the display,
observe the notes from page 18.
Turning the control knob
1allows you
to change the volume, the tone or the tone
balance settings.
TP
RADIO MODE
Control knob/push button
11

GB
ßZ– AS button
The AS button ßZallows you to automati-
cally store the strongest stations in a con-
venient way.
Using the AS function, you may store 6
stations in each of the FM and AM wave-
bands.
Automatic storing
• Select the "FM1" or "AM1" waveband. If you then press the TP button
ß?, only
traffic radio stations are searched. If AM
has been selected, the radio switches
automatically to FM.
The "FM2" and "AM2" wavebands should
be used for the "AS" function only if you
are frequently changing your location or
during the holidays.
• Press the AS button
ßZfor about 2
seconds. "STORE" appears in the dis-
play and the 6 strongest stations are
stored on the station buttons
1… 6.
This operation takes several seconds.
• When storing is completed, the radio selects automatically the strongest
station.
You may call up the stored stations by
pressing the corresponding station button.
´I– SCN button
If you press the SCN button ´I, all
stations in the selected waveband are
heard several seconds.
• Press the SCN button
´I.
• "SCAN" appears in the display. You hear one station after the other for
several seconds.
If you wish to hear the current station
permanently, press the SCN button
´I
again.

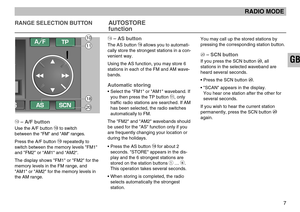

RADIO MODE
7
RANGE SELECTION BUTTONAUTOSTORE
function
ßI– A/F button
Use the A/F button ßIto switch
between the "FM" and "AM" ranges.
Press the A/F button
ßIrepeatedly to
switch between the memory levels "FM1"
and "FM2" or “AM1“ and “AM2“.
The display shows "FM1" or "FM2" for the
memory levels in the FM range, and
"AM1" or "AM2" for the memory levels in
the AM range.
