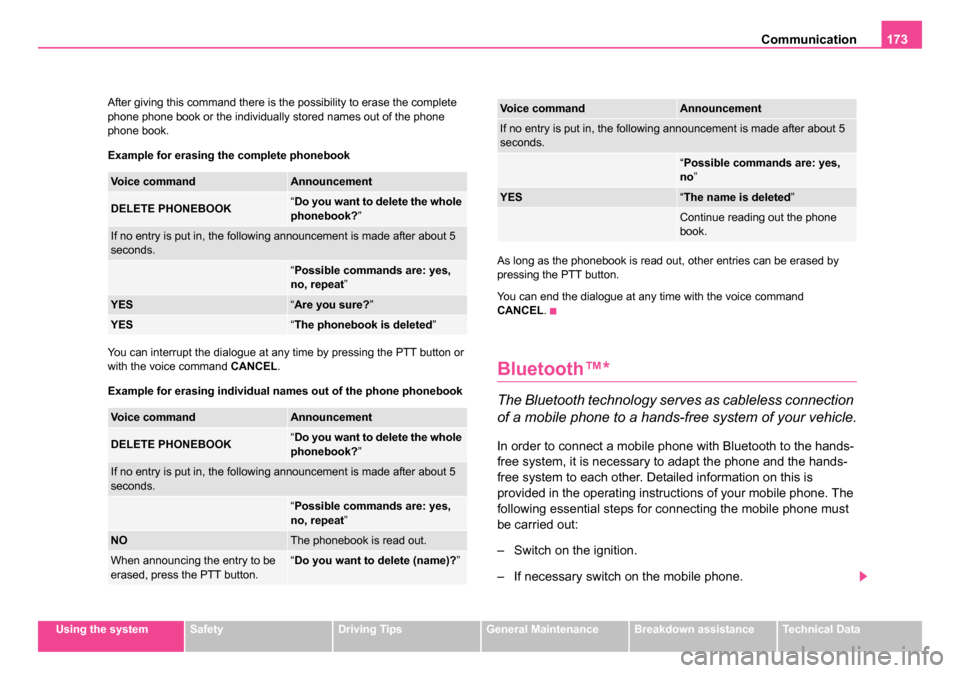

Communication173
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
After giving this command there is the possibility to erase the complete
phone phone book or the individually stored names out of the phone
phone book.
Example for erasing the complete phonebook
You can interrupt the dialogue at any time by pressing the PTT button or
with the voice command
CANCEL.
Example for erasing individual names out of the phone phonebook As long as the phonebook is read out, other entries can be erased by
pressing the PTT button.
You can end the dialogue at any time with the voice command
CANCEL
.
Bluetooth™*
The Bluetooth technology serves as cableless connection
of a mobile phone to a hands-free system of your vehicle.
In order to connect a mobile phone with Bluetooth to the hands-
free system, it is necessary to adapt the phone and the hands-
free system to each other. Detailed information on this is
provided in the operating instructions of your mobile phone. The
following essential steps for connecting the mobile phone must
be carried out:
– Switch on the ignition.
– If necessary switch on the mobile phone.
Voice commandAnnouncement
DELETE PHONEBOOK“Do you want to delete the whole
phonebook? ”
If no entry is put in, the following announcement is made after about 5
seconds.
“Possible commands are: yes,
no, repeat ”
YES“Are you sure? ”
YES“The phonebook is deleted ”
Voice commandAnnouncement
DELETE PHONEBOOK“Do you want to delete the whole
phonebook? ”
If no entry is put in, the following announcement is made after about 5
seconds.
“Possible commands are: yes,
no, repeat ”
NOThe phonebook is read out.
When announcing the entry to be
erased, press the PTT button.“Do you want to delete (name)? ”
If no entry is put in, the following announcement is made after about 5
seconds.
“Possible commands are: yes,
no ”
YES“The name is deleted ”
Continue reading out the phone
book.
Voice commandAnnouncement
s24s.book Page 173 Thursday, November 24, 2005 12:27 PM

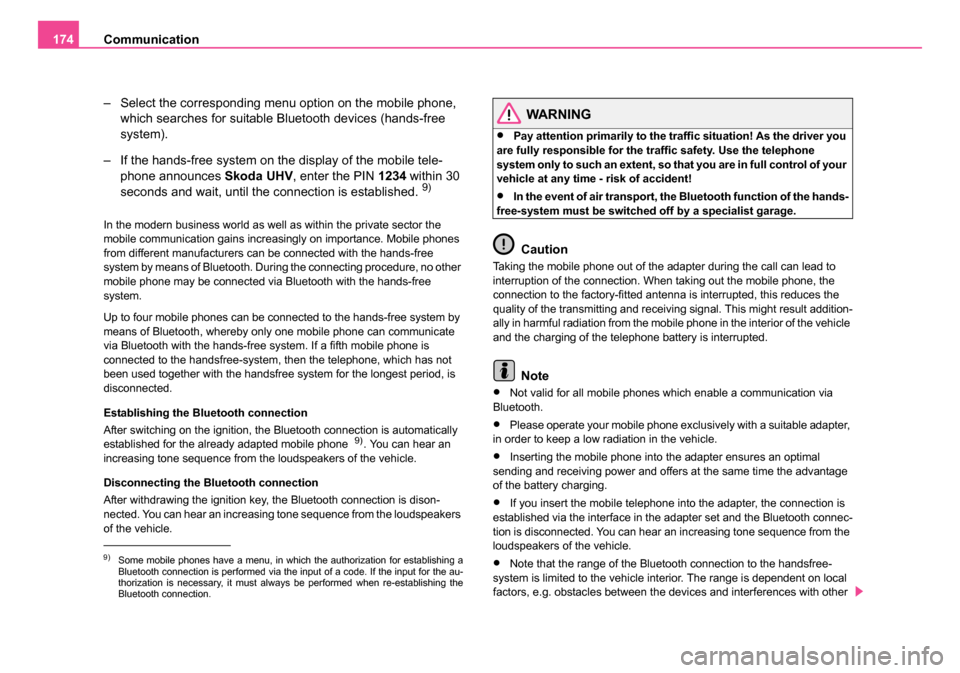

Communication
174
– Select the corresponding menu option on the mobile phone, which searches for suitable Bluetooth devices (hands-free
system).
– If the hands-free system on the display of the mobile tele- phone announces Skoda UHV, enter the PIN 1234 within 30
seconds and wait, until the connection is established.
9)
In the modern business world as well as within the private sector the
mobile communication gains increasingly on importance. Mobile phones
from different manufacturers can be connected with the hands-free
system by means of Bluetooth. During the connecting procedure, no other
mobile phone may be connected via Bluetooth with the hands-free
system.
Up to four mobile phones can be connected to the hands-free system by
means of Bluetooth, whereby only one mobile phone can communicate
via Bluetooth with the hands-free system. If a fifth mobile phone is
connected to the handsfree-system, then the telephone, which has not
been used together with the handsfree system for the longest period, is
disconnected.
Establishing the Bluetooth connection
After switching on the ignition, the Bluetooth connection is automatically
established for the already adapted mobile phone
9). You can hear an
increasing tone sequence from the loudspeakers of the vehicle.
Disconnecting the Bluetooth connection
After withdrawing the ignition key, the Bluetooth connection is dison-
nected. You can hear an increasing tone sequence from the loudspeakers
of the vehicle.
WARNING
•Pay attention primarily to the traffic situation! As the driver you
are fully responsible for the traffic safety. Use the telephone
system only to such an extent, so that you are in full control of your
vehicle at any time - risk of accident!
•In the event of air transport, the Bluetooth function of the hands-
free-system must be switched off by a specialist garage.
Caution
Taking the mobile phone out of the adapter during the call can lead to
interruption of the connection. When taking out the mobile phone, the
connection to the factory-fitted antenna is interrupted, this reduces the
quality of the transmitting and receiving signal. This might result addition-
ally in harmful radiation from the mobile phone in the interior of the vehicle
and the charging of the telephone battery is interrupted.
Note
•Not valid for all mobile phones which enable a communication via
Bluetooth.
•Please operate your mobile phone exclusively with a suitable adapter,
in order to keep a low radiation in the vehicle.
•Inserting the mobile phone into the adapter ensures an optimal
sending and receiving power and offers at the same time the advantage
of the battery charging.
•If you insert the mobile telephone into the adapter, the connection is
established via the interface in the adapter set and the Bluetooth connec-
tion is disconnected. You can hear an increasing tone sequence from the
loudspeakers of the vehicle.
•Note that the range of the Bluetooth connection to the handsfree-
system is limited to the vehicle interior. The range is dependent on local
factors, e.g. obstacles between the devices and interferences with other 9)Some mobile phones have a menu, in which the authorization for establishing a
Bluetooth connection is performed via the input of a code. If the input for the au-
thorization is necessary, it must always be performed when re-establishing the
Bluetooth connection.
s24s.book Page 174 Thursday, November 24, 2005 12:27 PM

Communication175
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
devices. If your mobile phone is e.g. in a jacket pocket, this can lead to
difficulties when establishing the Bluetooth connection with the handsfree-
system or the data transfer.
•If you have set the Portuguese language in the information display, it
is used automatically for the mobile phone operation, as this is the
language, which was entered during coding of the handsfree-system.
Mobile phones and two-way radio
systems
The installation of a mobile phone and two-way radio system in a vehicle
should only be carried out by a Škoda Dealer.
Škoda Auto permits the operation of mobile phones and two-way radio
systems with a professionally installed external aerial and a maximum
transmission power of up to 10 watts.
Our specialist garage is also happy to inform you about the possibilities
available for installing and operating mobile telephones and radio trans-
mitters which have an output greater than 10 watts. The Škoda dealers
can provide you with details about the technical possibilities for retrofitting
of mobile telephones and radio transmitters.
Operation of mobile phones or two-way radio systems may interfere with
functioning of the electronic systems of your vehicle. The reasons for this
may be:
•no external aerial
•external aerial incorrectly installed
•transmission power greater than 10 watts.
You should therefore not operate a mobile phone or two-way radio
system inside the vehicle without the use of an external aerial, or with
an external aerial which has been incorrectly installed. You should also be aware of the fact that only an
external aerial makes it
possible to achieve the optimal range of such equipment.
WARNING
•If a mobile phone or two-way radio system is operated inside the
vehicle without using an external aerial, or with an external aerial
which has been incorrectly installed, the result can be excessive
electromagnetic fields which may cause harm to your health.
•Please always pay full attention to the traffic situation around
you!
•You must not install two-way radio systems, mobile phones or
mounts on the covers of the airbags or within the immediate
deployment range of airbags. This might result in injuries to the
occupants in the event of an accident.
Note
Please also refer to the operating instructions of the mobile phones and
two-way radio systems.
s24s.book Page 175 Thursday, November 24, 2005 12:27 PM

Index305
Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Warning light . . . . . . . . . . . . . . . . . . . . . . 38
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 270
Adjusting seats . . . . . . . . . . . . . . . . . . . 83, 179 electrically . . . . . . . . . . . . . . . . . . . . . . . . 84
Adjusting the steering wheel . . . . . . . . . . . . 138
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 deactivate . . . . . . . . . . . . . . . . . . . . . . . . 199
Deployment . . . . . . . . . . . . . . . . . . . . . . 191
Front airbags . . . . . . . . . . . . . . . . . . . . . 192
Head airbags . . . . . . . . . . . . . . . . . . . . . 197
Side airbags . . . . . . . . . . . . . . . . . . . . . . 195
Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . 190 Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
An overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Antilock Brake System . . . . . . . . . . . . . . . . 218
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . 38
Anti-theft alarm system . . . . . . . . . . . . . . . . . 54
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Auto Check Control . . . . . . . . . . . . . . . . . . . . 26 Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . 18
Automatic driving lamp control . . . . . . . . . . . . 64
Automatic gearbox . . . . . . . . . . . . . . . . . . . . 149
Emergency programme . . . . . . . . . 154, 161
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . 152
Selector lever-emergency unlocking . . . 154
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 153
Automatic gearbox DSG . . . . . . . . . . . . . . . 156 Kickdown . . . . . . . . . . . . . . . . . . . . . . . . 159
Selector lever-emergency unlocking . . . 162
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 160
Automatic seat adjustment . . . . . . . . . . . . . . 85
Automatic vehicle wash systems . . . . . . . . . 234
Avoiding damage to your vehicle . . . . . . . . . 228
B
Before setting off . . . . . . . . . . . . . . . . . . . . . 178
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 188
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Biofuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . . . . 173
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . 143
Warning light . . . . . . . . . . . . . . . . . . . . . . 40 Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . 218
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Brake pads
Warning light . . . . . . . . . . . . . . . . . . . . . . . 36
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . 33
Buttons for central locking . . . . . . . . . . . . . . . 48
Buttons on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . 56
C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . 274, 280
Catalytic converter . . . . . . . . . . . . . . . . . . . . 222
Central locking system . . . . . . . . . . . . . . . . . . 46locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . 47
Changing a wheel . . . . . . . . . . . . . . . . . . . . 276
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 294
Changing the engine oil . . . . . . . . . . . . . . . . 253
Changing wheels around . . . . . . . . . . . . . . . 265
Charging the battery . . . . . . . . . . . . . . . . . . 260 Warning light . . . . . . . . . . . . . . . . . . . . . . . 40
Chassis number . . . . . . . . . . . . . . . . . . . . . . 303
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . 202 Side airbags . . . . . . . . . . . . . . . . . . . . . . 205
s24s.book Page 305 Thursday, November 24, 2005 12:27 PM

Index
308
J
Jacking points . . . . . . . . . . . . . . . . . . . . . . . 280
Jump-starting . . . . . . . . . . . . . . . . . . . 281, 282
K
Keeping windows demisted
The air conditioning system . . . . . . . . . 125
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
L
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . 93
Leather care . . . . . . . . . . . . . . . . . . . . . . . . 239
light Changing bulbs . . . . . . . . . . . . . . . . . . . 294
Lighting of the interior of the vehicle . . . . . . . 70
Lights Automatic . . . . . . . . . . . . . . . . . . . . . . . . 64
Converting/masking over . . . . . . . . . . . 228
Range adjustment . . . . . . . . . . . . . . . . . . 67
switching them on and off . . . . . . . . . . . . 63
Warning lights . . . . . . . . . . . . . . . . . . . . . 30
Lights and Visibility . . . . . . . . . . . . . . . . . . . . 67
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . 36
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Central locking system . . . . . . . . . . . . . . 48
Remote control . . . . . . . . . . . . . . . . . . . . 52 locking
Central locking system . . . . . . . . . . . . . . 47
Locking and unlocking from inside . . . . . . . . 48
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Luggage compartment . . . . . . . . . . . . . . 50, 92 Folding double hooks . . . . . . . . . . . . . . . 95
Folding hooks . . . . . . . . . . . . . . . . . . . . . 96
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . 93
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . 102M
Main beam . . . . . . . . . . . . . . . . . . . . . . . 63, 68 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 142
Manual shifting of gears . . . . . . . . . . . . . . . 142
Memory for the on-board computer . . . . . . . 18
Mobile phone . . . . . . . . . . . . . . . . . . . 165, 175 Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . 173
Motoring abroad . . . . . . . . . . . . . . . . . . . . . 228
Multifunction steering wheel . . . . . . . . . . . . 163
Multi-functional indicator . . . . . . . . . . . . . . . . 18
N
Navigation system . . . . . . . . . . . . . . . . . . . . . 26
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . 104
O
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Onboard computer . . . . . . . . . . . . . . . . . . . . 18
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Opening a single door . . . . . . . . . . . . . . . . . . 46
Opening for skis . . . . . . . . . . . . . . . . . . . . . 114
Operation in winter De-icing windows . . . . . . . . . . . . . . . . . . 236
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . 244
The battery . . . . . . . . . . . . . . . . . . . . . . . 260
Overview of the engine compartment . . . . . 250
P
Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Paint damage . . . . . . . . . . . . . . . . . . . . . . . 236
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Parking aid at the rear . . . . . . . . . . . . . . . . . . . . . . . . 144
front and rear . . . . . . . . . . . . . . . . . . . . . 145
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . 63
Parking the vehicle . . . . . . . . . . . . . . . . . . . 144
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . 177
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Petrol engines Starting engine . . . . . . . . . . . . . . . . . . . . 141
s24s.book Page 308 Thursday, November 24, 2005 12:27 PM
