2005 Seat Ibiza 5D CD player

G
B
CD changer
CD player
CD changer
Instructions Manual

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––1
G
B


Introduction
Some car radio models allow you to
operate a CD changer.
Depending on your vehicle model ver-
sion, the CD changer is located either in
the glove compartment or the luggage
compartment.
Note
Only the controls needed for CD opera-
tion are described in this Owner’s
Manual.
The operation of the radio and cassette
player and further tips on the function of
the radio system are in the radio operat-
ing instructions pamphlet.

2––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––CONTENTS
CONTENTS
Page
Controls and equipment. ................................... 3-8
CD changer ..................................................... 3
– CD Magazine ................................................ 3
CD Player ........................................................ 6
CD changer .................................................... 7
Tips on CD operation ....................................... 8
Notes on cleaning compact discs ......................8
Safety precautions for laser devices ................ 8
Warranty. ........................................................ 8

6––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

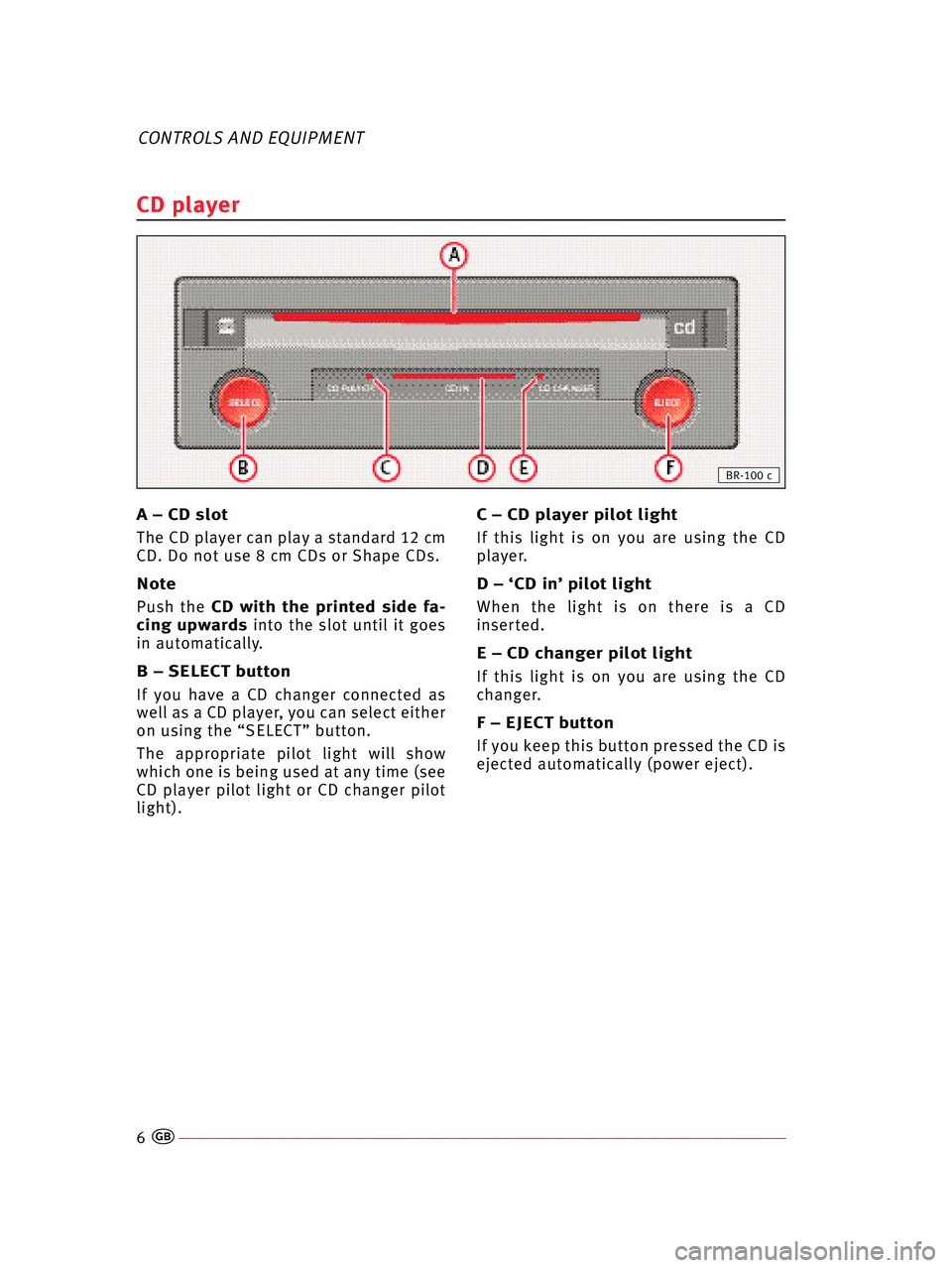

A – CD slot
The CD player can play a standard 12 cm
CD. Do not use 8 cm CDs or Shape CDs.
Note
Push the CD with the printed side fa-
cing upwardsinto the slot until it goes
in automatically.
B – SELECT button
If you have a CD changer connected as
well as a CD player, you can select either
on using the “SELECT” button.
The appropriate pilot light will show
which one is being used at any time (see
CD player pilot light or CD changer pilot
light).
C – CD player pilot light
If this light is on you are using the CD
player.
D – ‘CD in’ pilot light
When the light is on there is a CD
inserted.
E – CD changer pilot light
If this light is on you are using the CD
changer.
F – EJECT button
If you keep this button pressed the CD is
ejected automatically (power eject).
CONTROLS AND EQUIPMENT
CD player
BR-100 c

8––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

CONTROLS AND EQUIPMENT
Tips on CD operation
To ensure perfect, high quality CD
reproduction, only clean, undamaged
CD’s should be used.
Please do not stick any labels onto
the CD’s.
To avoid damage to the CD player, never
use protective film for CDs or stabiliz-
ers (available as CD accessories).
Only use CD’s with the CD magazine
specifically designed for your CD
changer
, as per the SEAT Original
Accessories Programme, and keep them
in their original box.
Never leave CD’s exposed to direct sun-
light!
Notes on cleaning compact discs
Use a soft, lint-free cloth to clean CD’s.
Wipe the disc in a straight line from the
centre outwards. Stubborn soiling can
be removed with a commercial CD
cleaner or isopropyl alcohol.
Never use fluids like petrol, paint
thinner or record cleaner, as these
can damage the surface of the CD!
Safety precautions for laser
devices
Laser devices are included in the safety
classes 1 – 4 as per DIN IEC 76 (CO)
6/VDE 0837.
This CD is in class 1.
The laser used in units of class 1 is of
low energy and so shielded that there is
no danger when it is correctly used.
Do not remove the unit’s cover. It
does not have any parts which can be
serviced by the user.
Warranty
The warranty conditions that apply to
our new cars also apply to our radio sys-
tems.
Note
The warranty applies as long as improper
handling or repair attempts by unquali-
fied persons have not caused the dam-
age, and that the unit presents no exter-
nal damage.
