2005 Seat Ibiza 5D fog light

If and when205
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

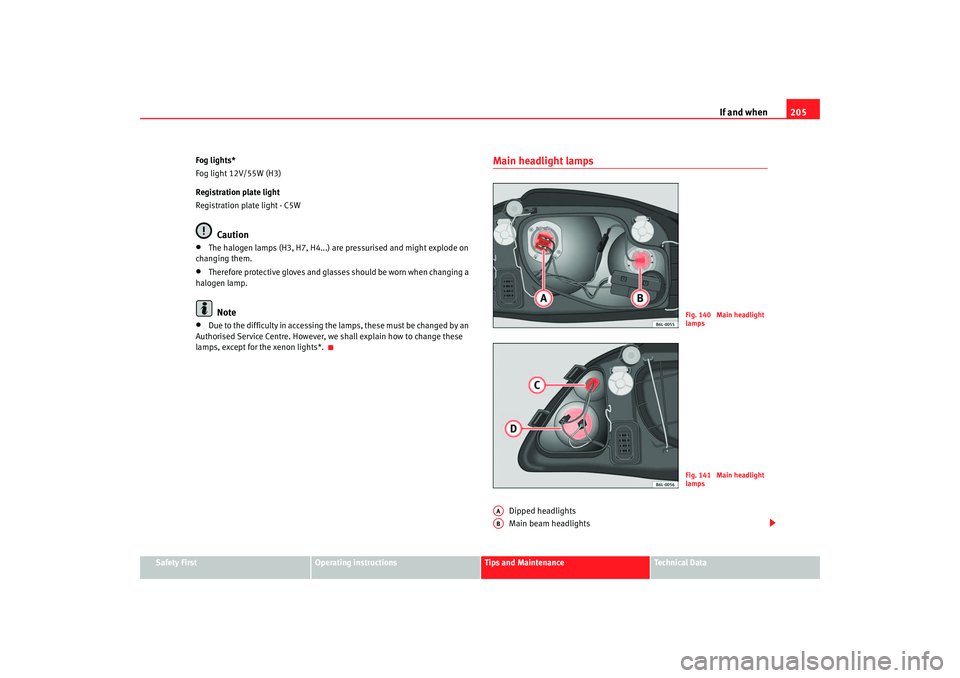

Fog lights*
Fog light 12V/55W (H3)
Registration plate light
Registration plate light - C5W
Caution
•
The halogen lamps (H3, H7, H4...) are pressurised and might explode on
changing them.
•
Therefore protective gloves and glasses should be worn when changing a
halogen lamp.Note
•
Due to the difficulty in accessing the lamps, these must be changed by an
Authorised Service Centre. However, we shall explain how to change these
lamps, except for the xenon lights*.
Main headlight lamps
Dipped headlights
Main beam headlights
Fig. 140 Main headlight
lampsFig. 141 Main headlight
lamps
AAAB
ibiza_ingles Seite 205 Mittwoch, 5. Oktober 2005 5:17 17

If and when
210Fog lights– Remove the grille, taking out the screw ⇒fig. 150, carefully
pull the grille on the side of the screw and release the cover. – Undo the two fastening screws
⇒fig. 150 and when released
unplug the connector.
– Turn the headlamp cover to the left a quarter turn.
– Unplug the lamp cable.
– Undo the lamp retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the lamp cable.
– The assembly of the cover and the headlamp is carried out in reverse order.
Fig. 150 Fog lightsFig. 151 Fog lights
AA
AF
ibiza_ingles Seite 210 Mittwoch, 5. Oktober 2005 5:17 17

If and when211
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

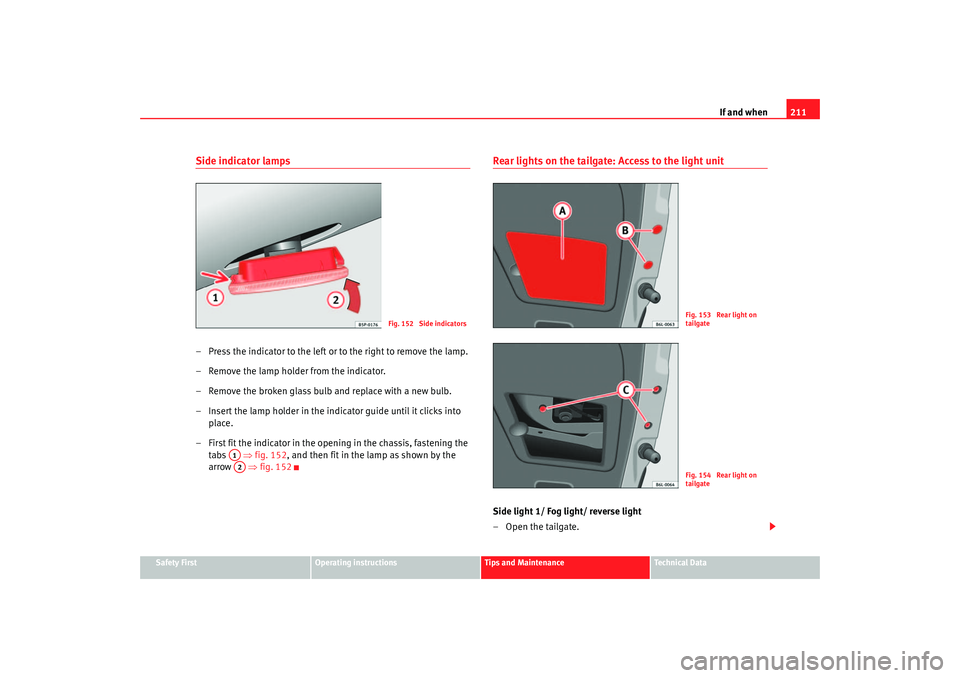

Side indicator lamps– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the broken glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First fit the indicator in the opening in the chassis, fastening the tabs ⇒fig. 152 , and then fit in the lamp as shown by the
arrow ⇒fig. 152
Rear lights on the tailgate: Access to the light unitSide light 1/ Fog light/ reverse light
–Open the tailgate.
Fig. 152 Side indicators
A1A2
Fig. 153 Rear light on
tailgateFig. 154 Rear light on
tailgate
ibiza_ingles Seite 211 Mittwoch, 5. Oktober 2005 5:17 17

If and when
212

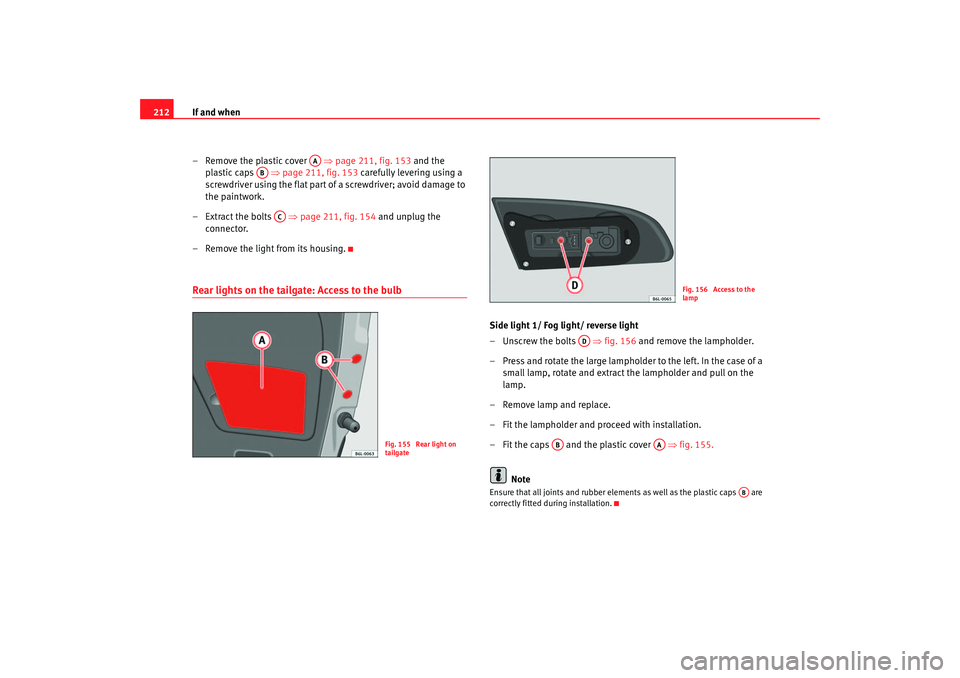

– Remove the plastic cover ⇒page 211, fig. 153 and the
plastic caps ⇒page 211, fig. 153 carefully levering using a
screwdriver using the flat part of a screwdriver; avoid damage to
the paintwork.
– Extract the bolts ⇒page 211, fig. 154 and unplug the
connector.
– Remove the light from its housing.Rear lights on the tailgate: Access to the bulb
Side light 1/ Fog light/ reverse light
– Unscrew the bolts ⇒fig. 156 and remove the lampholder.
– Press and rotate the large lampholder to the left. In the case of a small lamp, rotate and extract the lampholder and pull on the
lamp.
– Remove lamp and replace.
– Fit the lampholder and proceed with installation.
– Fit the caps and the plastic cover ⇒ fig. 155.
NoteEnsure that all joints and rubber elements as well as the plastic caps are
correctly fitted during installation.
AA
AB
AC
Fig. 155 Rear light on
tailgate
Fig. 156 Access to the
lamp
AD
AB
AA
AB
ibiza_ingles Seite 212 Mittwoch, 5. Oktober 2005 5:17 17
