If and when
216

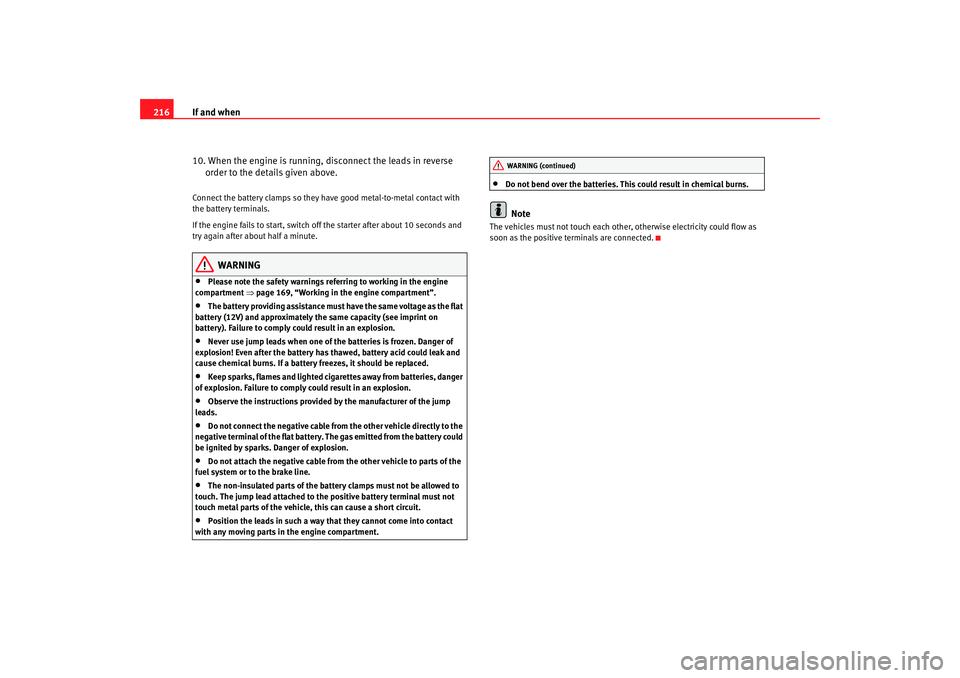

10. When the engine is running, disconnect the leads in reverse order to the details given above.Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
WARNING
•
Please note the safety warnings referring to working in the engine
compartment ⇒page 169, “Working in the engine compartment”.
•
The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•
Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•
Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•
Observe the instructions provided by the manufacturer of the jump
leads.
•
Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•
Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•
The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead atta ched to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•
Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•
Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
WARNING (continued)
ibiza_ingles Seite 216 Mittwoch, 5. Oktober 2005 5:17 17

Index247
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Tank
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 54
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 54
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
The danger of not using the seat belt . . . . . . . . 20
Tightening torque of wheel bolts . . . . . . . . . . . 223
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Towing a trailer . . . . . . . . . . . . . . . . . . . . 149, 222
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 164
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Traction control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Trailer turn signals Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 67
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 92
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Trips, checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Warning lamp . . . . . . . . . . . . . . . . . . . . . . 63, 92
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tyres and wheels
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 188
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 187
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . . 187
Tyres with directional tread pattern . . . . . . . . . 186
UUnderbody sealant . . . . . . . . . . . . . . . . . . . . . . 158VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Vehicle identification data . . . . . . . . . . . . . . . . 220
Vehicle identification number . . . . . . . . . . . . . 220
Vehicle interior heating or cooling system . . . 117
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . . 153
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Vehicle wallet storage . . . . . . . . . . . . . . . . . . . . 106
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . 80
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 110
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . . 154
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 154
Washing with high pressure cleaners . . . . . . . 155
Water in the windscreen washer tank . . . . . . . 179
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 187
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . 194, 223Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 185, 222
Why assume the correct sitting position? . . . . . 28
Why should head restraints be correctly adjusted? 12
Why wear seat belts? . . . . . . . . . . . . . . . . . . . 17, 19
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 28
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Windscreen defrosting . . . . . . . . . . . . . . . . . . . 114
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . 94 Changing blades . . . . . . . . . . . . . . . . . . . . . 180
Changing the rear blade . . . . . . . . . . . . . . . 181
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . . 169
