2005 Peugeot 307 SW Dag Owner's Manual

Technical data172 -
28-02-2005
173Technical data-
28-02-2005

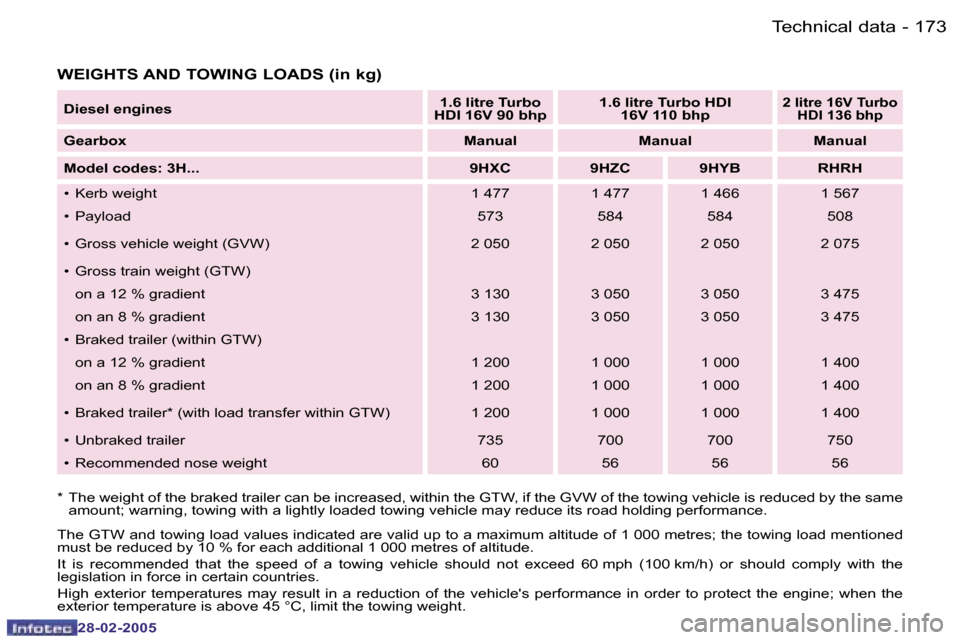

WEIGHTS AND TOWING LOADS (in kg)
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by th e same
amount; warning, towing with a lightly loaded towing ve hicle may reduce its road holding performance.
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
It is recommended that the speed of a towing vehicle should not exceed 60 mph (100 km/h) or should comply with the
legislation in force in certain countries.
High exterior temperatures may result in a reduction of the vehicl e's performance in order to protect the engine; when the
exterior temperature is above 45 °C, limit the towing weight .
Diesel engines1.6 litre Turbo
HDI 16V 90 bhp 1.6 litre Turbo HDI
16V 110 bhp2 litre 16V Turbo HDI 136 bhp
Gearbox Manual Manual Manual
Model codes: 3H... 9HXC 9HZC 9HYB RHRH
• Kerb weight 1 477 1 477 1 466 1 567
• Payload 573 584 584 508
• Gross vehicle weight (GVW) 2 050 2 050 2 050 2 075
• Gross train weight (GTW)
on a 12 % gradient 3 130 3 050 3 050 3 475
on an 8 % gradient 3 130 3 050 3 050 3 475
• Braked trailer (within GTW)
on a 12 % gradient 1 200 1 000 1 000 1 400
on an 8 % gradient 1 200 1 000 1 000 1 400
• Braked trailer* (with load transfer within GTW) 1 200 1 000 1 000 1 400
• Unbraked trailer 735 700 700 750
• Recommended nose weight 60 56 56 56

Technical data174 -
28-02-2005
175Technical data-
28-02-2005

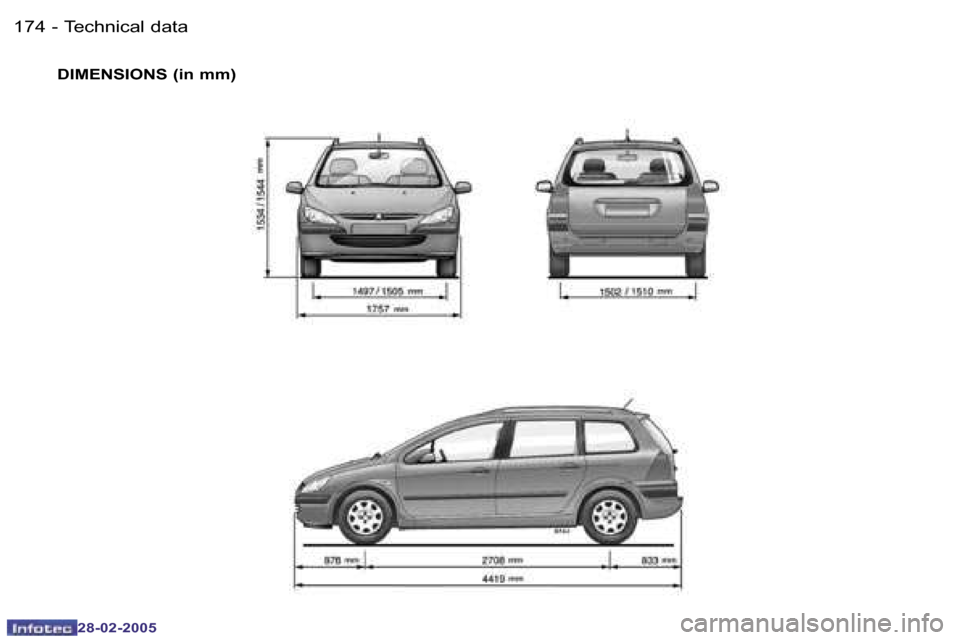

DIMENSIONS (in mm)

Technical data174 -
28-02-2005
175Technical data-
28-02-2005

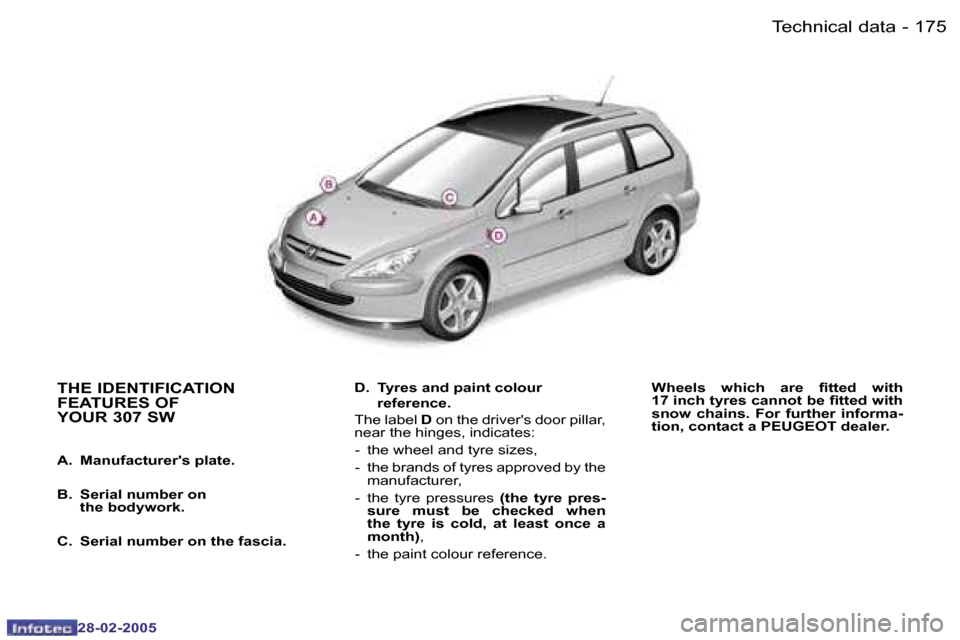

THE IDENTIFICATION
FEATURES OF
YOUR 307 SW
A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia. D. Tyres and paint colour
reference.
The label D on the driver's door pillar,
near the hinges, indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pres-
sure must be checked when
the tyre is cold, at least once a
month) ,
- the paint colour reference.
Wheels which are itted with
17 inch tyres cannot be itted with
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
