2005 NISSAN X-TRAIL sensor

FUEL INJECTOR AND FUEL TUBE
EM-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (QR25DE)EBS011SY
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE CHECK" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-16, "
AIR
CLEANER AND AIR DUCT" .
3. Disconnect quick connectors at engine side and vehicle side as
follows, and remove fuel feed hose.
CAUTION:
Disconnect quick connector by using quick connector
release (special service tool), not by picking out retainer
tabs.
NOTE:
There is quick connector for the engine side and for the vehicle
side, and they have different shapes. But disconnection is same
procedure. The following procedure shows the engine side.
a. Remove quick connector cap (engine side).
1. Fuel feed hose 2. Quick connector cap (engine side) 3. Quick connector cap (vehicle side)
4. Centralized under-floor piping 5. Sub-harness 6. Fuel tube
7. O-ring (black) 8. Clip 9. Fuel injector
10. O-ring (green) 11. Insulator
PBIC2179E
PBIC2175E
KBIA0701E

EM-56
[QR]
CAMSHAFT

CAMSHAFTPFP:13001
Removal and InstallationEBS00LS2
NOTE:
This section describes removal/installation procedure of camshaft without removing front cover. If front cover
is removed or installed, removal of camshaft bracket (No. 1) is easier before step 8 and installation is easier
after step 3. Regarding removal and installation of front cover, refer to EM-46, "
TIMING CHAIN" .
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Remove the following parts.

Ignition coil; Refer to EM-31, "IGNITION COIL" .

Rocker cover; Refer to EM-44, "ROCKER COVER" .
3. Remove power steering reservoir tank from bracket to move power steering piping. Refer to PS-37,
"HYDRAULIC LINE" .

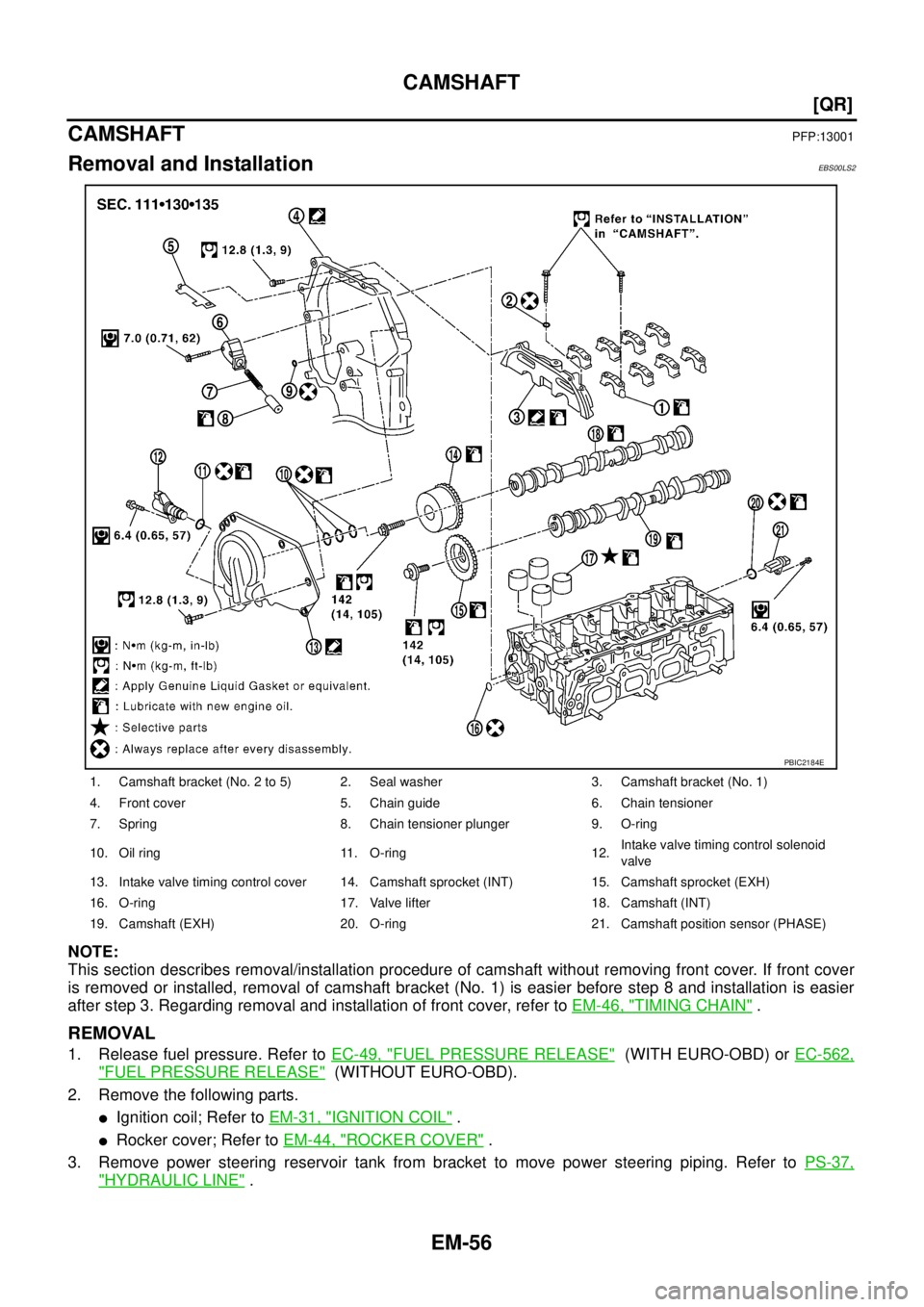

1. Camshaft bracket (No. 2 to 5) 2. Seal washer 3. Camshaft bracket (No. 1)
4. Front cover 5. Chain guide 6. Chain tensioner
7. Spring 8. Chain tensioner plunger 9. O-ring
10. Oil ring 11. O-ring 12.Intake valve timing control solenoid
valve
13. Intake valve timing control cover 14. Camshaft sprocket (INT) 15. Camshaft sprocket (EXH)
16. O-ring 17. Valve lifter 18. Camshaft (INT)
19. Camshaft (EXH) 20. O-ring 21. Camshaft position sensor (PHASE)
PBIC2184E

EM-58
[QR]
CAMSHAFT

b. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner.
NOTE:
Use approximately 0.5 mm (0.02 in) dia. hard metal pin as a
stopper pin.
c. Secure hexagonal part of camshaft with a wrench. Loosen cam-
shaft sprocket mounting bolts and remove camshaft sprockets.
CAUTION:
Do not rotate crankshaft or camshaft while timing chain is
removed. It causes interference between valve and piston.
NOTE:
Chain tension holding work is not necessary. Crankshaft
sprocket and timing chain do not disconnect structurally while
front cover is attached.
8. Remove camshaft position sensor (PHASE) from cylinder head back side.
CAUTION:

Handle carefully to avoid dropping and shocks.

Do not disassemble.

Do not allow metal powder to adhere to magnetic part at sensor tip.

Do not place sensor in a location where it is exposed to magnetism.
9. Loosen mounting bolts in reverse order as shown in the figure,
and remove camshaft brackets and camshafts.

Remove camshaft bracket (No. 1) by slightly tapping it with a
plastic hammer.
10. Remove valve lifters.

Identify installation positions, and store them without mixing them up.
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.
CAUTION:
Do not support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.
2. Set dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the
camshaft runout on dial indicator. (Total indicator reading)
KBIA0048E
KBIA0049E
SBIA0255E
Standard: Less than 0.02 mm (0.0008 in).PBIC2499E

CAMSHAFT
EM-61
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Measure the outer diameter of valve lifter with a micrometer.
VALVE LIFTER HOLE DIAMETER
Measure the diameter of valve lifter hole of cylinder head with an
inside micrometer.
VALVE LIFTER CLEARANCE

(Valve lifter clearance) = (Valve lifter hole diameter) – (Valve
lifter outer diameter)

If out of the standard, referring to the each standard of valve
lifter outer diameter and valve lifter hole diameter, replace either
or both valve lifter and cylinder head.
INSTALLATION
1. Install valve lifters.

Install them in the original positions.
2. Install camshafts.

Distinction between intake and exhaust camshafts is per-
formed with the different shapes of rear end.

Install camshafts so that camshaft dowel pins on the front side
are positioned as shown in the figure.
3. Install camshaft brackets with the following procedure:
a. Remove foreign material completely from camshaft bracket backside and from cylinder head installation
face.Standard: 33.965 - 33.980 mm (1.3372 - 1.3378 in)
JEM798G
Standard: 34.000 - 34.021 mm (1.3386 - 1.3394 in)
Standard: 0.020 - 0.056 mm (0.0008 - 0.0022 in)
PBIC0043E
Intake : Signal plate shape for camshaft position
sensor (PHASE)
Exhaust : Cone end shape
KBIA0246E
KBIA0051E

CAMSHAFT
EM-63
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

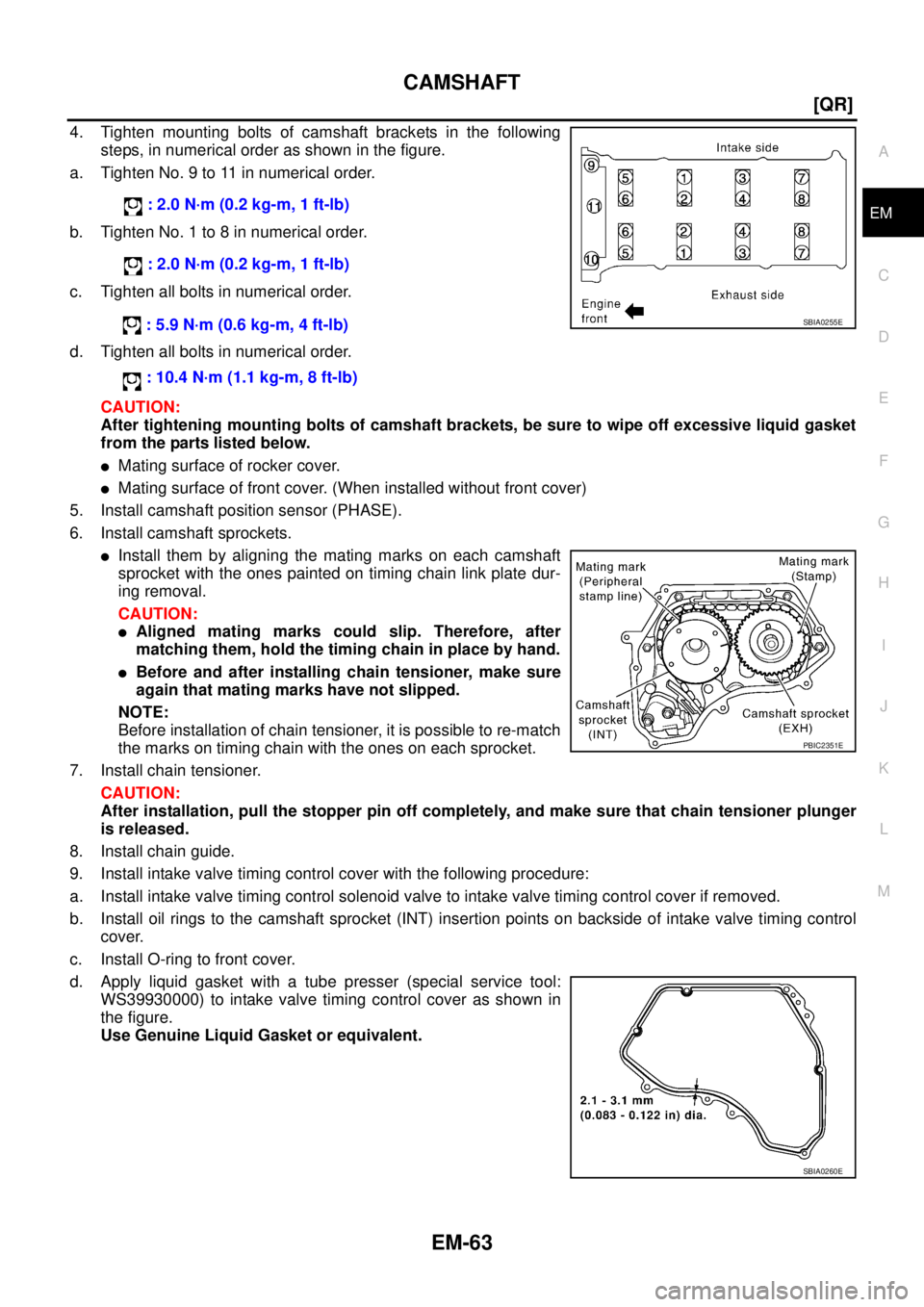

4. Tighten mounting bolts of camshaft brackets in the following
steps, in numerical order as shown in the figure.
a. Tighten No. 9 to 11 in numerical order.
b. Tighten No. 1 to 8 in numerical order.
c. Tighten all bolts in numerical order.
d. Tighten all bolts in numerical order.
CAUTION:
After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the parts listed below.

Mating surface of rocker cover.

Mating surface of front cover. (When installed without front cover)
5. Install camshaft position sensor (PHASE).
6. Install camshaft sprockets.

Install them by aligning the mating marks on each camshaft
sprocket with the ones painted on timing chain link plate dur-
ing removal.
CAUTION:

Aligned mating marks could slip. Therefore, after
matching them, hold the timing chain in place by hand.

Before and after installing chain tensioner, make sure
again that mating marks have not slipped.
NOTE:
Before installation of chain tensioner, it is possible to re-match
the marks on timing chain with the ones on each sprocket.
7. Install chain tensioner.
CAUTION:
After installation, pull the stopper pin off completely, and make sure that chain tensioner plunger
is released.
8. Install chain guide.
9. Install intake valve timing control cover with the following procedure:
a. Install intake valve timing control solenoid valve to intake valve timing control cover if removed.
b. Install oil rings to the camshaft sprocket (INT) insertion points on backside of intake valve timing control
cover.
c. Install O-ring to front cover.
d. Apply liquid gasket with a tube presser (special service tool:
WS39930000) to intake valve timing control cover as shown in
the figure.
Use Genuine Liquid Gasket or equivalent. : 2.0 N·m (0.2 kg-m, 1 ft-lb)
: 2.0 N·m (0.2 kg-m, 1 ft-lb)
: 5.9 N·m (0.6 kg-m, 4 ft-lb)
: 10.4 N·m (1.1 kg-m, 8 ft-lb)
SBIA0255E
PBIC2351E
SBIA0260E

EM-82
[QR]
ENGINE ASSEMBLY

REMOVAL
Outline
Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
Changing Engine Coolant" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belt.
4. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hoses, and plug them to prevent fuel from draining. Refer to EM-34, "FUEL INJEC-
TOR AND FUEL TUBE" .
2. Disconnect heater hoses, and install plugs them to prevent engine coolant from draining. Refer to CO-23,
"THERMOSTAT AND WATER CONTROL VALVE" .
3. Disconnect clutch operating cylinder from transaxle, and move it aside. Refer to CL-12, "
OPERATING
CYLINDER" .
4. Disconnect shift and select cable from transaxle. Refer to MT-16, "
CONTROL LINKAGE" .
5. Disconnect B terminal harness of starter motor. Refer to SC-23, "
STARTING SYSTEM" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
3. Remove power steering oil pump with piping connected from engine. Temporarily secure it on vehicle side
with a rope to avoid putting load on it. Refer to PS-37, "
HYDRAULIC LINE" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" .
3. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" .
4. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on the
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
5. Remove LH and RH drive shafts from steering knuckle. Refer to FAX-11, "
FRONT DRIVE SHAFT" .
Removal
1. Install engine slingers into front-left of cylinder head and rear-right of cylinder head.

EM-86
[QR]
ENGINE ASSEMBLY

2. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
4. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hose, and plug it to prevent fuel from draining. Refer to EM-34, "FUEL INJECTOR
AND FUEL TUBE"
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
3. Disconnect control cable from transaxle (A/T models). Refer to AT- 4 0 4 , "
ON-VEHICLE SERVICE" .
4. Disconnect clutch operating cylinder from transaxle, and move it aside (M/T models). Refer to CL-12,
"OPERATING CYLINDER" .
5. Disconnect shift and select cable from transaxle (M/T models). Refer to MT-16, "
CONTROL LINKAGE" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove propeller shaft. Refer to PR-3, "
REAR PROPELLER SHAFT" .
3. Remove steering lower joint from steering gear. Refer to PS-11, "
STEERING COLUMN" .
4. Disconnect power steering fluid piping at a point between vehicle and engine. Refer to PS-37, "
HYDRAU-
LIC LINE" .
5. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter
(A/T models). Refer to EM-27, "
OIL PAN AND OIL STRAINER" and AT- 4 1 3 , "REMOVAL AND INSTALLA-
TION" .
6. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 , "REMOVAL AND INSTALLATION" (A/T models).
7. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" (ABS) or BRC-116, "WHEEL SENSORS" (ESP/TCS/ABS).
8. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
9. Remove lower ends of left and right strut from steering knuckle. Refer to FSU-5, "
FRONT SUSPENSION
ASSEMBLY" .
Removal
1. Install engine slingers into front left of cylinder head and rear right of cylinder head.

CYLINDER BLOCK
EM-89
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CYLINDER BLOCKPFP:11010
Disassembly and AssemblyEBS00KNU
1. Cylinder block 2. O-ring 3. Crankshaft position sensor (POS)
4. Knock sensor 5. Water drain plug 6. Lower cylinder block
7. Lower cylinder block mounting bolt 8. Snap ring 9. Connecting rod
10. Connecting rod bearing 11. Connecting rod bearing cap 12. Connecting rod bolt
13. Piston 14. Oil ring 15. Second ring
16. Top ring 17. Piston pin 18. Thrust bearing
19. Main bearing upper 20. Crankshaft 21. Crankshaft key
22. Main bearing lower 23. Rear oil seal 24. Pilot converter (A/T models)
25. Signal plate 26. Drive plate (A/T models) 27. Reinforce plate (A/T models)
28. Flywheel (M/T models)
PBIC3599E
