2005 NISSAN X-TRAIL cooling system

CO-8
[QR]
COOLING SYSTEM

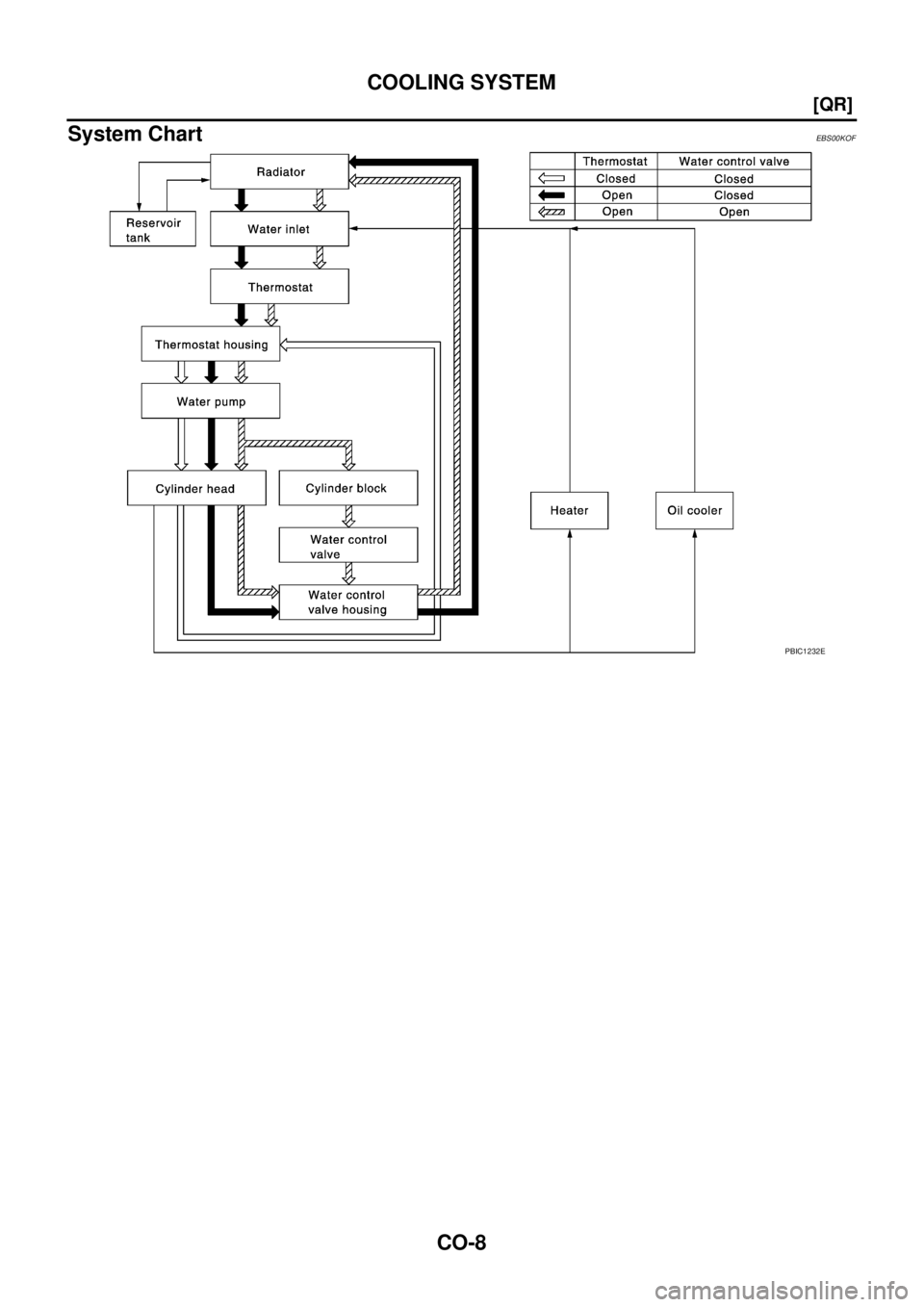

System ChartEBS00KOF
PBIC1232E

ENGINE COOLANT
CO-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

ENGINE COOLANTPFP:KQ100
InspectionEBS00KOG
LEVEL CHECK

Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” range when engine is cool.

Adjust engine coolant level as necessary.
LEAK CHECK

To check for leakage, apply pressure to the cooling system with
a radiator cap tester (commercial service tool) and a radiator
cap tester adapter (special service tool).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high-pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantEBS00KOH
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove the cap. First, turn the cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.

Be careful not to allow engine coolant to contact drive belt.
DRAINING ENGINE COOLANT
1. Remove RH and LH undercovers.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.
When drain all of engine coolant in the system, open water drain plug on cylinder block. Refer to
EM-94, "
ASSEMBLY" .
3. Remove reservoir tank as necessary, and drain engine coolant and clean reservoir tank before installing.
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC2250E

CO-10
[QR]
ENGINE COOLANT

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to CO-10, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-89, "CYLIN-
DER BLOCK" .
2. Make sure that each hose clamp has been firmly tightened.
3. Fill radiator and reservoir tank to specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine NISSAN Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat the engine.
6. Stop the engine and cool down to less than approximately 50°C (122°F).

Cool down using fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until the engine coolant level no
longer drops.
9. Check cooling system for leaks with the engine running.
10. Warm up the engine, and check for sound of engine coolant flow while running the engine from idle up to
3,000 rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating step 3 through 6 until the engine coolant
level no longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 7.1 (6-1/4 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
SMA412B

CO-28
[YD22DDTi]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00BAW
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ateRefer to DTC in EC1217
(cooling system)
— High resistance to fan rota-
tion
Fan assembly
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

CO-30
[YD22DDTi]
COOLING SYSTEM

COOLING SYSTEMPFP:21020

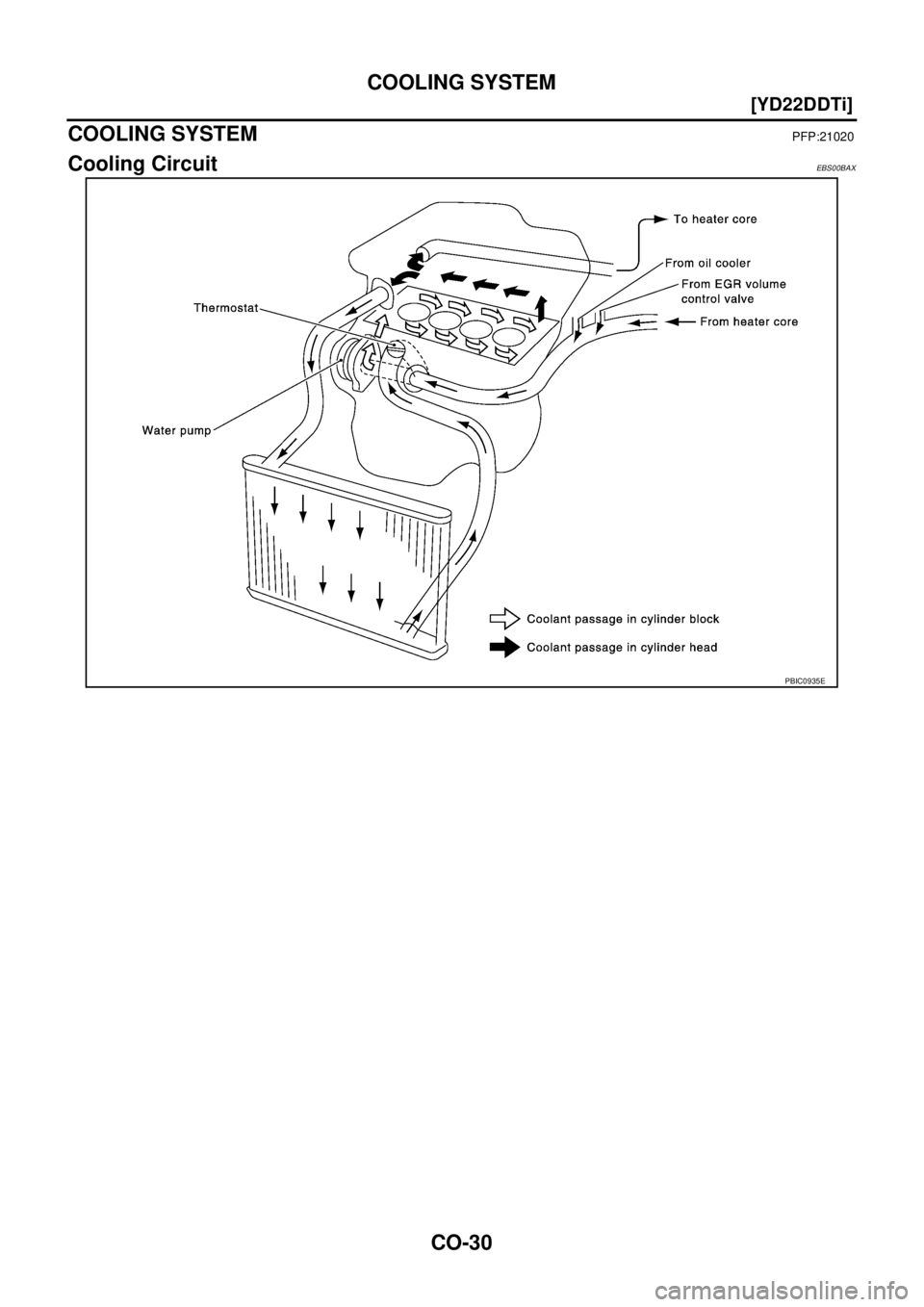

Cooling CircuitEBS00BAX
PBIC0935E

COOLING SYSTEM
CO-31
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

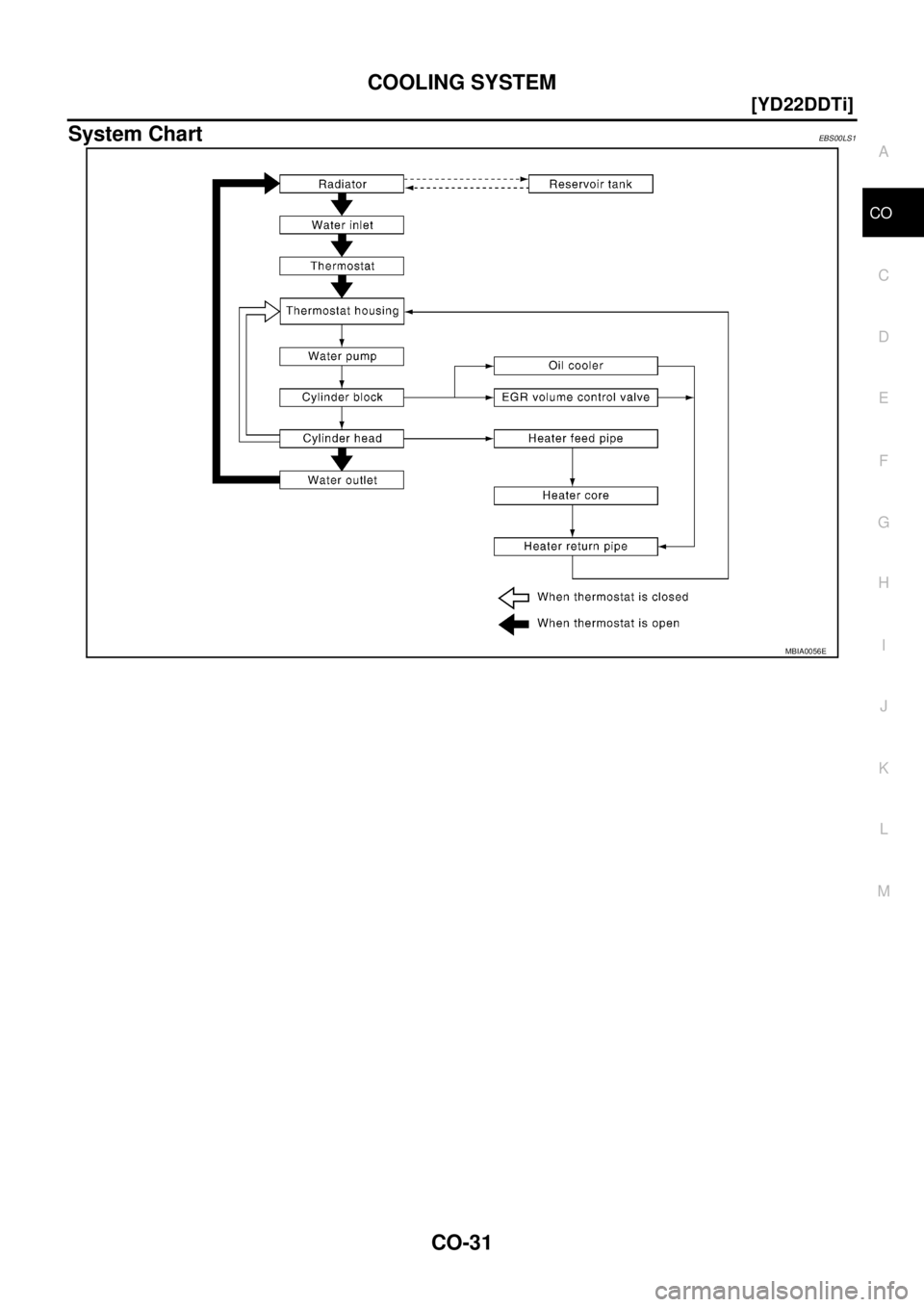

System ChartEBS00LS1
MBIA0056E

CO-32
[YD22DDTi]
ENGINE COOLANT

ENGINE COOLANTPFP:KQ100
InspectionEBS00BAY
LEVEL CHECK

Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” when engine is cool.

Adjust engine coolant level as necessary.
CHECKING RADIATOR SYSTEM FOR LEAKS

To check for leaks, apply pressure to the cooling system with the
radiator cap tester (commercial service tool) and the radiator
cap tester adapter (special service tool).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantEBS00BAZ
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around cap and carefully remove radiator cap. First, turn radiator cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.
DRAINING ENGINE COOLANT
1. Remove engine undercover.
2. Open radiator drain plug at the bottom of radiator, and remove
radiator cap.
CAUTION:

Be careful not to allow engine coolant to contact drive
belts.

Cover the exhaust tube heat shield to prevent from
splashing engine coolant.
When draining all engine coolant in the system, open water drain plug on engine cylinder block. Refer
to EM-231, "
DISASSEMBLY".
3. Remove reservoir tank, drain engine coolant, then clean reservoir tank.
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC0236E

ENGINE COOLANT
CO-33
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

If contaminated, flush engine cooling system. Refer to CO-34, "FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-235, "ASSEM-
BLY" .
2. Remove air relief plug.
3. Fill radiator and reservoir tank to the specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".

When engine coolant overflows air relief hole, install air relief
plug with new copper washer.
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
6. Stop engine and cool down to less than approximately 50°C(122°F).

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.
PBIC3608E
Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 9.5 (8-3/8 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
Air relief plug
: 7.4 N·m (0.75 kg-m, 65 in-lb)
SMA412B
