ENGINE COOLANT

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to CO-10, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-89, "CYLIN-
DER BLOCK" .
2. Make sure that each hose clamp has been firmly tightened.
3. Fill radiator and reservoir tank to specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine NISSAN Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat the engine.
6. Stop the engine and cool down to less than approximately 50°C (122°F).

Cool down using fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until the engine coolant level no
longer drops.
9. Check cooling system for leaks with the engine running.
10. Warm up the engine, and check for sound of engine coolant flow while running the engine from idle up to
3,000 rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating step 3 through 6 until the engine coolant
level no longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 7.1 (6-1/4 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
SMA412B

THERMOSTAT AND WATER CONTROL VALVE
CO-23
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationEBS00KOO
REMOVAL
1. Drain engine coolant. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belt.
2. Disconnect radiator hose (lower) at water inlet side. Refer to CO-12, "
RADIATOR" .
3. Remove water inlet and thermostat.
4. Remove water control valve with the following procedure:
a. Disconnect radiator hose (upper) at water control valve housing (water outlet) side.
b. Disconnect harness connector from engine coolant temperature sensor.
c. Disconnect water hoses.
d. Remove heater pipe and heater hose.
e. After removing water control valve housing (water outlet) and water control valve.
1. Thermostat 2. O-ring 3. Water inlet
4. Water control valve 5. O-ring 6. Gasket
7. Water control valve housing (water outlet) 8. Washer 9. Engine coolant temperature sensor
10. Water hose 11. Heater hose 12. O-ring
13. Heater pipe 14. Water hose 15. Heater hose
PBIC3597E

CO-24
[QR]
THERMOSTAT AND WATER CONTROL VALVE

INSPECTION AFTER REMOVAL

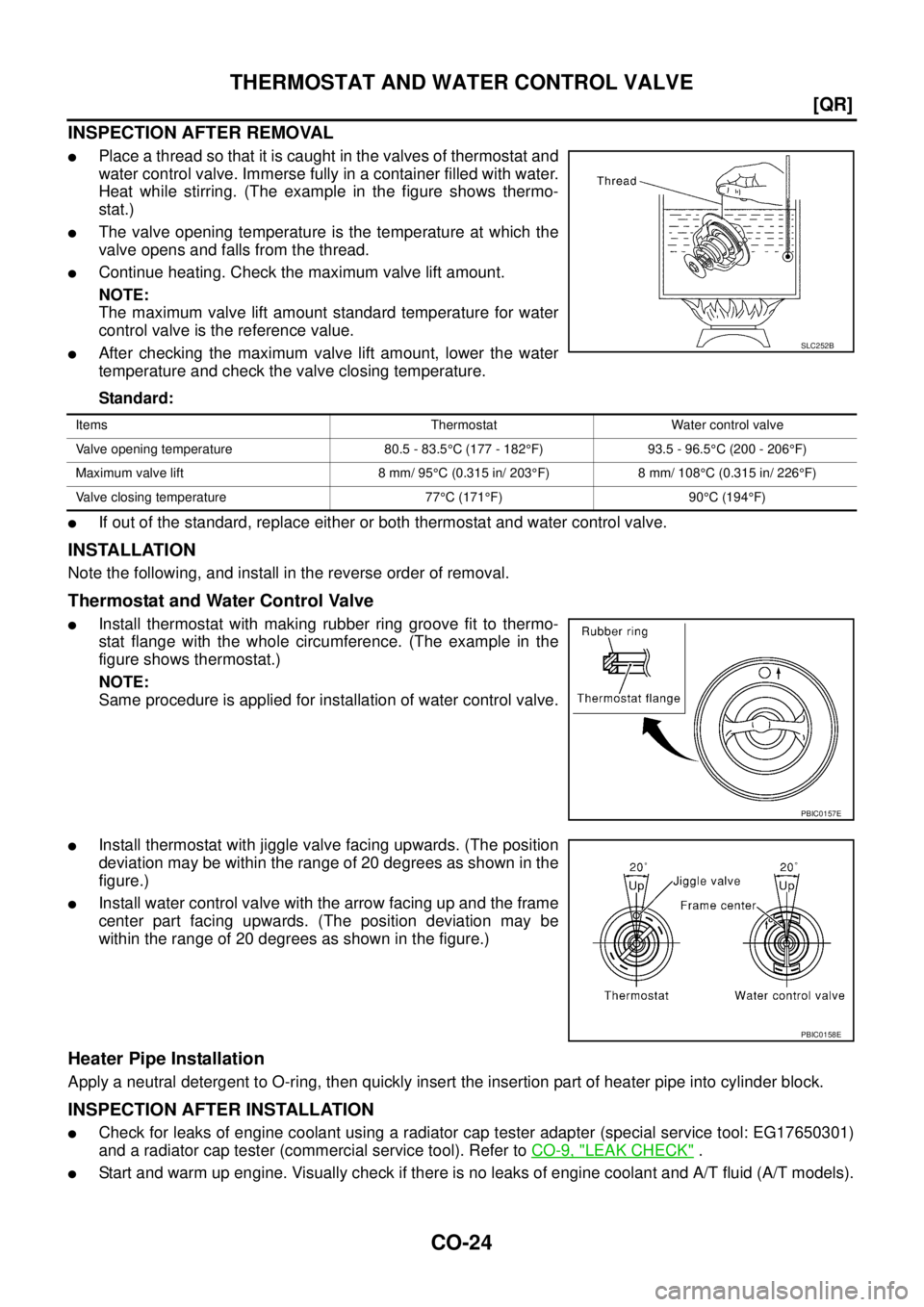

Place a thread so that it is caught in the valves of thermostat and
water control valve. Immerse fully in a container filled with water.
Heat while stirring. (The example in the figure shows thermo-
stat.)

The valve opening temperature is the temperature at which the
valve opens and falls from the thread.

Continue heating. Check the maximum valve lift amount.
NOTE:
The maximum valve lift amount standard temperature for water
control valve is the reference value.

After checking the maximum valve lift amount, lower the water
temperature and check the valve closing temperature.
Standard:

If out of the standard, replace either or both thermostat and water control valve.
INSTALLATION
Note the following, and install in the reverse order of removal.
Thermostat and Water Control Valve

Install thermostat with making rubber ring groove fit to thermo-
stat flange with the whole circumference. (The example in the
figure shows thermostat.)
NOTE:
Same procedure is applied for installation of water control valve.

Install thermostat with jiggle valve facing upwards. (The position
deviation may be within the range of 20 degrees as shown in the
figure.)

Install water control valve with the arrow facing up and the frame
center part facing upwards. (The position deviation may be
within the range of 20 degrees as shown in the figure.)
Heater Pipe Installation
Apply a neutral detergent to O-ring, then quickly insert the insertion part of heater pipe into cylinder block.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using a radiator cap tester adapter (special service tool: EG17650301)
and a radiator cap tester (commercial service tool). Refer to CO-9, "
LEAK CHECK" .

Start and warm up engine. Visually check if there is no leaks of engine coolant and A/T fluid (A/T models).
SLC252B
Items Thermostat Water control valve
Valve opening temperature 80.5 - 83.5°C (177 - 182°F) 93.5 - 96.5°C (200 - 206°F)
Maximum valve lift 8 mm/ 95°C (0.315 in/ 203°F) 8 mm/ 108°C (0.315 in/ 226°F)
Valve closing temperature 77°C (171°F) 90°C (194°F)
PBIC0157E
PBIC0158E

SERVICE DATA AND SPECIFICATIONS (SDS)
CO-25
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00KOP
CAPACITY
Unit: (lmp qt)
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
THERMOSTAT
WATER CONTROL VALVE
*: Reference data
Tightening TorqueEBS00KOQ
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*
Engine coolant capacity (With reservoir tank at “MAX” level) Approx. 7.1 (6-1/4)
Reservoir tank0.7 (5/8)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11- 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Valve opening temperature 80.5 - 83.5°C (177 - 182°F)
Maximum valve lift 8 mm/ 95°C (0.315 in/ 203°F)
Valve closing temperature 77°C (171°F)
Valve opening temperature 93.5 - 96.5°C (200 - 206°F)
Maximum valve lift 8 mm/ 108°C (0.315 in/ 226°F)*
Valve closing temperature 90°C (194°F)
Radiator mounting bracket 5.5 (0.56, 49)*
Radiator cooling fan assembly 5.5 (0.56, 49)*
Cooling fan3.43 (0.35, 30)*
Fan motor4.41 (0.45, 39)*
Water pump24.5 (2.5, 18)
Water pump housing28.0 (2.9, 21)
Water pipe28.0 (2.9, 21)
Water inlet28.0 (2.9, 21)
Water control valve housing (water outlet) 28.0 (2.9, 21)
Hater pipe28.0 (2.9, 21)
Engine coolant temperature sensor 24.5 (2.5, 18)

CO-28
[YD22DDTi]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00BAW
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ateRefer to DTC in EC1217
(cooling system)
— High resistance to fan rota-
tion
Fan assembly
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

ENGINE COOLANT
CO-33
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

If contaminated, flush engine cooling system. Refer to CO-34, "FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-235, "ASSEM-
BLY" .
2. Remove air relief plug.
3. Fill radiator and reservoir tank to the specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".

When engine coolant overflows air relief hole, install air relief
plug with new copper washer.
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
6. Stop engine and cool down to less than approximately 50°C(122°F).

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.
PBIC3608E
Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 9.5 (8-3/8 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
Air relief plug
: 7.4 N·m (0.75 kg-m, 65 in-lb)
SMA412B

THERMOSTAT AND WATER PIPING
CO-45
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

THERMOSTAT AND WATER PIPINGPFP:21200
Removal and InstallationEBS00BK9
WARNING:
Do not remove radiator cap when engine is hot. Serious burns could occur from high pressure engine
coolant escaping from radiator.
REMOVAL
1. Remove engine undercover.
2. Drain engine coolant. Refer to CO-32, "
DRAINING ENGINE COOLANT" .
CAUTION:
Perform when engine is cold.
3. Remove radiator hose (lower) from water inlet side. Refer to CO-35, "
RADIATOR" .
4. Remove water inlet and thermostat.
5. Remove thermostat housing.

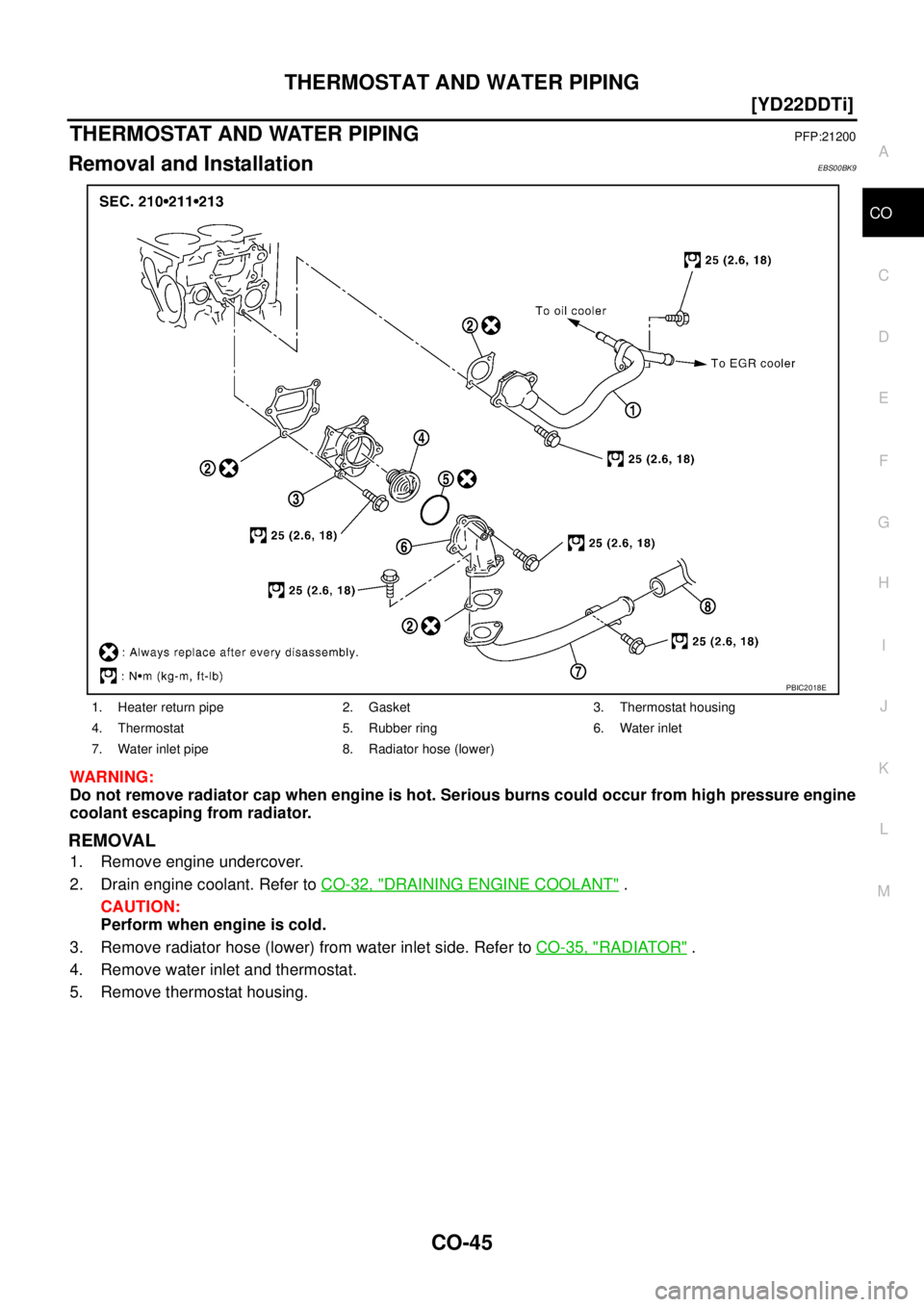

1. Heater return pipe 2. Gasket 3. Thermostat housing
4. Thermostat 5. Rubber ring 6. Water inlet
7. Water inlet pipe 8. Radiator hose (lower)
PBIC2018E

CO-46
[YD22DDTi]
THERMOSTAT AND WATER PIPING

INSPECTION AFTER REMOVAL
Thermostat

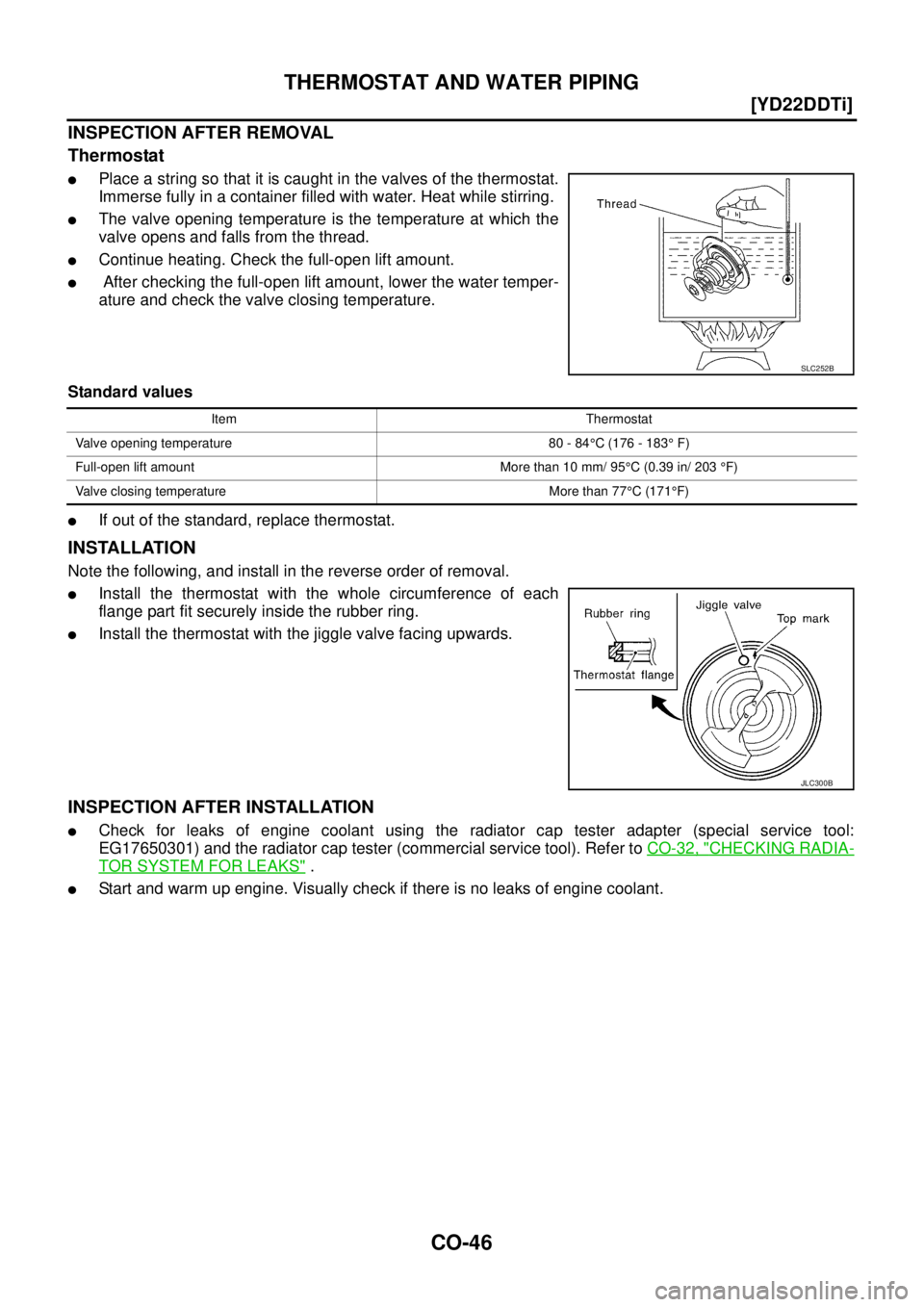

Place a string so that it is caught in the valves of the thermostat.
Immerse fully in a container filled with water. Heat while stirring.

The valve opening temperature is the temperature at which the
valve opens and falls from the thread.

Continue heating. Check the full-open lift amount.

After checking the full-open lift amount, lower the water temper-
ature and check the valve closing temperature.
Standard values

If out of the standard, replace thermostat.
INSTALLATION
Note the following, and install in the reverse order of removal.

Install the thermostat with the whole circumference of each
flange part fit securely inside the rubber ring.

Install the thermostat with the jiggle valve facing upwards.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter (special service tool:
EG17650301) and the radiator cap tester (commercial service tool). Refer to CO-32, "
CHECKING RADIA-
TOR SYSTEM FOR LEAKS" .

Start and warm up engine. Visually check if there is no leaks of engine coolant.
SLC252B
Item Thermostat
Valve opening temperature 80 - 84°C (176 - 183° F)
Full-open lift amount More than 10 mm/ 95°C (0.39 in/ 203 °F)
Valve closing temperature More than 77°C (171°F)
JLC300B
