Page 4161 of 4555
COMBINATION METERS
DI-13
C
D
E
F
G
H
I
J
L
MA
B
DI

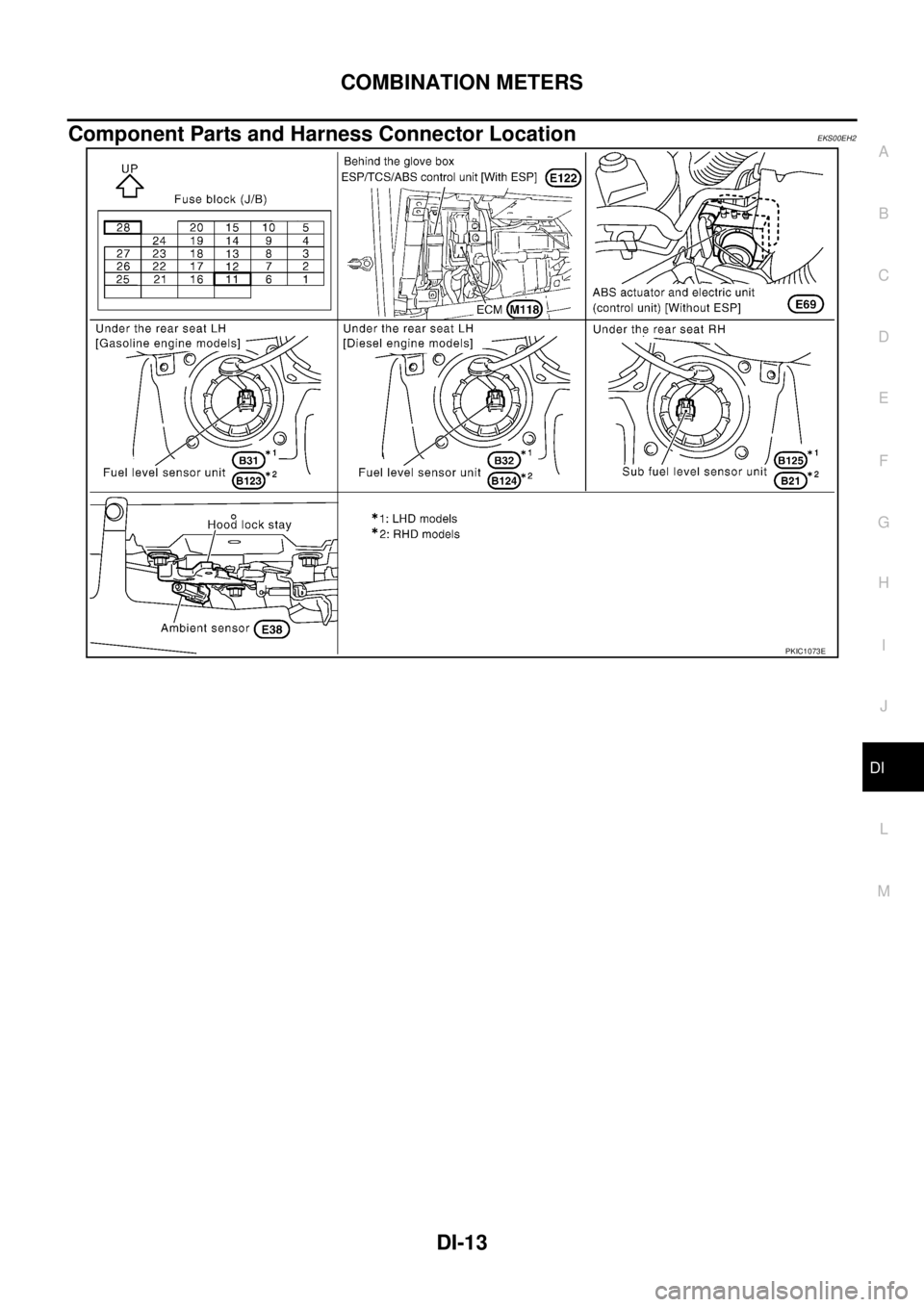

Component Parts and Harness Connector LocationEKS00EH2
PKIC1073E
Page 4162 of 4555
DI-14
COMBINATION METERS

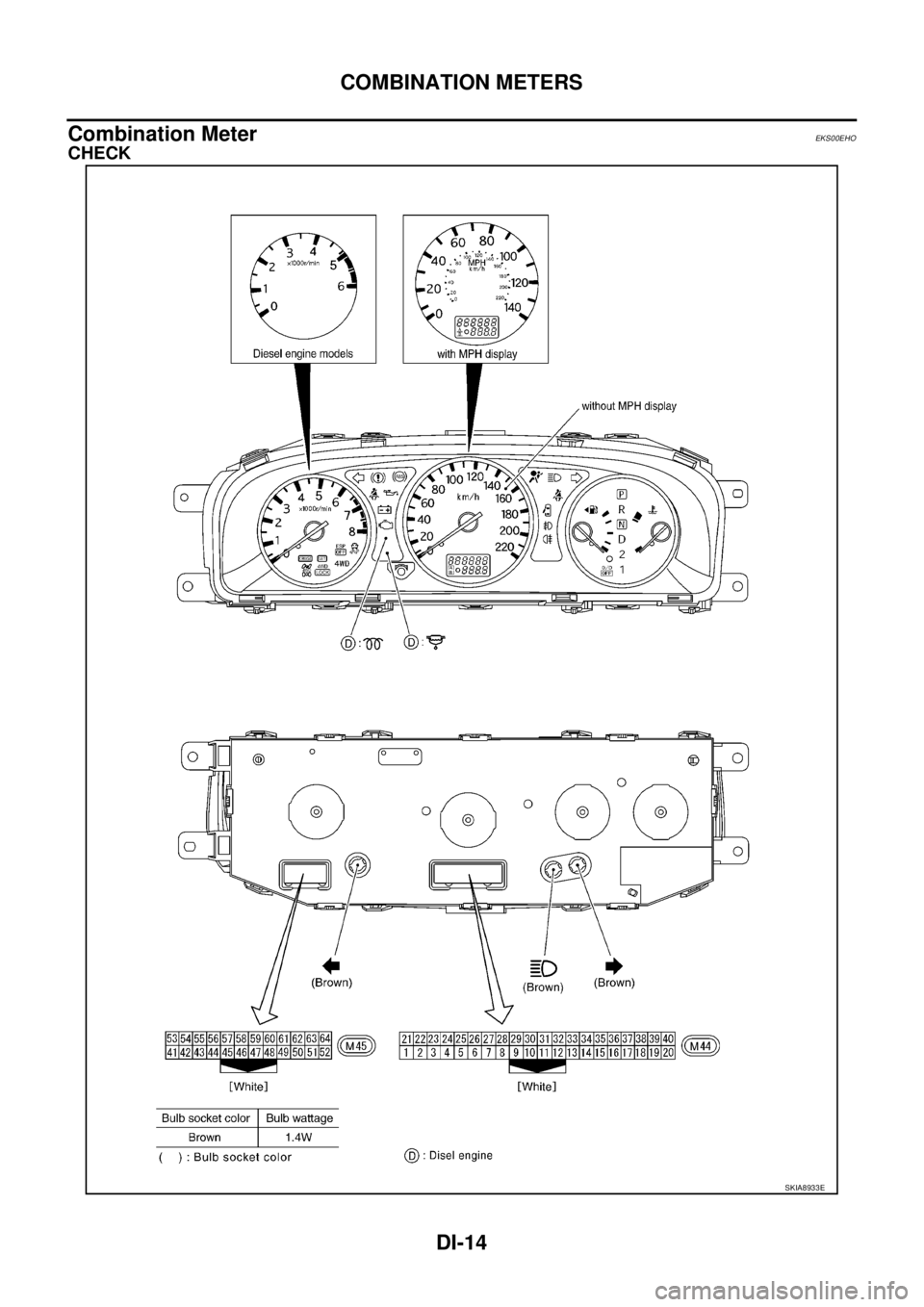

Combination MeterEKS00EHO
CHECK
SKIA8933E
Page 4163 of 4555
COMBINATION METERS
DI-15
C
D
E
F
G
H
I
J
L
MA
B
DI

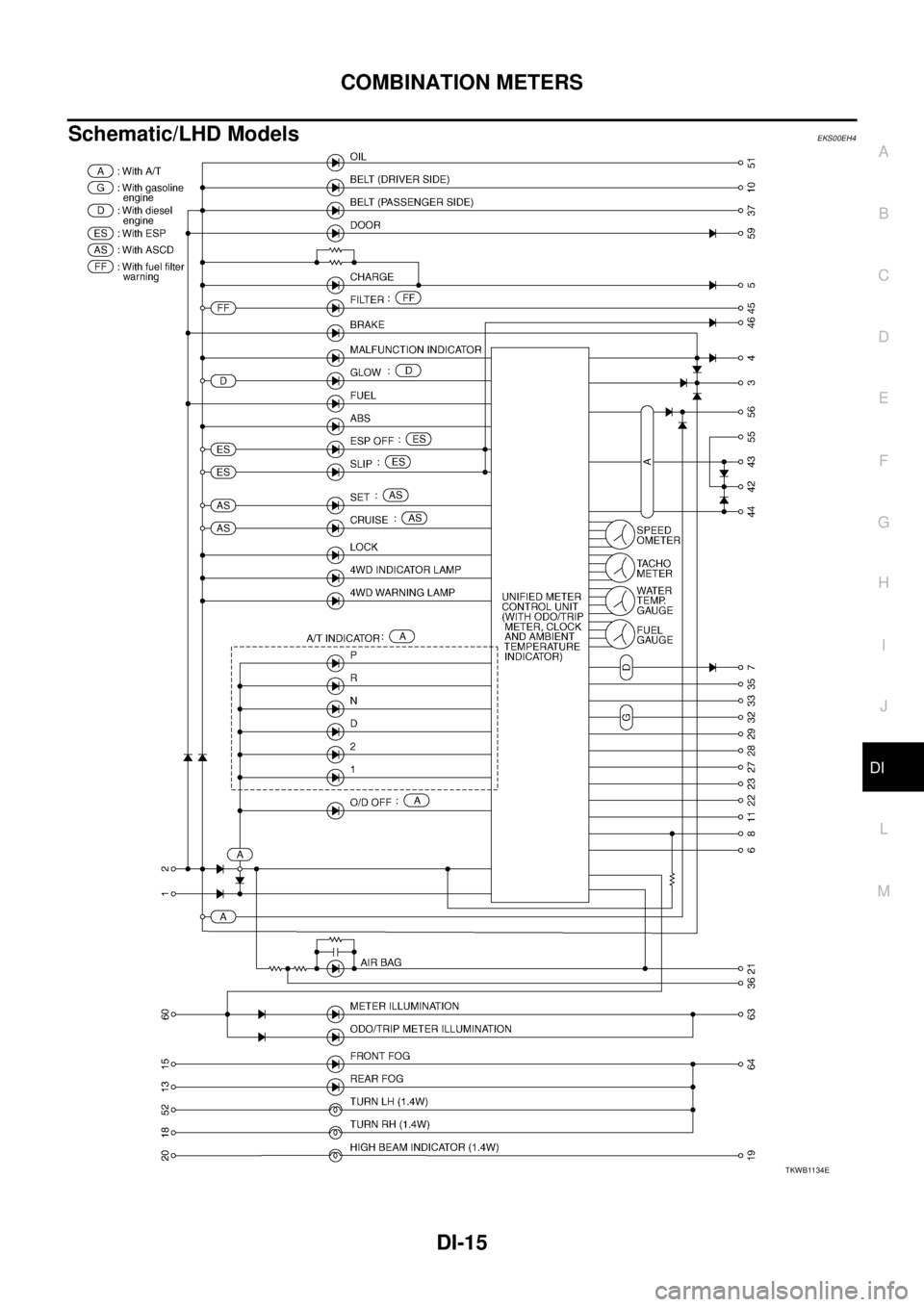

Schematic/LHD ModelsEKS00EH4
TKWB1134E
Page 4164 of 4555
DI-16
COMBINATION METERS

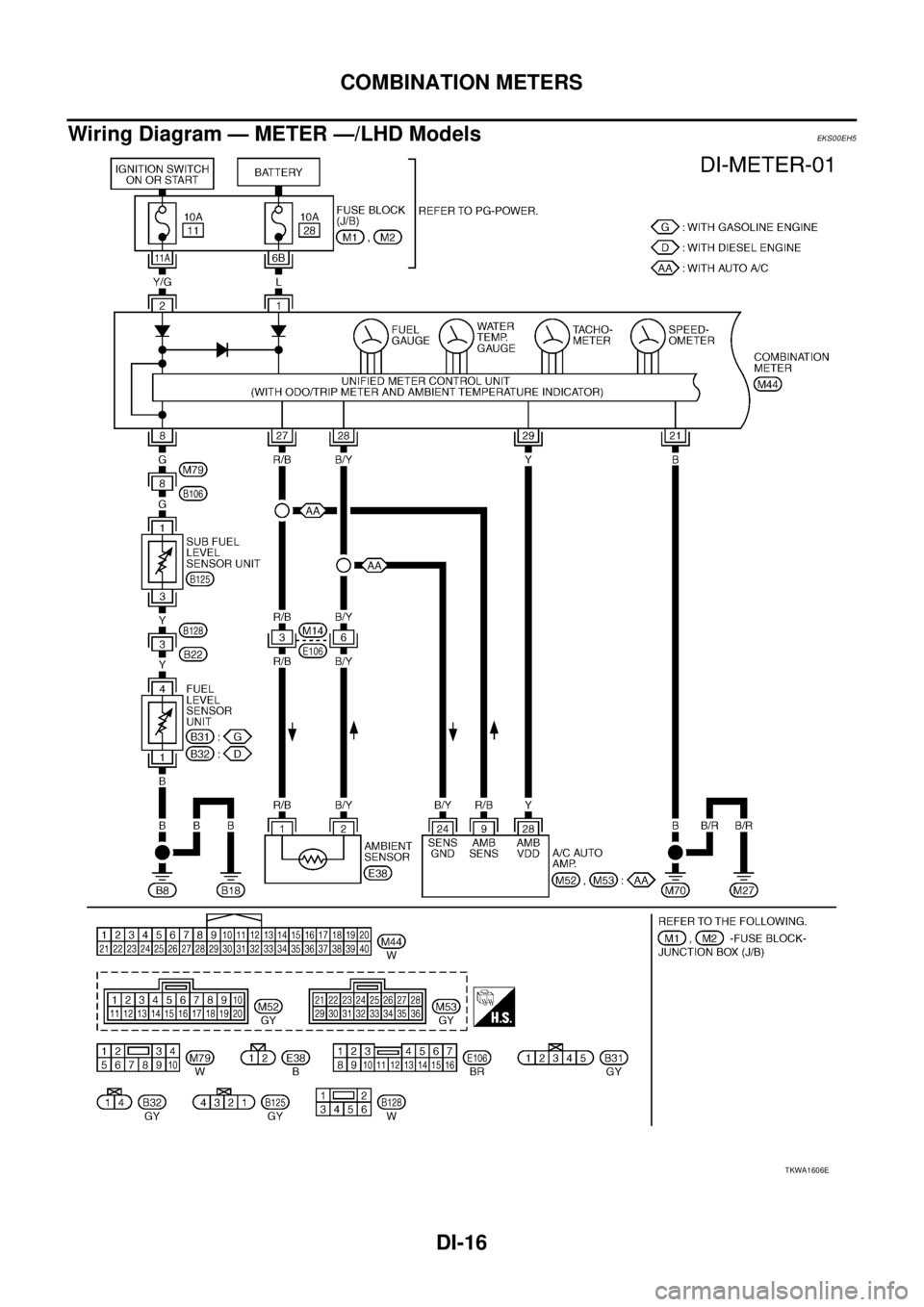

Wiring Diagram — METER —/LHD ModelsEKS00EH5
TKWA1606E
Page 4165 of 4555
COMBINATION METERS
DI-17
C
D
E
F
G
H
I
J
L
MA
B
DI

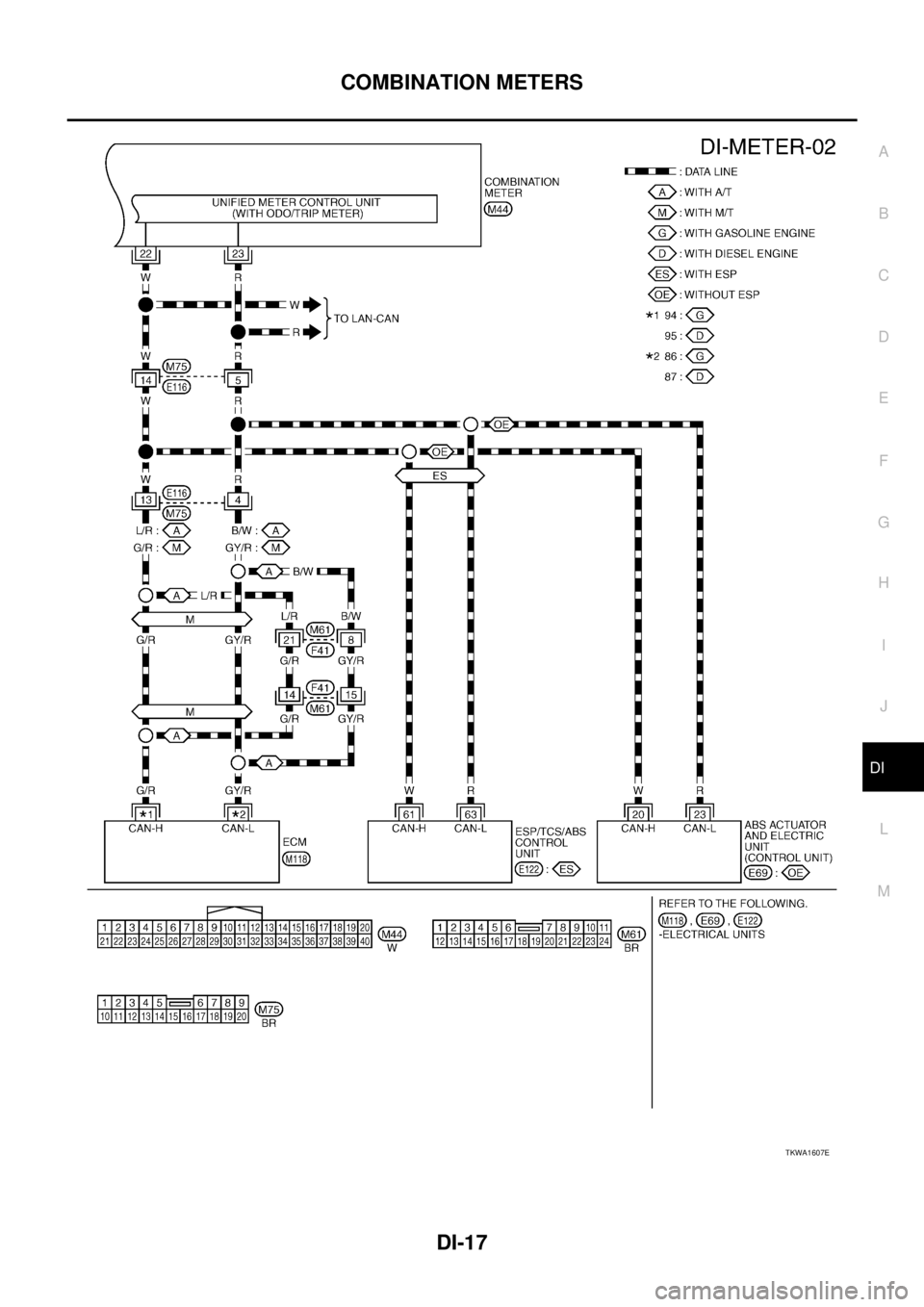

TKWA1607E
Page 4166 of 4555
DI-18
COMBINATION METERS

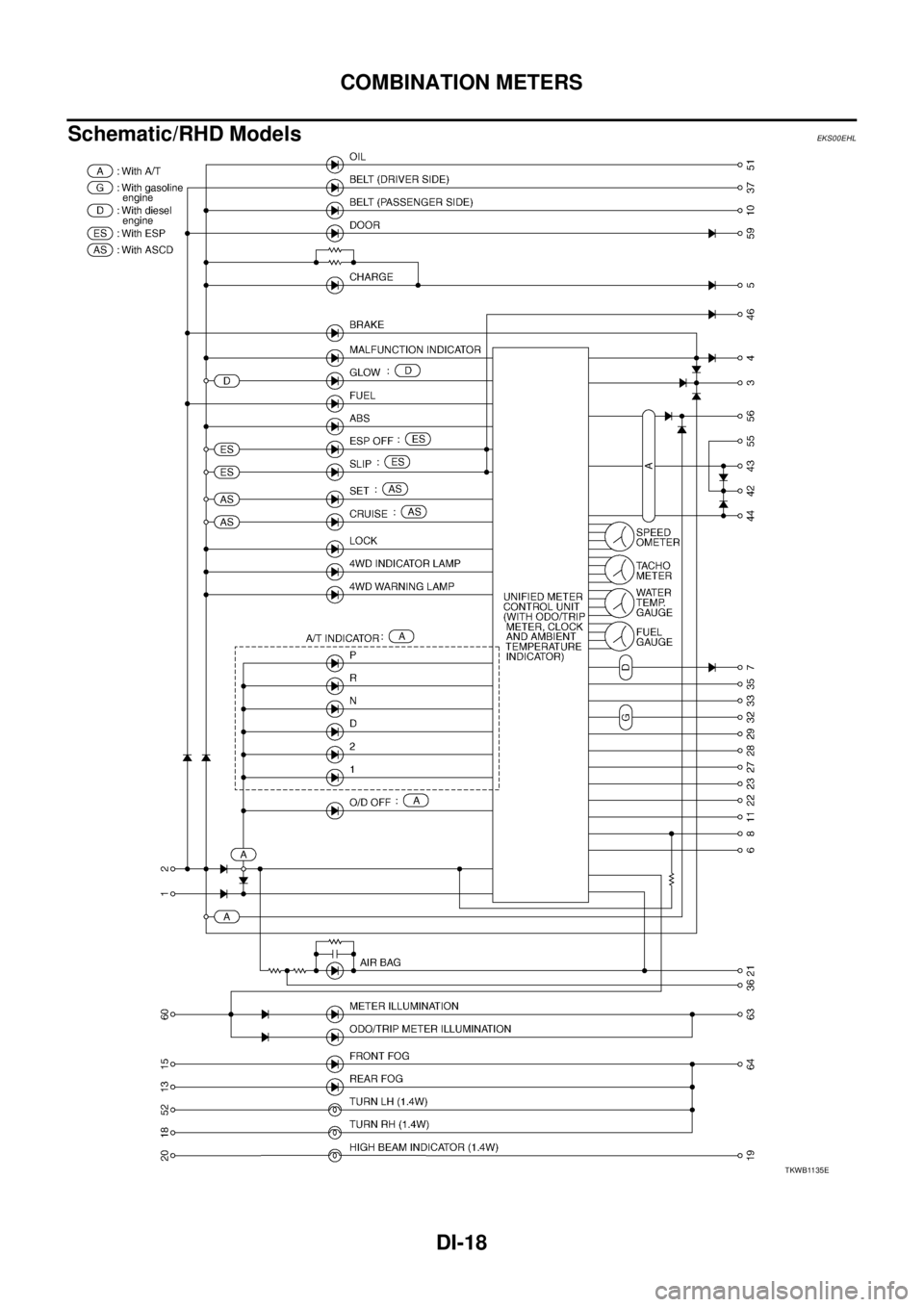

Schematic/RHD ModelsEKS00EHL
TKWB1135E
Page 4167 of 4555
COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI

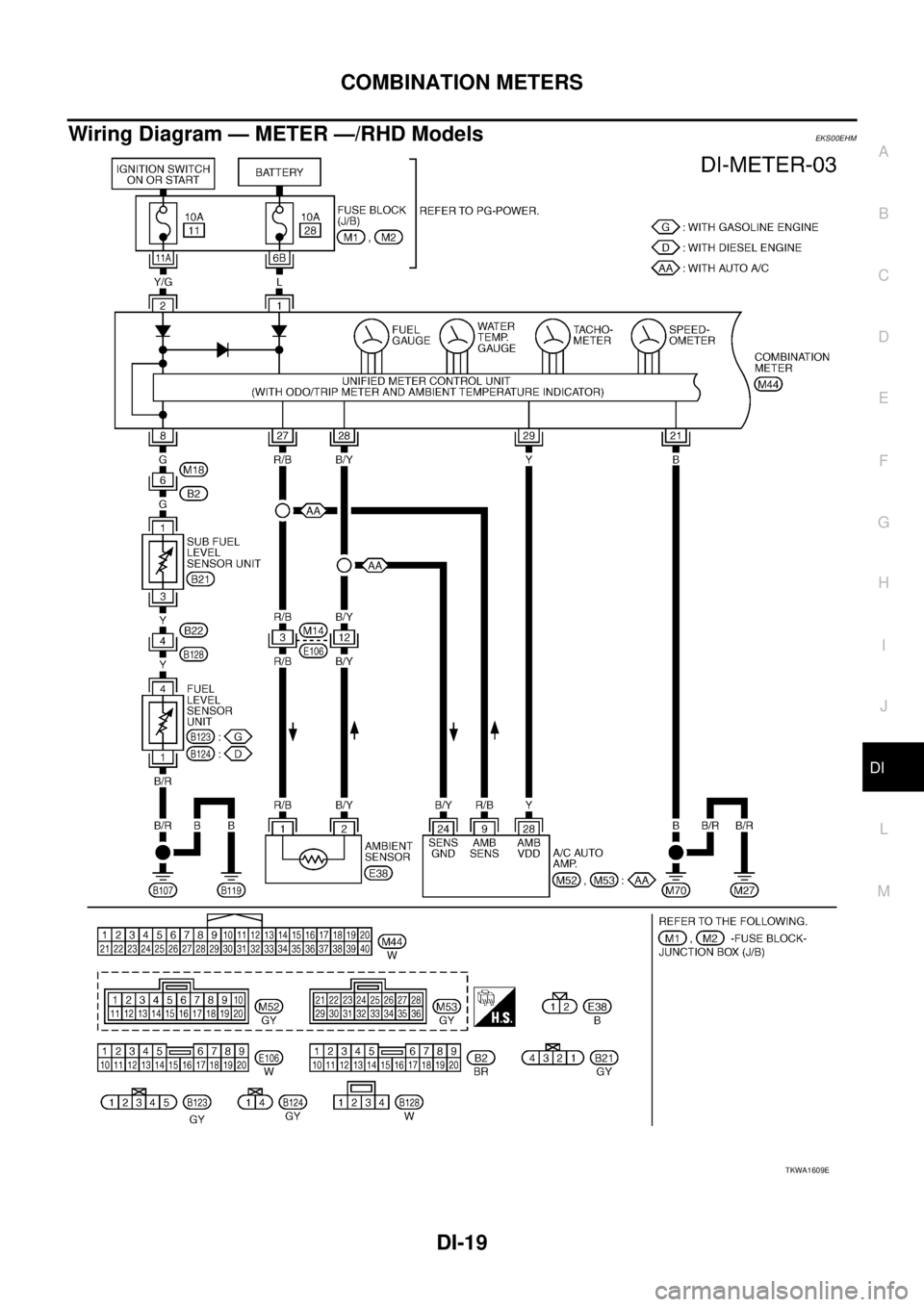

Wiring Diagram — METER —/RHD ModelsEKS00EHM
TKWA1609E
Page 4168 of 4555
DI-20
COMBINATION METERS
TKWB1774E
