2005 NISSAN X-TRAIL Cam position sensor

DTC P0341 CMP SENSOR
EC-1535
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

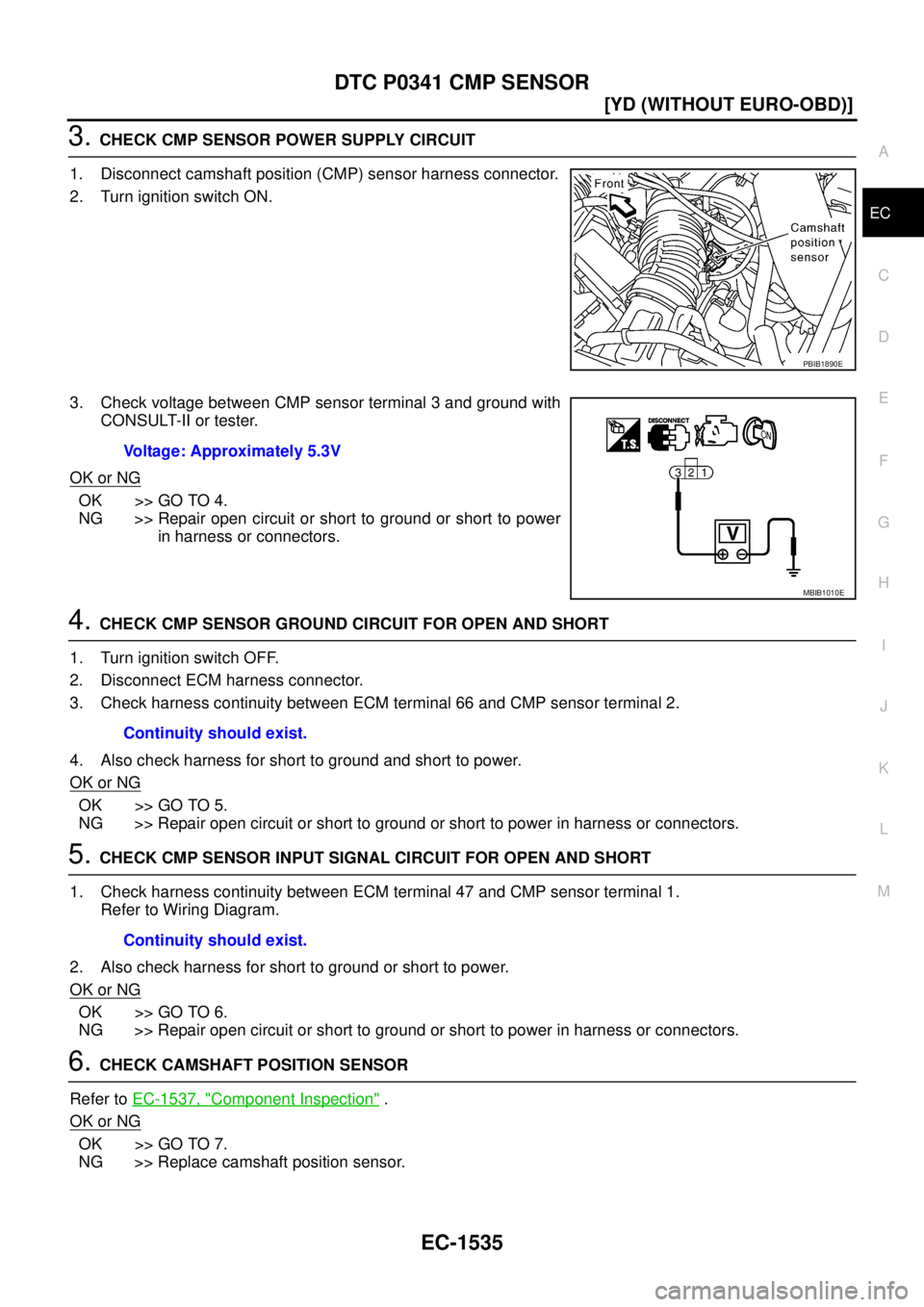

3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between CMP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and CMP sensor terminal 2.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 47 and CMP sensor terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK CAMSHAFT POSITION SENSOR
Refer to EC-1537, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace camshaft position sensor.
PBIB1890E
Voltage: Approximately 5.3V
MBIB1010E
Continuity should exist.
Continuity should exist.

DTC P0341 CMP SENSOR
EC-1537
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionEBS0121Z
CAMSHAFT POSITION SENSOR
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
6. If NG, replace camshaft position sensor.
Removal and InstallationEBS01220
CAMSHAFT POSITION SENSOR
Refer to EM-163, "VACUUM PUMP" .
MBIB0647E
Terminal No. (Polarity) ResistanceΩ [at 25°C (77°F)]
1 (+) - 2 (-)
Except 0
1 (+) - 3 (-)
2 (+) - 3 (-) Except 0 or ∞
MBIB1009E

DTC P0652, P0653 SENSOR POWER SUPPLY
EC-1579
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

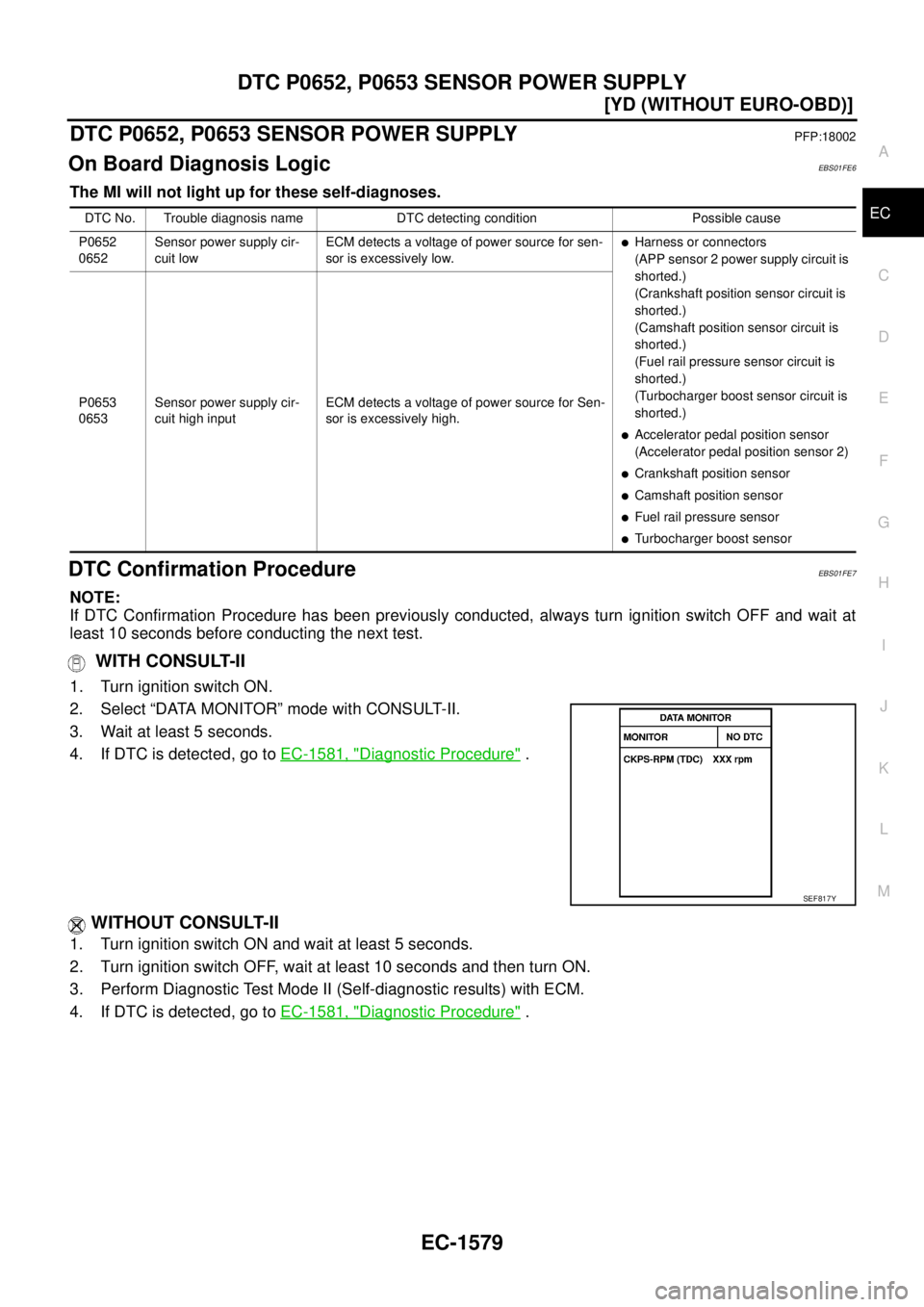

DTC P0652, P0653 SENSOR POWER SUPPLYPFP:18002
On Board Diagnosis LogicEBS01FE6
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS01FE7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1581, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1581, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0652
0652Sensor power supply cir-
cuit lowECM detects a voltage of power source for sen-
sor is excessively low.

Harness or connectors
(APP sensor 2 power supply circuit is
shorted.)
(Crankshaft position sensor circuit is
shorted.)
(Camshaft position sensor circuit is
shorted.)
(Fuel rail pressure sensor circuit is
shorted.)
(Turbocharger boost sensor circuit is
shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 2)

Crankshaft position sensor

Camshaft position sensor

Fuel rail pressure sensor

Turbocharger boost sensor P0653
0653Sensor power supply cir-
cuit high inputECM detects a voltage of power source for Sen-
sor is excessively high.
SEF817Y

DTC P0652, P0653 SENSOR POWER SUPPLY
EC-1581
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

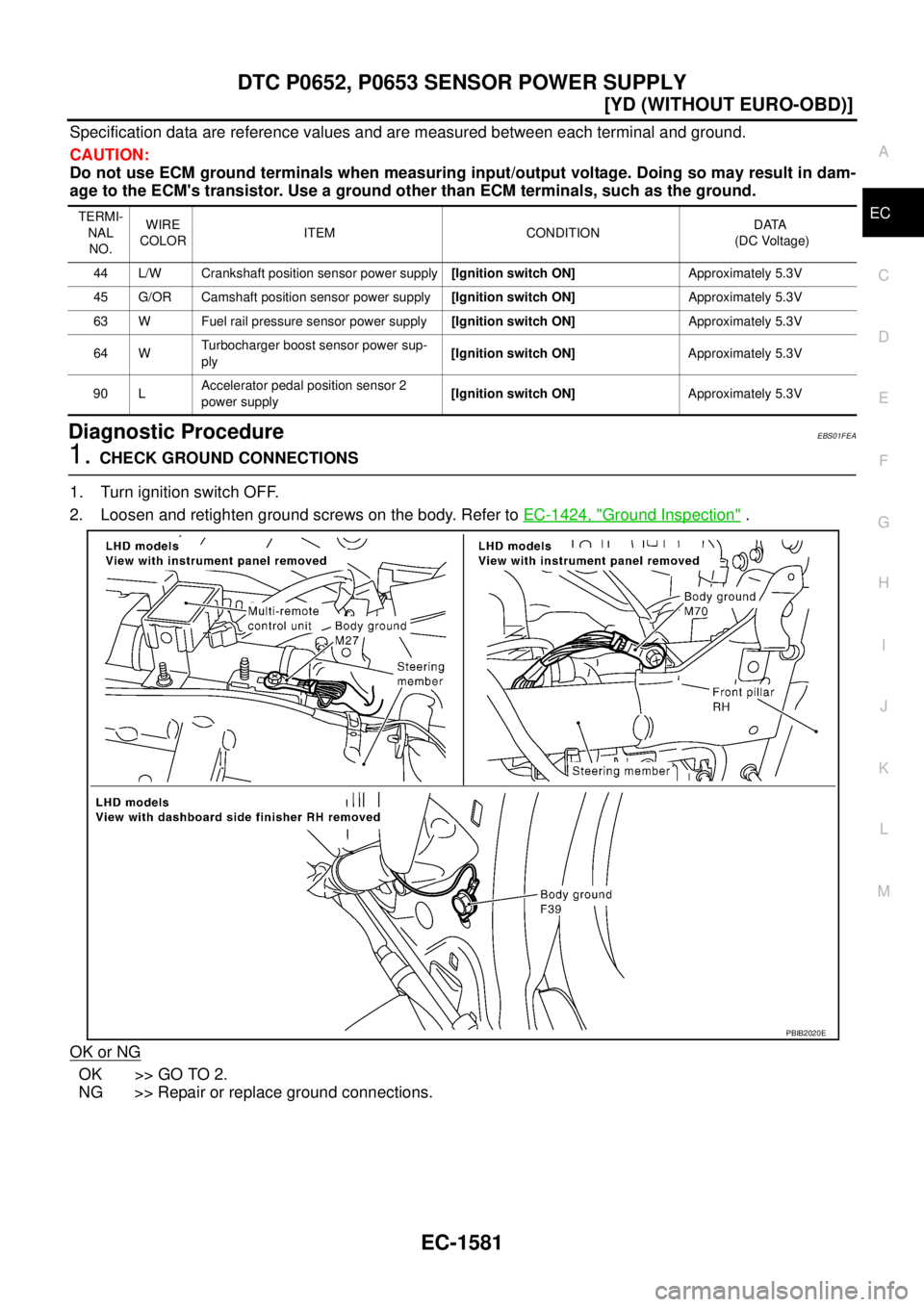

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01FEA
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
44 L/W Crankshaft position sensor power supply[Ignition switch ON]Approximately 5.3V
45 G/OR Camshaft position sensor power supply[Ignition switch ON]Approximately 5.3V
63 W Fuel rail pressure sensor power supply[Ignition switch ON]Approximately 5.3V
64 WTurbocharger boost sensor power sup-
ply[Ignition switch ON]Approximately 5.3V
90 LAccelerator pedal position sensor 2
power supply[Ignition switch ON]Approximately 5.3V
PBIB2020E

EC-1582
[YD (WITHOUT EURO-OBD)]
DTC P0652, P0653 SENSOR POWER SUPPLY

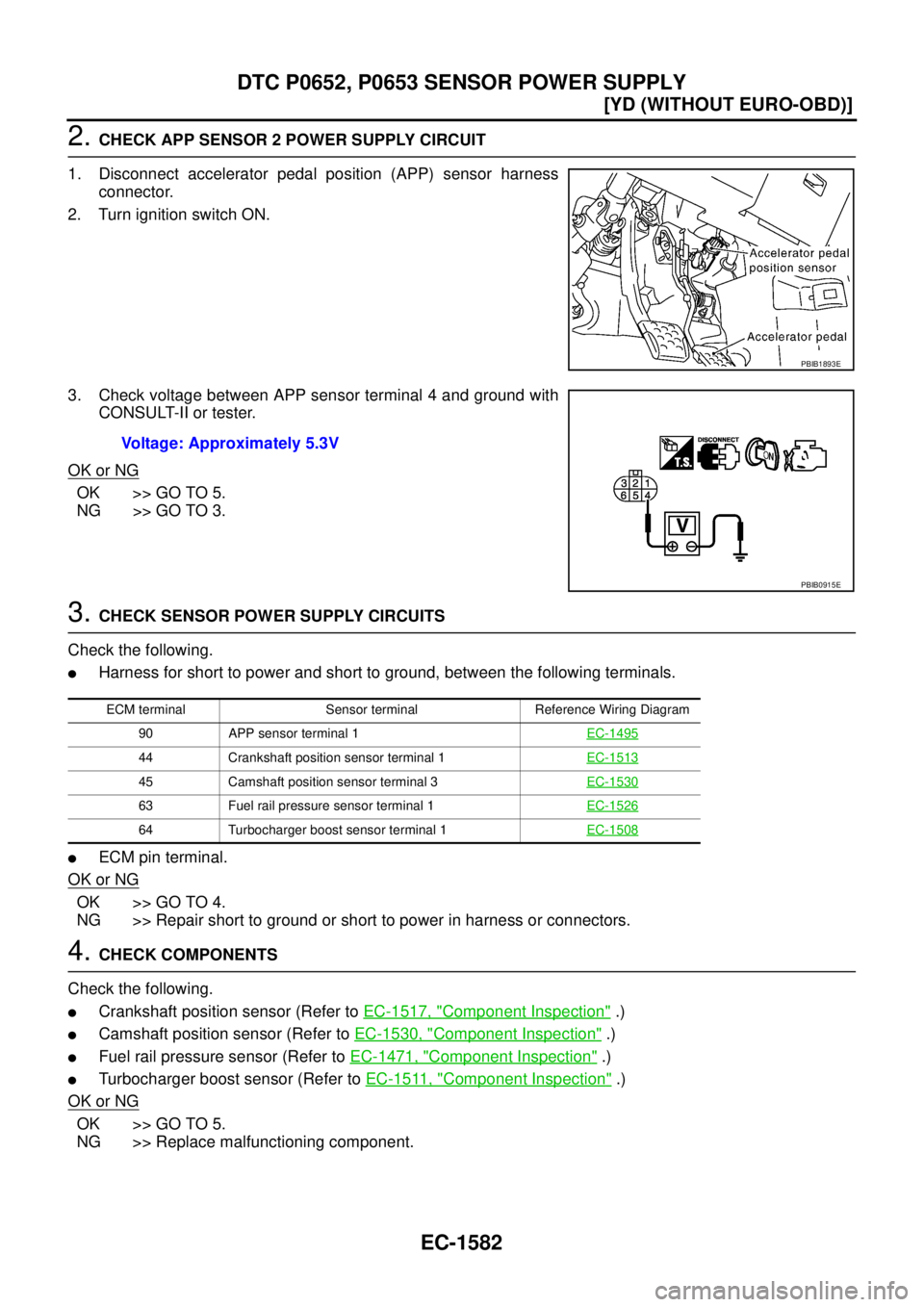

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check the following.

Harness for short to power and short to ground, between the following terminals.

ECM pin terminal.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.

Crankshaft position sensor (Refer to EC-1517, "Component Inspection" .)

Camshaft position sensor (Refer to EC-1530, "Component Inspection" .)

Fuel rail pressure sensor (Refer to EC-1471, "Component Inspection" .)

Turbocharger boost sensor (Refer to EC-1511, "Component Inspection" .)
OK or NG
OK >> GO TO 5.
NG >> Replace malfunctioning component.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0915E
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 1EC-1495
44 Crankshaft position sensor terminal 1EC-1513
45 Camshaft position sensor terminal 3EC-1530
63 Fuel rail pressure sensor terminal 1EC-1526
64 Turbocharger boost sensor terminal 1EC-1508

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-1701
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
General SpecificationsEBS0126P
Mass Air Flow SensorEBS0126Q
Engine Coolant Temperature SensorEBS0126R
Fuel Rail Pressure SensorEBS0126S
Glow PlugEBS0126T
EGR Volume Control ValveEBS0126U
Crankshaft Position Sensor EBS0126V
Refer to EC-1517, "Component Inspection" .
Camshaft Position Sensor EBS0126W
Refer to EC-1530, "Component Inspection" .
EngineYD22DDTi
Idle speed725 ± 25 rpm
Maximum engine speed 4,900 rpm
Supply voltageBattery voltage (11 - 14V)
Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed up to normal operating temperature.) 1.5 - 2.0V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.2 - 2.7V
Temperature °C (°F)Resistance kΩ
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Supply voltageApproximately 5V
Idle (Engine is warmed up to normal operating temperature.) 1.7 - 2.0V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.0 - 2.3V
Resistance [at 25°C (77°F)] Ω Approximately 0.8
Resistance [at 25°C (77°F)] Ω13 - 17

HARNESS
PG-65
C
D
E
F
G
H
I
J
L
MA
B
PG

Wiring Diagram Codes (Cell Codes) EKS0032J
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.
Code Section Wiring Diagram Name
1STSIG AT A/T 1st Signal
2NDSIG AT A/T 2nd Signal
3RDSIG AT A/T 3rd Signal
4THSIG AT A/T 4th Signal
4WD TF 4WD Control system
A/C ATC Air Conditioner
ABS BRC Anti-Lock Brake System
APP1PW EC Accelerator Pedal Position Sensor 1 Power Supply
APP2PW EC Accelerator Pedal Position Sensor 2 Power Supply
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
ASC/BS EC Automatic Speed Control Device (ASCD) Brake Switch
ASC/SW EC Automatic Speed Control Device (ASCD) Steering Switch
ASCBOF EC Automatic Speed Control Device (ASCD) Brake Switch
ASCIND EC Automatic Speed Control Device (ASCD) Indicator
AT/IND DI A/T Indicator Lamp
AUDIO AV Audio
BA/FTS AT A/T Fluid Temperature Sensor and TCM Power Supply
BACK/L LT Back-Up Lamp
BOOST EC Turbocharger Boost Sensor
BRK/SW EC Brake Switch
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN LAN CAN System
CHARGE SC Charging System
CHIME DI Warning Chime
CIGAR WW Cigarette Lighter
CKPS EC Crankshaft Position Sensor
CLOCK DI Clock
CMPS EC Camshaft Position Sensor
COOL/F EC Cooling Fan Control
D/LOCK BL Power Door Lock
DEF GW Rear Window Defogger
DTRL LT Headlamp - With Daytime Light System
ECM/PW EC ECM Power Supply for Back-Up
ECMRLY EC ECM Relay
ECTS EC Engine Coolant Temperature Sensor
EGRVLV EC EGR Volume Control Valve
EGVC/V EC EGR Volume Control Valve
ENGSS AT Engine Speed Signal

HARNESS
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG

NATS BL Nissan Anti-Theft System
NAVI AV Navigation System
NONDTC AT Non-Detective Items
OVRCSV AT Overrun Clutch Solenoid Valve
P/SCKT WW Power Socket
PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE)
PHONE AV Telephone (Pre-wire)
PNP/SW AT Park/Neutral Position Switch
PNP/SW EC Park/Neutral Position Switch
PNPSW1 EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (CKPS) (POS)
POWER PG Power Supply Routing
PRGVLV EC EVAP Canister Purge Volume Control Solenoid Valve
PRWIRE BL Theft Warning System (Pre-wire)
PS/SEN EC Power Steering Pressure Sensor
PST/SW EC Power Steering Oil Pressure Switch
R/FOG LT Rear Fog Lamp
ROOM/L LT Interior Room Lamp
RP/SEN EC Refrigerant Pressure Sensor
RRO2 EC Rear Heated Oxygen Sensor
RRO2/H EC Rear Heated Oxygen Sensor Heater
S/LOCK BL Power Door Lock - Super Lock
S/SIG EC Start Signal
S/WARN SB Seat Belt Warning System
SEAT SE Power Seat
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
SSV/A AT Shift Solenoid Valve A
SSV/B AT Shift Solenoid Valve B
START SC Starting System
STEP/L LT Step Lamp
STOP/L LT Stop Lamp
TAIL/L LT Parking, License and Tail Lamps
TCC/V EC Turbocharger Boost Control Solenoid Valve
TCCSV EC Turbocharger Boost Control Solenoid Valve
TCV AT Torque Converter Clutch Solenoid Valve
TPS AT Throttle Position Sensor
TPS1 EC Throttle Position Sensor (Sensor 1)
TPS2 EC Throttle Position Sensor (Sensor 2)
TPS3 EC Throttle Position Sensor
TURN LT Turn Signal and Hazard Warning LampCode Section Wiring Diagram Name
