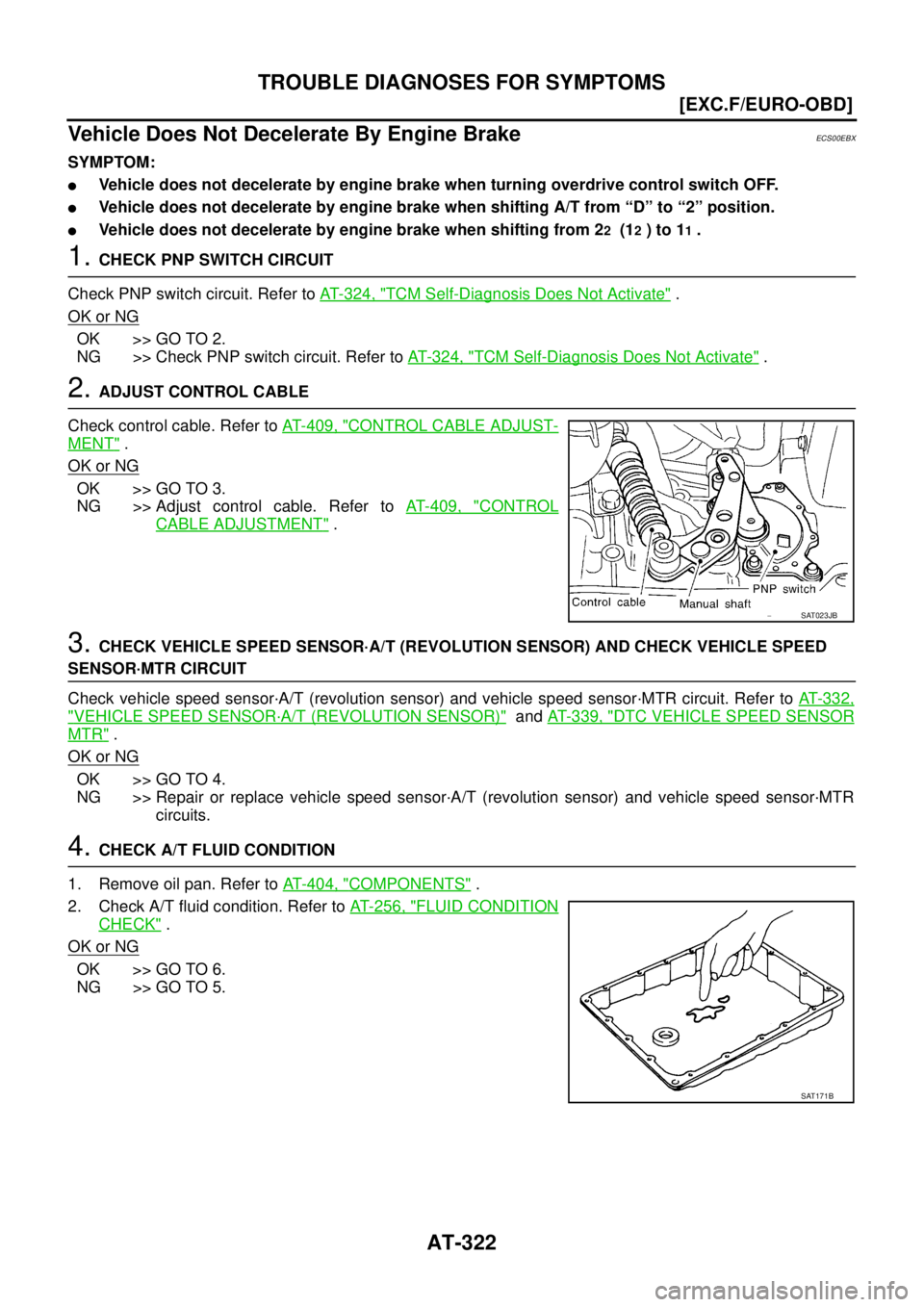

2005 NISSAN X-TRAIL brake sensor

AT-322
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

Vehicle Does Not Decelerate By Engine BrakeECS00EBX
SYMPTOM:

Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.

Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.

Vehicle does not decelerate by engine brake when shifting from 22 (12 ) to 11 .
1. CHECK PNP SWITCH CIRCUIT
Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-Diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 2.
NG >> Check PNP switch circuit. Refer to AT- 3 2 4 , "
TCM Self-Diagnosis Does Not Activate" .
2. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
CONTROL CABLE ADJUST-
MENT" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
CONTROL
CABLE ADJUSTMENT" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 3 2 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR
MTR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
SAT023JB
SAT171B

TF-14
ALL MODE 4X4 SYSTEM

COMPONENTS FUNCTION DESCRIPTION
CAN CommunicationEDS0027K
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitEDS002XA
Component parts Function
4WD control unit

Controls driving force distribution by signals from each sensor and switch from front wheel driving
mode (100:0) to 4WD mode (50:50).

2WD mode is available by fail-safe function if malfunction is detected in electrical system.
Wheel sensors Detects wheel speed.
4WD solenoid Controls electric controlled coupling by operation signal from 4WD control unit.
Electric controlled coupling Transmits driving force to rear final drive.
4WD mode switch Able to select from 2WD, AUTO or LOCK mode.
4WD warning lamp

Illuminates if malfunction is detected in electrical system of 4WD system.

There is 1 blink in 2 seconds if rotation difference of front wheels and rear wheels is large.

There are 2 blinks in 1 second if load is still applied to driving parts.
4WD indicator lamp Indicate operation with optimal distribution of torque to front/rear wheels.
LOCK indicator lamp Indicate that 4WD system is under direct 4-wheel driving mode.
ABS actuator and electric unit
(control unit) (without ESP) or
ESP/TCS/ABS control unit (with
ESP)Transmits the following signals via CAN communication to 4WD control unit.

Vehicle speed signal

Stop lamp switch signal (brake signal)
ECMTransmits the following signals via CAN communication to 4WD control unit.

Accelerator pedal position signal

Engine speed signal
Unified meter control unit Transmits conditions of parking brake switch via CAN communication to 4WD control unit.
Body typeWagon
Axle4WD
Engine YD22DDTi QR20DE/QR25DE YD22DDTi QR25DE
Transmission M/T A/T M/T A/T
Brake control ABS ESP
CAN system type 123456

ALL MODE 4X4 SYSTEM
TF-17
C
E
F
G
H
I
J
K
L
MA
B
TF

TYPE 4/TYPE 5
System diagram
Input/output signal chart
T: Transmit R: Receive ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
PKIA9634E
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal*
2TR
A/C switch signal*
1RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal*1 TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

TF-18
ALL MODE 4X4 SYSTEM

*1: YD engine models only
*2: QR engine models only
TYPE 6
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA9635E
Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Closed throttle position signal T R
Engine and A/T integratedTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
SLIP indicator lamp signal T R
Steering angle sensor signal R T

ALL MODE 4X4 SYSTEM
TF-19
C
E
F
G
H
I
J
K
L
MA
B
TF

Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Parking brake switch signalRT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter

TROUBLE DIAGNOSIS
TF-29
C
E
F
G
H
I
J
K
L
MA
B
TF

Trouble Diagnosis Chart for SymptomsEDS001VJ
If 4WD warning lamp turns ON, perform self-diagnosis. Refer to TF-32, "SELF-DIAG RESULT MODE" .
NOTE:

Light tight-corner braking symptom may occur depending on driving conditions in AUTO mode. This is not malfunction.

Heavy tight-corner braking symptom occurs when vehicle is driven in the following conditions: LOCK mode, steering
wheel is turned fully to either sides, and accelerator pedal was depressed.Symptom Condition Check item Reference page
4WD indicator lamp and LOCK indicator
lamp do not turn ON for approx. 1 second
when the ignition switch is turned to ON.
(4WD indicator lamp and LOCK indicator
lamp check)Ignition switch: ONCAN communication line
TF-46
Power supply and ground for 4WD con-
trol unit
Unified meter control unit
4WD warning lamp does not turn ON when
the ignition switch is turned to ON.
(4WD warning lamp check)Ignition switch: ONCAN communication line
TF-47
Unified meter control unit
4WD warning lamp does not turn OFF sev-
eral seconds after engine started.Engine runningCAN communication line
TF-48
Power supply and ground for 4WD con-
trol unit
Unified meter control unit
4WD solenoid
4WD actuator relay (integrated in 4WD
control unit)
Wheel sensor
4WD mode cannot be switched after engine
is started.Engine running4WD mode switch
TF-49
CAN communication line
Unified meter control unit
Heavy tight-corner braking symptom occurs
when the vehicle is driven in AUTO mode
and the steering wheel is turned fully to
either side after the engine is started. (See
NOTE.)

While driving

AUTO mode

Steering wheel is
turned fully to either
sidesCAN communication line
TF-50
4WD mode switch
Accelerator pedal position signal
4WD solenoid
Mechanical malfunction of electric con-
trolled coupling (clutch sticking etc.)
Vehicle does not enter 4WD mode even
though 4WD warning lamp turned to OFF.Vehicle speed: 10 km/h
(6 MPH) or less4WD solenoid
TF-51
Mechanical malfunction of electric con-
trolled coupling (Mechanical engage-
ment of clutch is not possible.)
Vehicle speed: 10 km/h
(6 MPH) or moreOperating condition of parking brake
4WD solenoid
Mechanical malfunction of electric con-
trolled coupling (Mechanical engage-
ment of clutch is not possible.)
While driving, 4WD warning lamp flashes
rapidly. (When flashing in approx. 1 minute
and then turning OFF.)
Rapid flashing: 2 times/second

While driving

AUTO mode and
LOCK modeProtection function is activated due to
heavy load to electric controlled cou-
pling. (4WD system is not malfunction-
ing.)TF-52
While driving, 4WD warning lamp flashes
slowly. (When continuing to flash until turn-
ing ignition switch OFF)
Slow flashing: 1 time/2 seconds
While driving

Vehicle speed: 20 km/h
(12 MPH) or moreTire size is different between front and
rear of vehicle.TF-53

TF-30
TROUBLE DIAGNOSIS

4WD Control Unit Input/Output Signal Reference ValuesEDS001VK
4WD CONTROL UNIT INSPECTION TABLE
Specifications with CONSULT-II
Monitor item [Unit] Content Condition Display value
FR RH SENSOR [km/h] or [mph]Wheel speed (Front wheel
right)Vehicle stopped 0.00 km/h (0.00 mph)
Vehicle running
CAUTION:
Check air pressure of tire under
standard condition.Approximately equal to
the indication on speed-
ometer (Inside of ±10%)
FR LH SENSOR [km/h] or [mph]Wheel speed (Front wheel
left)Vehicle stopped 0.00 km/h (0.00 mph)
Vehicle running
CAUTION:
Check air pressure of tire under
standard condition.Approximately equal to
the indication on speed-
ometer (Inside of ±10%)
RR RH SENSOR [km/h] or [mph]Wheel speed (Rear wheel
right)Vehicle stopped 0.00 km/h (0.00 mph)
Vehicle running
CAUTION:
Check air pressure of tire under
standard condition.Approximately equal to
the indication on speed-
ometer (Inside of ±10%)
RR LH SENSOR [km/h] or [mph]Wheel speed (Rear wheel
left)Vehicle stopped 0.00 km/h (0.00 mph)
Vehicle running
CAUTION:
Check air pressure of tire under
standard condition.Approximately equal to
the indication on speed-
ometer (Inside of ±10%)
BATTERY VOLT [V]Power supply voltage for
4WD control unitIgnition switch: ON Battery voltage
THRTL POS SEN [%] Throttle opening conditionWhen depressing accelerator pedal
(Value rises gradually in response to
throttle position.)0 - 100%
ETS SOLENOID [A]Monitored value of current at
4WD solenoidEngine speed
: At idle2WD Approx. 0.000A
AUTO Approx. 0.000A
LOCK Approx. 0.000A
Engine speed
: 3,000 rpm or more con-
stant2WD Approx. 0.000A
AUTO Approx. 0.000 - 1.500A*
LOCK Approx. 2.800A
STOP LAMP SW [ON/OFF]Condition of brake pedal
operationBrake pedal: Depressed ON
Brake pedal: Released OFF
ENG SPEED SIG [RUN/STOP] Condition of engine runningEngine stopped
(Engine speed: Less than 400 rpm)STOP
Engine running
(Engine speed: 400 rpm or more)RUN
ETS ACTUATOR [ON/OFF]Operating condition of 4WD
actuator relay (integrated in
4WD control unit)Engine stopped (Ignition
switch: ON)OFF
Engine running ON
4WD WARN LAMP [ON/OFF] 4WD warning lamp condition4WD warning lamp: ON ON
4WD warning lamp: OFF OFF
4WD MODE SW [2WD/AUTO/
LOCK]Input condition from 4WD
mode switch4WD mode switch2WD 2WD
AUTO AUTO
LOCK LOCK

FRONT WHEEL HUB AND KNUCKLE
FAX-7
C
E
F
G
H
I
J
K
L
MA
B
FA X

FRONT WHEEL HUB AND KNUCKLEPFP:40202
On-Vehicle InspectionEDS0005R
Inspect to check that there is no excessive play, cracking, wear, or
other damage to front axle.

Turn front wheels (left/right) and check the play.

Check that no nails or other foreign objects are embedded.

Retighten all axle nuts and bolts to the specified torque.
FRONT WHEEL BEARINGS
With the vehicle raised, inspect the following.

Move wheel hub in the axial direction by hand. Check that there is no looseness of front wheel bearings.

Rotate wheel hub and check that there is no unusual noise or other irregular conditions. If there are any
irregular conditions, replace the wheel bearing.
Removal and InstallationEDS0005S
REMOVAL
1. Remove tyre. Remove brake hose lock plate from strut.
2. Remove brake caliper from steering knuckle. Hang it in a place where it will not interfere with work. Refer
to BR-27, "
FRONT DISC BRAKE" .
CAUTION:
Avoid depressing the brake pedal with brake caliper removed.
3. Remove wheel sensor from steering knuckle. Refer to BRC-116, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
SMA525A
Axial end play : 0.05 mm (0.002 in)
1. Steering knuckle 2. Splash guard 3. Wheel bearing assembly
4. Snap ring 5. Wheel hub 6. Hub bolt
7. Cotter pin
SDIA0131E
