TROUBLE DIAGNOSES FOR SYMPTOMS
AT-237
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TCM Self-Diagnosis Does Not ActivateECS004TE
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION

PNP switch
The PNP switch assembly includes a transaxle position switch.
The transaxle position switch detects the selector lever position
and sends a signal to the TCM.

Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.

Closed throttle position signal and wide open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to TCM.
SCIA0752E
SCIA0776E
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch ON displayed on CONSULT-II means
overdrive OFF.)
OK or NG
OK >> GO TO 4.
NG >> Check the following items:

Overdrive control switch (Refer to AT- 2 4 0 , "COMPO-
NENT INSPECTION" .)

Harness for short or open between Combination
meter and overdrive control switch

Harness of ground circuit for overdrive control switch
for short or open

Combination Meter (Refer to DI-4, "COMBINATION METERS" .)
4. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 5.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.

Accelerator pedal position sensor — Refer to AT- 1 7 3 , "DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" .

Harness for short or open between accelerator pedal position sensor and ECM
SAT645J
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J

AT-240
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:

Accelerator pedal position sensor — Refer to AT- 1 7 3 , "DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .

Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform AT- 5 2 , "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)" .
OK or NG
OK >>INSPECTION END
NG >>

Perform TCM input/output signal inspection. Refer to AT- 9 4 , "TCM Terminals and Reference
Va l u e" .

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
COMPONENT INSPECTION
Overdrive Control Switch

Check continuity between two terminals 1 and 2.
Switch position Continuity
ON No
OFF Yes
SCIA4647E

AT-242
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS004NW
After performing AT- 2 4 2 , "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the AT- 2 5 2 , "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
FUNCTION
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 2 8 6 , "
TCM Terminals and Reference Value" . If
result is NG, refer to PG-2, "
POWER SUPPLY ROUTING" .
Diagnostic test mode Function Reference page
Work supportThis mode enables a technician to adjust some devices faster and more accurately by
following the indications on CONSULT-II.—
Self-diagnostic results Self-diagnostic results can be read and erased quickly.AT- 2 4 2
Data monitor Input/Output data in the ECM can be read.AT- 2 4 4
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read. —
Function testConducted by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”.—
DTC work support Select the operating condition to confirm Diagnosis Trouble Codes.AT- 4 7
TCM part number TCM part number can be read. —
SAT014K

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-243
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “REAL TIME DIAG”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SELF-DIAGNOSTIC RESULT TEST MODE
CAUTION:
If malfunction is detected in multiple systems including CAN communication line, CAN communication line trouble diagnosis
shall be performed first.
SAT987J
Items (CONSULT-II screen terms) Malfunction is detected when... Remarks
No failure
(NO SELF DIAGNOSTIC FAIL-
URE INDICATED FURTHER
TESTING MAY BE REQUIRED)

No failure has been detected.
INITIAL START

This is not a malfunction message (Whenever shutting off a power
supply to the TCM, this message appears on the screen.)
VHCL SPEED SEN·A/T

TCM does not receive the proper voltage signal from the sensor.
VHCL SPEED SEN·MTR

TCM does not receive the proper voltage signal from the sensor.
THROTTLE POSI SEN

TCM receives an excessively low or high voltage from the sensor.
SHIFT SOLENOID/V A

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
SHIFT SOLENOID/V B

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
OVERRUN CLUTCH S/V

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
T/C CLUTCH SOL/V

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
BATT/FLUID TEMP SEN

TCM receives an excessively low or high voltage from the sensor.To be displayed in case
of abnormality and when
no recording is made.
ENGINE SPEED SIG

TCM does not receive the proper voltage signal from the ECM.
LINE PRESSURE S/V

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
CAN COMM CIRCUIT

When malfunction is detected in CAN communication line.
CONTROL UNIT (RAM)

TCM memory (RAM) is malfunctioning Refer to AT-286
CONTROL UNIT (ROM)

TCM memory (ROM) is malfunctioning Refer to AT-286
CONT UNIT (EEP ROM)

TCM memory (EEP ROM) is malfunctioning. Refer to AT-286

AT-248
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

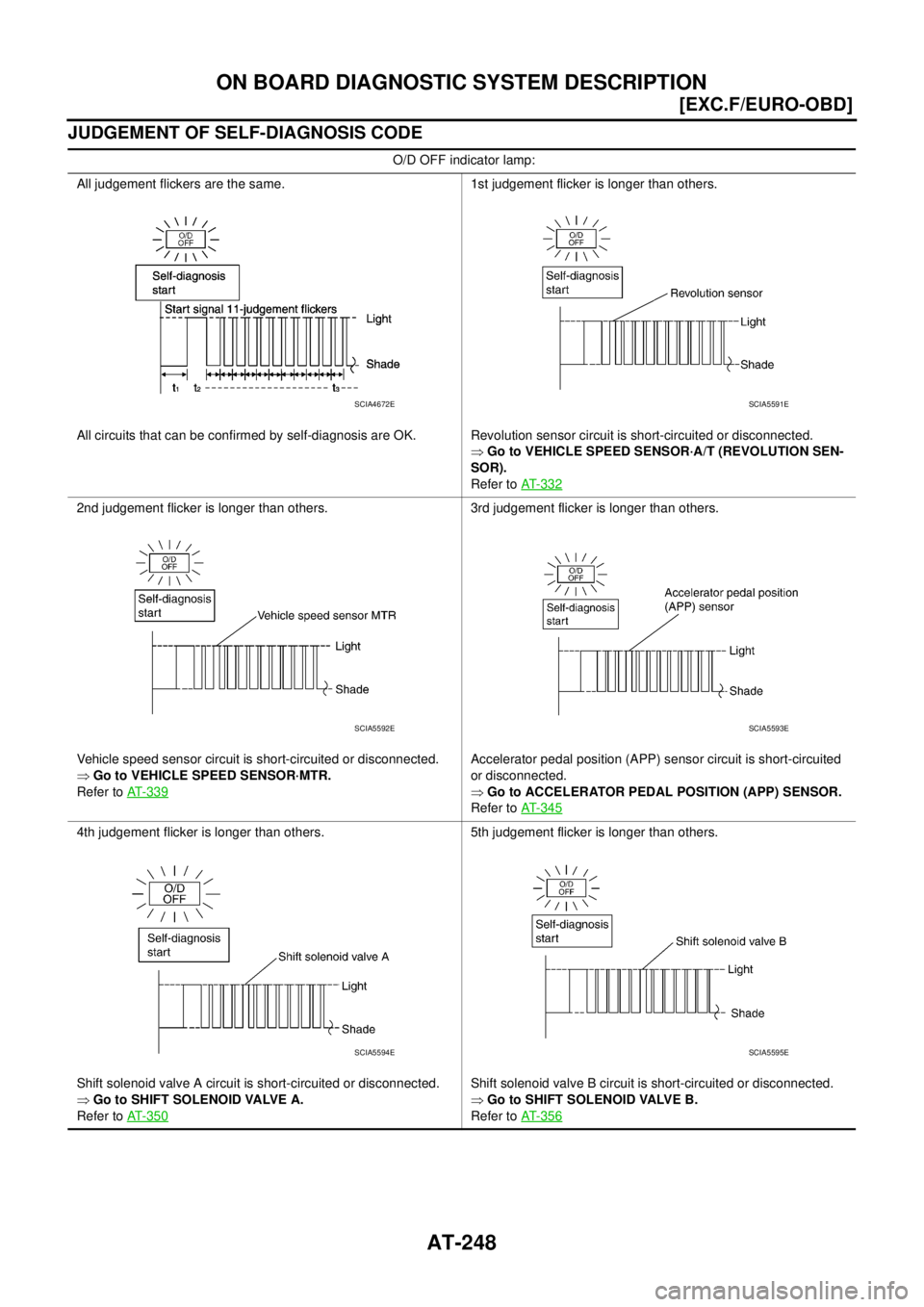

JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
Revolution sensor circuit is short-circuited or disconnected.

Go to VEHICLE SPEED SENSOR·A/T (REVOLUTION SEN-
SOR).
Refer to AT- 3 3 2
2nd judgement flicker is longer than others.
Vehicle speed sensor circuit is short-circuited or disconnected.

Go to VEHICLE SPEED SENSOR·MTR.
Refer to AT-3393rd judgement flicker is longer than others.
Accelerator pedal position (APP) sensor circuit is short-circuited
or disconnected.

Go to ACCELERATOR PEDAL POSITION (APP) SENSOR.
Refer to AT- 3 4 5
4th judgement flicker is longer than others.
Shift solenoid valve A circuit is short-circuited or disconnected.

Go to SHIFT SOLENOID VALVE A.
Refer to AT-3505th judgement flicker is longer than others.
Shift solenoid valve B circuit is short-circuited or disconnected.

Go to SHIFT SOLENOID VALVE B.
Refer to AT- 3 5 6
SCIA4672ESCIA5591E
SCIA5592ESCIA5593E
SCIA5594ESCIA5595E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-249
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

6th judgement flicker is longer than others.
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.

Go to OVERRUN CLUTCH SOLENOID VALVE.
Refer to AT- 3 6 27th judgement flicker is longer than others.
Torque converter clutch solenoid valve circuit is short-circuited or
disconnected.

Go to TORQUE CONVERTER CLUTCH SOLENOID VALVE.
Refer to AT-368
8th judgement flicker is longer than others.
A/T fluid temperature sensor is disconnected or TCM power
source circuit is damaged.

Go to BATT/FLUID TEMP SEN(A/T FLUID TEMP SENSOR
CIRCUIT AND TCM POWER SOURCE).
Refer to AT- 3 7 49th judgement flicker is longer than others.
Engine speed signal circuit is short-circuited or disconnected.

Go to ENGINE SPEED SIGNAL.
Refer to AT-382
O/D OFF indicator lamp:
SCIA5596ESCIA5597E
SCIA5598ESCIA5599E

TROUBLE DIAGNOSIS — INTRODUCTION
AT-251
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS004TF
The TCM receives a signal from the vehicle speed sensor, throttle
position sensor or PNP switch and provides shift control or lock-up
control via A/T solenoid valves.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only, may not find the cause of the problems. A road
test with CONSULT-II or a circuit tester connected should be per-
formed. Follow the “Work Flow”. Refer to AT- 6 1
.
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a drive ability complaint. The cus-
tomer can supply good information about such problems, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Worksheet” like the exam-
ple (AT- 5 8
) should be used.
Start your diagnosis by looking for “conventional” problems first. This
will help troubleshoot drive ability problems on an electronically con-
trolled engine vehicle.
Also check related Service bulletins for information.
SAT631IA
SAT632I
SEF234G
