234G6 - PISTONS / CONNECTING RODS
Installation Service Point
Installation of bearings on connecting rod
1. When replacing a bearing, connecting rod or crankshaft,
choose a bearing of the correct size which corresponds to the
external diameter of the crankshaft pin, in accordance with the
identification marks on the crankshaft pin and the connecting
rod bearing given in the table below.
2. The crankshaft identifier is engraved in the position shown in
the diagram.
3. The bearing identifier is engraved or printed at the position
shown in the diagram.
(Selecting a bearing : Example)
If the crankshaft identification mark is I, then choose a bearing
with the identification mark 0.
If it is difficult to make out the crankshaft identifier, measure the
external diameter of the pin and then choose the bearing that
corresponds to that diameter.
4. The selected bearing should be installed in the larger end of
the connecting rod and the cap.
A
*
Crankshaft pin Connecting rod
bearing
Identification mark External diameter of
pin (mm)Identification mark
I44.995 – 45.005 0
II 44.985 – 44.995 1
III 44.980 – 44.985 2
Position of crankshaft pin diameter identification marks

244G6 – PISTONS CONNECTING RODS

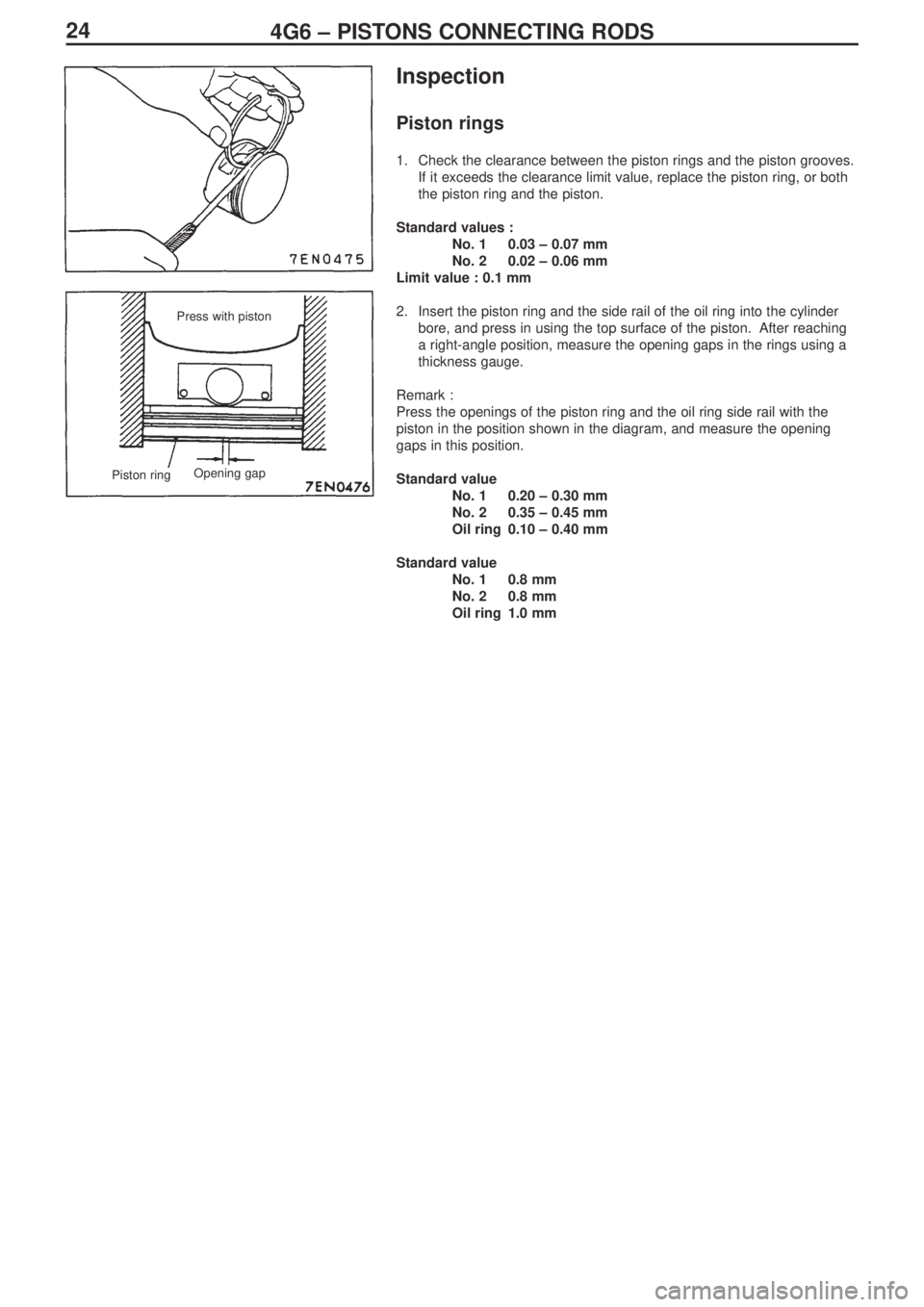

Inspection
Piston rings
1. Check the clearance between the piston rings and the piston grooves.
If it exceeds the clearance limit value, replace the piston ring, or both
the piston ring and the piston.
Standard values :
No. 1 0.03 – 0.07 mm
No. 2 0.02 – 0.06 mm
Limit value : 0.1 mm
2. Insert the piston ring and the side rail of the oil ring into the cylinder
bore, and press in using the top surface of the piston. After reaching
a right-angle position, measure the opening gaps in the rings using a
thickness gauge.
Remark :
Press the openings of the piston ring and the oil ring side rail with the
piston in the position shown in the diagram, and measure the opening
gaps in this position.
Standard value
No. 1 0.20 – 0.30 mm
No. 2 0.35 – 0.45 mm
Oil ring 0.10 – 0.40 mm
Standard value
No. 1 0.8 mm
No. 2 0.8 mm
Oil ring 1.0 mm
Press with piston
Opening gap
Piston ring

Service Manual
Electrical Wiring Diagrams

LANCER
Evolution IX
Foreword
This manual is designed to facilitate inspection and
repair work relating to the electrical wiring system in the
’05 Lancer Evolution IX, and contains layout diagrams
which give a three-dimensional representation of the
electrical wires and connectors of the various parts of
the vehicle, as well as circuit diagrams indicating the
wiring design for different systems, and diagrams
showing the points at which each individual component
is installed.
When inspecting or repairing electrical parts, this
manual should be used in conjunction with the related
documents listed on the following pages, if necessary.
This manual contains various different types of wiring
diagrams and circuit diagrams, but it should be
remembered that these may not always coincide with
the exact specifications of each individual vehicle.
This manual is based on the vehicle specifications as
of March 2005.
Please note that future vehicles may not match the
contents of this manual completely, due to changes
in specifications, or the like.
The units shown in this manual are the standard
international SI units. Conventional units are not
included.
March 2005
Mitsubishi Motor CorporationGeneral ..........................................
Layout Diagrams ..........................
Individual part Installation
Positions .......................................
Circuit Diagrams...........................
Index ..............................................
1
2
3
4
0
This manual is printed on recycled paper.If you have any opinions, requests or queries
regarding this manual, please write them down on
the “Servicing Comment Form” on the last page,
and fax them to us.
CONTENTS

0-1
SECTION 0
General Information
CONTENTS
Vehicle Identification ..............................0-2
Implementation Code .............................0-2How to Read the Wiring Diagrams........0-2
Composition and Contents of Wiring Diagrams..........0-2
How to Read Layout Diagrams...................................0-3
How to Read Circuit Diagrams ...................................0-4
Connector and Earth Markings ...................................0-6
Wire Colour Codes .....................................................0-9
Abbreviation Symbols .................................................0-9

GENERAL INFORMATION - VEHICLE IDENTIFICATION 0-2
VEHICLE IDENTIFICATION
Note : The [
] symbol indicates a new model; the [] symbol indicates an existing model; and the [x] symbol
indicates a discontinued model.
Implementation Code
GH-CT9A ; CT9A-0400001
How to Read the Wiring Diagrams
Composition and Contents of Wiring Diagrams
1. This manual contains wiring layout diagrams, individual part installation positions, circuit diagrams and an index.
2. All specifications, including those relating to optional equipment, are given in each section. Accordingly, some of the
specifications may not apply to a particular vehicle.

GENERAL INFORMATION - HOW TO READ THE WIRING DIAGRAMS0-3
Reading Layout Diagrams
The wiring layout diagrams give a clear and simple illustration of the connector positions and the routing of the wiring
harnesses at different points in the actual vehicle.
Indicates connector number.
The same connector number is used in the circuit diagrams, so that connector positions can be located easily.
The initial letter indicates the installation position of the connector, and the number that follows is the unique number for that
connector. In principle, the connectors are numbered in clockwise order in each layout diagrams, starting from the top left-hand side.
Example : A – 19Unique connector number (serial number)
Connector location code
A: Engine compartment D: Floor / Roof
B: Engine / Transmission E: Door
C: Instrument panel F: Tail gate
Indicates earth point.
The same earth numbers are used in the circuit
diagrams, so earth points can be located easily.
For details of earth points, refer to Section 2,
"Individual Part Installation Positions – Earth".
Indicates name of harness
Shows section covered with
corrugated tube.
The * symbol shows a standard
harness mounting point.
Indicates the external colour of the harness.
(Black, unless specified otherwise.)
R : Red
Y: Yellow
The number of connector pins and the connector colour (except
cream colour)* are indicated, so that they can be located easily.
Example : 2 – Black
*^: Typical connector colours:
Black, grey, red, blue, yellow, green, brown, etc.
Colour of connector pins(Cream colour, unless specified
otherwise)
Number of connector pinsA-15 (2) Fog lamp (RH)
A-16 (2-Black) Windshield washer motor
A-17 (2-Black) Headlamp (RH)
A-18 (2-Brown) Horn (LO)
A-19 (2-Green) Dual pressure switch
Indicates the device to which the
connector is connected.
Front
harness

GENERAL INFORMATION - HOW TO READ THE WIRING DIAGRAMS0-4
Reading Circuit Diagrams
These diagrams show the circuits for each system, from the fuse or fusible link to the earth. In principle, the power supply is
shown at the top and the earth at the bottom, to make it easier to understand the flow of current in the circuit.
The circuit diagrams show a state where none of the switches, etc. are operating.
Indicates power take-out
point.Indicates connector No. The same number is used in the layout
diagrams. Connector numbers shown inside a rounded box indicate
connector symbols that are listed together at the bottom of the page.
Connector numbers that are not shown inside a rounded box indicate
components that are incorporated into the harness.
Indicates that the terminal is
connected via a plate inside
the relay box.
Each circuit diagram is divided into
blocks shown on separate pages.
This number indicates the block.
Indicates the harness branch
point. This number matches the
branch numbers in the other
circuit diagrams.
Indicates the number of the circuit
to which the branch connects.
Indicates the power supply
within the control unit. If no
voltage is indicated, then it is
the battery voltage.
An "X" at the end of a connector
number shows that it is part of the
centralized relay. For more
information, refer to the section
covering the Centralized Junction.
Indicates that circuit diagram
continues at [A] in Block [2].
Indicates the connector symbol,
listed in the order of the connector
numbers in the circuit diagram.
Indicates the operating
conditions of the coolant
temperature switch, etc.Indicates shield
wire.An upward arrow indicates that
the current flows from bottom to
top in the diagram.
RegisterRelayMotor Relay boxFusible link
Fusible link
Diode
Sensor Switch
headlightsignition
