13A-12MPI – TROUBLESHOOTING
Continued from the previous page
Check connectors B-19X & C-23
Check the intake cam position
sensing cylinder
Check that the problem has been
solved
Replace the intake cam position
sensor
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Replace the intake cam position
sensing cylinder
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Inspect the harness between the
intake cam position sensor and
the engine ECU
•Check if the output wire is
damaged
Inspect the harness between the
intake cam position sensor and
the engine control relay
•Check if the power wire is
damaged
Measurement of the output wave
at the intake cam position
sensor connector B-33 (using an
oscilloscope)
•Use test harness (MB991709),
connect it to the connector, and
take measurements at the pick-
up harness component
•Engine: idling
•Voltage across earth at 2
OK:An output wave as described
on P.13A-25 (Main points for
oscilloscope testing) is
produced, with the maximum
value in excess of 4.8V and
the minimum value less than
0.6V. There should be no
noise in the output wave form.
Replace engine ECU
Check that the problem has been
solved
Check connectorsC-49 & C-50
OK
OKOK
NG
NG
OK
OK
OK
OK
OK
NG
NG
Repair
NG
Repair
NG
Repair
NG
NG
OK
Repair

13A-14MPI – TROUBLESHOOTING
MUT-II/III Service data
•No.25: atmospheric sensor
(Ref: P13A-83) *Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Check connectorC-50
Check connectorC-50
Check connector C-49
Check connectorB-08
Go on to the next page
Inspect the harness between the
AFS and the engine ECU
•Check if the power supply wire
has short circuited
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Inspect the harness between the
AFS and the engine ECU, repair
if necessary
•Check if the power supply wire
is cut
MUT-II/III Service data
•No.25: atmospheric sensor
(Ref: P13A-83) *
Inspect the harness between the
AFS and the engine ECU
•Check if the earth wire is cut or
damaged
MUT-II/III Service data
•No.25: atmospheric sensor
(Ref: P13A-83) *
Replace the engine ECU
Replace the engine ECU
Measurement at B-08 AFS
connector
•Undo the connector and
measure on the harness side.
(1) Voltage across earth at 1
(ignition switch: ON)
OK:4.9~5.1V
(2) Resistance across earth at 5
OK:Less than 2ΩMeasurement at C-50 engine
ECU connector
•Measure the voltage at the
engine ECU terminals
•Ignition switch: ON
•Voltage across earth at 42
OK:4.9~5.1V
*: Refer to the 03-1 Service Manual for the Lancer Evolution VIII (No.1036K07)

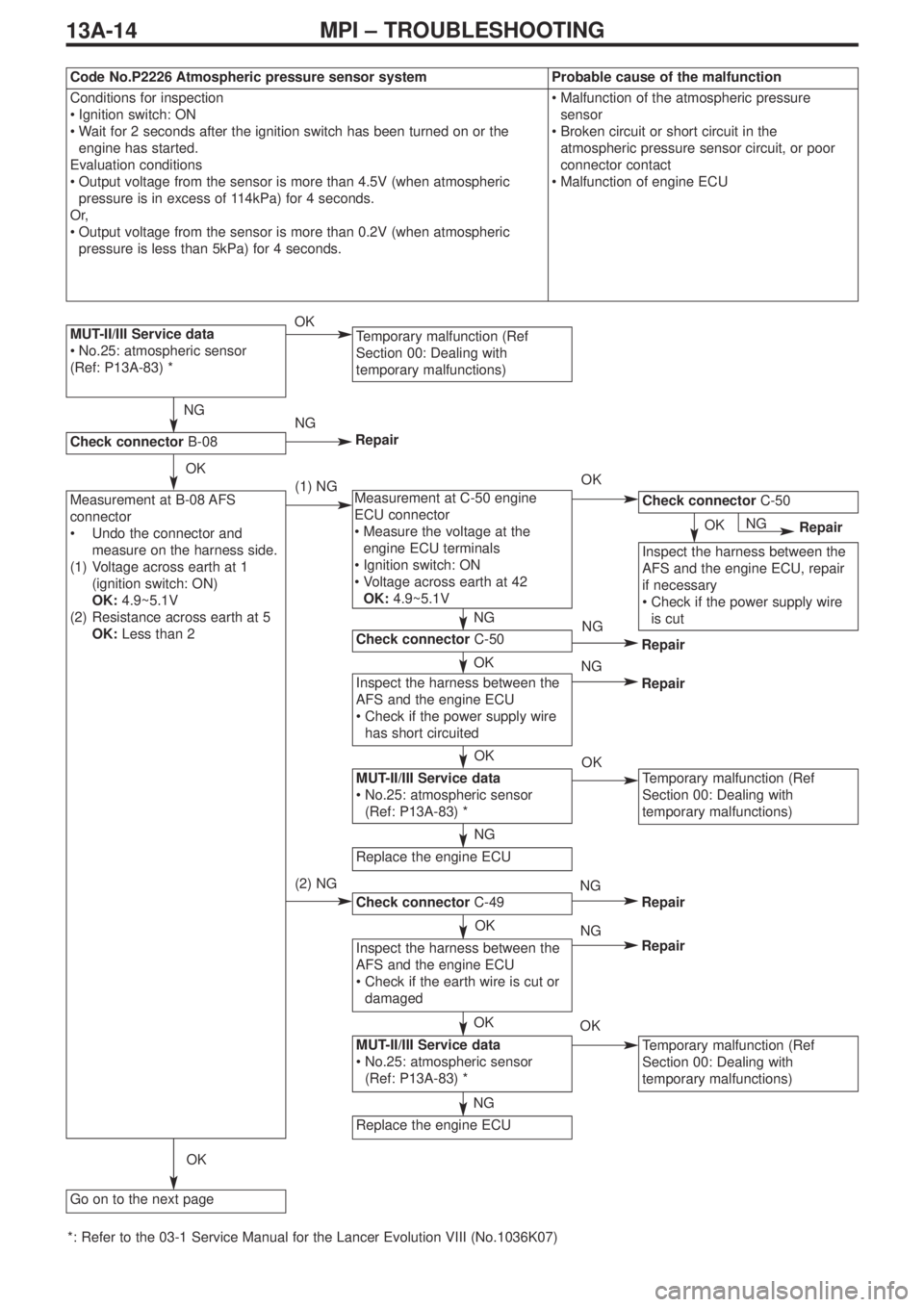

Code No.P2226 Atmospheric pressure sensor systemProbable cause of the malfunction
Conditions for inspection
•Ignition switch: ON
•Wait for 2 seconds after the ignition switch has been turned on or the
engine has started.
Evaluation conditions
•Output voltage from the sensor is more than 4.5V (when atmospheric
pressure is in excess of 114kPa) for 4 seconds.
Or,
•Output voltage from the sensor is more than 0.2V (when atmospheric
pressure is less than 5kPa) for 4 seconds.•Malfunction of the atmospheric pressure
sensor
•Broken circuit or short circuit in the
atmospheric pressure sensor circuit, or poor
connector contact
•Malfunction of engine ECU
NG
OK
OK
NG
(1) NG
(2) NG
OK
Repair
Repair
Repair
Repair
OK
NG
OK
OK
NG
OK
OK
NG
OK
OK
NG
NG
NG
NG
OKNGRepair
Repair

13A-15MPI – TROUBLESHOOTING
Continued from previous page
Measurements taken at B-08 AFS
connector
•Only connect the test harness
(MB991709) to terminals
No.1, No.2 and No.5 of the
connector and measure at the
pick up harness component.
•Ignition switch: ON
(1) Voltage across earth at 1
OK:4.9~5.1V
(2) Voltage across earth at 2
OK:altitude 0m 3.8~4.2V
altitude 600m 3.5~3.9V
altitude 1200m 3.3~3.7V
altitude 1800m 3.0~3.4V
*: Refer to the 03-1 Service Manual for the Lancer Evolution VIII (No.1036K07)
Replace the AFS
Check connectorC-50
Replace the engine ECU
Inspect the harness between AFS
and engine ECU, repair if
necessary
•Check if the output wire is cut or
damaged
Temporary malfunction (Refer to
Section 00: Dealing with
temporary malfunctions)
Check connectorsC-49 & C-50
Inspect the harness between AFS
and engine ECU
•Check if the output wire has
short circuited or is damaged
Inspect the harness between AFS
and engine ECU, repair if
necessary
•Check if the power supply wire
is damaged
MUT-II/III Service data
•No.25: atmospheric sensor
(Ref: P13A-83) *
Measurement at the C-50 engine
ECU connector
•Measurement of the terminal
voltage of the engine ECU
•Ignition switch: ON
•Voltage across earth at 51
OK:altitude 0m 3.8~4.2V
altitude 600m 3.5~3.9V
altitude 1200m 3.3~3.7V
altitude 1800m 3.0~3.4V
Check connectorC-50
Check connectorC-50
OK
OK
OK
OK
OK
NG
(1) NG
(2) NG
NG
NG
OK
NG
NG
NG
OK
OK
OK
NG
Repair
Repair
Repair
Repair
Repair

13A-16MPI – TROUBLESHOOTING
Check the purge control solenoid valve (Refer to Section
17: Checking the exhaust gas purification system)
MUT-II/III Service data
•No.11 O
2sensor (Ref: P13A-83)*
Refer to the diagnosis code classification table (P13A-6)MUT-II/III diagnosis code
•Is the diagnosis code displayed?
Check the timing of ignition (Ref Section 11, Engine
tuning)
Check the sound made by the injector (using a
soundscope)
Check the crank angle sensor and the fitting of the timing
belt cover
If there is abnormality in the exhaust gases and code
Nos. P0201~P0204 are recorded, check the injector
system
If abnormal sensor data is recorded, carry out inspections
for each diagnosis code in order (Ref: P13A-6)
Replace the purge control solenoid valve
Code No.P0130: O
2sensor system inspection (Ref:
P13A-16)*
Go on to next page.
MUT-II/III Service data
•No.13: Intake air temperature sensor
•No.14: TPS
•No.21: Water temperature sensor
•No.25: Atmospheric pressure sensor
•No.95: MAP sensor
(Ref: P13A-24)

Proceed to OK if all service data levels are normal.
Proceed via NG even if only one of the service data
levels is abnormal.
*: Refer to the 03-1 Service Manual for the Lancer Evolution VIII (No.1036K07)
NO
OK
OK
OK
OK
OK
YES
NG
NG
NG
NG
Inspection procedureFault to be checkedReference page
11
Engine seems hesitant
13A-16Acceleration malfunction
Engine seems to stumble
Engine has a power surge
15Mis-timed ignition13A-18
35Inter-cooler water spray circuit system13A-19
37No.2 waste gate solenoid valve system13A-21
38Air temperature sensor system13A-22
Engine seems hesitant, acceleration malfunction, engine
seems to stumble, engine has a power surgeProbable causes of the malfunction
Probable causes of the malfunction are noted in the right hand
column.•Malfunction of the air/fuel mixing control system
•Malfunction of the ignition system
•Malfunction of the fuel system
•Malfunction of the intake system
•Malfunction of the exhaust gas purification system
•Failure of compression pressure
•Malfunction of the turbocharger system
5. Inspection procedure for each type of fault
Inspection procedure 11
4. Checklist of faults

13A-17MPI – TROUBLESHOOTING
*: Refer to the 01-1 Service Manual for the Lancer Evolution VIII (No.1036K02)
*: Refer to the 03-1 Service Manual for the Lancer Evolution VIII (No.1036K07)
Repair
Repair
Repair
Repair
Repair
Repair
Continued from previous page
Replace the spark plug wire
Replace the spark plug
Replace the ignition coil
Inspection procedure 33: Inspection of the No.1 waste
gate solenoid valve (Ref: P13A-78) *2
Inspection procedure 37: Inspection of the No.2 waste
gate solenoid valve (Ref: P13A-21)
Inspection procedure 31: Inspection of the fuel control
solenoid valve (Ref: P13A-76) *2
Inspection procedure 38: Inspection of the air
temperature sensor (Ref: P13A-22)
Check the spark plug wire (Ref: Section 16: Ignition
apparatus)
Check the spark plug (Ref: Section 16: Ignition
apparatus)
Check connectors B-123 & B-119
Check the ignition coil (Ref: Section 16: Ignition
Apparatus)
Inspect the harness and the connectors between each
cylinder’s ignition coil and the body earth, and between
the engine ECU and the ignition coil. Check for cut or
short circuited wires, or other damage.
MUT-II/III Actuator test
•No.12: Waste gate solenoid valve (Ref: P13A-87)*2
Check the supercharge pressure of the turbo charger
(Ref: Section 15: Intake/Exhaust car servicing)
Check the supercharge pressure control system (Ref:
Section 15: Intake/Exhaust car servicing)
MUT-II/III Actuator test
•No.09: Fuel pressure control solenoid valve (Ref:
P13A-87)
Check the fuel pressure (Ref: P13D-109)
Check the compression pressure (Ref: Section 11:
Engine tuning)
If the intake hose and the inlet manifold are damaged
check the air intake and repair as necessary.
Measurements taken at B-108 air temperature sensor
connector
•Using the test harness (MB991658), connect it to only
connectors No.1 and No.2 and measure at the pick-
up harness component.
•Ignition switch: ON
•Voltage across earth at 1
OK:surrounding temperature -20ºC 3.8~4.4V
surrounding temperature 0ºC 3.2~3.8V
surrounding temperature 20ºC 2.3~2.9V
surrounding temperature 40ºC 1.5~2.1V
surrounding temperature 60ºC 0.8~1.4V
surrounding temperature 80ºC 0.4~1.0V
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
NG
NG
NG
NG
NG
NG
NG
NG
NG
NG
NG

13A-18MPI – TROUBLESHOOTING
Measure the output wave from
the crank angle sensor and the
cam position sensor (using an
oscilloscope).
•Engine: idling

•Measure the output wave at
the crank angle sensor
connector B-122
•Connect test harness
(MB998478), to the connector,
and take measurements at the
pick-up harness component
•Voltage across earth at 2

•Measure the output wave at
the exhaust cam position
sensor connector B-115
•Connect test harness
(MB991709), to the connector
and take measurements at the
pick-up harness component
•Voltage across earth at 2
OK:The output wave timing
from both sensors is as
shown on P13A-25
(Main points for
oscilloscope testing).Check that the problem has been
solvedTemporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Replace the engine ECU
NO
OK
NG
OK
NG
NG
NG
Repair
Miss-timed ignitionProbable causes of the malfunction
Probable causes of the malfunction are noted in the right
hand column.•Malfunction of the crank angle sensor
•Malfunction of the exhaust cam position sensor
•Malfunction of the timing belt
•Malfunction of the engine ECU
Inspection procedure 15
Refer to the diagnosis code classification table (P13A-6)MUT-II/III Diagnosis code
•Is the diagnosis code displayed?YES
Repair
Replace the crank angle sensor pane
Match up the timing marks on the timing belt
Replace the exhaust cam position sensing cylinder
Temporary malfunction (Ref Section 00: Dealing with
temporary malfunctions)
Check the exhaust cam position sensing cylinder
Check the fitting of the crank angle sensor and the
exhaust cam position sensor
Check the timing marks on the timing belt
Check the crank angle sensor pane
Replace the crank angle sensor
Check that the problem has been solved
Replace the exhaust cam position sensor
Check that the problem has been solved
Replace the engine ECU
OK
OK
OK
NG
OK
NG
NG
NG
OK
OK

13A-22MPI – TROUBLESHOOTING
Inspect the air temperature
sensor on its own (Ref: P13A-29)
Check connectorB-34
Measure at the air temperature
sensor connector B-34
•Undo the connector and
measure on the harness side
(1) Resistance across earth at 2
OK:Less than 2Ω
(2) Voltage across earth at 1
(Ignition switch: ON)
OK:4.9~5.1V
Go on to the next page
Replace the air temperature
sensor
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Measure at the engine ECU
connector C-51
•Measure the voltage at the
engine ECU terminal
•Ignition switch: ON
•Voltage across earth at 96
OK:4.5~4.9V
Replace the engine ECU
Check that the problem has been
solved
Inspect the harness between the
air temperature sensor and the
engine ECU
•Check if the earth wire is cut
or damaged
Check connector:C-50
Inspect the harness between the
air temperature sensor and the
engine ECU and repair it if
necessary.
•Check if the output wire is cut
Check connector:C-51
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
Check connector:C-51
Check that the problem has been
solved
Replace the engine ECU
Inspect the harness between the
air temperature sensor and the
engine ECU and repair it if
necessary.
•Check if the output wire is cut
OKNG
(1) NG
(2) NG
NG
OK
OK
NG
NG
NG
OK
NG
OK
OK
OK
NG
NG
NG
NG
NG
OK
Repair
Repair
Repair
Repair
Repair
Air temperature sensor systemProbable causes of the malfunction
The air temperature sensor controls the temperature inside the inlet
manifold, and compensates for any burning of fuel.•Malfunction of the air temperature sensor.
•Circuit break, short circuit or a faulty connection in
the air temperature sensor circuit.
•Malfunction of the engine ECU.
Inspection procedure 38
OKNGRepair

13A-23MPI – TROUBLESHOOTING
Continued from the previous page
Measure at the air temperature
sensor connector B-34
•Connect the test harness
(MB991658), to the connector
and measure at the pick-up
harness component.
•Ignition switch: ON
•Voltage across earth at 1
OK:
surrounding temperature -20ºC
3.8~4.4V
surrounding temperature 0ºC
3.2~3.8V
surrounding temperature 20ºC
2.3~2.9V
surrounding temperature 40ºC
1.5~2.1V
surrounding temperature 60ºC
0.8~1.4V
surrounding temperature 80ºC
0.4~1.0V
Check that the problem has been
solved
Replace the engine ECU
Inspect the harness between the
air temperature sensor and the
engine ECU and repair it if
necessary.
•Check if the earth wire is
damaged
Check connector: C-51
Temporary malfunction (Ref
Section 00: Dealing with
temporary malfunctions)
OK
OK
OK
NG
NG
OK
NGRepair
