ENGINE – TIMING BELT, TIMING BELT B11-26



F
Fitting the timing belt
1. Check that all the timing marks for the camshaft sprocket, the
crankshaft sprocket and the oil pump sprocket are aligned.
2. After the timing marks for the oil pump sprocket have been
aligned, remove the plug from the cylinder block and insert a
posidrive (+) with a diameter of 8 mm into the plug hole. Check
that more than 60 mm of the shaft of the screwdriver can be
inserted. If the screwdriver strikes the balancer shaft and can
only be inserted to a depth of 20 ~ 25 mm, turn the sprocket one
complete turn, realign the timing marks, and check that more
than 60 mm of the screwdriver can be inserted. Do not remove
the screwdriver until the timing belt has been fitted.
3. Install the timing belt in accordance with the following guidelines
so that the side that is under tension does not get slack.
(1) Fit the timing belt around the crankshaft sprocket first, then
the oil pump sprocket and then fit it around the idler pulley.
(2) Fit the timing belt around the camshaft sprocket (exhaust
side) and hold it in place with a paper clip at the position
shown in the diagram.
timing marks
camshaft
sprocket (inlet
side)
timing
marks
crankshaft
sprocket
camshaft
sprocket
(exhaust
side)
timing
marks
oil pump
sprocket
plug
more than
60 mm
screwdriver
balancer shaft
camshaft
sprocket (inlet
side)
tensioner pulley
crankshaft
sprocket
camshaft
sprocket
(exhaust side)
idler
pulley
oil pump
sprocket
paper
clip

ENGINE – TIMING BELT, TIMING BELT B
11-27
(3) Use a wrench to align the timing marks on the rocker cover and
the camshaft sprocket, and whilst doing so, fit the timing belt
around the camshaft sprocket (inlet side) and hold it in place
with a paper clip at the position shown in the diagram.
(4) Fit the timing belt around the tensioner pulley.
(5) Remove the two paper clips.
Caution
After the timing belt has been installed, apply some force in
an anti-clockwise direction to the camshaft sprocket and
check once more that all the timing marks are in the correct
position when the side of the belt under tension is taught.
4. Using the special wrench for the tensioner pulley socket
(MD998767), tense the timing belt by turning the tensioner
pulley in the direction shown in the diagram, and temporarily
tighten the mounting bolt for the tensioner pulley.
5. Check that all the timing marks are aligned.
6. Remove the screwdriver, and replace the plug.
7. Adjust the tension of the timing belt.



G
Adjusting the tension of the timing belt
1. Remove the rubber plug from the rear cover of the timing belt
and put the special adjusting bolt (MD998738) in position.
Slowly twist the adjusting bolt a little at a time, so that the wire
or pin inserted when fitting the auto-tensioner, only moves a
little.
Caution
There is a possibility that the wire or pin inserted in the
auto-tensioner may break if the adjusting bolt is twisted
with a spanner or a similar tool, so it must be twisted by
hand.
2. Turn the crankshaft a quarter turn in an anti-clockwise direction.
3. Turn the crankshaft in a clockwise direction, realign all the timing
marks and set the No.1 cylinder in the top dead centre position.
4. Loosen the mounting bolt for the tensioner pulley which had
been temporarily tightened.paper clips

ENGINE – TIMING BELT, TIMING BELT B, ENGINE ASSY11-28
5. Using the special wrench for the tensioner pulley socket
(MD998767) or a torque wrench, apply tension torque (3.5 N·m)
to the timing belt in the direction shown in the diagram, and
tighten the mounting bolt for the tensioner pulley to the specified
torque.
Tightening torque: 48 ± 5 N·m
Caution
When tightening the installed bolt, take care that the
tensioner pulley does not turn around with it. If the pulley
does turn around with the bolt, the tension of the belt will
become too strong.
6. Remove the wire or pin which had been inserted when the auto-
tensioner was fitted.
7. Remove by hand the special adjusting bolt (MD998738) which
had been fitted in step 1.
8. Turn the crankshaft two complete turns in a clockwise direction,
and leave it for about 15 minutes.
9. Reinsert the wire or pin which had been removed in step 6, and
check that it can be easily pulled out again.
If the wire or pin can be easily pulled out the tension of the
timing belt is just right, so the wire or pin should be removed
completely. At this point check that the auto-tensioner rod is not
projecting more than the amount specified.
Specified projection (A): 3.8 ~ 4.5 mm
10. If the wire or pin cannot be easily pulled out, repeat steps 1 to 8
until the tension of the timing belt is just right.
11.Recheck that the timing marks on all of the sprockets are in line.
Caution
If the crankshaft bolt is turned in an anti-clockwise
direction, the tightening torque of the crankshaft bolt must
be checked, and if it is loose, it must be retightened.
ENGINE ASSY
Removal and fitting
Jobs to be completed before removal and after fitting
•Measures to prevent fuel leaking.
•Check for fuel dripping.
•Removal and refitting of the bonnet.
•Removal and refitting of the strut tower bar.
•Removal and refitting of the valence. (Ref Section 51: Front bumper)
•Checking the tension of the drive belt.
•Adjustment of the axle letter cable.
•Draining and replacing the engine oil.
•Draining and replacing the coolant.
•Removal and refitting of the air cleaner.
•Removal and refitting of air pipe C.
•Removal and refitting of the battery and the battery tray.
•Removal and refitting of the centre cover. (Ref P11-5)
•Removal and refitting of the axle letter cable.
•Removal and refitting of the radiator.
•Removal and refitting of the front exhaust pipe.

ENGINE – ENGINE ASSY
11-31
Removal guidelines

A


Removing the drive belt
The following operations are necessary because the engine uses a
serpentine drive system with auto-tensioner.
1. Insert a 12.7sq spinner handle into the auto-tensioner tool hole,
and turn the auto-tensioner in an anti-clockwise direction before
it reaches the stopper.
2. Align hole A and hole B, insert an L-shaped hexagonal Allen
Key, to hold the position, and remove the drive belt.
Caution
If planning to re-use the drive belt, ensure that it will be
refitted the same way round, by marking the back of the belt
with chalk arrows indicating the direction of movement.

B


Removing the power steering oil pump and the A/C
compressor
1. Remove the power steering oil pump and the A/C compressor
from the bracket with the hoses intact.
2. Secure the removed power steering oil pump and the removed
A/C compressor with string, and put them somewhere where
they will not hinder the removal or fitting of the engine ASSY.

C



Removing the transfer ASSY and the transmission
ASSY
1. In order to prepare the special mechanical engine hanger
(MZ203830, MZ203831 or MB991928), the radiator support
upper insulator mounting bolts should be tightened on the
chassis (2 places).
2. Remove the transfer ASSY and the transmission ASSY.
AholeB hole
L-shaped
hex-
agonal
Allen
wrench

ENGINE – ENGINE ASSY11-32

D


Removing the engine mount bracket & stopper ASSY
1. Support the engine using a garage jack.
2. Remove the special mechanical engine hanger (MZ203830,
MZ203831 or MB991928).
3. Hold the engine ASSY using a chain block.
4. Support the engine oil pan component with the garage jack
through the engine block, so that the weight of the engine is not
taken by the engine mount bracket.
5. Loosen the nuts and bolts and remove the engine mount bracket
and stopper ASSY.

E


Removing the engine ASSY
After checking that all of the cables, hoses and harness connectors
etc have been disconnected, slowly hoist the engine using a chain
block and remove the engine from the engine compartment.
Fitting guidelines



A
Fitting the engine ASSY
Install the engine whilst checking that cables, hoses and harness
connectors etc will not be squashed beneath it.
MZ203830 or MZ203831
slide bracket (HI)

ENGINE – ENGINE ASSY
11-33



B
Fitting the engine mount bracket & stopper ASSY
1. Support the engine oil pan component with the garage jack
through the engine block, and fit the engine mount bracket &
stopper ASSY whilst checking the position of the engine. Fix the
engine mount stopper so that the arrow points in the direction
shown in the diagram.
2. Support the engine ASSY with a garage jack.
3. Remove the chain block.
4. In the same way as when it was removed, hold the engine
ASSY with the special tool.
(1) (MZ203830 or MZ203831)>
Install the special mechanical engine hanger (MZ203830
or MZ203831).
(2)
Fit the following parts to the base hanger.
• Slide bracket (HI)
• Foot (standard) (MB991932)
• Joint (90) (MB991930)
Install the special engine hanger (MB991928)



C
Fitting the transfer ASSY and the transmission ASSY
1. Fit the transfer ASSY and the transmission ASSY.
2. Remove the radiator support upper insulator mounting bolts from
the chassis (2 places).engine sideengine side
engine mount stopper
rear of chassis> front of chassis>
MZ203830 or MZ203831
slide bracket (HI)
front of
chassis
joint (90)
(MB991930)
foot (standard) (MB991932)
slide bracket (HI)

ENGINE ELECTRICAL – CHARGING SYSTEM
16-3
Removal guidelines

A



Removing the delivery pipe, the injector, and the fuel
pressure regulator ASSY
Loosen the bolts holding it in place, slightly dislodge all of the
components and make space for the alternator to be removed.

B


Removing the drive belt
The following procedures are necessary because a serpentine drive
system with auto-tensioner has been installed.
1. Insert a 12.7sq spinner handle into the auto-tensioner hole, and
turn the auto-tensioner in an anti-clockwise direction until it
reaches the stopper.
2. Align the A hole and the B hole, hold them in place by inserting
an L-shaped hexagonal Allen Key, and remove the drive belt.
Caution
If planning to re-use the drive belt, ensure that it will be
refitted the same way round, by marking the back of the belt
with chalk arrows indicating the direction of movement.

C


Removing the alternator
Push the whole engine up using a garage jack, and remove the
alternator from above.
AholeB hole
L-shaped
hexagonal
Allen
wrench

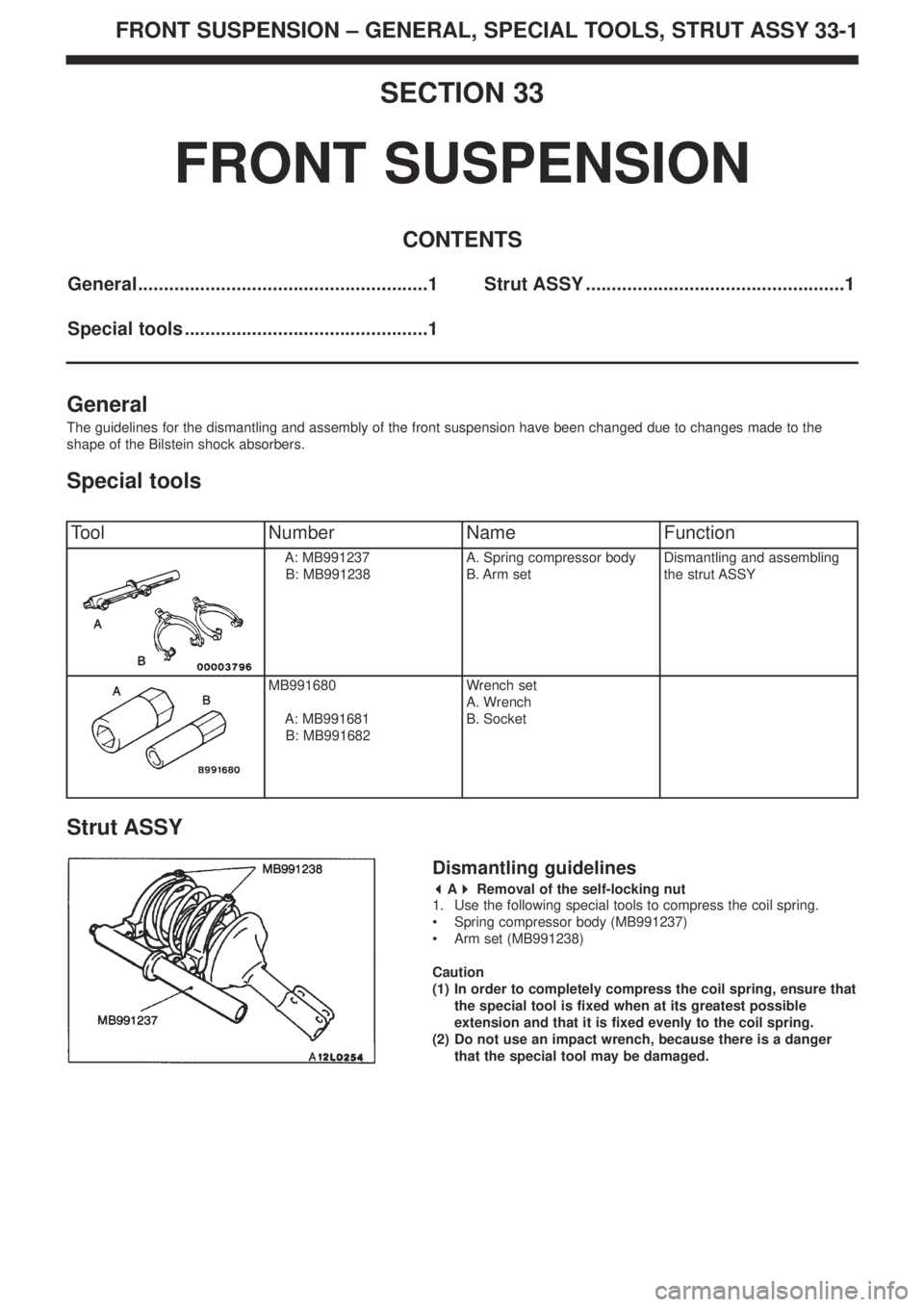

FRONT SUSPENSION – GENERAL, SPECIAL TOOLS, STRUT ASSY
33-1
SECTION 33
FRONT SUSPENSION
CONTENTS
General........................................................1
Special tools ...............................................1Strut ASSY ..................................................1
General
The guidelines for the dismantling and assembly of the front suspension have been changed due to changes made to the
shape of the Bilstein shock absorbers.
Special tools
ToolNumberNameFunction
A: MB991237
B: MB991238A. Spring compressor body
B. Arm setDismantling and assembling
the strut ASSY
MB991680
A: MB991681
B: MB991682Wrench set
A. Wrench
B. Socket
Strut ASSY
Dismantling guidelines

A


Removal of the self-locking nut
1. Use the following special tools to compress the coil spring.
• Spring compressor body (MB991237)
• Arm set (MB991238)
Caution
(1) In order to completely compress the coil spring, ensure that
the special tool is fixed when at its greatest possible
extension and that it is fixed evenly to the coil spring.
(2) Do not use an impact wrench, because there is a danger
that the special tool may be damaged.
