SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-387
STEP 8. Check the key reminder switch (ignition key hole
illumination).
(1) Disconnect key reminder switch connector C-310.
(2) Remove the ignition key hole illumination lamp bulb. Then
measure the resistance value between the bulb terminals.
(3) Install a bulb to the key remainder switch, and measure the
resistance between connector C-310 terminals 1 and 2. The
measured resistance value should be roughly the same as
the value measured in Step (2).
Q: Are these two resistance values extremely different?
YES : Replace the key reminder switch. Verify that the
ignition key hole illumination lamp illuminates
normally.
NO : Go to Step 9.
STEP 9. Check the battery power supply circuit to the key
reminder switch circuit. Measure the voltage at key
reminder switch connector C-310.
(1) Disconnect key reminder switch connector C-310, and
measure the voltage available at the wiring harness side of
the connector.
(2) Measure the voltage between terminal 2 and ground.
The voltage should measure approximately 12 volts
(battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES : Go to Step 11.
NO : Go to Step 10.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-389
STEP 11. Check the wiring harness between key reminder
switch connector C-310 (terminal 1) and ETACS-ECU
connector C-218 (terminal 63).
Q: Is the wiring harness between key reminder switch
connector C-310 (terminal 1) and ETACS-ECU connector
C-218 (terminal 63) in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the ignition key hole illumination lamp illuminates
normally.
INSPECTION PROCEDURE K-5: Interior Light: The interior lamp automatic shutoff function does not
work normally.
NOTE: This troubleshooting procedure requires the
use of diagnostic tool MB991958 and SWS monitor
kit MB991813. For details on how to use the SWS
monitor, refer to "How to connect SWS monitor
P.54B-13."
.
CIRCUIT OPERATION
The ETACS-ECU operates the interior lamp auto-
matic shutdown function according to the following
switch signals:
Ignition switch (ACC)
Ignition switch (IG1)
Front door switch (LH)
Door switches
interior lamp loaded signal
.
TECHNICAL DESCRIPTION (COMMENT)
If the function does not work normally, the input cir-
cuit system from the switches or the ETACS-ECU
may be defective (refer to "CIRCUIT OPERATION").
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
Trouble in input signal system
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-398
INSPECTION PROCEDURE K-7: Interior Light: The seat belt warning lamp do not illuminate or go out
normally
NOTE: This troubleshooting procedure requires the
use of diagnostic tool MB991958 and SWS monitor
kit MB991813. For details on how to use the SWS
monitor, refer to "How to connect SWS monitor
P.54B-13."
.
CIRCUIT OPERATION
The combination meter and the ETACS-ECU illumi-
nates and flashes the seat belt warning lamp by
using the signal from the seat belt switch, the ignition
switch (IG1) and the vehicle speed signal.
.
TECHNICAL DESCRIPTION (COMMENT)
If the seat belt warning lamp does not illuminate or
flash correctly, connector(s), wiring harness in the
CAN bus lines, the door switches, the ETACS-ECU,
or the combination meter may be defective.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
Trouble in input signal system
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The combination meter may be defective
The ETACS-ECU may be defective
DIAGNOSIS
Required Special Tools:
MB991223: Harness Set
MB991958: Diagnostic Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)
MB991827: MUT-III USB Cable
MB991910: MUT-III Main Harness A
MB991813: SWS Monitor Kit
MB991806: SWS Monitor Cartridge
MB991812: SWS Monitor Harness (For Column-ECU)
MB991822: Test Probe Harness

INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-405
INPUT SIGNAL PROCEDURES
INSPECTION PROCEDURE M-1: ETACS-ECU does not receive any signal from the ignition switch
(ACC).
.
CIRCUIT OPERATION
The ETACS-ECU operates the following equipment
and function(s) according to signal from the ignition
switch (ACC):
Windshield wiper and washer
Interior lamp automatic shutoff function
The ETACS-ECU receives information on the ignition
switch condition (ACC) from the middle-grade multi
center display unit via CAN communication. If the
ignition switch (ACC) input signal is incorrect, refer to
the appropriate Diagnostic Trouble Code Chart
P.54B-25.
.
TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the equipment and func-
tion(s), which are described in "CIRCUIT OPERA-
TION", do not work normally.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective

INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-406
DIAGNOSIS
Required Special Tool:
MB991223: Harness Set
STEP 1. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?
YES : Go to Step 2.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the equipment described in "CIRCUIT
OPERATION" works normally, the input signal from
the ignition switch (ACC) should be normal.
STEP 2. Check the ignition switch (ACC) line of the power
supply circuit to the ETACS-ECU. Measure the voltage at
ETACS-ECU connector C-219.
(1) Disconnect ETACS-ECU connector C-219 and measure the
voltage available at the junction block side of the connector.
(2) Turn the ignition switch to the "ACC" position.
(3) Measure the voltage between terminal 4 and ground.
The voltage should measure approximately 12 volts
(battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES : Replace the ETACS-ECU. If the equipment described
in "CIRCUIT OPERATION" works normally, the input
signal from the ignition switch (ACC) should be
normal.
NO : Go to Step 3.

INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-407

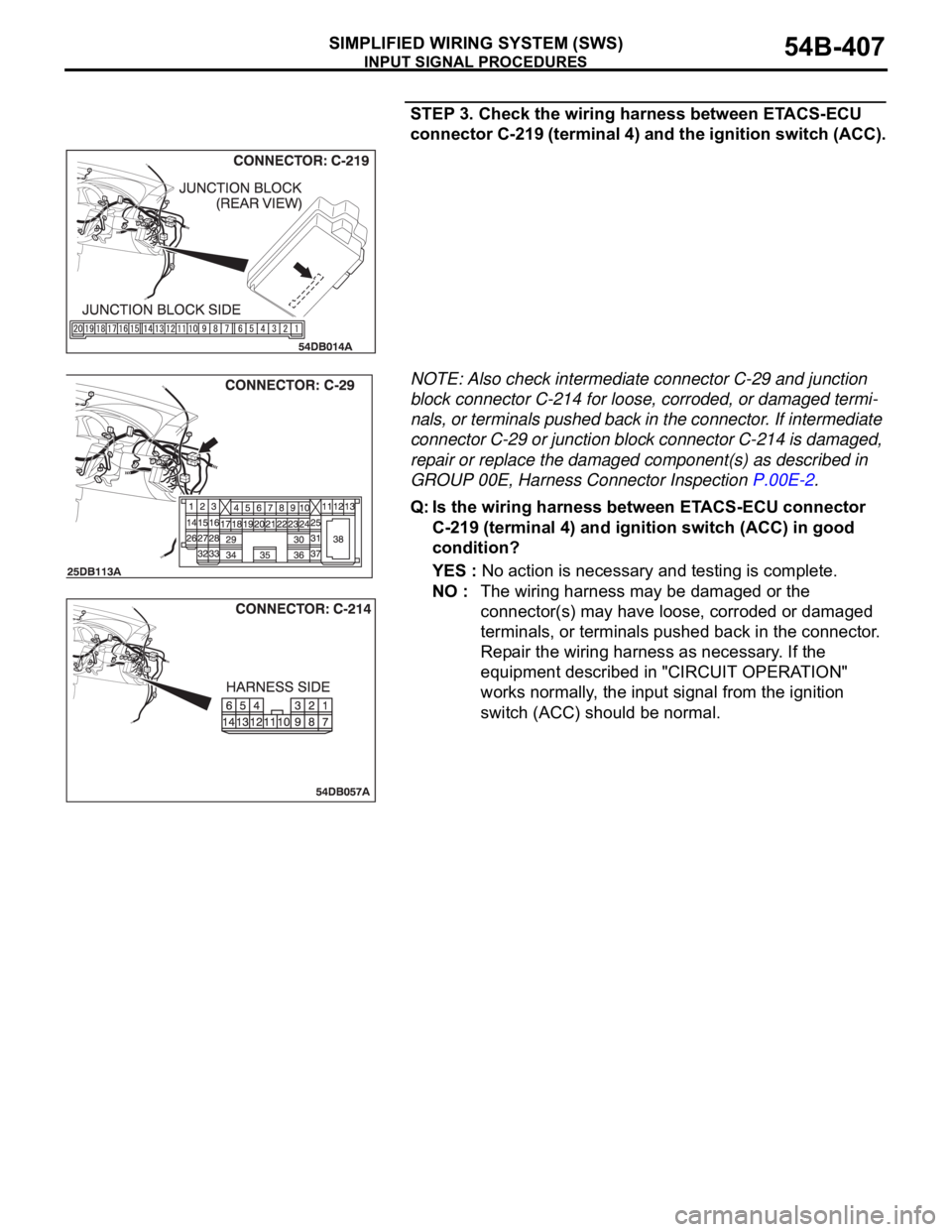

STEP 3. Check the wiring harness between ETACS-ECU
connector C-219 (terminal 4) and the ignition switch (ACC).
NOTE: Also check intermediate connector C-29 and junction
block connector C-214 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If intermediate
connector C-29 or junction block connector C-214 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.
Q: Is the wiring harness between ETACS-ECU connector
C-219 (terminal 4) and ignition switch (ACC) in good
condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
equipment described in "CIRCUIT OPERATION"
works normally, the input signal from the ignition
switch (ACC) should be normal.

INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-408
INSPECTION PROCEDURE M-2: ETACS-ECU does not receive any signal from the ignition switch
(IG1).
.
CIRCUIT OPERATION
The ETACS-ECU operates the following equipment
or functions according to signal from the ignition
switch (IG1):
Light reminder tone alarm function
Seat belt tone alarm function
Door ajar warning buzzer
Turn-signal lamp buzzer
Multi center display operation tone multi center display (middle grade type)>
Power window timer function
Sunroof timer function
Headlamp automatic shutdown function
Turn-signal lamp
Dome lamp dimming function
Ignition key hole illumination lamp
If the power supply circuit from the battery to the
ETACS-ECU is open, this circuit is used as
backup circuit.
If the signal is not normal, the equipment or functions
described in "CIRCUIT OPERATION" do not work
normally.
The ETACS-ECU receives information on the ignition
switch condition (IG1) from the combination meter
via CAN communication. If the ignition switch (IG1)
input signal is incorrect, refer to the Diagnostic Trou-
ble Code Chart P.54B-25.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
DIAGNOSIS
Required Special Tool:
MB991223: Harness Set
STEP 1. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?
YES : Go to Step 2.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. If the functions described in "CIRCUIT
OPERATION" work normally, the input signal from the
ignition switch (IG1) should be normal.

INPUT SIGNAL PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-409
STEP 2. Check the ignition switch (IG1) line of the power
supply circuit to the ETACS-ECU. Measure the voltage at
ETACS-ECU connector C-219.
(1) Disconnect ETACS-ECU connector C-219 and measure the
voltage available at the junction block side of the connector.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 8 and ground.
The voltage should measure approximately 12 volts
(battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES : Replace the ETACS-ECU. If the functions described
in "CIRCUIT OPERATION" work normally, the input
signal from the ignition switch (IG1) should be normal.
NO : Go to Step 3.
STEP 3. Check the wiring harness between ETACS-ECU
connector C-219 (terminal 8) and the ignition switch (IG1).
