2005 MERCEDES-BENZ S55AMG Owner's Manual

415 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

416 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

417 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed on the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

418 Technical dataIdentification labels1Certification label (below driver’s door
latch)2Vehicle Identification Number (VIN)
(below right rear passenger seat)3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Emission control information label,
includes both federal and California
certification exhaust emission
standards
6Vacuum line routing diagram label
When ordering parts, please specify vehi-
cle identification and engine numbers.

419 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
S 430/S 500 (all models)
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
S55AMGThe S 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black). 1Idler pulley
2Automatic belt tensioner
3ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger
S600
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley

420 Technical dataEngineModel
S 430 (220.070, 220.170)
1
S 430 4MATIC (220.183)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
S 500 (220.175)
1
S 500 4MATIC (220.184)
1
Engine
113
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
260.3 cu in (4266 cm
3)
303.0 cu in (4966 cm
3)
Compression ratio
10:1
10:1
Output acc. to SAE J 1349
275 hp/5750 rpm
2
(205 kW/5750 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp/5600 rpm
2
(225 kW/5600 rpm)
Maximum torque
acc. to SAE J 1349
295 lb-ft/3000 - 4400 rpm
(400 Nm/3000 - 4400 rpm)
339 lb-ft/2700 - 4250 rpm
(460 Nm/2700 - 4250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2380 mm
2380 mm

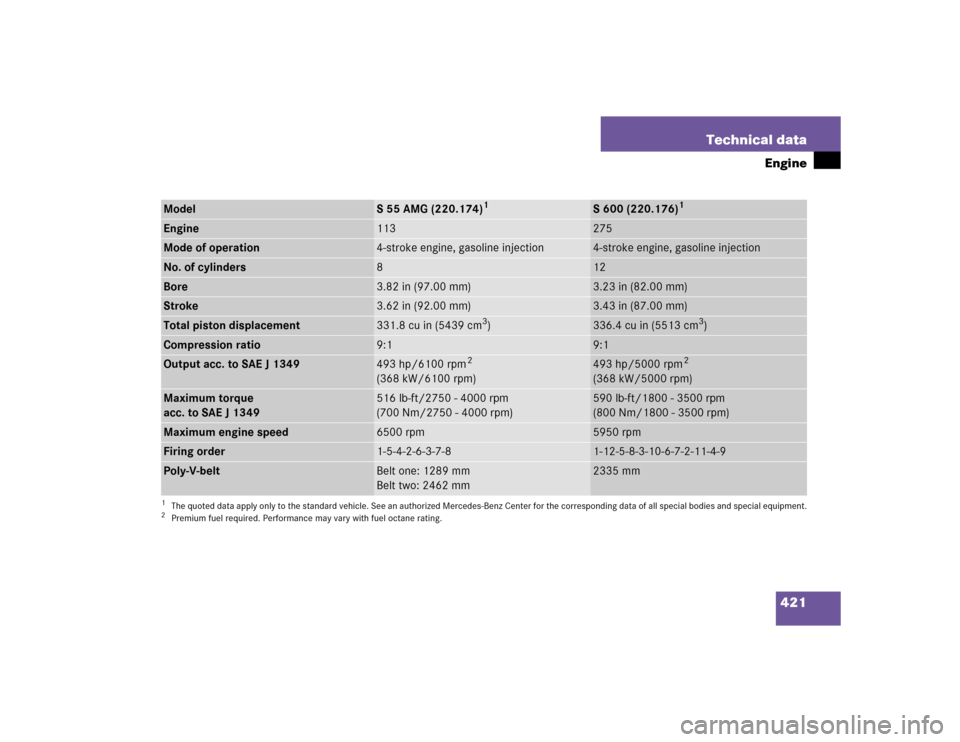

421 Technical data
Engine
Model
S 55 AMG (220.174)
1
S 600 (220.176)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.82 in (97.00 mm)
3.23 in (82.00 mm)
Stroke
3.62 in (92.00 mm)
3.43 in (87.00 mm)
Total piston displacement
331.8 cu in (5439 cm
3)
336.4 cu in (5513 cm
3)
Compression ratio
9:1
9:1
Output acc. to SAE J 1349
493 hp/6100 rpm
2
(368 kW/6100 rpm)
493 hp/5000 rpm
2
(368 kW/5000 rpm)
Maximum torque
acc. to SAE J 1349
516 lb-ft/2750 - 4000 rpm
(700 Nm/2750 - 4000 rpm)
590 lb-ft/1800 - 3500 rpm
(800 Nm/1800 - 3500 rpm)
Maximum engine speed
6500 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
Belt one: 1289 mm
Belt two: 2462 mm
2335 mm
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.2Premium fuel required. Performance may vary with fuel octane rating.

422 Technical dataRims and tiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver's door
B-pillar. Some vehicles may have sup-
plemental tire pressure information for
driving at high speeds (
page 306) or
for vehicle loads less than the maxi-
mum loaded vehicle condition. If such
information is provided, it can be found
on the placard located on the inside of
the fuel filler flap. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
