2005 MERCEDES-BENZ S55AMG Owner's Manual

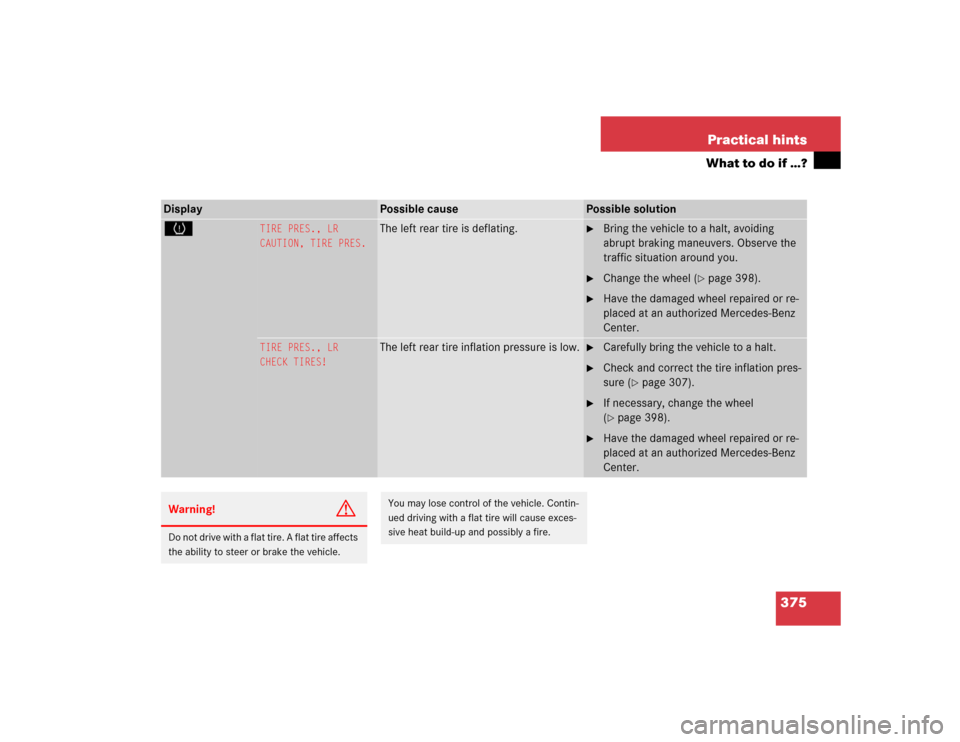

375 Practical hints
What to do if …?
Display
Possible cause
Possible solution
H
TIRE PRES., LR
CAUTION, TIRE PRES.
The left rear tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 398).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRES., LR
CHECK TIRES!
The left rear tire inflation pressure is low.

Carefully bring the vehicle to a halt.

Check and correct the tire inflation pres-
sure (
page 307).

If necessary, change the wheel
(page 398).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

376 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
H
TIRE PRES., RR
CAUTION, TIRE PRES.
The right rear tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 398).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRES., RR
CHECK TIRES!
The right rear tire inflation pressure is
low.

Carefully bring the vehicle to a halt.

Check and correct the tire inflation pres-
sure (
page 307).

If necessary, change the wheel
(page 398).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

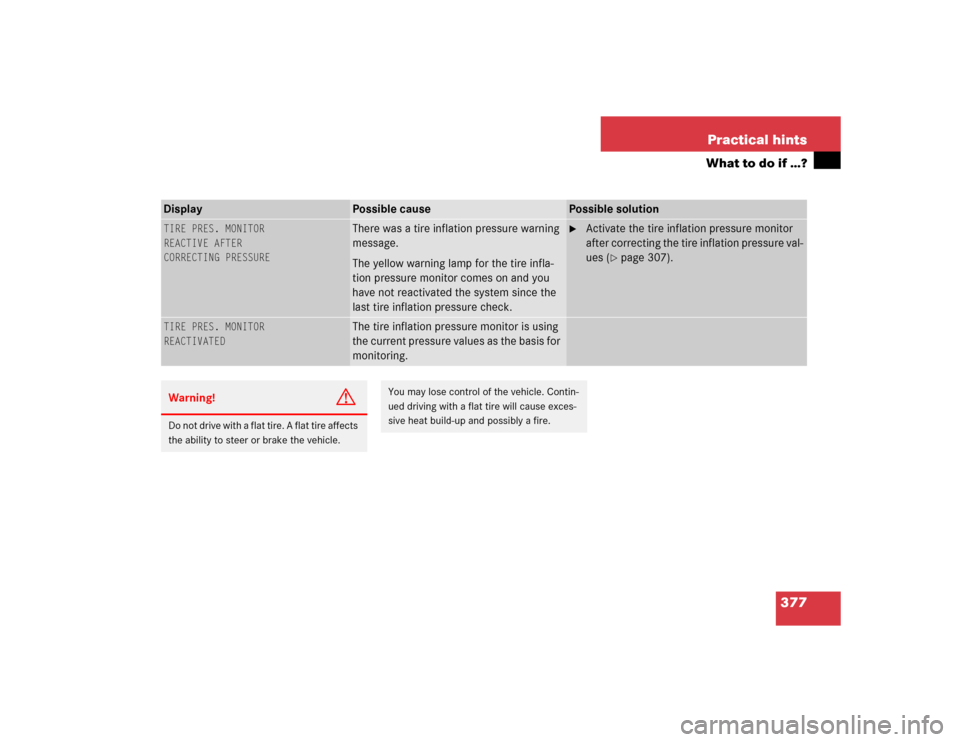

377 Practical hints
What to do if …?
Display
Possible cause
Possible solution
TIRE PRES. MONITOR
REACTIVE AFTER
CORRECTING PRESSURE
There was a tire inflation pressure warning
message.
The yellow warning lamp for the tire infla-
tion pressure monitor comes on and you
have not reactivated the system since the
last tire inflation pressure check.

Activate the tire inflation pressure monitor
after correcting the tire inflation pressure val-
ues (
page 307).
TIRE PRES. MONITOR
REACTIVATED
The tire inflation pressure monitor is using
the current pressure values as the basis for
monitoring.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

378 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
TIRE PRES. MONITOR
CURRENTLY
UNAVAILABLE
The tire inflation pressure monitor* is un-
able to monitor the tire inflation pressure
due to:

the presence of several when sensors in
the vehicle


excessive wheel sensor temperatures


a nearby radio interference source


unrecognized wheel sensors installed

Remove any extra wheel sensors from the ve-
hicle.
As soon as the causes of the malfunction have
been removed, the tire inflation pressure moni-
tor automatically becomes active again.
TIRE PRES. MONITOR
NOT OPERATIONAL DRIVE TO WORKSHOP
The tire inflation pressure monitor or a
wheel sensor is malfunctioning.

Have the tire inflation pressure monitor
checked by an authorized Mercedes-Benz
Center.
A wheel without proper sensor was in-
stalled.

Have the wheels checked.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

379 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located in the storage
compartments under the front passenger
seat.
1Lid
2ButtonsRemoving the first aid kit

Press buttons2 together and fold
lid1 down.
Remove first aid kit.
Storing the first aid kit

Place first aid kit in the storage com-
partments.

Close lid1 until both buttons2 of
lock engage.Vehicle jack, vehicle tool kit, luggage
bowl, spare wheel
The spare wheel, the vehicle tools, and the
luggage bowl are stored in the compart-
ment underneath the trunk floor.
1Jack
2Storage tray with vehicle tool kit
3Luggage bowl
4Spare wheel
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
You can now remove the tools and ac-
cessories.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.


380 Practical hintsWhere will I find ...?The vehicle tool kit includes:

One interchangeable slot/Phillips
screwdriver


One towing eye bolt


One wheel bolt wrench with socket
wrench


One alignment bolt


One pair of gloves


One fuse extractor


One fuse chart for the main fuse box


Spare fusesVehicle jack
To prepare the vehicle jack for use

Remove the vehicle jack from the spare
wheel well under the trunk floor.

Push the crank handle up.

Turn the crank handle clockwise until it
engages (operational position).Storing the vehicle jack in the trunk

Retract the vehicle jack arm to the
base of the vehicle jack.

Push the crank handle up.

Turn the crank handle counterclock-
wise to the end of the stop (storage po-
sition).
!To prevent damage, always disengage
trunk floor handle from trunk lid and
lower trunk floor before closing the
trunk lid.


381 Practical hints
Where will I find ...?
Spare wheel
Removing the spare wheel
Take out the vehicle tool kit tray2.

Loosen the luggage bowl3. To do so,
turn the luggage bowl counterclock-
wise.

Remove the spare wheel4.
Storing the spare wheel

Place spare wheel4in wheel well.

Secure the spare wheel. To do so, turn
the luggage bowl3 clockwise to its
stop.

Place vehicle tool kit tray2 in luggage
bowl.
Spare wheel S 430, S 500 and S 600
(except Sport Package*)
The spare wheel rim is mounted with a full
sized tire of the same type as on the vehi-
cle, and it is fully functional.However, that spare wheel rim is weight
optimized and has a limited service life of
12 000 miles (20 000 km) use before a
standard wheel rim must replace it.
In case of flat tire, you may temporarily use
the spare wheel.
Do not operate vehicle with more than one
spare wheel mounted.
For more information, see “Rims and tires”
(
page 422).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.
Warning!
G
Never operate the vehicle with more than
one spare wheel mounted.
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
The spare wheel should only be used tempo-
rarily and replaced with a regular road wheel
as quickly as possible.

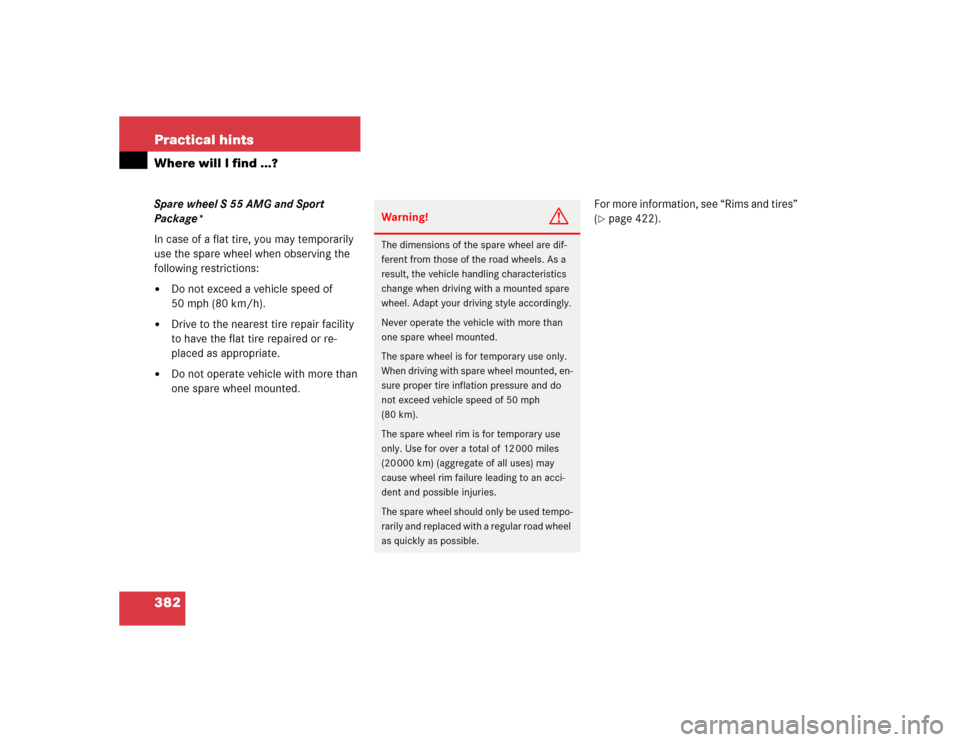

382 Practical hintsWhere will I find ...?Spare wheel S 55 AMG and Sport
Package*
In case of a flat tire, you may temporarily
use the spare wheel when observing the
following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.For more information, see “Rims and tires”
(
page 422).
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
Never operate the vehicle with more than
one spare wheel mounted.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire inflation pressure and do
not exceed vehicle speed of 50 mph
(80 km).
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
The spare wheel should only be used tempo-
rarily and replaced with a regular road wheel
as quickly as possible.
