2005 MERCEDES-BENZ G55AMG Owner's Manual

369 Technical data
Rims and tires
Rims and tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Light Truck Center.
A placard with the recommended tire
inflation pressures is located on the
driver’s door B-pillar. Some vehicles
may have supplemental tire inflation
pressure information for driving at high
speeds (
page 258) or for vehicle
loads less than the maximum loaded
vehicle condition. If such information is
provided, it can be found on the placard
located on the inside of the fuel filler
flap. The tire inflation pressure should
be checked regularly and should only
be adjusted on cold tires. Follow tire
manufacturer’s maintenance recom-
mendation included with vehicle.

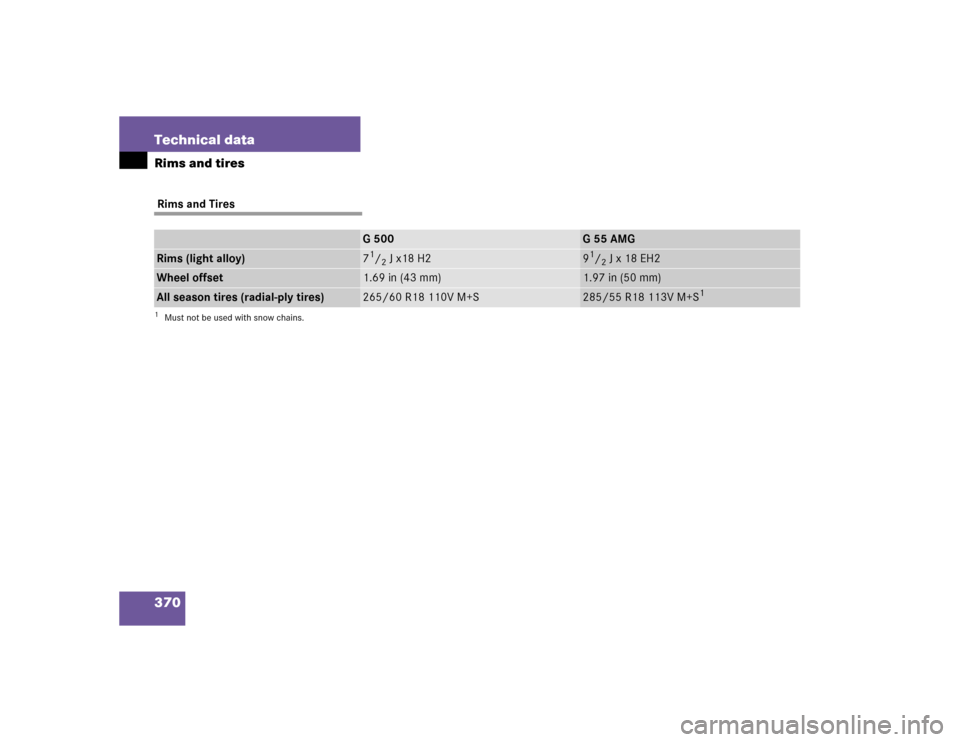

370 Technical dataRims and tires Rims and Tires
G 500
G55AMG
Rims (light alloy)
71/2 J x18 H2
91/2 J x 18 EH2
Wheel offset
1.69 in (43 mm)
1.97 in (50 mm)
All season tires (radial-ply tires)
265/60 R18 110V M+S
285/55 R18 113V M+S
1
1Must not be used with snow chains.

371 Technical data
Rims and tires

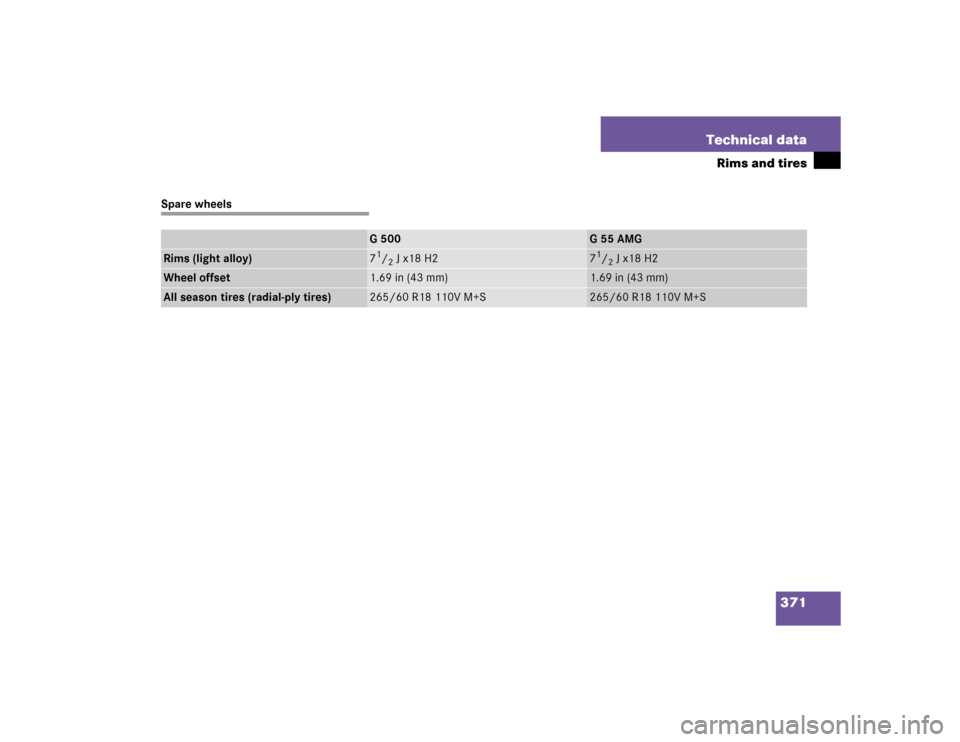

Spare wheels
G 500
G55AMG
Rims (light alloy)
71/2 J x18 H2
71/2 J x18 H2
Wheel offset
1.69 in (43 mm)
1.69 in (43 mm)
All season tires (radial-ply tires)
265/60 R18 110V M+S
265/60 R18 110V M+S

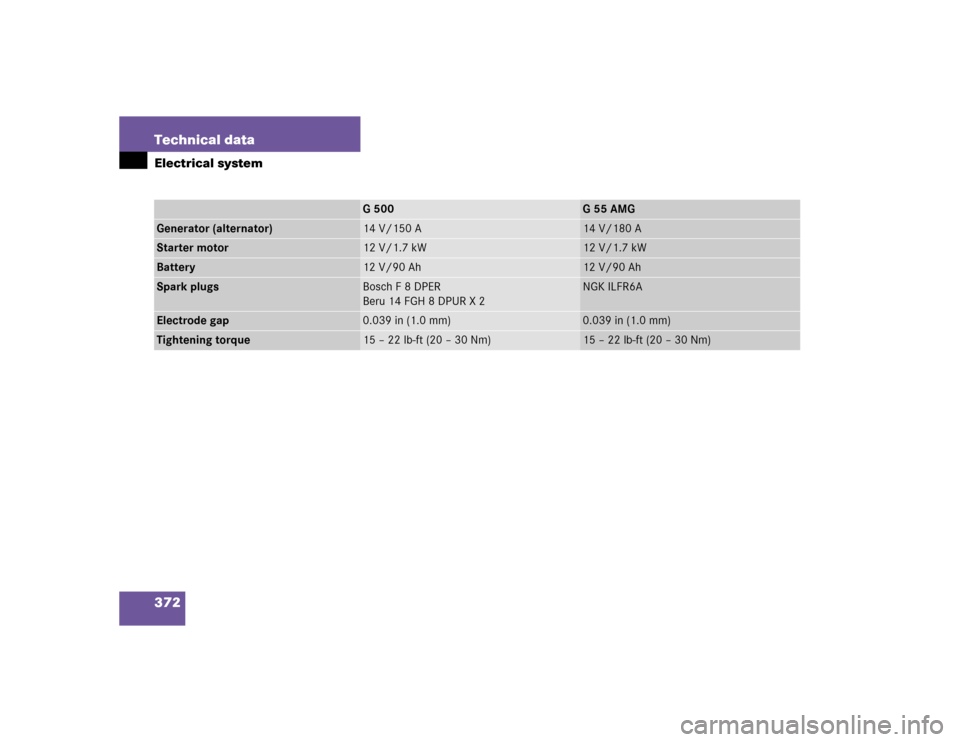

372 Technical dataElectrical system
G 500
G55AMG
Generator (alternator)
14 V/150 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/90 Ah
12 V/90 Ah
Spark plugs
Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK ILFR6A
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

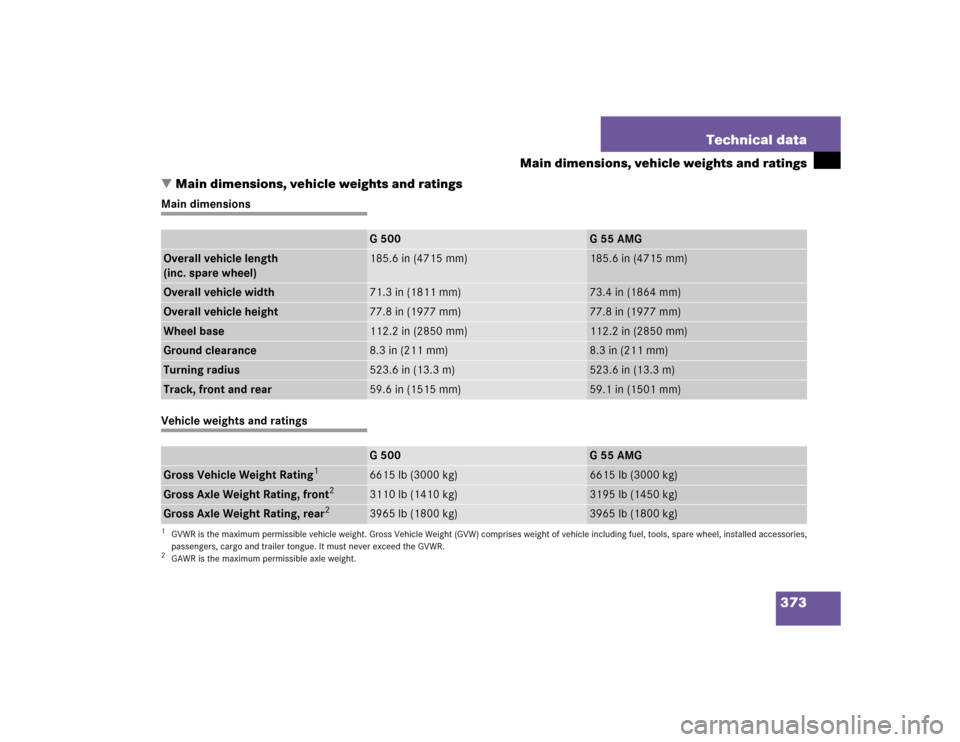

373 Technical data
Main dimensions, vehicle weights and ratings
Main dimensions, vehicle weights and ratings
Main dimensionsVehicle weights and ratings
G 500
G55AMG
Overall vehicle length
(inc. spare wheel)
185.6 in (4715 mm)
185.6 in (4715 mm)
Overall vehicle width
71.3 in (1811 mm)
73.4 in (1864 mm)
Overall vehicle height
77.8 in (1977 mm)
77.8 in (1977 mm)
Wheel base
112.2 in (2850 mm)
112.2 in (2850 mm)
Ground clearance
8.3 in (211 mm)
8.3 in (211 mm)
Turning radius
523.6 in (13.3 m)
523.6 in (13.3 m)
Track, front and rear
59.6 in (1515 mm)
59.1 in (1501 mm)
G 500
G55AMG
Gross Vehicle Weight Rating
1
1GVWR is the maximum permissible vehicle weight. Gross Vehicle Weight (GVW) comprises weight of vehicle including fuel, tools, spare wheel, installed accessories,
passengers, cargo and trailer tongue. It must never exceed the GVWR.
6615 lb (3000 kg)
6615 lb (3000 kg)
Gross Axle Weight Rating, front
2
2GAWR is the maximum permissible axle weight.
3110 lb (1410 kg)
3195 lb (1450 kg)
Gross Axle Weight Rating, rear
2
3965 lb (1800 kg)
3965 lb (1800 kg)

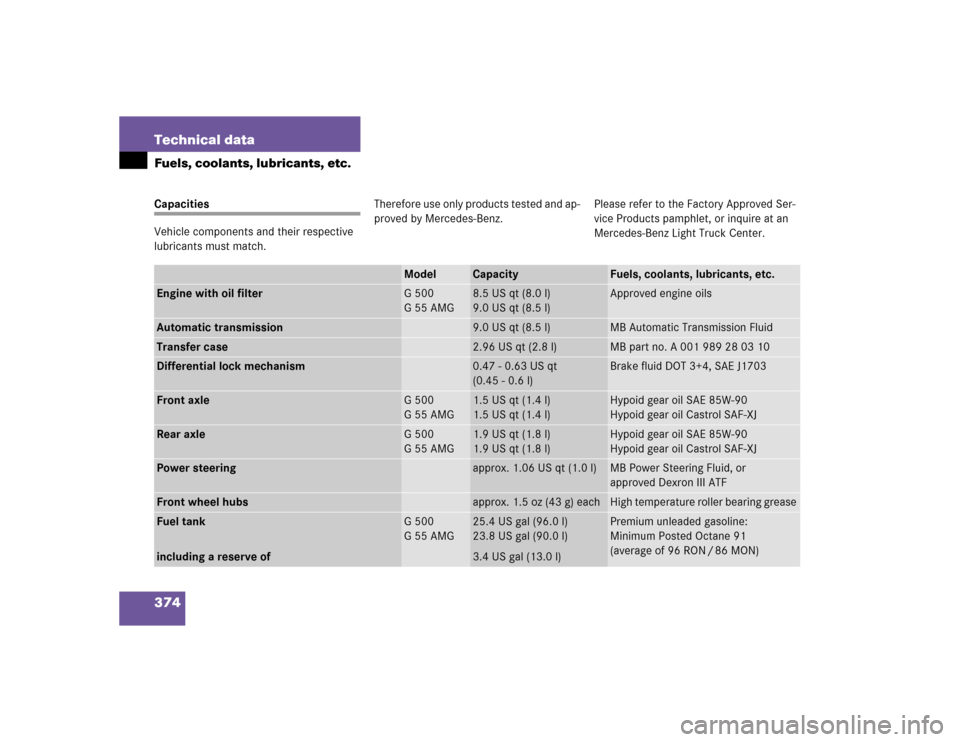

374 Technical dataFuels, coolants, lubricants, etc.Capacities
Vehicle components and their respective
lubricants must match.Therefore use only products tested and ap-
proved by Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at an
Mercedes-Benz Light Truck Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
G 500
G55AMG
8.5 US qt (8.0 l)
9.0 US qt (8.5 l)
Approved engine oils
Automatic transmission
9.0 US qt (8.5 l)
MB Automatic Transmission Fluid
Transfer case
2.96 US qt (2.8 l)
MB part no. A 001 989 28 03 10
Differential lock mechanism
0.47 - 0.63 US qt
(0.45 - 0.6 l)
Brake fluid DOT 3+4, SAE J1703
Front axle
G 500
G55AMG
1.5 US qt (1.4 l)
1.5 US qt (1.4 l)
Hypoid gear oil SAE 85W-90
Hypoid gear oil Castrol SAF-XJ
Rear axle
G 500
G55AMG
1.9 US qt (1.8 l)
1.9 US qt (1.8 l)
Hypoid gear oil SAE 85W-90
Hypoid gear oil Castrol SAF-XJ
Power steering
approx. 1.06 US qt (1.0 l)
MB Power Steering Fluid, or
approved Dexron III ATF
Front wheel hubs
approx. 1.5 oz (43 g) each
High temperature roller bearing grease
Fuel tank
including a reserve of
G 500
G55AMG
25.4 US gal (96.0 l)
23.8 US gal (90.0 l)
3.4 US gal (13.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(average of 96 RON / 86 MON)

375 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet, or
contact an authorized Mercedes-Benz
Light Truck Center.Using engine oils and oil filters of specifica-
tion other than those expressly required
for the Maintenance System (U.S. vehi-
cles) or FSS (Canada vehicles), or changing
of oil and oil filter at change intervals
longer than those called for by the
Maintenance System (U.S. vehicles) or
FSS (Canada vehicles) will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.Please follow Maintenance System (U.S.
vehicles) or FSS (Canada vehicles) recom-
mendations for scheduled oil changes.
Failure to do so will result in engine dam-
age not covered by the Mercedes-Benz
Limited Warranty.

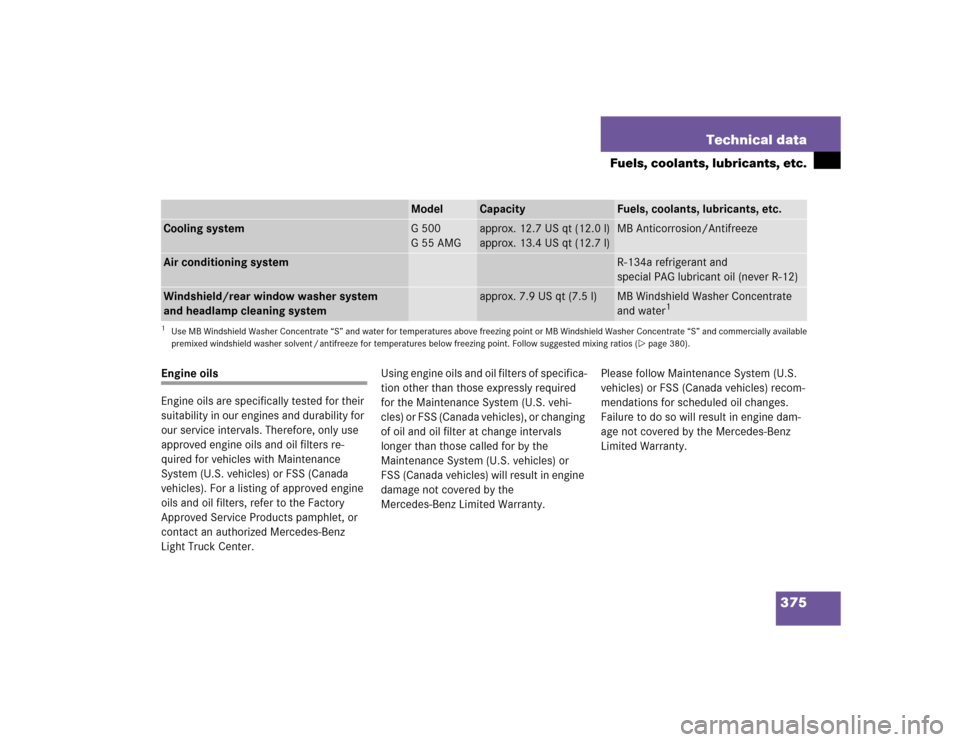

Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
G 500
G55AMG
approx. 12.7 US qt (12.0 l)
approx. 13.4 US qt (12.7 l)
MB Anticorrosion/Antifreeze
Air conditioning system
R-134a refrigerant and
special PAG lubricant oil (never R-12)
Windshield/rear window washer system
and headlamp cleaning system
approx. 7.9 US qt (7.5 l)
MB Windshield Washer Concentrate
and water
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent / antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 380).

376 Technical dataFuels, coolants, lubricants, etc.Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine. Damage or
malfunctions resulting from blending oil
additives are not covered by the
Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system. Never use R-12 (CFC) or
mineral-based lubricating oil. Otherwise
damage to the system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency. Therefore, the brake fluid
must be replaced every two years, prefera-
bly in the spring. Only brake fluid approved
by Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Light Truck
Center will provide you with additional in-
formation.
Premium unleaded gasoline
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed
2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.
