2005 MERCEDES-BENZ G55AMG Owner's Manual

169 Controls in detail
Climate control
Residual engine heat utilization
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for a short while, depending on the temper-
ature setting of the climate control.
Air volume and distribution are controlled
automatically.
Activating
Turn the SmartKey in starter switch to
position1 or0 or remove it from the
starter switch.

Press button °.
The indicator lamp in the button comes
on.
Set the left and right temperature to
your personal requirements.Deactivating

Press button ° again to switch off.
The indicator lamp in the button goes
out.
The residual heat is automatically turned
off:


when the SmartKey in starter switch is
turned to position2


after about 30 minutes


if the battery voltage dropsDeactivating the climate control
system
Deactivating
Set the air volume control switch to
position0.
Reactivating

Set the air volume control switch to any
speed.

170 Controls in detailClimate controlAir conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.
Press button°.
The indicator lamp on the button°
comes on.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air conditioner.

Press button° again.
The indicator lamp on the button°
goes out.
The air conditioner uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.Rear passenger compartment
adjustable air vents
1Air volume control for center air vents
2Left center air vent, adjustable
3Right center air vent, adjustable
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the° button on the climate con-
trol panel starts to blink, this indicates
that the air conditioner is losing refrig-
erant. The compressor has turned itself
off. The air conditioner cannot be
turned on again.

Have the air conditioner checked at
the nearest authorized
Mercedes-Benz Light Truck Center.

171 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. Switches for operating all the
side windows are located on the driver’s
door. The switches for the respective win-
dows are located on the front passenger
and the rear doors.
1Switch for rear door window override
(
page 78)
2Left front window
3Right front window
4Right rear window
5Left rear window

Turn SmartKey in the starter switch to
position1 or2.Opening the windows

Press switch 2 to 5 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows

Pull on switch 2 to 5.
The corresponding window will move
upwards until you release the switch.
Fully opening windows (Express-open)

Press switch 2 to 5 past the
resistance point and release.
The corresponding window opens
completely.
Stopping windows

Press or pull respective switch again.
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing procedure can be immediately
halted by releasing the switch or by releas-
ing button‹ on the SmartKey.
When leaving the vehicle, always remove the
SmartKey from starter switch, take it with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.

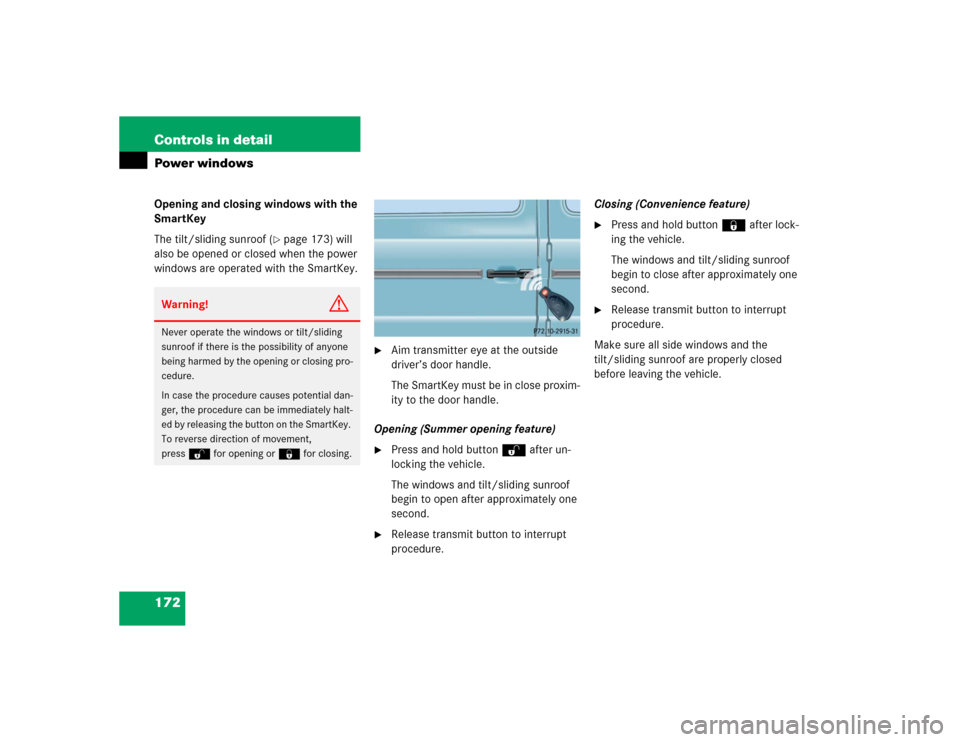

172 Controls in detailPower windowsOpening and closing windows with the
SmartKey
The tilt/sliding sunroof (
page 173) will
also be opened or closed when the power
windows are operated with the SmartKey.

Aim transmitter eye at the outside
driver’s door handle.
The SmartKey must be in close proxim-
ity to the door handle.
Opening (Summer opening feature)

Press and hold buttonΠafter un-
locking the vehicle.
The windows and tilt/sliding sunroof
begin to open after approximately one
second.

Release transmit button to interrupt
procedure.Closing (Convenience feature)

Press and hold button‹ after lock-
ing the vehicle.
The windows and tilt/sliding sunroof
begin to close after approximately one
second.

Release transmit button to interrupt
procedure.
Make sure all side windows and the
tilt/sliding sunroof are properly closed
before leaving the vehicle.
Warning!
G
Never operate the windows or tilt/sliding
sunroof if there is the possibility of anyone
being harmed by the opening or closing pro-
cedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the button on the SmartKey.
To reverse direction of movement,
pressŒ for opening or ‹ for closing.

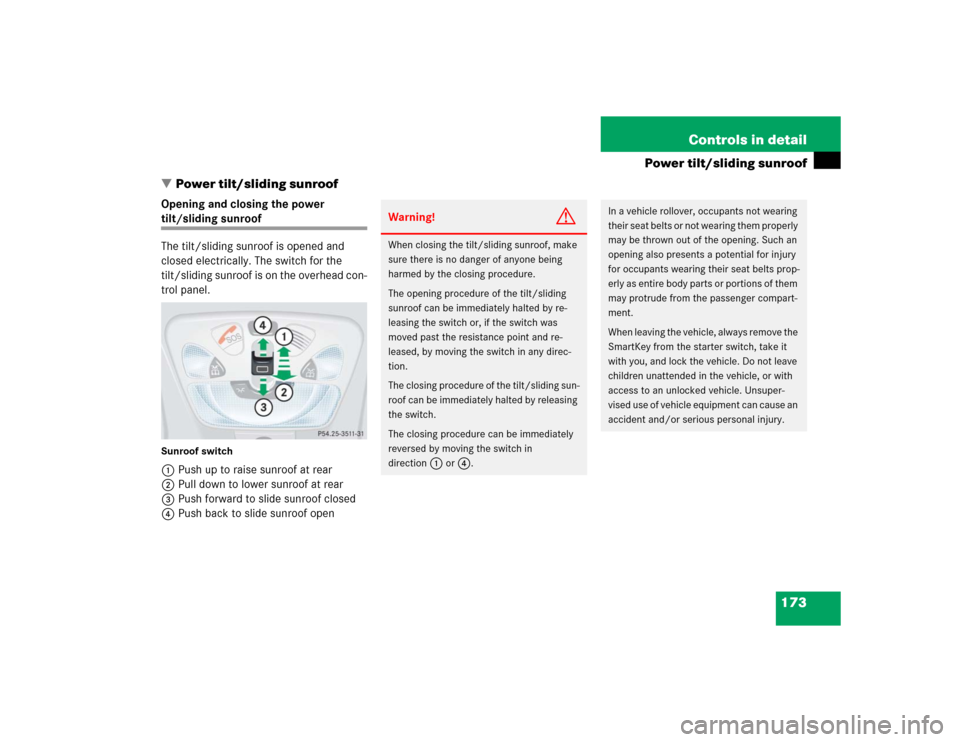

173 Controls in detail
Power tilt/sliding sunroof
Power tilt/sliding sunroof
Opening and closing the power tilt/sliding sunroof
The tilt/sliding sunroof is opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead con-
trol panel.Sunroof switch1Push up to raise sunroof at rear
2Pull down to lower sunroof at rear
3Push forward to slide sunroof closed
4Push back to slide sunroof open
Warning!
G
When closing the tilt/sliding sunroof, make
sure there is no danger of anyone being
harmed by the closing procedure.
The opening procedure of the tilt/sliding
sunroof can be immediately halted by re-
leasing the switch or, if the switch was
moved past the resistance point and re-
leased, by moving the switch in any direc-
tion.
The closing procedure of the tilt/sliding sun-
roof can be immediately halted by releasing
the switch.
The closing procedure can be immediately
reversed by moving the switch in
direction
1
or4
.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts prop-
erly as entire body parts or portions of them
may protrude from the passenger compart-
ment.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.

174 Controls in detailPower tilt/sliding sunroof
Switch on the ignition (
page 35).Opening and closing the tilt/sliding
sunroof

To open, close, raise or lower the
tilt/sliding sunroof, move the sunroof
switch to resistance point in the re-
quired direction of arrows1to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the de-
sired position.Fully opening (Express-open) the
tilt/sliding sunroof

To open the tilt/sliding sunroof, move
the sunroof switch past the resistance
point in direction of arrow4 and
release.
The tilt/sliding sunroof opens
completely.
Stopping the tilt/sliding sunroof during
Express-operation

Move the sunroof switch in any
direction.
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 328).
iYou can also open or close the
tilt/sliding sunroof using the SmartKey
(summer opening/convenience closing
feature) (
page 175).

175 Controls in detail
Power tilt/sliding sunroof
Opening and closing the tilt/sliding
sunroof with the SmartKey
The power windows (
page 171) will also
be opened or closed when you operate the
tilt/sliding sunroof with the SmartKey.

Aim transmitter eye at the driver’s door
handle.
The SmartKey must be in close proxim-
ity to the door handle.
Opening (Summer opening feature)

Press and hold buttonΠafter un-
locking the vehicle.
The windows and tilt/sliding sunroof
begin to open after approximately one
second.

Release transmit button to interrupt
procedure.Closing (Convenience closing feature)

Press and hold button‹ after lock-
ing the vehicle.
The windows and tilt/sliding sunroof
begin to close after approximately one
second.

Release transmit button to interrupt
procedure.
Make sure all side windows and the
tilt/sliding sunroof are properly closed be-
fore leaving the vehicle.
Warning!
G
Never operate the windows or tilt/sliding
sunroof if there is the possibility of anyone
being harmed by the opening or closing pro-
cedure.
In case the procedure causes potential dan-
ger, the procedure can be immediately halt-
ed by releasing the button on the SmartKey.
To reverse direction of movement,
pressŒ for opening or ‹ for closing.

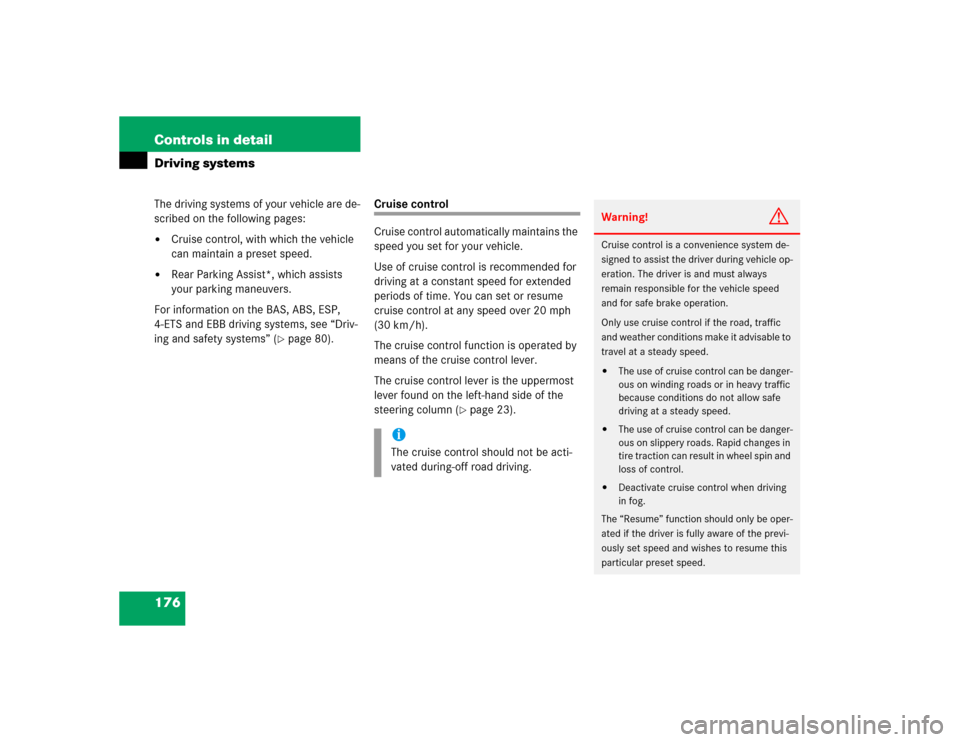

176 Controls in detailDriving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.


Rear Parking Assist*, which assists
your parking maneuvers.
For information on the BAS, ABS, ESP,
4-ETS and EBB driving systems, see “Driv-
ing and safety systems” (
page 80).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 23).
iThe cruise control should not be acti-
vated during-off road driving.
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must always
remain responsible for the vehicle speed
and for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
