2005 MERCEDES-BENZ G55AMG Owner's Manual

137 Controls in detail
Control system
Selecting display (speed display or out-
side temperature)
Move the selection marker with
theæ orç button to the INSTRUMENT CLUSTER
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

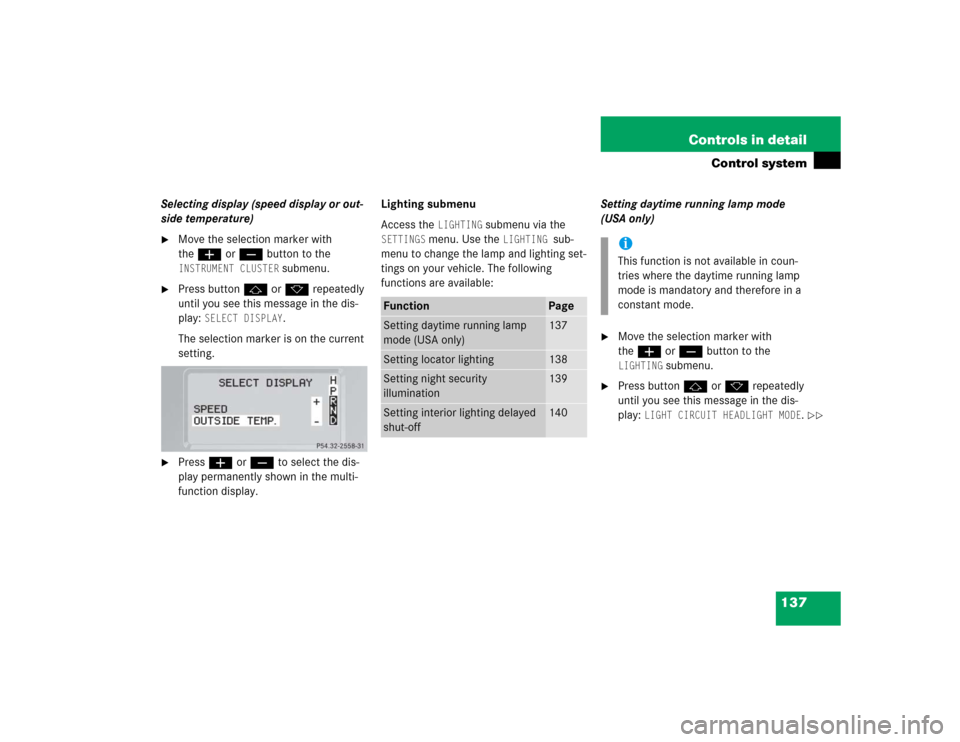

SELECT DISPLAY
.
The selection marker is on the current
setting.

Pressæ orç to select the dis-
play permanently shown in the multi-
function display.Lighting submenu
Access the
LIGHTING
submenu via the
SETTINGS
menu. Use the
LIGHTING
sub-
menu to change the lamp and lighting set-
tings on your vehicle. The following
functions are available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
theæ orç button to the LIGHTING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

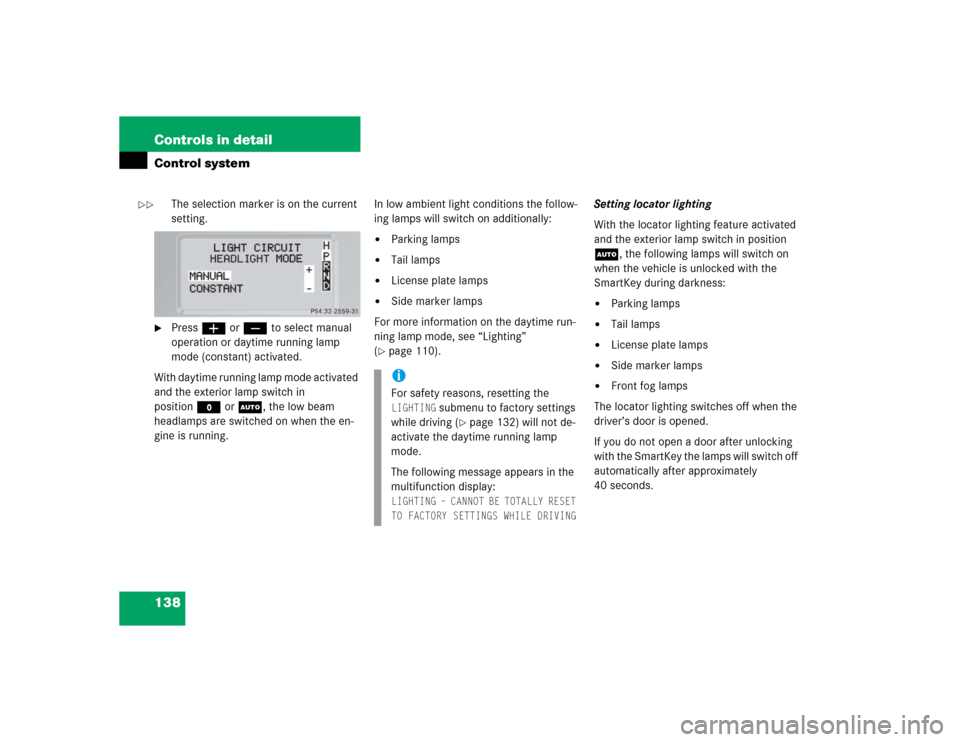

LIGHT CIRCUIT HEADLIGHT MODE
.
Function
Page
Setting daytime running lamp
mode (USA only)
137
Setting locator lighting
138
Setting night security
illumination
139
Setting interior lighting delayed
shut-off
140
iThis function is not available in coun-
tries where the daytime running lamp
mode is mandatory and therefore in a
constant mode.


138 Controls in detailControl system
The selection marker is on the current
setting.

Pressæ orç to select manual
operation or daytime running lamp
mode (constant) activated.
With daytime running lamp mode activated
and the exterior lamp switch in
positionMorU, the low beam
headlamps are switched on when the en-
gine is running.In low ambient light conditions the follow-
ing lamps will switch on additionally:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps
For more information on the daytime run-
ning lamp mode, see “Lighting”
(
page 110).Setting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in position
U, the following lamps will switch on
when the vehicle is unlocked with the
SmartKey during darkness:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
with the SmartKey the lamps will switch off
automatically after approximately
40 seconds.
iFor safety reasons, resetting the LIGHTING
submenu to factory settings
while driving (
page 132) will not de-
activate the daytime running lamp
mode.
The following message appears in the
multifunction display:
LIGHTING – CANNOT BE TOTALLY RESET
TO FACTORY SETTINGS WHILE DRIVING


139 Controls in detail
Control system

Move the selection marker with
theæ orç button to the LIGHTING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

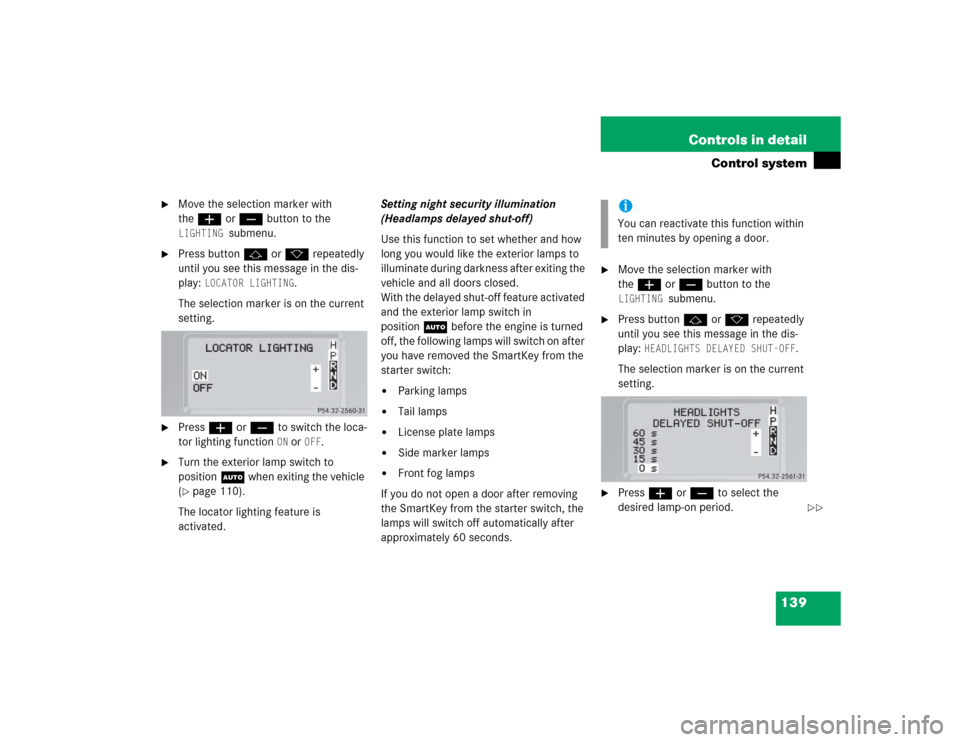

LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Pressæ orç to switch the loca-
tor lighting function
ON or
OFF
.

Turn the exterior lamp switch to
positionU when exiting the vehicle
(page 110).
The locator lighting feature is
activated.Setting night security illumination
(Headlamps delayed shut-off)
Use this function to set whether and how
long you would like the exterior lamps to
illuminate during darkness after exiting the
vehicle and all doors closed.
With the delayed shut-off feature activated
and the exterior lamp switch in
positionU before the engine is turned
off, the following lamps will switch on after
you have removed the SmartKey from the
starter switch:


Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
If you do not open a door after removing
the SmartKey from the starter switch, the
lamps will switch off automatically after
approximately 60 seconds.

Move the selection marker with
theæ orç button to the LIGHTING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
HEADLIGHTS DELAYED SHUT-OFF
.
The selection marker is on the current
setting.

Pressæ orç to select the
desired lamp-on period.iYou can reactivate this function within
ten minutes by opening a door.


140 Controls in detailControl system
You can select:

0 s
, the delayed shut-off feature is
deactivated.


15 s
, 30 s
, 45 s
or
60 s
, select the
desired lamp-on period.

Turn the exterior lamp switch to
positionU before turning off the
engine.
The headlamps delayed shut-off
feature is activated.
You can temporarily deactivate the
delayed shut-off feature:

Before exiting the vehicle, turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back to
position0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.Setting interior lighting delayed shut-off
Use this function to set whether and how
long you would like the interior lighting to
remain lit during darkness after you have
removed the SmartKey from the starter
switch.

Move the selection marker with
theæ orç button to the LIGHTING
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

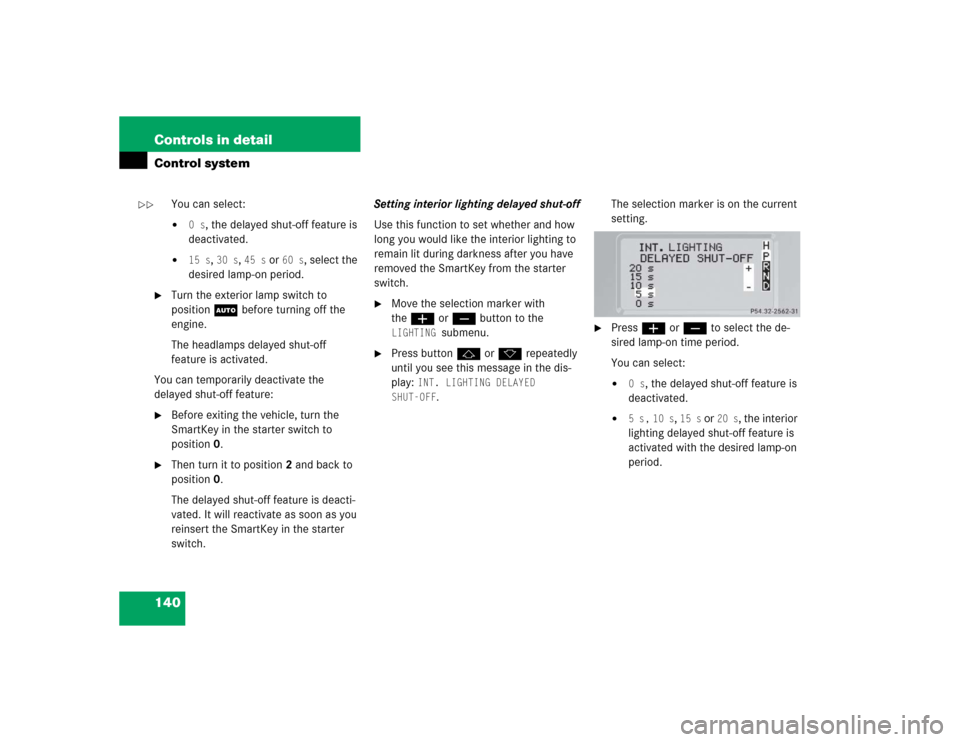

INT. LIGHTING DELAYED
SHUT-OFF
.The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on time period.
You can select:

0 s
, the delayed shut-off feature is
deactivated.


5 s,
10 s
, 15 s
or
20 s
, the interior
lighting delayed shut-off feature is
activated with the desired lamp-on
period.


141 Controls in detail
Control system
Vehicle submenu
Access the
VEHICLE
submenu via the
SETINGS
menu. Use the
VEHICLE
submenu
to make general vehicle settings. The fol-
lowing functions are available:
Setting station selection mode
Use the
PRESS BUTTON IN AUDIO MODE
function to select the manual or memory
station selection mode for the radio.
Move the selection marker with
theæ orç button to the VEHICLE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

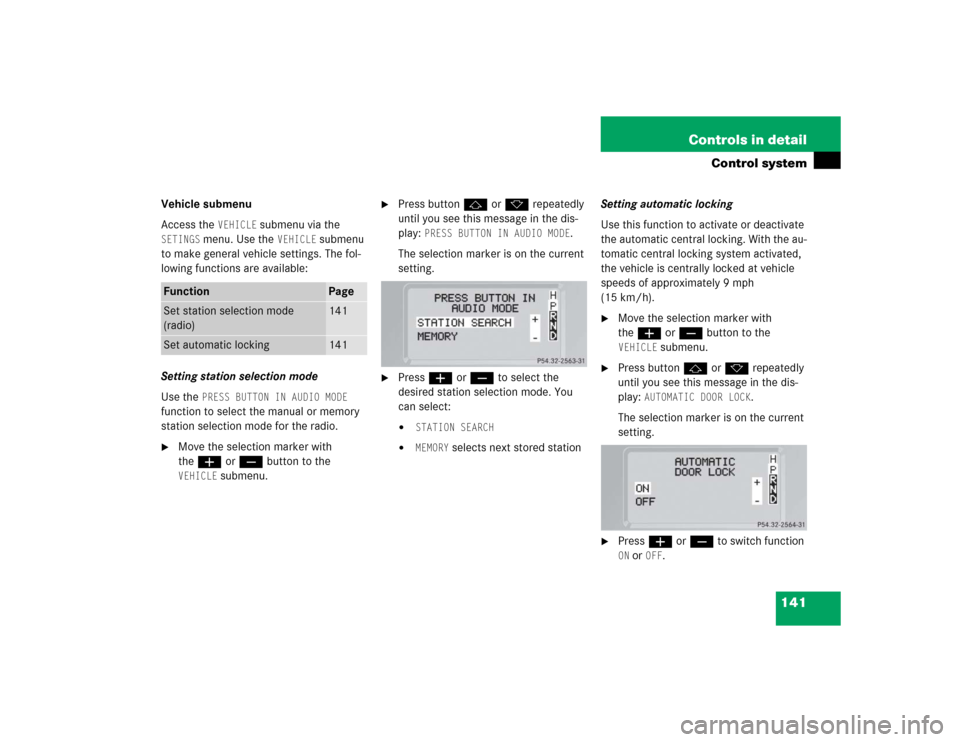

PRESS BUTTON IN AUDIO MODE
.
The selection marker is on the current
setting.

Pressæ orç to select the
desired station selection mode. You
can select:

STATION SEARCH


MEMORY
selects next stored stationSetting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
theæ orç button to the VEHICLE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Pressæ orç to switch function ON or
OFF
.
Function
Page
Set station selection mode
(radio)
141
Set automatic locking
141

142 Controls in detailControl systemConvenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature
(
page 100).

Move the selection marker with
theæ orç button to the CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.

Pressæ orç to change the
easy-entry/exit setting.
The following settings are available for the
easy-entry/exit feature
Function
Page
Activate easy-entry/exit feature
142
Set key-dependency
143
Set parking position for exterior
rear view mirror
143
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To cancel steering wheel movement, do one
of the following:

Move steering column stalk
(page 40).


Press memory position switch
(page 107).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door an un-
intentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
OFF
The easy-entry/exit
feature is deactivated
STEERING COLUMN
The easy-entry/exit
feature is activated

143 Controls in detail
Control system
Setting key-dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the exterior mirrors should be
stored separately for each SmartKey
(page 107).

Move the selection marker with
theæ orç button to the CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

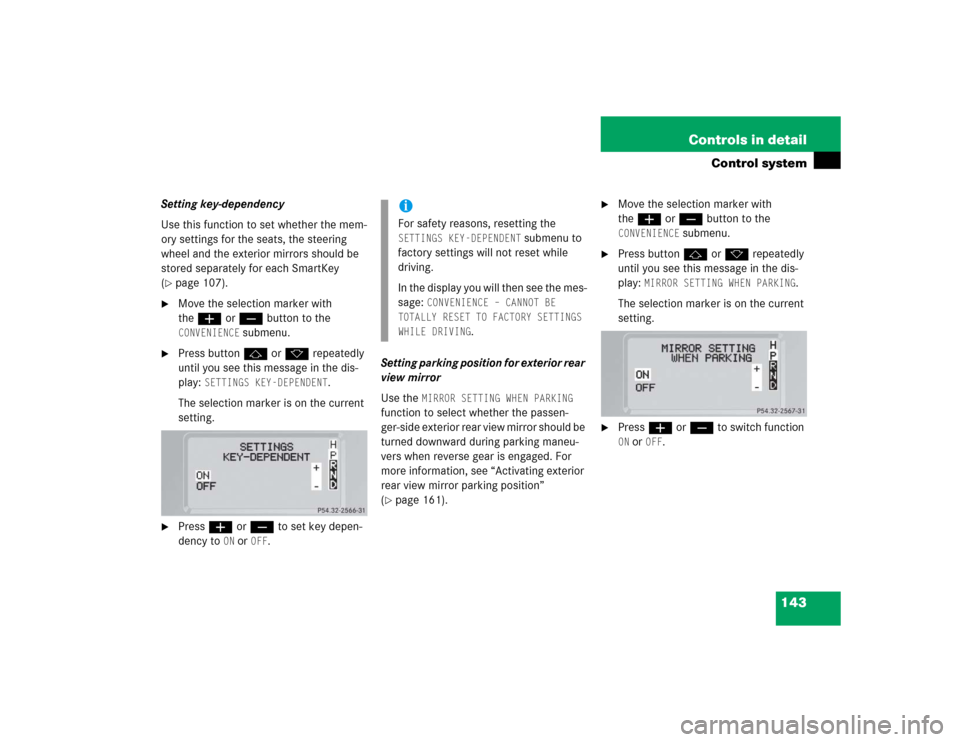

SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Pressæ orç to set key depen-
dency to
ON or
OFF
. Setting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers when reverse gear is engaged. For
more information, see “Activating exterior
rear view mirror parking position”
(
page 161).

Move the selection marker with
theæ orç button to the CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
MIRROR SETTING WHEN PARKING
.
The selection marker is on the current
setting.

Pressæ orç to switch function ON or
OFF
.
iFor safety reasons, resetting the SETTINGS KEY-DEPENDENT
submenu to
factory settings will not reset while
driving.
In the display you will then see the mes-
sage:
CONVENIENCE – CANNOT BE
TOTALLY RESET TO FACTORY SETTINGS
WHILE DRIVING
.

144 Controls in detailControl systemTrip computer menu
Use the trip computer menu to call up
statistical data on your vehicle. The follow-
ing information is available:Fuel consumption statistics after start

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the multi-
function display:

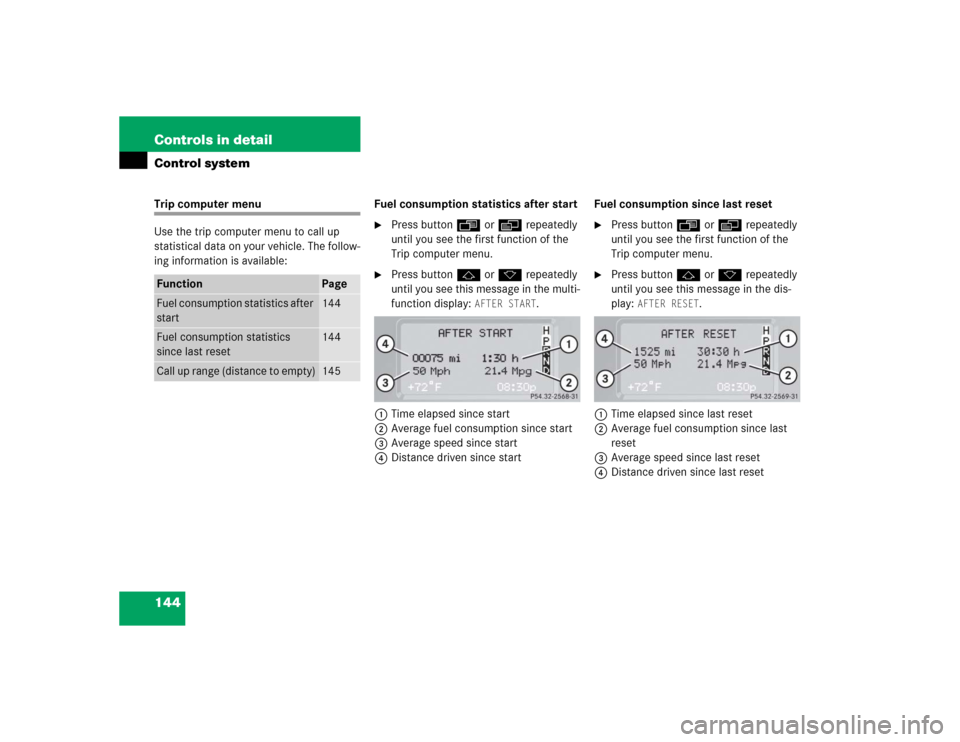

AFTER START
.
1Time elapsed since start
2Average fuel consumption since start
3Average speed since start
4Distance driven since startFuel consumption since last reset

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AFTER RESET
.
1Time elapsed since last reset
2Average fuel consumption since last
reset
3Average speed since last reset
4Distance driven since last reset
Function
Page
Fuel consumption statistics after
start
144
Fuel consumption statistics
since last reset
144
Call up range (distance to empty)
145
