2005 MERCEDES-BENZ C CLASS COUPE Owners Manual

248 Controls in detailDriving systems1Sets current or higher speed
2 Sets current or lower speed
3 Cancels cruise control
4 Resumes at last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.

Briefly lift 1 or depress 2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated. Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.
or

Briefly push the cruise control lever to
position 3.
Cruise control is canceled. The last
speed set is stored for later use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Vehicles with automatic transmission:
Moving the gear selector lever to
position N while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
position N while driving, except to
coast when the vehicle is in danger of
skidding (e.g. on icy roads).iVehicles with manual transmission:
The set cruise controlled speed is
switched off when declutching exceeds
four seconds during downshifting a
gear.iThe last stored speed is canceled when
you turn off the engine.

249
Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever to position
1
and hold it up until the desired speed is
reached.

Release cruise control lever.
The new speed is set.
Setting a lower speed

Depress cruise control lever to
position 2 and hold it down until the
desired speed is reached.

Release cruise control lever.
The new speed is set. Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip cruise control lever in
direction of arrow
1.
Slower

Briefly tip cruise control lever in
direction of arrow 2. Setting to last stored speed
(“Resume” function)

Briefly push cruise control lever to
position
4.
The cruise control resumes the last set
speed.

Remove your foot from the accelerator
pedal.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iVehicles with automatic transmission:
When you use the cruise control lever
to decelerate, the transmission will
automatically downshift if the engine’s
braking power does not brake the
vehicle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.

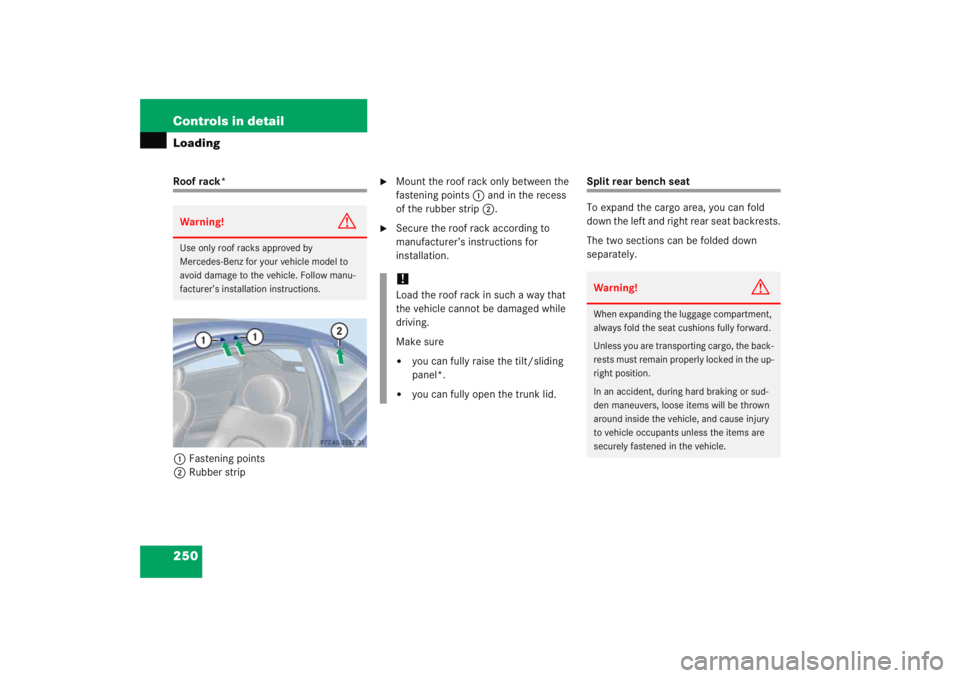

250 Controls in detailLoadingRoof rack*1 Fastening points
2 Rubber strip

Mount the roof rack only between the
fastening points 1 and in the recess
of the rubber strip 2.

Secure the roof rack according to
manufacturer’s instructions for
installation.
Split rear bench seat
To expand the cargo area, you can fold
down the left and right rear seat backrests.
The two sections can be folded down
separately.
Warning!
G
Use only roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle. Follow manu-
facturer’s installation instructions.
!Load the roof rack in such a way that
the vehicle cannot be damaged while
driving.
Make sure

you can fully raise the tilt/sliding
panel*.


you can fully open the trunk lid.
Warning!
G
When expanding the luggage compartment,
always fold the seat cushions fully forward.
Unless you are transporting cargo, the back-
rests must remain properly locked in the up-
right position.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.

251
Controls in detail
Loading
Folding the backrest forward
1 Release handle
2 Seat cushion
3 Release lever
4 Backrest

Pull release handle 1.

Fold seat cushion 2 forward.

Fully retract and fold rearward head
restraints (
page 104).

Pull release lever 3.

Fold backrest 4 forward. Setting up rear seat bench
1 Indicator

Fold backrest rearward until it engag-
es.

Fold seat cushion rearward until it
locks into position.
If the backrest is not locked into position,
a red indicator 1 will be visible.

Check for secure locking by pushing
and pulling on the backrest.
!Always release the seat cushion and
fold it forward before folding the seat
backrests forward. Otherwise, the
backrest covering may be damaged.


252 Controls in detailLoading
Luggage cover1 Securing straps
Removal
Take off securing straps 1.

Pull cover in direction of arrow 2.
Installation

Place cover into holder.

Attach securing straps to trunk lid.
Loading instructions
The total load weight including vehicle
occupants and luggage/cargo should not
exceed the load limit or vehicle capacity
weight indicated on the corresponding
placard located on the driver’s door
B-pillar.
The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the
extended cargo compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.
!Do not place anything on the luggage
cover below the rear window.


253
Controls in detail
Loading
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should
always be kept as low as possible since it
influences the handling characteristics of
the vehicle.
Cargo tie-down rings
Four rings are located in the cargo
compartment.
Carefully secure cargo by applying
even load on all rings with rope of suffi-
cient strength to hold down the cargo.
Always follow loading instructions
(page 252).
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the rear-window
shelf.
Never drive vehicle with trunk lid open.
Deadly carbon monoxi
de (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

254 Controls in detailUseful featuresStorage compartmentsGlove box
1 Glove box lid release
2 Glove box
Opening the glove box

Pull lid release 1.
The glove box lid opens downward.
Closing the glove box

Push lid up to close. 1
Unlocked
2 Locked
Locking the glove box

Insert mechanical key (
page 377)
into the glove box lock and turn it to
position 2.
Unlocking the glove box

Turn mechanical key in the glove box
lock to position 1.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
g a g e o r c a r g o i n t h e t r u n k i f p o s s i b l e . D o n o t
pile luggage or cargo higher than the seat
backs. Do not place anything on the luggage
cover below the rear window.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.

255
Controls in detail
Useful features
Armrest storage compartments
1 Handle
2 Button (passenger side)
3 Button (driver’s side) Opening storage compartment

Pull handle
1 and lift armrest.
Closing storage compartment

Press armrest down until it engages
into place.
Opening telephone compartment

Press button 3 on driver’s side or
button 2 on passenger side and lift
armrest.
Closing telephone compartment

Press armrest down until it engages
into place. Changing inclination of armrest
1 Handle

Pull up on armrest.
Lowering armrest

Pull handle 1 to lower armrest.iDepending on production date, the
changing inclination of armrest feature
may not be available in your vehicle.
