2005 MERCEDES-BENZ C CLASS COUPE Owners Manual

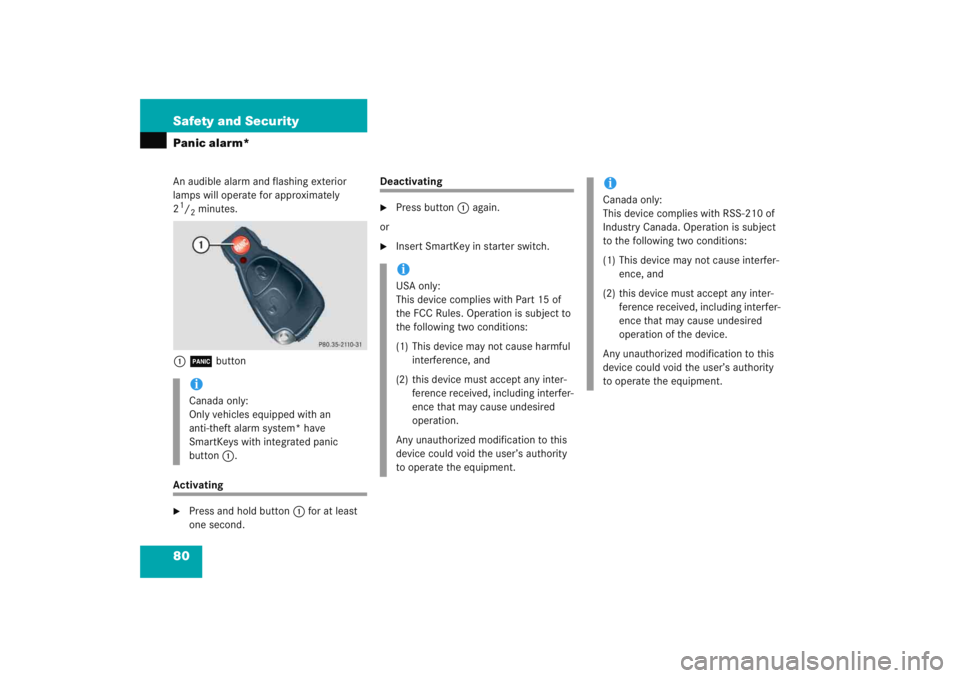

80 Safety and SecurityPanic alarm*An audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
1 Â button
Activating
Press and hold button 1 for at least
one second.
Deactivating
Press button 1 again.
or

Insert SmartKey in starter switch.
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button 1.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer- ence, and
(2) this device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

81
Safety and Security
Driving safety systems
 Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions. On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
The
- indicator lamp in the instrument
cluster (
page 24) comes on when you
switch on the ignition. It goes out when the
engine is running.
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.

Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions and
functions as a reminder to take extra care
while driving.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS and ESP cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
iIn winter operation, the maximum ef-
fectiveness of the ABS and ESP is only
achieved with winter tires (M + S tires),
or snow chains as required.Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

82 Safety and SecurityDriving safety systemsEmergency brake maneuver
Keep continuous full pressure on the
brake pedal.
For more information, see “Practical hints”
(
page 340).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
For more information, see “Practical hints”
(
page 354).
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction. The
ABS cannot prevent accidents, including
those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ABS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
Warning!
G
If the BAS malfunctioning, the brake system
is still functioning normally, but without the
additional brake boost available that BAS
would normally provide in an emergency
braking maneuver. Therefore, the braking
distance may increase.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction afforded. The BAS
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The capabili-
ties of a BAS equipped vehicle must never
be exploited in a reckless or dangerous
manner which could jeopardize the user’s
safety or the safety of others.

83
Safety and Security
Driving safety systems
ESP
The Electronic Stability Program (ESP) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP recognizes when a wheel is
spinning or if the vehicle starts to skid. By
applying brakes to the appropriate wheel
and by limiting engine output, the ESP
works to stabilize the vehicle. The ESP is
especially useful while driving off and on
wet or slippery road surfaces. The ESP also
stabilizes the vehicle during braking
maneuvers.
The ESP warning lamp
v in the
speedometer flashes when the ESP is
engaged.
The ESP warning lamp v in the
speedometer comes on when you switch
on the ignition. It goes out when the engine
is running.
Warning!
G
Never switch off the ESP when you see the
ESP warning lamp v flashing in the
speedometer dial. In this case proceed as
follows:

While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.!The ESP will only function properly if
you use wheels of the recommended
tire size (
page 419).

84 Safety and SecurityDriving safety systemsFor more information, see “Practical hints”
(page 343).Switching off the ESP
To improve the vehicle’s traction, turn off
the ESP in driving situations where it would
be advantageous to have drive wheels spin
and thus cut into surfaces for better grip
such as:


starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


sand or gravelWhen you switch off the ESP


the ESP does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still brake a
spinning wheel


the ESP continues to operate when you
are braking
!Because of the ESP’s automatic opera-
tion, the engine must be shut off
(SmartKey in starter switch position
0
or 1) when

the parking brake is being tested on
a brake test dynamometer


the vehicle is being towed with the
front axle raised
Active braking action through the ESP
may otherwise seriously damage the
rear axle brake system.
The ESP will only function properly if
you use wheels of the recommended
tire size.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.!Turn on the ESP immediately if the
aforementioned circumstances do not
apply anymore.
iWhen the ESP is switched off and one
or more drive wheels are spinning, the
ESP warning lamp v in the speed-
ometer flashes. However, the ESP will
then not stabilize the vehicle.

85
Safety and Security
Driving safety systems
The switch is located on the center
console.
1 ESP switch (off/on)
Press ESP switch 1.
The ESP warning lamp v in the
speedometer comes on.
The ESP is deactivated. Switching on the ESP

Press switch
1 again
The ESP warning lamp v in the
speedometer goes out.
You are now again in normal driving
mode with the ESP switched on.
Warning!
G
When the ESP warning lamp v is
illuminated continuously, the ESP is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drivetrain which is not covered by
the Mercedes-Benz Limited Warranty.

86 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

Remove the SmartKey from the starter
switch.
Deactivating


Switch on the ignition.
Anti-theft alarm system*
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood.
The alarm system will also be triggered
when


someone attempts to raise the vehicle
(page 87).


opening the vehicle with the
mechanical key. Arming the alarm system
The indicator lamp is in the switch for the
tow-away alarm* in the center console.
1 Indicator lamp
iStarting the engine will also deactivate
the immobilizer.
In case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
a door or the trunk lid is not opened.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 261) provid-
ed Tele Aid service was subscribed to
and properly activated, and that neces-
sary cellular service and GPS coverage
are available.

87
Safety and Security
Anti-theft systems

Lock the vehicle with the SmartKey.
The turn signal lamps flash three times
to indicate that the alarm system is
activated. Indicator lamp
1 begins to
flash after approximately 30 seconds
after arming the alarm system. Disarming the alarm system

Unlock the vehicle with the SmartKey.
The turn signal lamps flash once to
indicate that the alarm system is deac-
tivated.
Canceling the alarm
To cancel the alarm:

Press the Œ or ‹ button on the
SmartKey.
or

Insert the SmartKey in the starter
switch.
Tow-away alarm*
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iIf the turn signal lamps do not flash
three times one of the following ele-
ments may not be properly closed:

a door


the trunk lid


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
a door or the trunk lid is not opened.
iThe tow away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 261) provid-
ed Tele Aid service was subscribed to
and properly activated, and that neces-
sary cellular service and GPS coverage
are available.
