2005 MAZDA MODEL 6 HATCHBACK Owners Manual (in English)

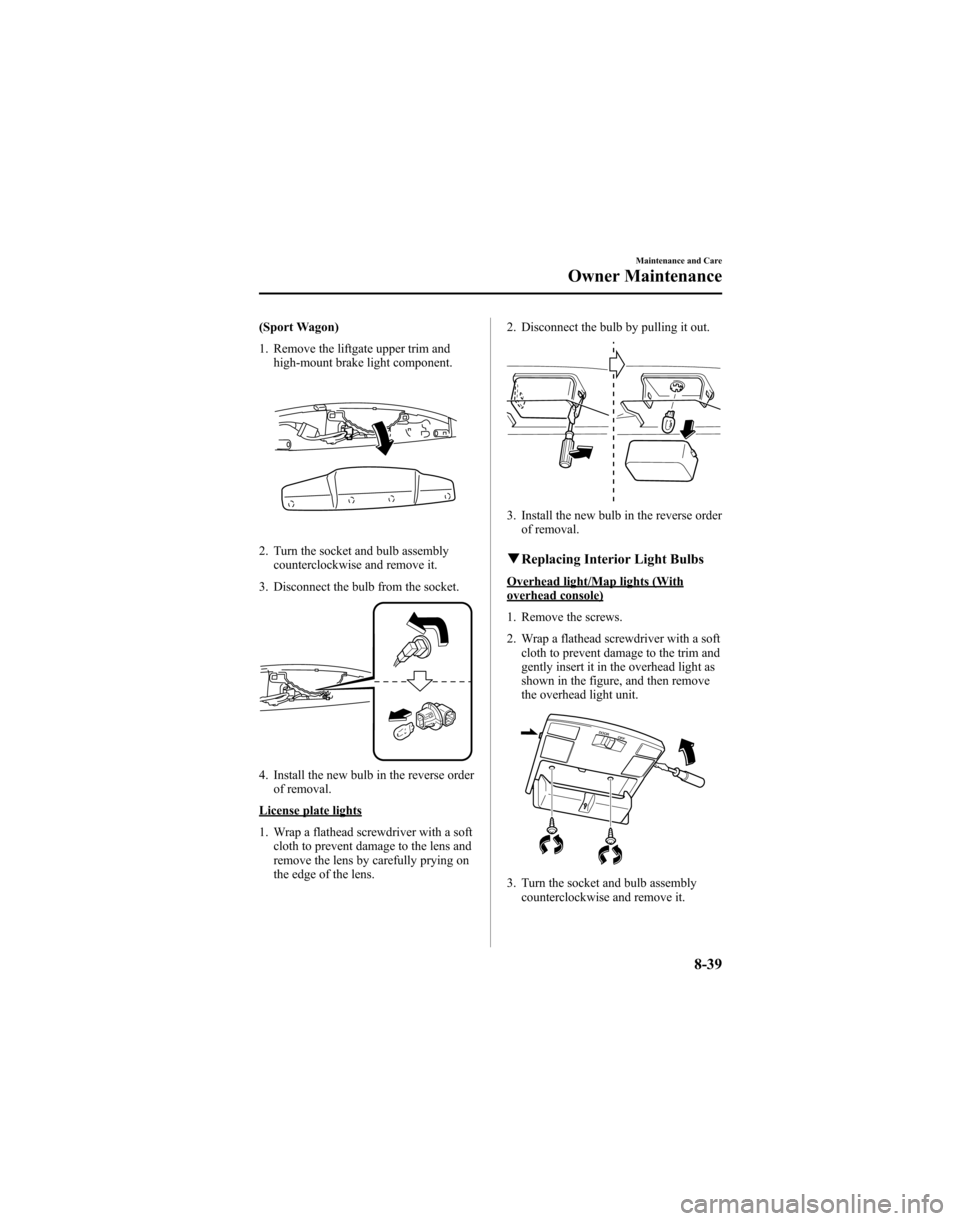

(Sport Wagon)
1. Remove the liftgate upper trim andhigh-mount brake light component.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
License plate lights
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens. 2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Withoverhead console)
1. Remove the screws.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
Maintenance and Care
Owner Maintenance
8-39

4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse orderof removal.
Overhead light/Map lights (Withoutoverhead console)
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it. 3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Courtesy lights, Vanity mirror lights,and Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.
2. Disconnect the bulb by pulling it out.
Edge
Courtesy lights
8-40
Maintenance and Care
Owner Maintenance

Vanity mirror lightsEdge
(5-Door)Luggage compartment light
Luggage compartment light
(Sport Wagon)
Edge
3. Install the new bulb in the reverse orderof removal.
Trunk light (Sedan)
1. Press both sides of the lens cap to remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-41

Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's sidekick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off. 3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect it and replace if it's blown.
Normal Blown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
8-42
Maintenance and Care
Owner Maintenance

Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new one of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-44).
Maintenance and Care
Owner Maintenance
8-43

qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 SPARE 20A ―
2 SPARE 15A ―
3 SPARE 10A ―
4 ―― ―
5 ―― ―
6 INJ 15A Injector
7 ENG BAR 10A
*1Air flow sensor, EGR control valve
15A*2
8 ENG BAR2*115A O2 sensor
ENG BB*25A Cooling fan
9 HEAD LR 10A Headlight-low beam (Right)
10 HEAD LL 10A Headlight-low beam (Left)
11 HEAD HL 10A Headlight-high beam (Left)
12 HEAD HR 10A Headlight-high beam (Right)
13 ETC 7.5A Accelerator position sensor
14 HAZARD 10A Turn signal lights
15 STOP 15A Brake/Horn
16 TCM 10A TCM
8-44
Maintenance and Care
Owner Maintenance

DESCRIPTION FUSE RATING PROTECTED COMPONENT
17 ENG+B 7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY 40A Windshield wiper and washer, Engine control unit, Lighter
20 P.WIND 30A Power window
21 ―― ―
22 ―― ―
23 IG KEY2 30A Rear wiper motor
í, Heater control unit
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 ―― ―
27 DEFOG 40A Rear window defroster
28 ABS 60A ABS
í
29 AD FAN*130A Cooling fan
FAN2*2
30 FA N*130A Cooling fan
FAN1*2
31 TAIL 10A Taillights, License plate lights, Parking lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36 OPENER 7.5A Trunk opener motorí
37 ―― ―
38 IG1*215A CAT SSR
39 FOG 15A Fog lightsí
40 MAIN 100A*1For protection of all circuits
120A*2
*1 2.3-liter engine
*2 3.0-liter engine
Maintenance and Care
Owner Maintenance
8-45íSome models.

Fuse block (Driver's side kick-panel)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 ENGINE IG 15A Engine control system
2 METER IG 15A Instrument cluster
3 SEAT 15A Seat warmer
í, Rear window defroster
4 M.DEF 7.5A Mirror defroster
5 WIPER 20A Windshield wiper and washer
6 SAS 15 ABS unit
í, SAS unit
7 ―― ―
8 A/C 15A Heater
9 METER ACC 5A Auto light off unit
10 CIGAR 15A Lighter
11 ROOM 15A Overhead light
12 R.WIP 10A Rear wiper
í
13 MIRROR 5A Power control mirror, Audio system
14 R.CIGAR 15A Accessory socket
15 ―― ―
16 D.LOCK 30A Power door lock
17 ―― ―
8-46
Maintenance and Care
íSome models.
Owner Maintenance
