2005 MAZDA MODEL 6 HATCHBACK Owners Manual (in English)

qCapacities
(Approximate Quantities)
Item Unit
L US qt Imp qt
Engine oil 2.3-liter
engine
With oil filter replacement 4.3 4.5 3.8
Without oil filter
replacement
3.9 4.1 3.4
3.0-liter
engine With oil filter replacement 5.7 6.0 5.0
Without oil filter
replacement
5.2 5.5 4.6
Coolant 2.3-liter engine 7.0 7.4 6.2
3.0-liter engine 8.5 9.0 7.5
Manual transaxle oil 2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid 2.3-liter engine 7.2 7.6 6.3
3.0-liter engine 7.0 7.4 6.1
Fuel tank 68 18.0 (US gal) 15.0
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Specification
Overall length Sedan 4,745 mm (186.8 in)
5-Door 4,745 mm
*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall height Sedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Front tread 1,540mm
*1(60.6in), 1,530mm*2(60.2in)
Rear tread 1,540mm*1(60.6in), 1,530mm*2(60.2in)
Wheelbase 2,675 mm (105.3 in)
*1 16 inch wheel vehicle
*2 17 inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
Specifications
10-5

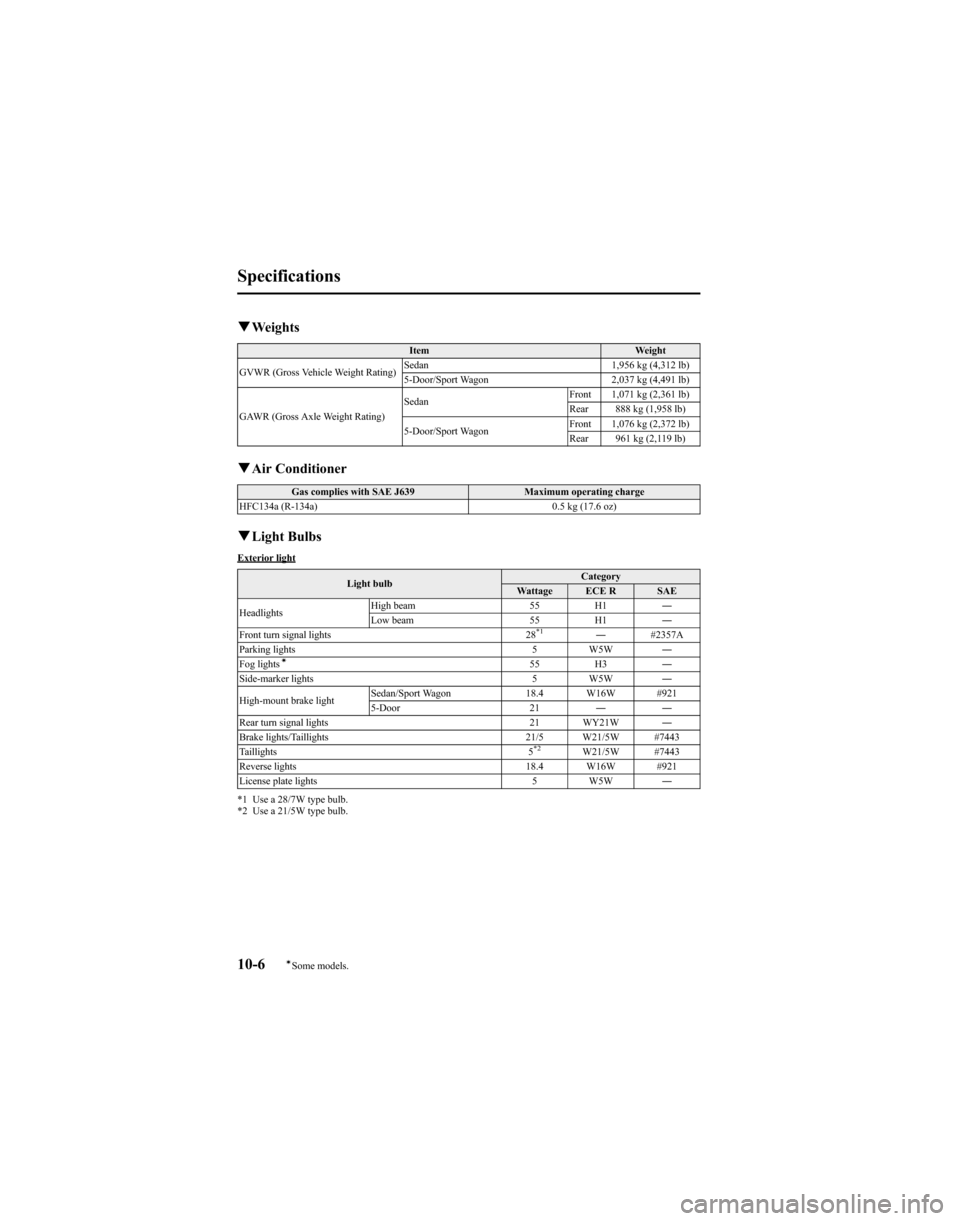

qWeights
Item Weight
GVWR (Gross Vehicle Weight Rating) Sedan 1,956 kg (4,312 lb)
5-Door/Sport Wagon 2,037 kg (4,491 lb)
GAWR (Gross Axle Weight Rating) Sedan
Front 1,071 kg (2,361 lb)
Rear 888 kg (1,958 lb)
5-Door/Sport Wagon Front 1,076 kg (2,372 lb)
Rear 961 kg (2,119 lb)
q
Air Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
q Light Bulbs
Exterior light
Light bulb Category
Wattage ECE R SAE
Headlights High beam 55 H1
―
Low beam 55 H1 ―
Front turn signal lights 28
*1― #2357A
Parking lights 5 W5W ―
Fog lights
í55 H3 ―
Side-marker lights 5 W5W ―
High-mount brake light Sedan/Sport Wagon 18.4 W16W #921
5-Door 21
――
Rear turn signal lights 21 WY21W ―
Brake lights/Taillights 21/5 W21/5W #7443
Taillights 5
*2W21/5W #7443
Reverse lights 18.4 W16W #921
License plate lights 5 W5W ―
*1 Use a 28/7W type bulb.
*2 Use a 21/5W type bulb.
10-6íSome models.
Specifications

Interior light
Light bulbCategory
Wattage ECE R
Trunk light (Sedan) 3 ―
Overhead light/Map lights 5 W5W
Courtesy lights 5 W5W
Vanity mirror lights 1.2 ―
Luggage compartment light 5-Door 5
―
Sport Wagon 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-30.
Standard tire
Tire size Inflation pressure
Front Rear
P205/60R16 91V 220 kPa (2.2 kgf/cm
2, 32 psi or lb/po2) 220 kPa (2.2 kgf/cm2, 32 psi or lb/po2)
P215/50R17 93V
Temporary spare tire
Tire size Inflation pressure
T115/70D15 420 kPa (60 psi)
q Fuses
Refer to the fuse rating on page 8-42.
Specifications
10-7

10-8

11Index
11-1

A
Accessory Socket .............................. 6-55
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Air Bag Systems ............................... 2-44
Air Filter ............................................ 8-21
Ambient Temperature Display .......... 6-47
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-7
Appearance Care ............................... 8-47
Ashtray .............................................. 6-49
Audio System ................................... 6-16
Audio control switch .................. 6-40
Audio set .................................... 6-23
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-42
Automatic Transaxle Driving tips ................................ 5-15
Fluid ........................................... 8-18
Manual shift mode ..................... 5-12
Shift-lock system ........................ 5-11
Transaxle ranges ........................ 5-10
B
Battery
Emergency starting .................... 7-16
Maintenance ............................... 8-28
Specifications ............................. 10-4
Beep sounds
Ignition key reminder ................. 5-37
Lights-on reminder ..................... 5-37
Seat belt warning beep ............... 5-37
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-21
B
Bottle Holder ..................................... 6-51
Brake/Clutch
Fluid ........................................... 8-16
Brakes
Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-33
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-53
Cargo Sub-Compartment .................. 6-54
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Box ........................................ 6-52
Center Console .................................. 6-52
Child Restraint
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-39
Child Safety Locks for Rear Doors ..... 3-9
Cigarette Lighter ............................... 6-48
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-47
Courtesy Lights ................................. 6-45
Cruise Control ................................... 5-16
Cup Holder ........................................ 6-50
Customer Assistance ........................... 9-2
11-2
Index

D
Dashboard Illumination .................... 5-26
Daytime Running Lights ................... 5-39
DefrosterRear window .............................. 5-42
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-15
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-16Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-13
Exhaust gas .................................. 4-5
Hood release .............................. 3-26
Oil .............................................. 8-10
Overheating ................................ 7-14
Starting ......................................... 5-3
Engine Compartment Overview .......... 8-9
Engine Coolant Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-25
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-49
F
Flasher Hazard warning .......................... 5-44
Headlights .................................. 5-38
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ..................... 8-7
Fog Lights ......................................... 5-40
Foot Brake .......................................... 5-4
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-24
Gauge ......................................... 5-26
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42 Panel description ........................ 8-44
Replacement ............................... 8-42
G
Glove Box ......................................... 6-52
H
Hatch ................................................. 3-10Luggage compartment cover ...... 3-11
Luggage strap ............................. 3-11
Hazard Warning Flasher .................... 5-44
Hazardous Driving .............................. 4-8
Index
11-3

H
HeadlightsControl ....................................... 5-38
Flashing ...................................... 5-38
High-low beam .......................... 5-38
On reminder ............................... 5-38
HomeLink Wireless Control
System .............................................. 5-44
Hood Release .................................... 3-26
Horn .................................................. 5-43
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-43
Immobilizer System .......................... 3-29
Indicator Lights ................................. 5-27 Cruise Main ................................ 5-35
Cruise set .................................... 5-36
Headlight high-beam .................. 5-34
Security ...................................... 5-34
Shift position .............................. 5-34
TCS ............................................ 5-35
TCS OFF .................................... 5-35
Turn-signal/hazard warning ....... 5-36
Information Display .......................... 6-46 Ambient temperature display ..... 6-47
Audio display ............................. 6-48
Climate control display .............. 6-48
Clock .......................................... 6-47
Information display functions .... 6-46
Instrument Cluster ............................. 5-23
Interior Care ...................................... 8-52
Interior Lights ................................... 6-43
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-39
Trunk Release lever ........................... 3-21
Liftgate .............................................. 3-12
Luggage compartment cover ...... 3-14
Luggage compartment net .......... 3-15
Light Bulbs
Replacement ............................... 8-33
Specifications ............................. 10-6
Lighter ............................................... 6-48
Lighting Control ............................... 5-38
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-45
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-8
Owner maintenance schedule ....... 8-7
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-8 Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-44
Mirrors Outside mirrors .......................... 3-34
Rearview mirror ......................... 3-35
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-27
11-4
Index
