2005 Lexus ES330 Gauges, Meters and Service Reminder Indicators /

INTERIOR EQUIPMENT
803. Press and release the vehicle’s programmed HomeLink

button twice. The garage door may open. If the door does
open, the programming process
is complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
The ceiling mounted garage door opener motor should now
recognize the HomeLink
 unit and be able activate the garage
door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink

button to program another rolling code system.
Programming an entrance gate /
programming all devices in the Canadian
market
1. Decide which of the 3 HomeLink buttons you want to
program.
2. Place your hand −held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Press and hold the selected HomeLink
 button.
4. Continuously press and release (cycle) the hand −held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons. 6. Test the operation of the HomeLink
 by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink

button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Reprogramming a button
Individual HomeLink buttons cannot be erased, however, to
reprogram a single button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink
To operate the HomeLink, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.

INTERIOR EQUIPMENT
81
(c) Erasing the entire HomeLink memory (all
three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
 memory.
CAUTION
 When programming the HomeLink Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
 Do not use this HomeLink
 Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object (signaling
the door to stop and reverse), does not meet current
federal safety standards. Using a garage door
opener without these features increases risk of
serious injury or death.
This device complies with Part 15 of the FCC Rules
and with RSS −210 of the IC Rules. Operation is
subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
WARNING: This transmitter has been tested and
complies with FCC and IC rules. Changes or
modifications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.

INTERIOR EQUIPMENT
82

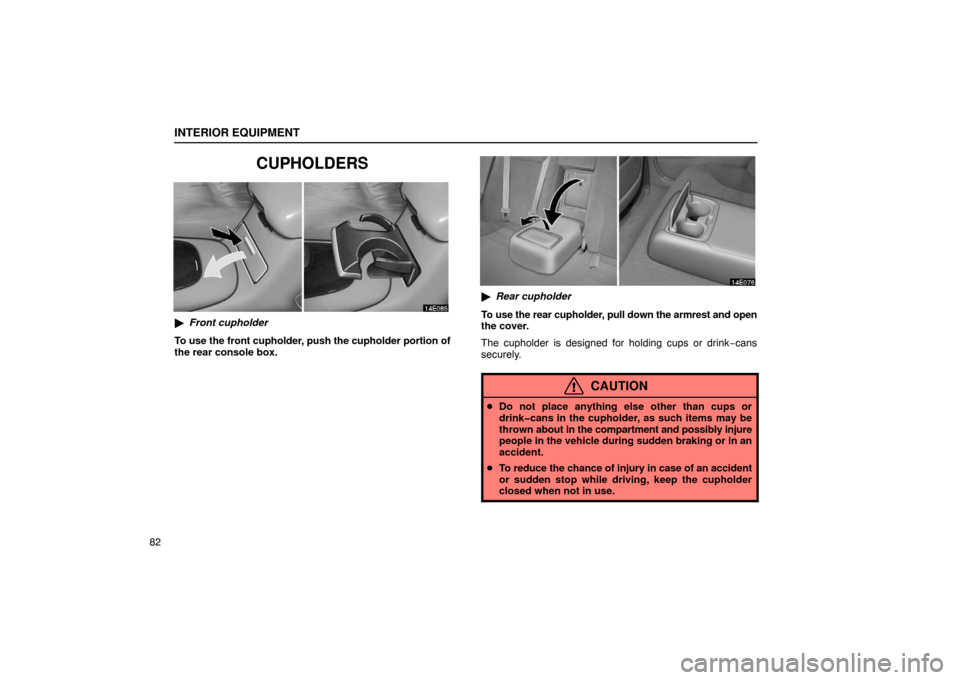

CUPHOLDERS
Front cupholder
To use the front cupholder, push the cupholder portion of
the rear console box.
 Rear cupholder
To use the rear cupholder, pull down the armrest and open
the cover.
The cupholder is designed for holding cups or drink −cans
securely.
CAUTION
 Do not place anything else other than cups or
drinkcans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.

INTERIOR EQUIPMENT
83
OVERHEAD CONSOLE BOX
To use the overhead console box, push the lid.
CAUTION
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the overhead console
box closed while driving.
 As this box is designed for holding eyeglasses, do
not place any object heavier than approximately 60 g
(0.13 lb.) in it. Heavier objects may cause the box to
open and the contents to fly out resulting in injuries.
NOTICE
During hot weather, the interior of the vehicle becomes
very hot. Do not leave anything flammable or
deformable such as a lighter, glasses, etc. inside.

INTERIOR EQUIPMENT
84
AUXILIARY BOXES
To use them, open as shown in the following illustrations.
On the instrument panel
To remove the adapter tray inside of the box, pull it up.
 In the trunk
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary box closed
while driving.

INTERIOR EQUIPMENT
85
TRUNK STORAGE EXTENSION
1Lock2Unlock3Open
Pull down the center armrest in the rear seat. Push down
the handle and open the armrest door.
Access to the trunk can be prevented by locking the armrest
door with the master key.
See “Stowage precautions” on page 293 for precautions when
loading luggage.
CAUTION
Be sure to close the door when the trunk storage
extension is not in use. Luggage or cargo in the trunk
may be thrown into the passenger compartment in a
sudden stop or crash resulting in injury.
FLOOR MAT
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2 holes, then they are
designed for use with locking clips. Fix the floor mat with
locking clips into the holes in the floor carpet.

INTERIOR EQUIPMENT
86
CAUTION
Make sure the floor mat is properly placed on the floor
carpet. If the floor mat slips and interferes with the
movement of the pedals during driving, it may cause an
accident.
GROCERY BAG HOOK
To use the grocery bag hook, push the lower portion of the
hook.
This hook is designed for hanging things like a grocery bag.
NOTICE
To prevent damage to the hook, do not hang any object
heavier than approximately 3 kg (7 lb.) on it.

INTERIOR EQUIPMENT
87
COAT HOOKS
To use the coat hook, push the hook.
CAUTION
Do not hook a hanger, heavy or sharp pointed object on
the coat hook. If the curtain shield airbag inflates, those
items will be hurled away with great force or the curtain
shield airbag may not activate correctly. When you
hang clothes, hang them on the coat hook directly.
REAR ELECTRIC SUNSHADE
To raise the rear electric sunshade, push the switch. To
lower the sunshade, push the same switch again.
The sunshade works when the ignition switch is in the “ON”
position.
When the selector lever is shifted into the “R” position
while the sunshade is raised, the sunshade will be
automatically lowered. To raise the sunshade, move the
selector lever out of “R” position and push the switch
again.
