2005 KIA Sportage engine

Specifications2 8
1
2
3
4
5
6
7
8
9
WeightsSPECIFICATIONSThe specifications given here are for general information only. Please check with an authorized Kia dealer for more
precise and more up-to-date information.
2.0L Engine 2.7L Engine
Item 2WD 4WD 2WD 4WD
M/T A/T M/T A/T A/T
Curb weight
1463~1508 1474~1520 1545~1590 1517~1595 1597~1673
(3225~3325
)(
3250~3351
)(
3406~3505
)(
3344~3516
)(
3521~3688
)
GVWR 2050 (4519) 2050 (4519) 2120 (4674) 2100 (4630) 2200 (4850)
GAWRFront 1170 (2579) 1170 (2579) 1170 (2579) 1170 (2579) 1170 (2579)
Rear 1100 (2425) 1100 (2425) 1200 (2646) 1100 (2425) 1200 (2646)
kg (lb)
Item mm (in)
Overall length 4350 (171.3)
Overall width 1800 (70.9) / 1840 (72.4)
*1
Overall height 1695 (66.7) / 1730 (68.1)
*2
Front tread 1540 (60.6) / 1550 (61.0)
*3
Rear tread 1540 (60.6) / 1550 (61.0)
*3
Wheelbase 2630 (103.5)Dimensions*1With side garnish
*2With roof rack
*3With 235/60R16 tire
2WD : Two Wheel Drive
4WD : Four Wheel DriveM/T : Manual Transaxle
A/T : Automatic Transaxle
KM CAN (ENG) 8.qxd 9/13/2004 4:04 PM Page 2

83
1
2
3
4
5
6
7
8
9
Specifications
Engine
Electrical system
Item 2.0L
Engine
2.7L
Engine
BoreXStroke 82 mm X 93.5 mm (3.23 in X 3.68 in) 86.7 mm X 75 mm (3.41 in X 2.95 in)
Displacement 1975 cc (120.5 cu.in) 2656 cc (1621 cu.in)
Compression Ratio 10 ± 0.2 : 1 10 ± 0.2 : 1
Size 2.0L
Engine
2.7L
Engine
Battery 12V / 60AH (20HR) 12V / 68AH (20HR)
Generator 13.5V / 90A 13.5V / 120A
Starter 12V-1.2kW 12V-1.2kW
Gap 1.0 mm ~ 1.1 mm (0.039 ~ 0.043 in) 1.0 mm ~ 1.1 mm (0.039 ~ 0.043 in)
Platinum coated PFR5N-11, RC10PYPB4 -
Iridium coated
- IFR5G-11
Spark
Plug
Spec.
KM CAN (ENG) 8.qxd 9/13/2004 4:04 PM Page 3

Specifications4 8
1
2
3
4
5
6
7
8
9

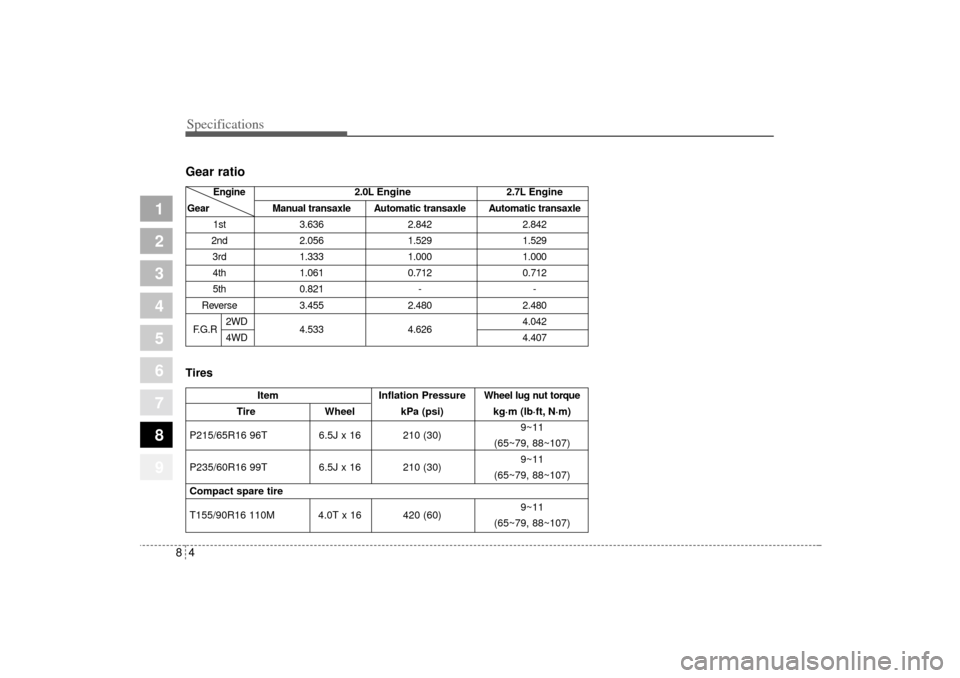

Gear ratioTires
Item Inflation Pressure
Wheel lug nut torque
Tire Wheel kPa (psi) kg·m (lb·ft, N·m)
P215/65R16 96T 6.5J x 16 210 (30)9~11
(65~79, 88~107)
P235/60R16 99T 6.5J x 16 210 (30)9~11
(65~79, 88~107)
Compact spare tire
T155/90R16 110M 4.0T x 16 420 (60)9~11
(65~79, 88~107)
Engine 2.0L
Engine
2.7L
Engine
Gear Manual transaxle Automatic transaxle Automatic transaxle
1st 3.636 2.842 2.842
2nd 2.056 1.529 1.529
3rd 1.333 1.000 1.000
4th 1.061 0.712 0.712
5th 0.821 - -
Reverse 3.455 2.480 2.480
F.G.R2WD
4.533 4.6264.042
4WD 4.407
KM CAN (ENG) 8.qxd 9/13/2004 4:04 PM Page 4

85
1
2
3
4
5
6
7
8
9
Specifications
*1Refer to the recommended SAE viscosity numbers on the page 7-50.Lubricant Volume Classification
Engine oil
*1
4.0 l(4.2 qts.) API Service SJ, SL or above,
(with filter change) 4.5 l(4.8 qts.) ILSAC GF-3 or above
Manual transaxle fluid 2.10 l (2.22 qts.) API Service GL-4 (SAE 75W-85, fill for-life)
Automatic transaxle fluid 7.8 l (8.2 qts.) DIAMOND ATF SP-III or SK ATF SP-III
Transfer case fluid (4WD) 0.8 l (0.85 qts.) API Service GL-5 or above
Rear differential fluid (4WD) 0.75 l (0.79 qts.) (SAE 80W-90, SHELL SPIRAX AX or equivalent)
Power steering 0.9 l (0.95 qts.) PSF-III
Coolant 7.0 l (7.4 qts.) Ethylene glycol base for aluminum radiator
Brake/Clutch fluid 0.7~0.8 l(0.7~0.8 qts.) FMVSS116 DOT-3 or DOT-4
Fuel58 l (15 gal.)
Unleaded gasoline with AKI 87 or higher
65 l (17 gal.)
2.0L2.7L2.0L2.7L
Capacities
KM CAN (ENG) 8.qxd 9/13/2004 4:04 PM Page 5
