DI-6
COMBINATION METERS
Revision: October 20052005 QX56
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 10A fuse [No.19, located in the fuse block (J/B)]

to combination meter terminal 8.
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No.14, located in the fuse block (J/B)]

to combination meter terminal 24.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No.4, located in the fuse block (J/B)]

to combination meter terminal 1.
Ground is supplied

to combination meter terminal 17

through body grounds M57, M61 and M79.
WATER TEMPERATURE GAUGE
The water temperature gauge indicates the engine coolant temperature.
ECM provides an engine coolant temperature signal to combination meter via CAN communication lines.
ENGINE OIL PRESSURE GAUGE
The engine oil pressure gauge indicates the engine oil pressure.
The engine oil pressure gauge is regulated by the unified meter control unit and input from the oil pressure
sensor.
A/T OIL TEMPERATURE GAUGE
The A/T oil temperature gauge indicates the A/T fluid temperature.
TCM (transmission control module) provides an A/T fluid temperature signal to combination meter via CAN
communication lines.
V O LTA G E G A U G E
The voltage gauge indicates the battery/charging system voltage.
The voltage gauge is regulated by the unified meter control unit.
TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm).
ECM provides an engine speed signal to combination meter via CAN communication lines.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied

to combination meter terminal 15

through fuel level sensor unit and fuel pump terminal 2

through fuel level sensor unit and fuel pump terminal 5

from combination meter terminal 16.
SPEEDOMETER
ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via CAN
communication lines.
CAN COMMUNICATION SYSTEM DESCRIPTION
Refer to LAN-5, "CAN COMMUNICATION" .

COMBINATION METERS
DI-13
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Meter/Gauge Operation and Odo/Trip MeterEKS00BC0
SELF-DIAGNOSIS FUNCTION
The following items can be checked during Combination Meter Self-Diagnosis Mode.

Gauge sweep and present gauge values.

Illuminates all odometer, fuel, and engine temperature segments.

Illuminates all micro controlled lamps/LED's regardless of switch configuration.

Displays estimated present battery voltage.

Displays seat belt buckle switch LH status.
HOW TO INITIATE COMBINATION METER SELF- DIAGNOSIS MODE
NOTE:
Once entered, Combination Meter Self-Diagnosis Mode will function with the ignition switch in ON or START.
Combination Meter Self-Diagnosis Mode will exit upon turning the ignition switch to OFF or ACC.
To initiate Combination Meter Self-Diagnosis Mode, refer to the following procedure.
1. Turn the ignition switch ON, while holding the odometer/trip meter switch for 5 - 8 seconds.
NOTE:
If the diagnosis function is activated the odometer/trip meter will display tESt.
COMBINATION METER SELF-DIAGNOSIS MODE FUNCTIONS
To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following table.
Event Odometer Display Description of Test/Data Notes:
Odometer/trip meter A/B
switch held from 5 to 8
seconds (or until
released)tESt Initiating self-diagnosis mode
Odometer/trip meter A/B
switch engaged and
released = next test
requestedrXXXX, FAILReturn to normal opera-
tion of all lamps/LEDs and
displays hex ROM rev. If
a ROM checksum fault
exists, display alternates
between "r XXXX" and
"FAIL".
Next test requested nrXXXXDisplays hex ROM rev as
stored in NVM.
Next test requested GAGEPerforms sweep of all
gauges, then displays
present gauge values.
Performs checksum tests
on ROM and EE.Gauges sweep within 10 sec-
onds
Next test requested (All segments illuminated)Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Initiating self-diagnosis mode
complete
Next test requested bulbIlluminates all micro-con-
trolled lamps/LEDs
regardless of SW configu-
ration.
Next test requested EE XX, FAILHex EE level. If EE
checksum fault exists,
display alternates
between "EE XX" and
"FAIL".
Next test requested dtXXXXHex coding of final manu-
facturing test date.

DI-14
COMBINATION METERS
Revision: October 20052005 QX56
Next test requested Sc1XXDisplays 8-bit software
configuration value in Hex
format.Bit Coding
7-3 = reserved for future use
2 = TCS/VDC 0 = not present
1 = present
1 = Shift type 0 = Column shift
1 = Floor shift
0 = ICC 0 = not present
1 = present
Next test requested Sc2XXDisplays 8-bit software
configuration value in Hex
format.Bit coding
7-0 = Reserved for future use
Next test requested EprXXDisplays 8-bit software
configuration value in Hex
format.Bit Coding
7-2 = reserved for future use
1 = A/T Oil Temp (gauge)
0 = not present
1 = present
1 = Odo Units 0 = kilometers
1 = miles
Next test requested 1nFXXDisplays 8-bit market info
value in Hex format.$31 = USA
$2A = Canada
$0E = GCC
Next test requested cYLXXDisplays 8-bit engine con-
figuration value in Hex
format.$08 = 8 cylinder
$06 = 6 cylinder
Next test requested FFXXXXDisplays 16-bit fuel flow
constant "Q" in tenths of
cc/min in Hex format.$0000 - $FFFF
Next test requested tFDisplays 16-bit tire factor
"A" in hundredths in Hex
format.$0000 - $FFFF
Next test requested ot1XXDisplays oil pressure tell-
tale "on" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested ot0XXDisplays oil pressure tell-
tale "off" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested XXXXXRaw uncompensated
english speed value in
hundredths of MPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Next test requested XXXXXRaw uncompensated
metric speed value in
hundredths of KPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Next test requested tXXXXTachometer value in
RPM. Tachometer indi-
cates present RPM.Will display "-----" if message is
not received.
Next test requested F1 XXXXPresent ratioed fuel level
A/D input 1 in decimal for-
mat. Fuel gauge indicates
present filtered level.000-009 = Short circuit
010-254 = Normal range
255 = Open circuit
--- = Missing 5 seconds
Next test requested XXXCLast temperature gauge
input value in degrees C.
Temperature gauge indi-
cates present filtered tem-
perature.Will display "---"C if message is
not received.
Will display "999" if data
received is invalid. Event Odometer Display Description of Test/Data Notes:

COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Symptom ChartEKS00BC4
Vehicle Speed Signal InspectionEKS00BC5
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Refer to BRC-29, "
SELF-DIAGNOSIS" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Perform the "Diagnostic Procedure" for displayed DTC. Refer to BRC-11, "
TROUBLE DIAGNO-
SIS" .
Engine Oil Pressure Signal Inspection EKS00BC6

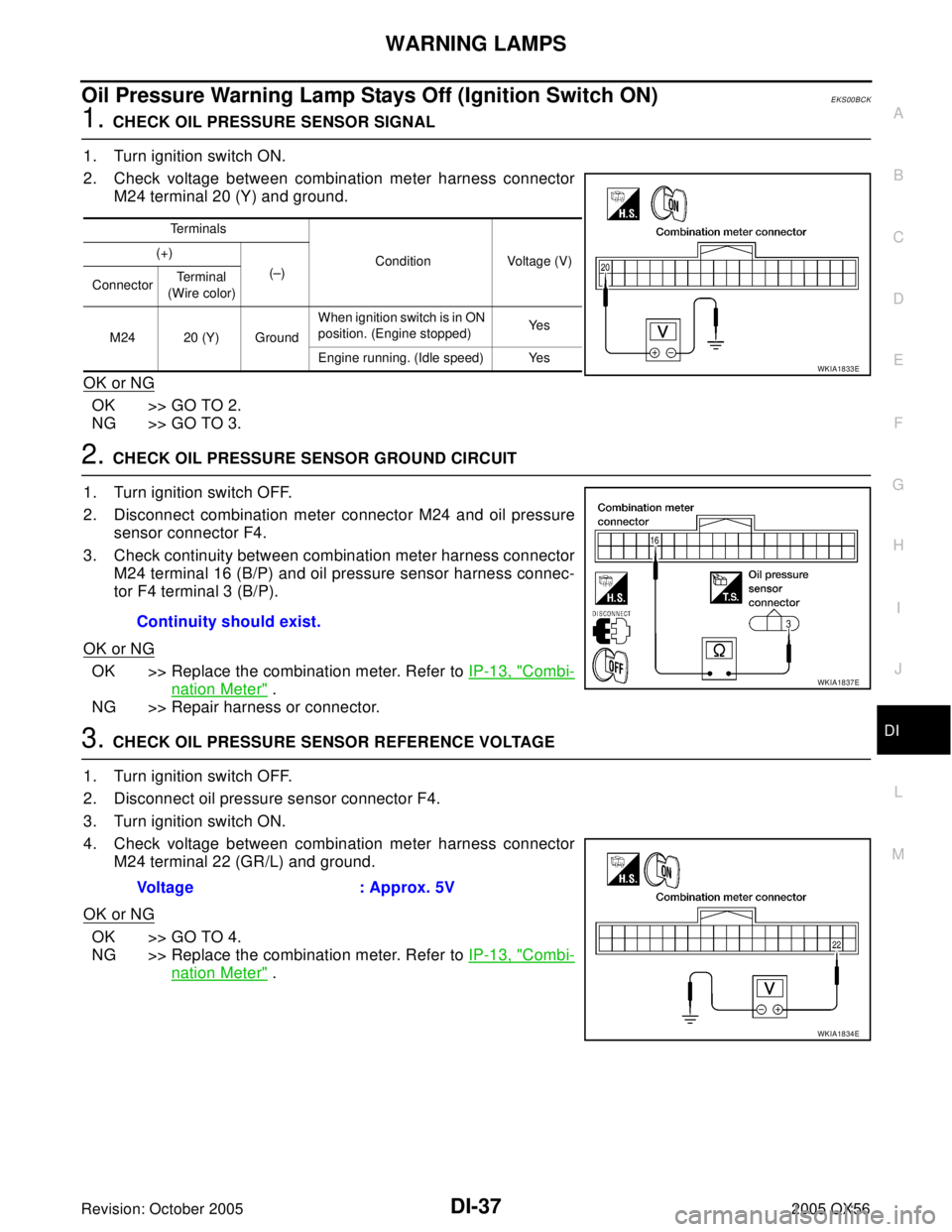

1. CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn ignition switch ON.
2. Check voltage between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
Trouble phenomenon Possible cause
Improper tachometer indication. Refer to DI-21, "
Engine Speed Signal Inspection" .
Improper water temperature gauge indication. Refer to DI-21, "
Water Temperature Signal Inspection" .
Improper speedometer or odometer. Refer to DI-19, "
Vehicle Speed Signal Inspection" .
Improper fuel gauge indication.
Refer to DI-22, "
Fuel Level Sensor Unit Inspection" .
Fuel warning lamp indication is irregular.
Improper A/T oil temperature gauge indicationRefer to AT-126, "
DTC P1710 A/T FLUID TEMPERATURE SEN-
SOR CIRCUIT" .
Improper voltage gauge indication
Replace combination meter. Refer to IP-13, "
Combination Meter"
.
More than one gauge does not give proper indication.
Improper A/T position indication. Refer to DI-40, "
A/T INDICATOR" .
Illumination control does not operate properly. Refer to LT-152, "
ILLUMINATION" .
Te r m i n a l s
Condition Voltage (V) (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M24 20 (Y) GroundWhen ignition switch is in ON
position. (Engine stopped)Ye s
Engine running. (Idle speed) Yes
WKIA1833E

COMBINATION METERS
DI-21
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
5. CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT
1. Check continuity between combination meter harness connector M24 terminal 20 (Y) and oil pressure
sensor harness connector F4 terminal 2 (Y).
2. Check continuity between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and ground.
OK or NG
OK >> Replace oil pressure sensor.
NG >> Repair harness or connector.
Water Temperature Signal Inspection EKS00BC7
1. CHECK ECM SELF-DIAGNOSIS
Perform ECM self-diagnosis. Refer to EC-130, "
SELF-DIAG RESULTS MODE" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Perform "Diagnostic procedure" for displayed DTC. Refer to EC-95, "
TROUBLE DIAGNOSIS" .
Engine Speed Signal Inspection EKS00BC8
1. CHECK ECM SELF-DIAGNOSIS
Perform ECM self-diagnosis. Refer to EC-130, "
SELF-DIAG RESULTS MODE" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Perform "Diagnostic procedure" for displayed DTC. Refer to EC-95, "
TROUBLE DIAGNOSIS" . Continuity should exist.
Continuity should not exist.
WKIA1836E
Continuity should not exist.
WKIA2685E

DI-26
COMPASS AND THERMOMETER
Revision: October 20052005 QX56
COMPASS AND THERMOMETERPFP:24835
System DescriptionEKS00BCE
This unit displays the following items:

Earth magnetism and heading direction of vehicle.

Outside air temperature.

Caution for frozen road surfaces.
OUTSIDE TEMPERATURE DISPLAY
Push the mode switch when the ignition switch is in the ON position. The outside temperature will be displayed
in “°F”.

Selecting the indication range
Push the mode switch to change from °F → °C → OFF → °F.

The indicated temperature on the thermometer is not readily affected by engine heat. It changes only
when one of the following conditions is present.
–The temperature detected by the ambient sensor is lower than the indicated temperature on the thermom-
eter.
–The vehicle speed is greater than 20 km/h (13 MPH).
(This is to prevent the indicated temperature from being affected by engine heat during low-speed driv-
ing.)
–The ignition switch has been turned to the OFF position for more than 2 hours. (The engine is cold.)
DIRECTION DISPLAY
Push the mode switch when the ignition switch is in the ON position. The direction will be displayed.
WKIA1817E

DI-28
COMPASS AND THERMOMETER
Revision: October 20052005 QX56
Trouble DiagnosesEKS00BCG
PRELIMINARY CHECK FOR THERMOMETER
1. COOL DOWN CHECK
1. Turn the ignition switch to the ON position.
2. Cool down the ambient sensor 2 with water or ice.
Does the indicated temperature drop?
YES >> GO TO 2.
NO >> The system is malfunctioning. Refer to DI-28, "
INSPECTION/COMPASS AND THERMOMETER"
.
2. WARM UP CHECK
1. Leave the vehicle for 10 minutes.
2. With the ignition switch in the ON position, disconnect and reconnect the ambient sensor 2 connector.
Does the indicated temperature rise?
YES >> The system is OK.
NO >> The system is malfunctioning. Refer to DI-28, "
INSPECTION/COMPASS AND THERMOMETER"
.
NOTE:
The indicated temperature on the thermometer is not readily affected by engine heat. It changes only when
one of the following conditions is present.

The temperature detected by the ambient sensor is lower than the indicated temperature on the thermom-
eter.

The vehicle speed is greater than 20 km/h (13 MPH).
(This is to prevent the indicated temperature from being affected by engine heat during low-speed driv-
ing.)

The ignition switch has been turned to the OFF position for more than 2 hours. (The engine is cold.)
INSPECTION/COMPASS AND THERMOMETER
Symptom Possible causes Repair order
No display at all 1. 10A fuse
2. Ground circuit
3. Compass and thermometer1. Check 10A fuse [No. 12, located in fuse block (J/B)].
Turn the ignition switch ON and verify that battery positive volt-
age is at terminal 2 of compass and thermometer.
2. Check ground circuit for compass and thermometer.
3. Replace compass and thermometer.
Forward direction indi-
cation slips off the mark
or incorrect.1. In manual correction mode (Bar and
display vanish)
2. Zone variation change is not done1. Drive the vehicle and turn at an angle of 90°.
2. Perform the zone variation change.
Compass reading
remains unchanged.1. Vehicle speed signal is not entered
2. Compass and thermometer1. Check harness for open or short between combination meter
terminal 29 and compass and thermometer terminal 8.
2. Replace compass and thermometer.
Displays wrong tem-
perature when ambient
temperature is between
−40°C (−40°F) and
55°C (130°F). (See
NOTE above.)1. Check operation
2. Ambient sensor circuit
3. Vehicle speed signal is not entered
4. Ambient sensor 2
5. Compass and thermometer1. Perform preliminary check shown above.
2. Check harness for open or short between ambient sensor 2 and
compass and thermometer.
3. Check harness for open or short between combination meter
terminal 29 and compass and thermometer terminal 8.
4. Replace ambient sensor 2.
5. Replace compass and thermometer.
Displays SC or OC. 1. Ambient sensor circuit
2. Ambient sensor 2
3. Compass and thermometer1. Check harness for open or short between ambient sensor 2 and
compass and thermometer.
2. Replace ambient sensor 2.
3. Replace compass and thermometer.

WARNING LAMPS
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)EKS00BCK
1. CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn ignition switch ON.
2. Check voltage between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24 and oil pressure
sensor connector F4.
3. Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and oil pressure sensor harness connec-
tor F4 terminal 3 (B/P).
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combi-
nation Meter" .
NG >> Repair harness or connector.
3. CHECK OIL PRESSURE SENSOR REFERENCE VOLTAGE
1. Turn ignition switch OFF.
2. Disconnect oil pressure sensor connector F4.
3. Turn ignition switch ON.
4. Check voltage between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" .
Te r m i n a l s
Condition Voltage (V) (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M24 20 (Y) GroundWhen ignition switch is in ON
position. (Engine stopped)Ye s
Engine running. (Idle speed) Yes
WKIA1833E
Continuity should exist.
WKIA1837E
Voltage : Approx. 5V
WKIA1834E
