2005 INFINITI QX4 light

EC-534Revision: October 2005
DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
45 L/YEVAP canister purge vol-
ume control solenoid valve[Engine is running]

Idle speed

Accelerator pedal: Not depressed even
slightly, after starting engineBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More than
100 seconds after starting engine)11 - 1 4 V
111 W /BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120BR
BRPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIB0050E
PBIB0051E

DTC P1564 ICC STEERING SWITCH
EC-545
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC P1564 ICC STEERING SWITCHPFP:25551

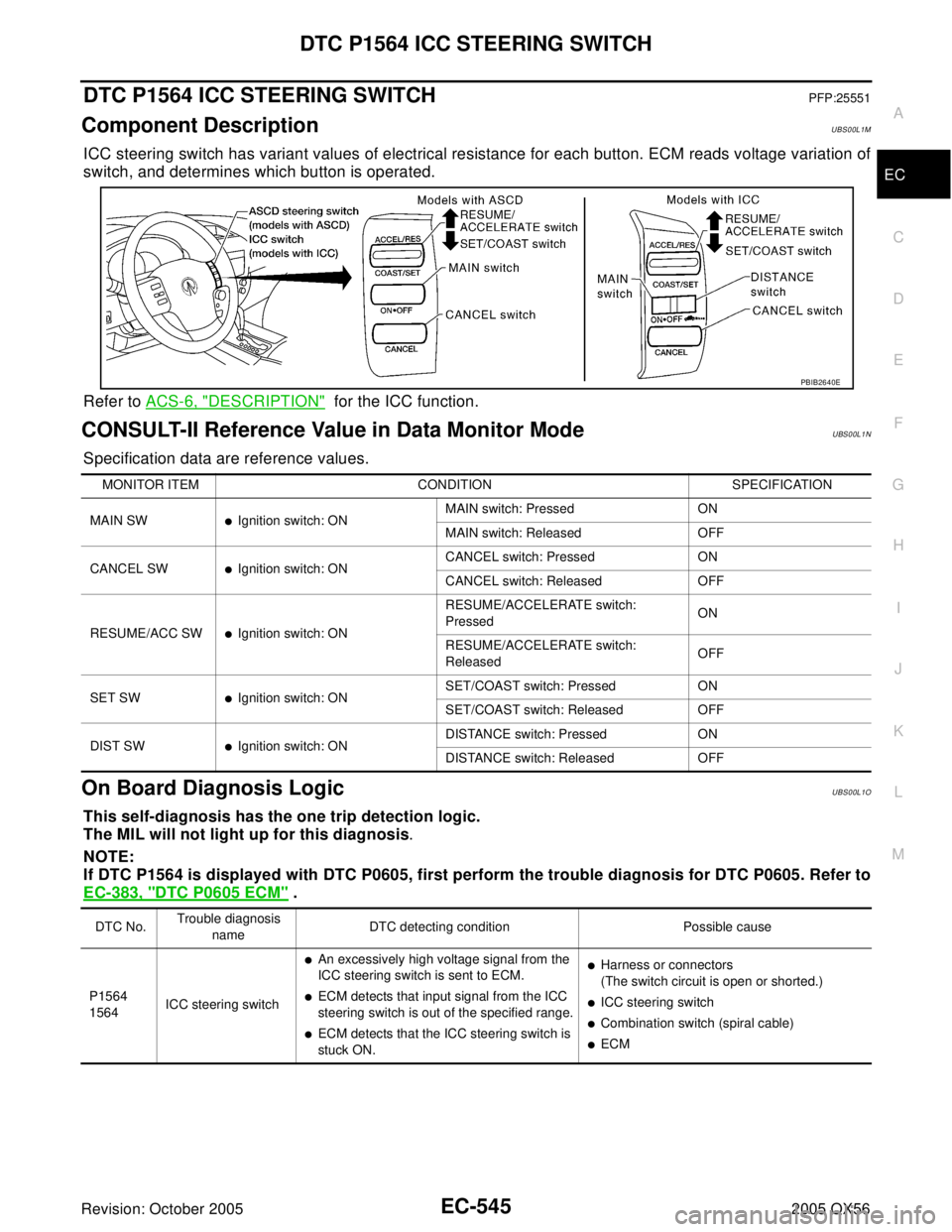

Component DescriptionUBS00L1M
ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of
switch, and determines which button is operated.
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeUBS00L1N
Specification data are reference values.
On Board Diagnosis LogicUBS00L1O
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-383, "
DTC P0605 ECM" .
PBIB2640E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW

Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DIST SW

Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564
1564ICC steering switch

An excessively high voltage signal from the
ICC steering switch is sent to ECM.

ECM detects that input signal from the ICC
steering switch is out of the specified range.

ECM detects that the ICC steering switch is
stuck ON.

Harness or connectors
(The switch circuit is open or shorted.)

ICC steering switch

Combination switch (spiral cable)

ECM

EC-552Revision: October 2005
DTC P1564 ASCD STEERING SWITCH
2005 QX56
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionUBS00L0W
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-29, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeUBS00L0X
Specification data are reference values.
On Board Diagnosis LogicUBS00L0Y
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-383, "
DTC P0605 ECM".
PBIB2640E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW

Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch: Pressed ON
RESUME/ACCELERATE switch: Released OFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DTC No. Trouble Diagnosis Name DTC Detecting Condition Possible Cause
P1564
1564ASCD steering switch

An excessively high voltage signal from the ASCD
steering switch is sent to ECM.

ECM detects that input signal from the ASCD
steering switch is out of the specified range.

ECM detects that the ASCD steering switch is
stuck ON.

Harness or connectors
(The switch circuit is open or
shorted.)

ASCD steering switch

Combination meter (spiral
cable)

ECM

DTC P1568 ICC FUNCTION
EC-559
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicUBS00L1T
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:

If DTC P1568 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-163, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1568 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-383, "
DTC P0605 ECM".
DTC Confirmation ProcedureUBS00L1U
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch on ICC steering switch.
4. Drive the vehicle at more than 40 km/h (25 MPH).
5. Press SET/COAST switch.
6. If DTC is detected, go to EC-559, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureUBS00L1V
1. REPLACE ICC UNIT
1. Replace ICC unit.
2. Perform ACS-9, "
ACTION TEST" .
3. Check DTC of ICC unit. Refer to ACS-36, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
>>INSPECTION END
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1568
1568ICC functionECM detects a difference between signals
from ICC unit is out of specified range.

Harness or connectors
(The CAN communication line is open or
shorted.)

ICC unit

ECM
SEF 0 58 Y

EC-560Revision: October 2005
DTC P1572 ICC BRAKE SWITCH
2005 QX56
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionUBS00L1W
When the brake pedal is depressed, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeUBS00L1X
Specification data are reference values.
On Board Diagnosis LogicUBS00L1Y
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:

If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-383, "
DTC P0605 ECM" .

This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
BBIA0470E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)

Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(stop lamp switch)

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1572
1572ICC brake switchA)When vehicle speed is above 30 km/h (19
MPH), ON signals from the stop lamp
switch and the ICC brake switch are sent
to ECM at the same time.

Harness or connectors
(The stop lamp switch circuit is shorted.)

Harness or connectors
(The ICC brake switch circuit is shorted.)

Stop lamp switch

ICC brake switch

ICC brake hold relay

Incorrect stop lamp switch installation

Incorrect ICC brake switch installation

ECM B)ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving

DTC P1572 ICC BRAKE SWITCH
EC-561
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC Confirmation ProcedureUBS00L1Z
CAUTION:
Always drive vehicle at a safe speed.
NOTE:

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.

Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the
following conditions.
If 1st trip DTC is detected, go to EC-563, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
6. If 1st trip DTC is detected, go to EC-563, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving locationDepress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.

DTC P1572 ICC BRAKE SWITCH
EC-563
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00L21
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 R/W Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 BR/W ICC brake switch[Ignition switch: ON]

Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]

Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC0 11D
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E

EC-564Revision: October 2005
DTC P1572 ICC BRAKE SWITCH
2005 QX56
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.
OK or NG
OK >> GO TO 14.
NG >> GO TO 10.
3. CHECK DTC WITH ICC UNIT
Refer to EC-156, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
SEC0 13 D
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB1537E
