INSTRUMENT PANEL ASSEMBLY IP-11
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2005 July 2005 FX
Removal and InstallationAIS003CJ
WORK STEP
When removing instrument panel and pad, combination meter, display unit and audio unit, center console take
steps in the order shown by the numbers below.
CAUTION:

Disconnect both battery cables in advance.

Disconnect air bag system line in advance.

Never temper with air bag lid or force air bag lid to open, as this may adversely affect air bag per-
formance.

Be careful not to scratch pad and other parts.
1. Front defroster grille (RH) 2. Instrument panel and pad 3. Front defroster grille (LH)
4. Screw 5. Bolt 6. Combination meter assembly
7. Steering lock escutcheon 8. Side ventilation (LH) 9. Display unit and audio unit
10. Wiper and washer switch 11. Clip 12. Rubber
13. Lighting and turn signal switch 14. Combination meter bracket 15. Cluster lid C
16. Steering column upper cover 17. Steering column lower cover 18. Steering column front lower cover
19. Instrument side panel (LH) 20. Instrument clock finisher 21. A/T console finisher
22. Instrument driver lower panel 23. Console finisher (LH) 24. Center console
25. Console finisher (RH) 26. Instrument side panel (RH) 27. Instrument lower cover
28. Instrument passenger lower panel 29. Side ventilation (RH) 30. Front passenger air bag module mounting nut
Parts Reference
page Instrument
panel and pad Combination
meter Display unit and
audio unit Center console
(A) Front kicking plate (RH/LH) EI-38
[ 1 ] [ 1 ]
(B) Dash side finisher (RH/LH) EI-37
[ 2 ] [ 2 ]
(C) Front pillar garnish (RH/LH) EI-38
[ 3 ]
(D) A/T select lever knob AT- 2 3 3
[ 4 ] [ 1 ]
(E) Instrument clock finisher IP-12
[ 5 ] [ 2 ]
(F) A/T console finisher IP-12
[ 6 ] [ 3 ]
(G) Console finisher (RH/LH) IP-12
[ 7 ] [ 4 ]
(H) Center console IP-12
[ 8 ] [ 5 ]
(I) Instrument lower cover IP-13
[ 9 ]
(J) Instrument passenger lower panel IP-13
[10]
(K) Instrument driver lower panel IP-13
[11] [ 3 ]
(L) Steering column front lower cover IP-13
[12] [ 4 ]
(M) Steering column lower cover IP-13
[13] [ 5 ]
(N) Steering column upper cover IP-14
[14] [ 6 ]
(O) Wiper and washer switch IP-14
[15] [ 7 ]
(P) Lighting and turn signal switch IP-14
[16] [ 8 ]
(Q) Steering lock escutcheon IP-14
[17] [ 9 ]
(R) Combination meter assembly IP-14
[18] [10]
(S) Instrument side panel (RH/LH) IP-14
[19]
(T) Cluster lid C IP-15
[20] [ 1 ]
(U) Display unit and audio unit IP-15
[21] [ 2 ]
(V) Front defroster grille (RH/LH) IP-15
[22]
(W) Combination meter bracket IP-15
[23]
(X) Side ventilation (RH/LH) IP-16
[24]
(Y) Instrument panel and pad IP-16
[25]

INSTRUMENT PANEL ASSEMBLY IP-15
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2005 July 2005 FX
(T) Cluster Lid C
1. Insert a remover into gap between instrument panel and pad,
pull back to your side, and disconnect metal clips below.
2. Disconnect harness connectors, and remove cluster lid C.
CAUTION:
Cover surroundings with cloth to avoid scratches or damages.
(U) Display Unit and Audio Unit
1. Remove screws with power tool.
2. Disconnect harness connector, and remove display unit and audio unit.
CAUTION:
Unit is heavy, so be careful not to pinch your fingers when
working.
(V) Front Defroster Grille (RH/LH)
Insert a remover into gaps between front defroster grille (RH/LH) and
instrument panel and pad, lift front defroster grille up, and remove
front defroster grille (RH/LH).
(W) Combination Meter Bracket
1. Remove bolts.
2. The installation bolts of the harness clip and steering column assembly is removed, steering column assembly is pulled back-
ward, and set combination meter bracket free from the instru-
ment panel and pad. Refer to PS-12, "
STEERING COLUMN" .
PIIA4994E
PIIB1335E
PIIA5009E
PIIA5010E

LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION LAN
A
B
LAN
Revision: 2005 July 2005 FX
LAN SYSTEM
CAN
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
Precautions When Using CONSULT-II ................ ..... 5
CHECK POINTS FOR USING CONSULT-II .... ..... 5
Precautions For Trouble Diagnosis ..................... ..... 5
CAN SYSTEM .................................................. ..... 5
Precautions For Harness Repair ......................... ..... 6
CAN SYSTEM .................................................. ..... 6
TROUBLE DIAGNOSES WORK FLOW ............... ..... 7
When Displaying CAN Communication System
Errors .................................................................. ..... 7
WHEN A MALFUNCTION IS DETECTED BY
CAN COMMUNICATION SYSTEM .................. ..... 7
WHEN A MALFUNCTION IS DETECTED
EXCEPT CAN COMMUNICATION SYSTEM ... ..... 7
TROUBLE DIAGNOSIS FLOW CHART .......... ..... 8
Diagnosis Procedure ........................................... ..... 9
SELECTING CAN SYSTEM TYPE (HOW TO
USE SPECIFICATION TABLE) ........................ ..... 9
ACQUISITION OF DATA BY CONSULT-II ....... ... 10
HOW TO USE CHECK SHEET TABLE ........... .... 11
CAN Diagnostic Support Monitor ........................ ... 18
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR ECM ............................ ... 18
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR TCM ............................ ... 19
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR DISPLAY CONTROL
UNIT ................................................................. ... 20
DESCRIPTION OF “CAN DIAG MNTR” SCREEN
FOR DISPLAY UNIT ........................................ ... 21
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR AWD CONTROL UNIT ... 22
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR ICC UNIT .................... ... 23
DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR INTELLIGENT KEY UNIT
... 24
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR BCM ............................ ... 25
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR LDW CAMERA UNIT ... ... 26
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR UNIFIED METER AND A/
C AMP. .............................................................. ... 27
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR ABS ACTUATOR AND
ELECTRIC UNIT (CONTROL UNIT) ................ ... 28
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR DRIVER SEAT CON-
TROL UNIT ...................................................... ... 28
DESCRIPTION OF “CAN DIAG SUPPORT
MNTR” SCREEN FOR IPDM E/R .................... ... 29
CAN COMMUNICATION ........................................ ... 30
System Description .............................................. ... 30
CAN Communication Unit .................................... ... 30
TYPE 1/TYPE 2/TYPE 9 .................................. ... 30
TYPE 3/TYPE 4 ................................................ ... 34
TYPE 5/TYPE 6/TYPE 10 ................................ ... 38
TYPE 7/TYPE 8 ................................................ ... 42
CAN SYSTEM (TYPE 1) ........................................ ... 47
Component Parts and Harness Connector Location ... 47
Schematic ............................................................ ... 48
Wiring Diagram - CAN - ....................................... ... 49
Check Sheet ........................................................ ... 52
CHECK SHEET RESULTS (EXAMPLE) .......... ... 54
Inspection Between TCM and Data Link Connector
Circuit .................................................................. ... 70
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... ... 71
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. ... 71
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit ... 72
ECM Circuit Inspection ........................................ ... 73
TCM Circuit Inspection ........................................ ... 73

LAN-2Revision: 2005 July 2005 FX
Display Unit Circuit Inspection .............................
... 74
Data Link Connector Circuit Inspection ............... ... 74
BCM Circuit Inspection ........................................ ... 75
Steering Angle Sensor Circuit Inspection ............ ... 75
Unified Meter and A/C Amp. Circuit Inspection ... ... 76
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ ... 76
Driver Seat Control Unit Circuit Inspection .......... ... 77
IPDM E/R Circuit Inspection ................................ ... 78
CAN Communication Circuit Inspection ............... ... 78
IPDM E/R Ignition Relay Circuit Inspection ......... ... 84
CAN SYSTEM (TYPE 2) ........................................ ... 85
Component Parts and Harness Connector Location ... 85
Schematic ............................................................ ... 86
Wiring Diagram - CAN - ....................................... ... 87
Check Sheet ........................................................ ... 90
CHECK SHEET RESULTS (EXAMPLE) .......... ... 93
Inspection Between TCM and Data Link Connector
Circuit .................................................................. .110
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... ..111
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. ..111
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit .112
ECM Circuit Inspection ........................................ .113
TCM Circuit Inspection ........................................ .113
Display Unit Circuit Inspection ............................. .114
Data Link Connector Circuit Inspection ............... .114
BCM Circuit Inspection ........................................ .115
Steering Angle Sensor Circuit Inspection ............ .115
LDW Camera Unit Circuit Inspection ................... .116
Unified Meter and A/C Amp. Circuit Inspection ... .117
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ .117
Driver Seat Control Unit Circuit Inspection .......... .118
IPDM E/R Circuit Inspection ................................ .118
CAN Communication Circuit Inspection ............... .119
IPDM E/R Ignition Relay Circuit Inspection ......... .125
CAN SYSTEM (TYPE 3) ........................................ .126
Component Parts and Harness Connector Location .126
Schematic ............................................................ .127
Wiring Diagram - CAN - ....................................... .128
Check Sheet ........................................................ .131
CHECK SHEET RESULTS (EXAMPLE) .......... .135
Inspection Between TCM and Data Link Connector
Circuit .................................................................. .154
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... .155
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. .155
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit .156
ECM Circuit Inspection ........................................ .157
TCM Circuit Inspection ........................................ .157
Display Control Unit Circuit Inspection ................ .158
ICC Unit Circuit Inspection .................................. .158 Intelligent Key Unit Circuit Inspection ..................
.159
Data Link Connector Circuit Inspection ................ .159
BCM Circuit Inspection ........................................ .160
Steering Angle Sensor Circuit Inspection ............. .160
Unified Meter and A/C Amp. Circuit Inspection .... .161
ICC Sensor Circuit Inspection .............................. .161
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................. .162
Driver Seat Control Unit Circuit Inspection .......... .162
IPDM E/R Circuit Inspection ................................ .163
CAN Communication Circuit Inspection ............... .164
IPDM E/R Ignition Relay Circuit Inspection .......... .170
CAN SYSTEM (TYPE 4) ......................................... .171
Component Parts and Harness Connector Location .171
Schematic ............................................................ .172
Wiring Diagram - CAN - ....................................... .173
Check Sheet ........................................................ .176
CHECK SHEET RESULTS (EXAMPLE) ........... .180
Inspection Between TCM and Data Link Connector
Circuit ................................................................... .200
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... .201
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit ................................................................... .201
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit .202
ECM Circuit Inspection ........................................ .203
TCM Circuit Inspection ......................................... .203
Display Control Unit Circuit Inspection ................. .204
ICC Unit Circuit Inspection ................................... .204
Intelligent Key Unit Circuit Inspection .................. .205
Data Link Connector Circuit Inspection ................ .205
BCM Circuit Inspection ........................................ .206
Steering Angle Sensor Circuit Inspection ............. .206
LDW Camera Unit Circuit Inspection ................... .207
Unified Meter and A/C Amp. Circuit Inspection .... .208
ICC Sensor Circuit Inspection .............................. .208
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................. .209
Driver Seat Control Unit Circuit Inspection .......... .209
IPDM E/R Circuit Inspection ................................ .210
CAN Communication Circuit Inspection ............... .211
IPDM E/R Ignition Relay Circuit Inspection .......... .218
CAN SYSTEM (TYPE 5) ......................................... .219
Component Parts and Harness Connector Location .219
Schematic ............................................................ .220
Wiring Diagram - CAN - ....................................... .221
Check Sheet ........................................................ .224
CHECK SHEET RESULTS (EXAMPLE) ........... .227
Inspection Between TCM and Data Link Connector
Circuit ................................................................... .244
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... .245
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit ................................................................... .245
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit .246

LAN-3
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
ECM Circuit Inspection ........................................
. 247
TCM Circuit Inspection ........................................ . 247
Display Unit Circuit Inspection ............................ . 248
AWD Control Unit Circuit Inspection ................... . 248
Data Link Connector Circuit Inspection ............... . 249
BCM Circuit Inspection ........................................ . 249
Steering Angle Sensor Circuit Inspection ............ . 250
Unified Meter and A/C Amp. Circuit Inspection ... . 250
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ . 251
Driver Seat Control Unit Circuit Inspection .......... . 251
IPDM E/R Circuit Inspection ................................ . 252
CAN Communication Circuit Inspection .............. . 253
IPDM E/R Ignition Relay Circuit Inspection ......... . 259
CAN SYSTEM (TYPE 6) ........................................ . 260
Component Parts and Harness Connector Location . 260
Schematic ........................................................... . 261
Wiring Diagram - CAN - ...................................... . 262
Check Sheet ........................................................ . 265
CHECK SHEET RESULTS (EXAMPLE) .......... . 269
Inspection Between TCM and Data Link Connector
Circuit .................................................................. . 287
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... . 288
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. . 288
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit . 289
ECM Circuit Inspection ........................................ . 290
TCM Circuit Inspection ........................................ . 290
Display Unit Circuit Inspection ............................ . 291
AWD Control Unit Circuit Inspection ................... . 291
Data Link Connector Circuit Inspection ............... . 292
BCM Circuit Inspection ........................................ . 292
Steering Angle Sensor Circuit Inspection ............ . 293
LDW Camera Unit Circuit Inspection .................. . 293
Unified Meter and A/C Amp. Circuit Inspection ... . 294
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ . 295
Driver Seat Control Unit Circuit Inspection .......... . 295
IPDM E/R Circuit Inspection ................................ . 296
CAN Communication Circuit Inspection .............. . 297
IPDM E/R Ignition Relay Circuit Inspection ......... . 303
CAN SYSTEM (TYPE 7) ........................................ . 304
Component Parts and Harness Connector Location . 304
Schematic ........................................................... . 305
Wiring Diagram - CAN - ...................................... . 306
Check Sheet ........................................................ . 309
CHECK SHEET RESULTS (EXAMPLE) .......... . 313
Inspection Between TCM and Data Link Connector
Circuit .................................................................. . 333
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... . 334
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. . 334
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit . 335 ECM Circuit Inspection ........................................
.336
TCM Circuit Inspection ........................................ .336
Display Control Unit Circuit Inspection ................ .337
AWD Control Unit Circuit Inspection .................... .337
ICC Unit Circuit Inspection .................................. .338
Intelligent Key Unit Circuit Inspection .................. .338
Data Link Connector Circuit Inspection ............... .339
BCM Circuit Inspection ........................................ .339
Steering Angle Sensor Circuit Inspection ............ .340
Unified Meter and A/C Amp. Circuit Inspection ... .340
ICC Sensor Circuit Inspection ............................. .341
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ .341
Driver Seat Control Unit Circuit Inspection .......... .342
IPDM E/R Circuit Inspection ................................ .343
CAN Communication Circuit Inspection .............. .344
IPDM E/R Ignition Relay Circuit Inspection ......... .350
CAN SYSTEM (TYPE 8) ........................................ .351
Component Parts and Harness Connector Location .351
Schematic ............................................................ .352
Wiring Diagram - CAN - ....................................... .353
Check Sheet ........................................................ .356
CHECK SHEET RESULTS (EXAMPLE) .......... .360
Inspection Between TCM and Data Link Connector
Circuit .................................................................. .381
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... .382
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. .382
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and Driver Seat Control Unit Circuit .383
ECM Circuit Inspection ........................................ .384
TCM Circuit Inspection ........................................ .384
Display Control Unit Circuit Inspection ................ .385
AWD Control Unit Circuit Inspection .................... .385
ICC Unit Circuit Inspection .................................. .386
Intelligent Key Unit Circuit Inspection .................. .386
Data Link Connector Circuit Inspection ............... .387
BCM Circuit Inspection ........................................ .387
Steering Angle Sensor Circuit Inspection ............ .388
LDW Camera Unit Circuit Inspection ................... .388
Unified Meter and A/C Amp. Circuit Inspection ... .389
ICC Sensor Circuit Inspection ............................. .390
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ .390
Driver Seat Control Unit Circuit Inspection .......... .391
IPDM E/R Circuit Inspection ................................ .391
CAN Communication Circuit Inspection .............. .392
IPDM E/R Ignition Relay Circuit Inspection ......... .399
CAN SYSTEM (TYPE 9) ........................................ .400
Component Parts and Harness Connector Location .400
Schematic ............................................................ .401
Wiring Diagram - CAN - ....................................... .402
Check Sheet ........................................................ .405
CHECK SHEET RESULTS (EXAMPLE) .......... .407
Inspection Between TCM and Data Link Connector
Circuit .................................................................. .421
Inspection Between Data Link Connector and Uni-

LAN-4Revision: 2005 July 2005 FX
fied Meter and A/C Amp. Circuit ..........................
.422
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit .................................................................. .422
ECM Circuit Inspection ........................................ .423
TCM Circuit Inspection ........................................ .423
Display Unit Circuit Inspection ............................. .424
Data Link Connector Circuit Inspection ............... .424
BCM Circuit Inspection ........................................ .425
Steering Angle Sensor Circuit Inspection ............ .425
Unified Meter and A/C Amp. Circuit Inspection ... .426
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................ .426
IPDM E/R Circuit Inspection ................................ .427
CAN Communication Circuit Inspection ............... .428
IPDM E/R Ignition Relay Circuit Inspection ......... .433
CAN SYSTEM (TYPE 10) ...................................... .434
Component Parts and Harness Connector Location .434
Schematic ............................................................ .435
Wiring Diagram - CAN - ....................................... .436
Check Sheet ........................................................ .439 CHECK SHEET RESULTS (EXAMPLE) ...........
.441
Inspection Between TCM and Data Link Connector
Circuit ................................................................... .456
Inspection Between Data Link Connector and Uni-
fied Meter and A/C Amp. Circuit .......................... .457
Inspection Between Unified Meter and A/C Amp.
and ABS Actuator and Electric Unit (Control Unit)
Circuit ................................................................... .457
ECM Circuit Inspection ........................................ .458
TCM Circuit Inspection ......................................... .458
Display Unit Circuit Inspection ............................. .459
AWD Control Unit Circuit Inspection .................... .459
Data Link Connector Circuit Inspection ................ .460
BCM Circuit Inspection ........................................ .460
Steering Angle Sensor Circuit Inspection ............. .461
Unified Meter and A/C Amp. Circuit Inspection .... .461
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................. .462
IPDM E/R Circuit Inspection ................................ .462
CAN Communication Circuit Inspection ............... .463
IPDM E/R Ignition Relay Circuit Inspection .......... .469

TROUBLE DIAGNOSES WORK FLOW LAN-7
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
TROUBLE DIAGNOSES WORK FLOWPFP:00004
When Displaying CAN Communication System ErrorsAKS00CBN
WHEN A MALFUNCTION IS DETECTED BY CAN COMMUNICATION SYSTEM

CAN communication line is open. (CAN H, CAN L, or both)

CAN communication line is shorted. (Ground, between CAN lines, or other harnesses)

The areas related to CAN communication of unit is malfunctioning.
WHEN A MALFUNCTION IS DETECTED EXCEPT CAN COMMUNICATION SYSTEM

Removal and installation of parts: When the units that perform CAN communication or the sensors related
to CAN communication are removed and installed, malfunction may be detected (or DTC other than CAN
communication may be detected).

Fuse blown out (removed): CAN communication of the unit may be stopped at such time.

Low voltage: If the voltage decreases because of battery discharge when IGN is ON, malfunction may be
detected by self-diagnosis according to the units.

LAN-10
[CAN]
TROUBLE DIAGNOSES WORK FLOW
Revision: 2005 July 2005 FX

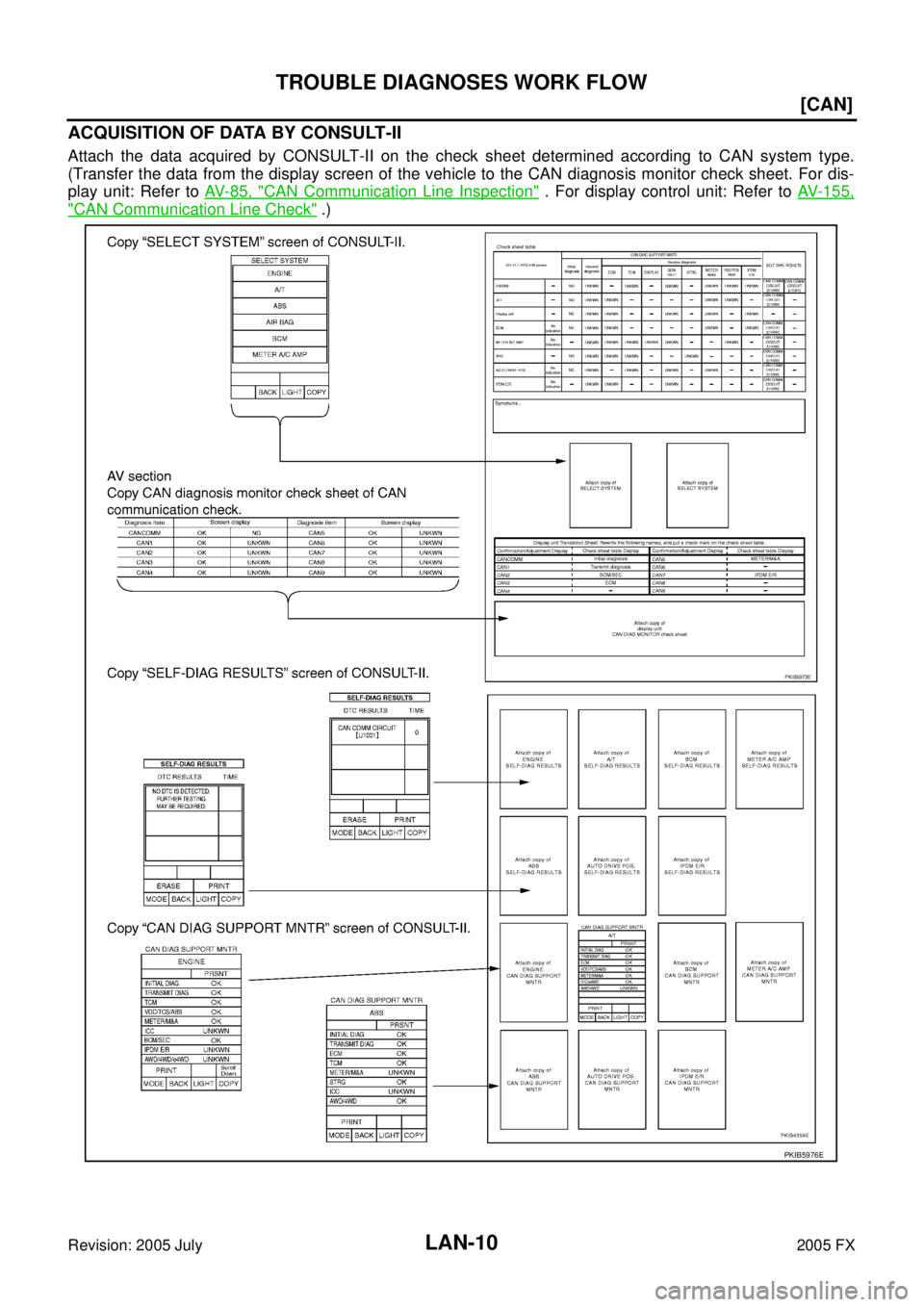

ACQUISITION OF DATA BY CONSULT-II
Attach the data acquired by CONSULT-II on the check sheet determined according to CAN system type.
(Transfer the data from the display screen of the vehicle to the CAN diagnosis monitor check sheet. For dis-
play unit: Refer to AV- 8 5 , "
CAN Communication Line Inspection" . For display control unit: Refer to AV- 1 5 5 ,
"CAN Communication Line Check" .)
PKIB5976E
