ENGINE MAINTENANCE (VK45DE ENGINE) MA-25
C
D E
F
G H
I
J
K
M A
B
MA
Revision: 2005 July 2005 FX
2. Remove air relief plug on heater hose.
3. Fill thermostat housing with water until water spills from the air relief hole, then close air relief plug. Fill
thermostat housing and reservoir tank with water and reinstall radiator cap.
4. Run engine and warm it up to normal operating temperature.
5. Rev engine two or three times under no-load.
6. Stop engine and wait until it cools down.
7. Drain water from the system. Refer to MA-23, "
DRAINING ENGINE COOLANT" .
8. Repeat steps 1 through 7 until clear water begins to drain from radiator.
Checking Fuel LinesALS000GS
Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.
Changing Air Cleaner FilterALS000GT
VISCOUS PAPER TYPE
The viscous paper type filter does not need cleaning between replacement intervals. Refer to MA-7,
"PERIODIC MAINTENANCE" .
1. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly. Refer to EM-176, "
AIR
CLEANER AND AIR DUCT" .
2. Remove air cleaner filter from air cleaner case.
Changing Engine OilALS000H7
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Remove front engine undercover with power tool.
2. Warm up engine, put vehicle horizontally and check for engine oil leakage from engine components. Refer to LU-25, "
ENGINE OIL LEAKAGE" .
3. Stop engine and wait for 15 minutes.
PBIC1530E
SMA803A

MA-40
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitALS000G0
BELT DEFLECTION AND TENSION (VQ35DE)
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on the belt.
BELT DEFLECTION AND TENSION (VK45DE)
ENGINE COOLANT CAPACITY (APPROXIMATE) (VQ35DE)
Unit: (US qt, lmp qt)
ENGINE COOLANT CAPACITY (APPROXIMATE) (VK45DE)
Unit: (US qt, lmp qt)
RADIATOR
Unit: kPa (kg/cm2 , psi)
ENGINE OIL CAPACITY (APPROXIMATE) (VQ35DE)
Unit: (US qt, lmp qt)
Deflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt New belt Used belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump belt 7 (0.28)
4 - 5
(0.16 - 0.20) 3.5 - 4.5
(0.138 - 0.177) 294 (30, 66) 730 - 818
(74.5 - 83.5,
164 - 184) 838 - 926
(85.5 - 94.5,
188 - 208)
A/C compressor
belt 12 (0.47)9 - 10
(0.35 - 0.39) 8 - 9
(0.31 - 0.35) 196 (20, 44) 348 - 436
(35.5 - 44.5, 78 - 98) 470 - 559
(48 - 57,
106 - 126)
Applied pushing
force 98 N (10 kg, 22 lb) —
KBIA1731J
Tension of drive belts Auto-adjustment by auto tensioner
Engine coolant capacity (With reservoir tank at “MAX” level) 8.6 (9-1/8, 7-5/8)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (7/8, 3/4)
Engine coolant capacity (With reservoir tank at “MAX” level) 10.0 (10-5/8, 8-3/4)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (7/8, 3/4)
Cap relief pressure Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage testing pressure 157 (1.6, 23)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul) 5.4 (5-3/4, 4-3/4)

HARNESS PG-67
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
Wiring Diagram Codes (Cell Codes) AKS007X0
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.
Code Section Wiring Diagram Name
A/C ATC Air Conditioner
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
ASC/BS EC Automatic Speed Control Device (ASCD) Brake Switch
ASC/SW EC Automatic Speed Control Device (ASCD) Steering Switch
ASCBOF EC Automatic Speed Control Device (ASCD) Brake Switch
ASCIND EC Automatic Speed Control Device (ASCD) Indicator
AT/IND DI A/T Indicator Lamp
AUDIO AV Audio
AUT/DP SE Automatic Drive Positioner
AUTO/L LT Automatic Light System
AWD TF AWD Control System
B/CLOS BL Back Door Closure System
BACK/L LT Back-Up Lamp
BRK/SW EC Brake Switch
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN LAN CAN System
CHARGE SC Charging System
CHIME DI Warning Chime
CIGAR WW Cigarette Lighter
CLOCK DI Clock
COMBSW LT Combination Switch
COMM AV Audio Visual Communication Line
COMPAS DI Compass
COOL/F EC Cooling Fan Control
D/LOCK BL Power Door Lock
DEF GW Rear Window Defogger
DTRL LT Headlamp - With Daytime Light System
ECM/PW EC ECM Power Supply for Back-Up
ECTS EC Engine Coolant Temperature Sensor
ETC1 EC Electric Throttle Control Function
ETC2 EC Electric Throttle Control Motor Relay
ETC3 EC Electric Throttle Control Motor
F/FOG LT Front Fog Lamp
F/PUMP EC Fuel Pump
FTS AT A/T Fluid Temperature Sensor Circuit
FTTS EC Fuel Tank Temperature Sensor
FUELB1 EC Fuel Injection System Function (Bank 1)
FUELB2 EC Fuel Injection System Function (Bank 2)

RSU-2
PRECAUTIONS
Revision: 2005 July 2005 FX
PRECAUTIONSPFP:00001
CautionsAES000MF

When installing rubber bushings, final tightening must be carried out under unladen conditions with tires
on level ground. Oil will shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

Unladen conditions means that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

After servicing suspension parts, be sure to check wheel alignment.

Caulking nuts are not reusable. Always use new ones when installing. Since new caulking nuts are pre-
oiled, tighten as they are.

REAR SUSPENSION ASSEMBLY RSU-5
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2005 July 2005 FX
REAR SUSPENSION ASSEMBLYPFP:55020
On-Vehicle Inspection and ServiceAES000MJ
Make sure the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.
INSPECTION OF SUSPENSION ARM BALL JOINT END PLAY
Measure axial end play by installing and moving up/down between suspension arm and axle with an iron pry
bar or something similar.
CAUTION:
Be careful not to damage ball joint boot.
SHOCK ABSORBER INSPECTION
Check shock absorber for oil leakage, damage and replace if necessary.
Wheel Alignment InspectionAES000MK
DESCRIPTION
Measure wheel alignment under unladen conditions. “Unladen conditions” mean that fuel, engine coolant, and
lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
PRELIMINARY CHECK
1. Check tires for improper air pressure and wear.
2. Check road wheels for runout.
3. Check wheel bearing axial end play.
4. Check suspension arm ball joint axial end play.
5. Check shock absorber operation.
6. Check each mounting part of axle and suspension for looseness and deformation.
7. Check each link, arm and member for cracks, deformation, and other damage.
8. Check vehicle posture.
CAMBER INSPECTION
Measure camber of both right and left wheels with a suitable align-
ment gauge and adjust in accordance with the following procedures.
If outside the standard value, adjust with adjusting bolt in front lower
link.
NOTE:
After adjusting camber, be sure to check toe-in. Axial end play : 0 mm (0 in)
Camber : Refer to RSU-18, "
Wheel Alignment" .
SRA096A
SEIA0318E

RSU-18
SERVICE DATA
Revision: 2005 July 2005 FX
SERVICE DATAPFP:00030
Wheel AlignmentAES000MV
Ball JointAES000MW
Wheelarch Height (Unladen*)AES000MX
*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats are in designated positions. Camber
Degree minute (Decimal degree) Minimum – 1
° 18 ′ (– 1.30 °)
Nominal – 0 ° 48 ′ (– 0.80 °)
Maximum – 0 ° 18 ′ (– 0.30 °)
Total toe-in Distance (A – B)
Minimum 2.4 mm (0.094 in)
Nominal 4.7 mm (0.185 in)
Maximum 7.0 mm (0.276 in)
Angle (left plus right)
Degree minute (Degree) Minimum 0
°05 ′ (0.08 °)
Nominal 0 °10 ′ (0.17 °)
Maximum 0 °15 ′ (0.25 °)
Axial end play 0 mm (0 in)
Swing torque 0.5 − 3.4 N·m (0.06 − 0.34 kg-m, 5 − 30 in-lb)
Measurement on spring balance (cotter pinhole position) 9.7 − 66.0 N (0.99 − 6.7 kg, 2.18 − 14.8 lb)
Rotating torque 0.5 − 3.4 N·m (0.06 − 0.34 kg-m, 5 − 30 in-lb)
Destination USA Canada
Engine VQ35DE VK45DE VQ35DE VK45DE
Axle 2WD AWD AWD
Tire size 265/60R18 265/50R20 265/60R18 265/50R20 265/60R18 265/50R20
Front (Hf) 835 mm
(32.87 in) 834 mm
(32.83 in) 834 mm
(32.83 in) 833 mm
(32.80 in) 832 mm
(32.76 in) 834 mm
(32.83 in) 833 mm
(32.80 in) 832 mm
(32.76 in)
Rear (Hr) 822 mm
(32.36 in) 821 mm
(32.32 in) 829 mm
(32.64 in) 827 mm
(32.56 in) 825 mm
(32.48 in) 827 mm
(32.56 in) 826 mm
(32.52 in) 823 mm
(32.40 in)
SFA818A

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION SC
A
B
SC
Revision: 2005 July 2005 FX
STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
BATTERY ............................................................... ..... 4
How to Handle Battery ........................................ ..... 4
METHODS OF PREVENTING OVER-DIS-
CHARGE .......................................................... ..... 4
CHECKING ELECTROLYTE LEVEL ............... ..... 5
SPECIFIC GRAVITY CHECK .......................... ..... 5
CHARGING THE BATTERY ............................ ..... 6
Trouble Diagnosis with Battery/Starting/Charging
System Tester (Battery) ....................................... ..... 6
DIAGNOSTIC RESULT ITEM CHART ............. ..... 8
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSTALLATION ................................................ ..... 9
STARTING SYSTEM ............................................. ... 10
System Description ............................................. ... 10
Wiring Diagram — START — .............................. .... 11
VK45DE ENGINE MODELS ............................ .... 11
VQ35DE ENGINE MODELS ............................ ... 12
Trouble Diagnosis with Battery/Starting/Charging
System Tester (Starting) ...................................... ... 13
DIAGNOSTIC RESULT ITEM CHART ............. ... 13
WORK FLOW ................................................... ... 14
DIAGNOSTIC PROCEDURE 1 ........................ ... 15
DIAGNOSTIC PROCEDURE 2 ........................ ... 16
MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT TEM-
PERATURE ...................................................... ... 16 Removal and Installation .....................................
... 17
VK45DE ENGINE MODELS ............................. ... 17
VQ35DE ENGINE MODELS (2WD) ................. ... 18
VQ35DE ENGINE MODELS (AWD) ................. ... 19
Disassembly and Assembly ................................. ... 20
VK45DE ENGINE MODELS ............................. ... 20
VQ35DE ENGINE MODELS (2WD) ................. ... 21
VQ35DE ENGINE MODELS (AWD) ................. ... 22
INSPECTION AFTER DISASSEMBLY ............. ... 22
CHARGING SYSTEM ............................................ ... 23
System Description .............................................. ... 23
MALFUNCTION INDICATOR ........................... ... 23
Wiring Diagram — CHARGE — .......................... ... 24
VK45DE ENGINE MODELS ............................. ... 24
VQ35DE ENGINE MODELS ............................ ... 25
Trouble Diagnosis with Battery/Starting/Charging
System Tester (Charging) .................................... ... 26
DIAGNOSTIC RESULT ITEM CHART ............. ... 27
WORK FLOW ................................................... ... 28
PRELIMINARY INSPECTION .......................... ... 29
DIAGNOSTIC PROCEDURE 1 ........................ ... 30
DIAGNOSTIC PROCEDURE 2 ........................ ... 31
DIAGNOSTIC PROCEDURE 3 ........................ ... 31
DIAGNOSTIC PROCEDURE 4 ........................ ... 32
Removal and Installation ..................................... ... 33
VK45DE ENGINE MODELS ............................. ... 33
VQ35DE ENGINE MODELS ............................ ... 34
Disassembly and Assembly ................................. ... 36
VK45DE ENGINE MODELS ............................. ... 36
VQ35DE ENGINE MODELS ............................ ... 37
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 38
Battery ................................................................. ... 38
Starter .................................................................. ... 38
Alternator ............................................................. ... 38

SC-14
STARTING SYSTEM
Revision: 2005 July 2005 FX

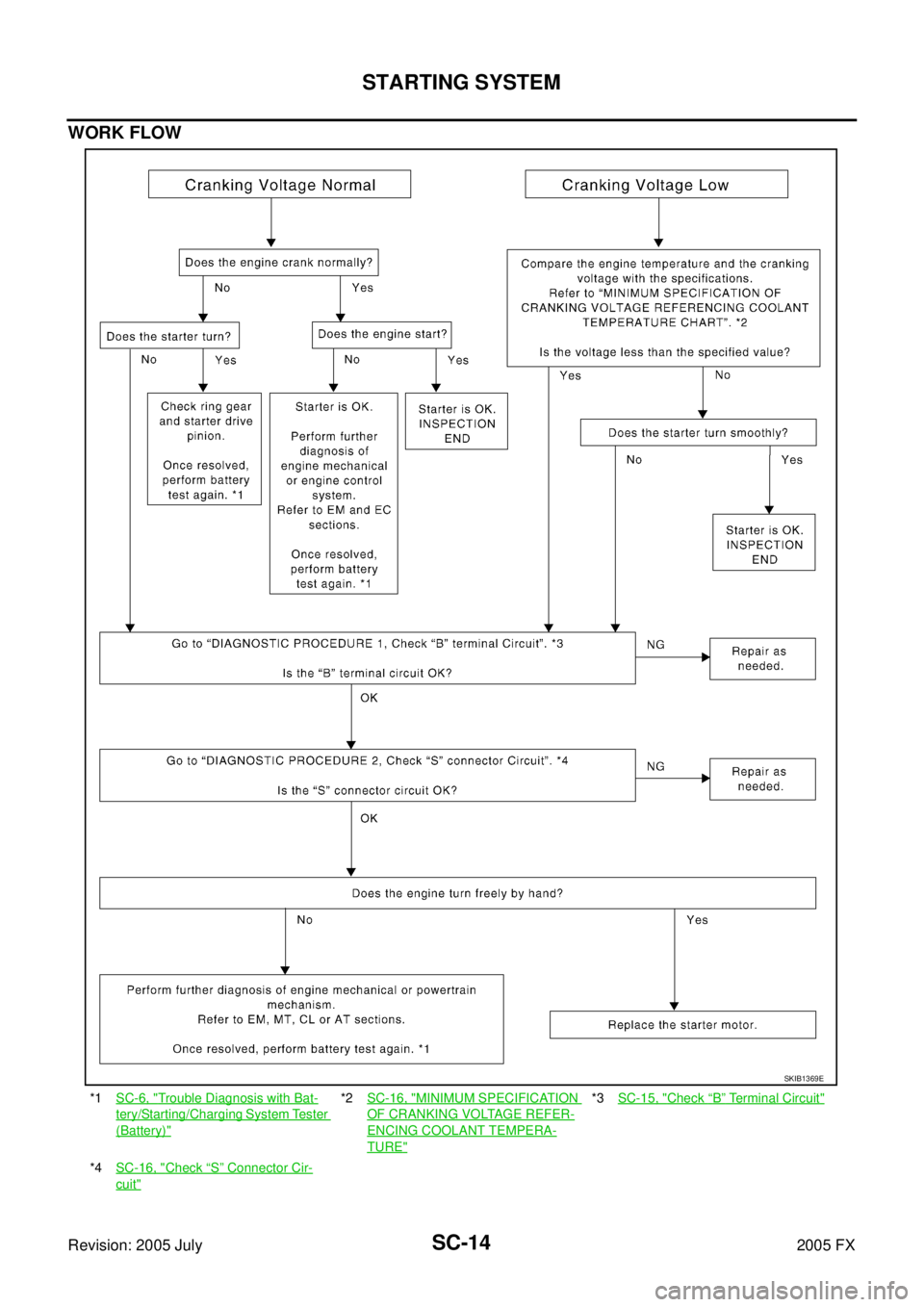

WORK FLOW
*1SC-6, "Trouble Diagnosis with Bat-
tery/Starting/Charging System Tester
(Battery)"
*2 SC-16, "MINIMUM SPECIFICATION
OF CRANKING VOLTAGE REFER-
ENCING COOLANT TEMPERA-
TURE"
*3SC-15, "Check “B” Terminal Circuit"
*4SC-16, "Check “S” Connector Cir-
cuit"
SKIB1369E
