DTC P1564 ASCD STEERING SWITCH EC-583
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS006WD
TBWM0733E

DTC P1564 ASCD STEERING SWITCH EC-585
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW” and “CANCEL SW” in “DATA MONITOR” mode with CONSULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press- ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect combination switch harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between combination switch terminal 15 and ECM terminal 82. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Switch Monitor item Condition Indication
MAIN switch MAIN SW Pressed ON
Released OFF
CANCEL switch CANCEL SW Pressed ON
Released OFF
RESUME/ACCELER-
ATE switch RESUME/ACC SW Pressed ON
Released OFF
SET/COAST switch SET SW Pressed ON
Released OFF
SEC006D
Switch Condition Voltage [V]
MAIN switch Pressed Approx. 0
Released Approx. 4.0
CANCEL switch Pressed Approx. 1.0
Released Approx. 4.0
RESUME/ACCELERATE
switch Pressed Approx. 3.0
Released Approx. 4.0
SET/COAST switch Pressed Approx. 2.0
Released Approx. 4.0
PBIB0311E
Continuity should exist.
PBIB1513E

EC-586
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2005 July 2005 FX
4. DETECT MALFUNCTIONING PART
Check the following.

Combination switch (spiral cable)

Harness for open and short between ECM and combination switch
>> Repair open circuit or short to power in harness or connectors.
5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 14. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Combination switch (spiral cable)

Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD STEERING SWITCH
Refer to EC-586, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace steering wheel.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS006WF
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector.
2. Check continuity between combination switch (spiral cable) ter- minals 14 and 15 with pushing each switch. Continuity should exist.
Switch Condition Resistance [
Ω]
MAIN switch Pressed Approx. 0
Released Approx. 4,000
CANCEL switch Pressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switch Pressed Approx. 1,480
Released Approx. 4,000
SET/COAST switch Pressed Approx. 660
Released Approx. 4,000
PBIB1621E

EC-590
[VQ35DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2005 July 2005 FX

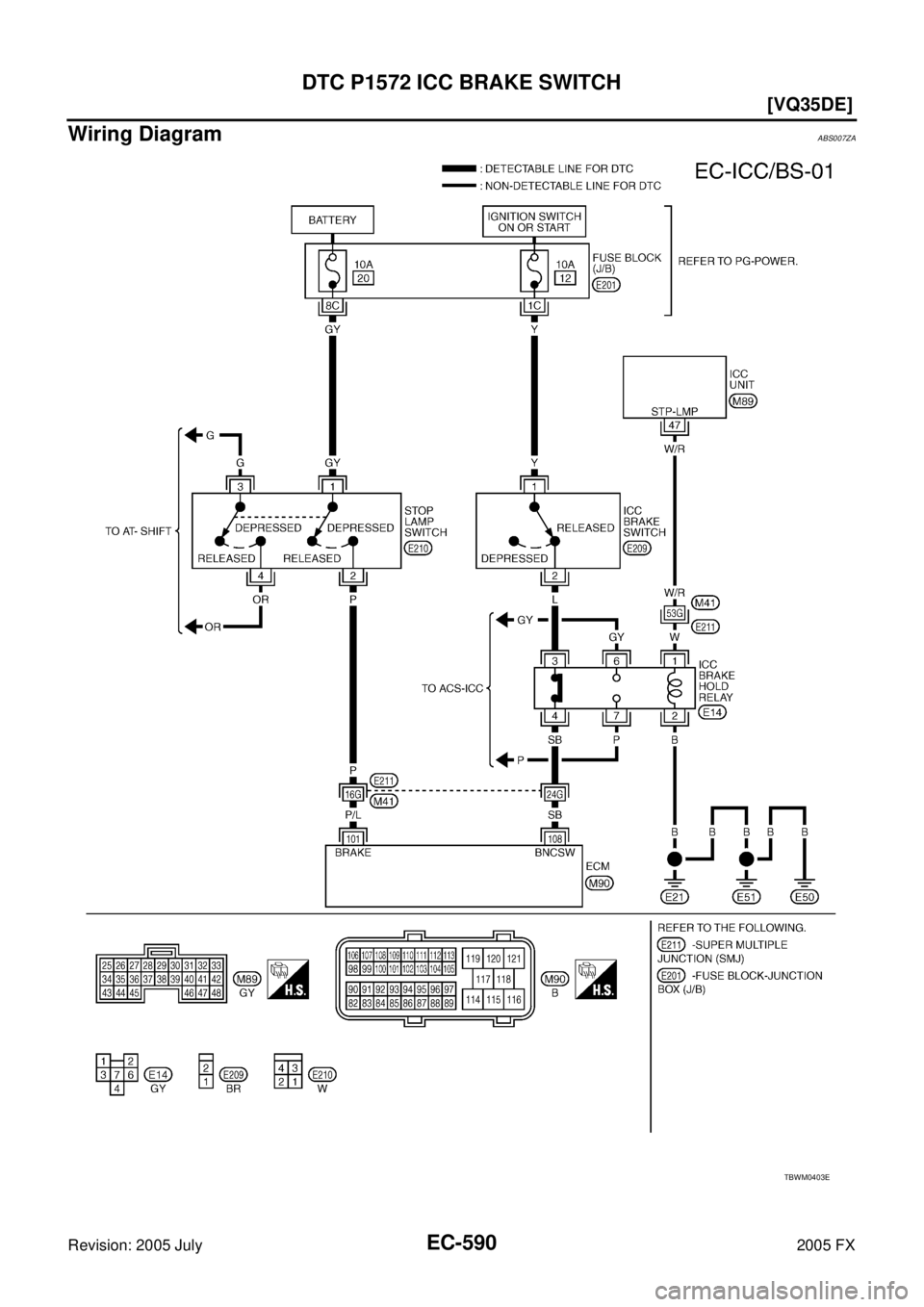

Wiring Diagram ABS007ZA
TBWM0403E

EC-594
[VQ35DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2005 July 2005 FX
6. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E201

10A fuse

Harness for open or short between ICC brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ICC BRAKE SWITCH
Refer to EC-596, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ICC brake switch.
9. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake hold relay terminal 4 and ECM terminal 108. Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness for open or short between ICC brake hold relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ICC BRAKE HOLD RELAY
Refer to EC-596, "
Component Inspection" .
OK >> GO TO 17.
NG >> Replace ICC brake hold relay. Continuity should exist.
Continuity should exist.

DTC P1572 ICC BRAKE SWITCH EC-595
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT -II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E201

10A fuse

Harness for open or short between stop lamp switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
15. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1539E
Voltage: Battery voltage
PBIB1184E
Continuity should exist.

DTC P1572 ASCD BRAKE SWITCH EC-599
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring Diagram ABS006WN
TBWM0404E

EC-602
[VQ35DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2005 July 2005 FX
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector E201

10A fuse

Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness for open or short between ECM and ASCD brake switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1605E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
