CAN SYSTEM (TYPE 8) LAN-399
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
IPDM E/R Ignition Relay Circuit InspectionAKS00CBG
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .

LAN-420
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2005 July 2005 FX
Case 14
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-433, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3696E

CAN SYSTEM (TYPE 9) LAN-421
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-433, "IPDM E/R Ignition Relay
Circuit Inspection" .
Inspection Between TCM and Data Link Connector CircuitAKS00FDG
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals 14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
PKIC3697E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E

CAN SYSTEM (TYPE 9) LAN-433
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
IPDM E/R Ignition Relay Circuit InspectionAKS00FDT
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .

CAN SYSTEM (TYPE 10) LAN-455
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX

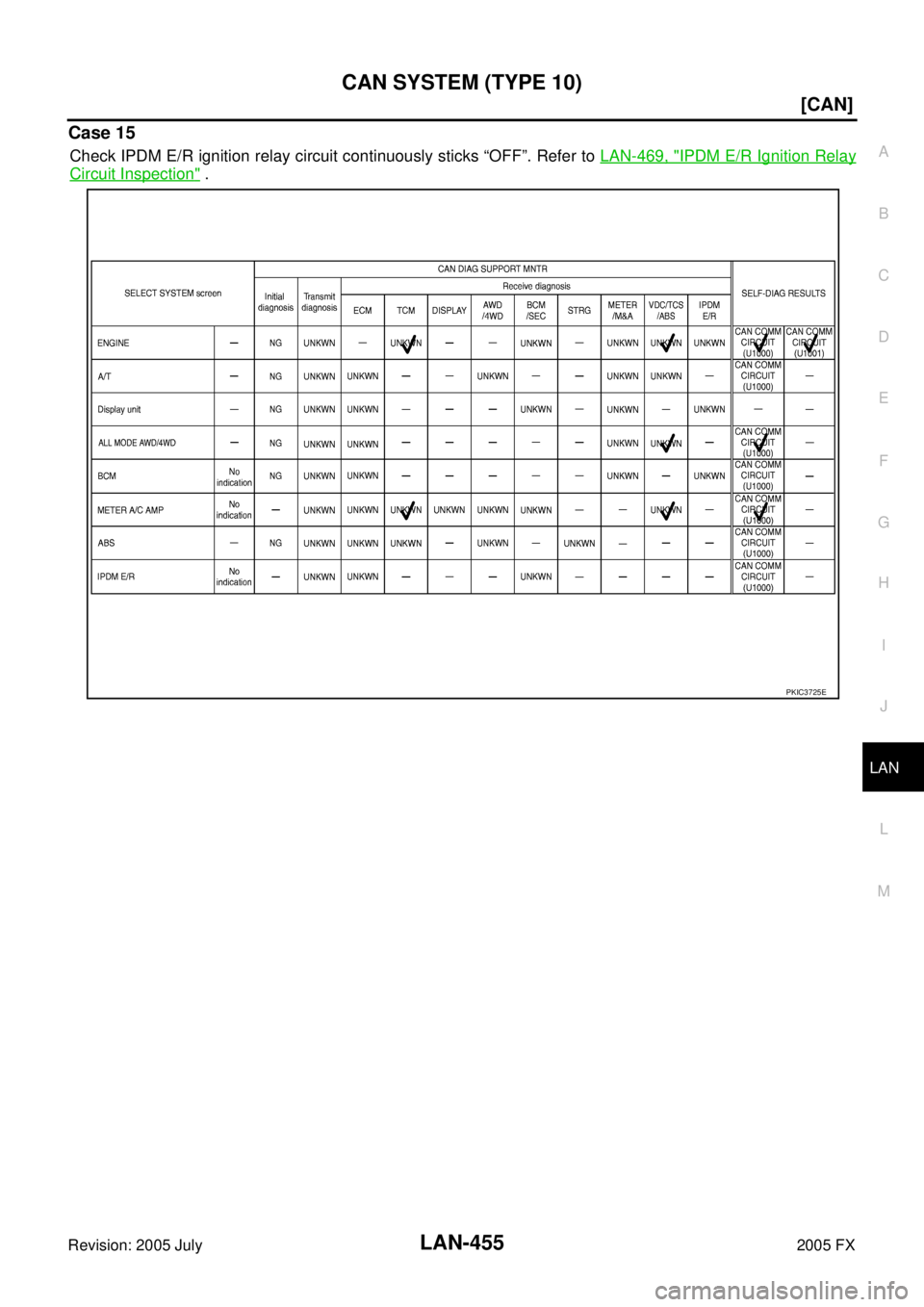

Case 15
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-469, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3725E

LAN-456
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2005 July 2005 FX

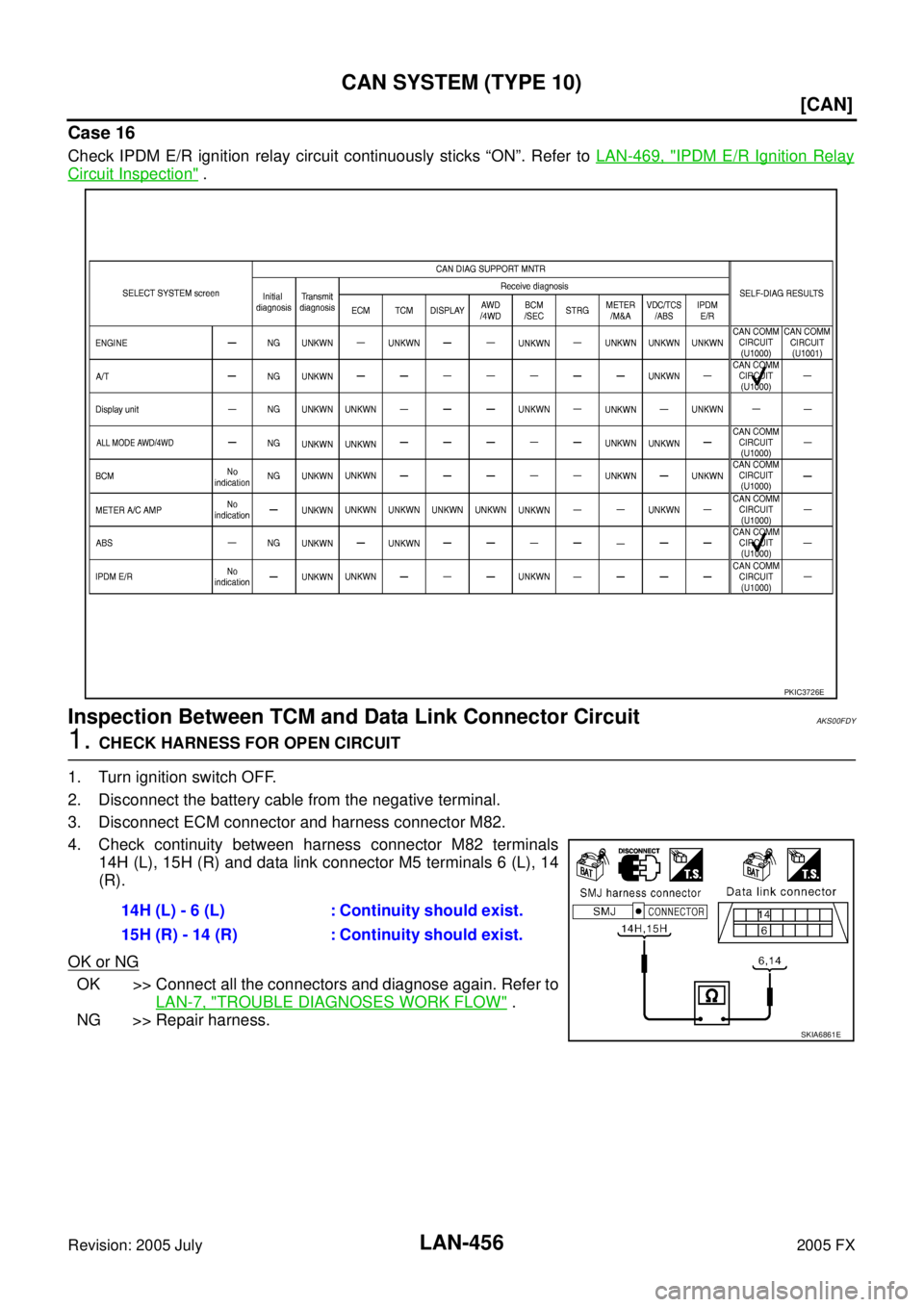

Case 16
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-469, "IPDM E/R Ignition Relay
Circuit Inspection" .
Inspection Between TCM and Data Link Connector CircuitAKS00FDY
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals 14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
PKIC3726E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E

CAN SYSTEM (TYPE 10) LAN-469
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
IPDM E/R Ignition Relay Circuit InspectionAKS00FEC
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .

HEADLAMP - XENON TYPE - LT-7
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
HEADLAMP - XENON TYPE -PFP:26010
Component Parts and Harness Connector LocationAKS007M9
System DescriptionAKS007MA
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) across the CAN communication lines. The CPU (central
processing unit) located in the IPDM E/R controls the headlamp high and headlamp low relay coils. These
relays, when energized, direct power to the respective headlamps, which then illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R,

to headlamp low relay, located in IPDM E/R, and

to ignition relay, located in IPDM E/R, from battery direct,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
PKIB3472E
