3. CHECK DOOR MIRROR MOTOR (DRIVER SIDE) HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror (driver side) connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 16, 31, 32 and door mirror (driver side)
connector D2 terminal 8, 9, 10.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 16, 31, 32 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (driver side).
4. CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror (driver side) connector.
2. Turn ignition switch ACC.
3. Turn change over switch LH position.
4. Mirror switch operate, check voltage between door mirror (driver side) connector and ground.
OK or NG
OK >> Replace door mirror motor (driver side).
NG >> Check the condition of the harness and the connector.
Passenger Side Mirror Motor Circuit CheckAIS003BV
1. CHECK DOOR MIRROR FUNCTION
Check the following.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >> GO TO 2.
NG >> Repair the malfunctioning parts, and check the symptom again. 16 (P) – 8 (P) : Continuity should exist.
31 (R/W) – 10 (GY) : Continuity should exist.
32 (G/B) – 9 (PU) : Continuity should exist.
16 (P) – Ground : Continuity should not exist.
31 (R/W) – Ground : Continuity should not exist.
32 (G/B) – Ground : Continuity should not exist.
PIIA6131E
Connector Terminals
(Wire color) Mirror switch condition Voltage (V)
(Approx.)
(+) (–)
D2 8 (P)
Ground DOWN or RIGHT Battery voltage
Other than above 0
9 (PU) LEFT Battery voltage
Other than above 0
10 (GY) UP Battery voltage
Other than above 0
PIIA6130E

SE-54
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX
2. MIRROR MOTOR INSPECTION
With CONSULT-II
Check the operation with “MIRROR MOTOR RH” in the ACTIVE TEST.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Passenger side mirror motor circuit is OK.
NG >> GO TO 3.
3. CHECK DOOR MIRROR MOTOR (PASSENGER SIDE) HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror (passenger side) connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 14, 15, 30 and door mirror (passenger
side) connector D32 terminal 8, 9, 10.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 14, 15, 30 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (pas-
senger side).
Test item Description
MIRROR MOTOR RH The RH mirror motor moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
PIIA0202E
14 (L/W) – 10 (PU) : Continuity should exist.
15 (L/B) – 9 (OR) : Continuity should exist.
30 (W/R) – 8 (GY) : Continuity should exist.
14 (L/W) – Ground : Continuity should not exist.
15 (L/B) – Ground : Continuity should not exist.
30 (W/R) – Ground : Continuity should not exist.
PIIA6133E

AUTOMATIC DRIVE POSITIONER SE-55
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
4. CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror (passenger side) connector.
2. Turn ignition switch ACC.
3. Turn change over switch RH position.
4. Mirror switch operate, check voltage between door mirror (passenger side) connector and ground.
OK or NG
OK >> Replace door mirror motor (passenger side).
NG >> Check the condition of the harness and connector.
Sliding Sensor Circuit CheckAIS002XS
1. CHECK FUNCTION
With CONSULT-II
Check operation with “SLIDE PULSE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and ground, with oscilloscope.
OK or NG
OK >> Sliding sensor circuit is OK.
NG >> GO TO 2.
Connector Terminals (Wire color)
Mirror switch condition Voltage (V)
(Approx.)
(+) (–)
D32 8 (G/Y)
Ground DOWN or RIGHT Battery voltage
Other than above 0
9 (OR) LEFT Battery voltage
Other than above 0
10 (PU) UP Battery voltage
Other than above 0
PIIA6132E
Monitor item
[OPERATION or UNIT] Contents
SLIDE PULSE The seat sliding position (pulse) judged from the sliding sensor
signal is displayed.
PIIA4558E
Connector Te r m i n a l s
(Wire color) Condition Signal
(Reference value)
(+) (–)
B152 18 (G) Ground Sliding
motor
operation
PIIA6105EPIIA3277E

SE-56
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX

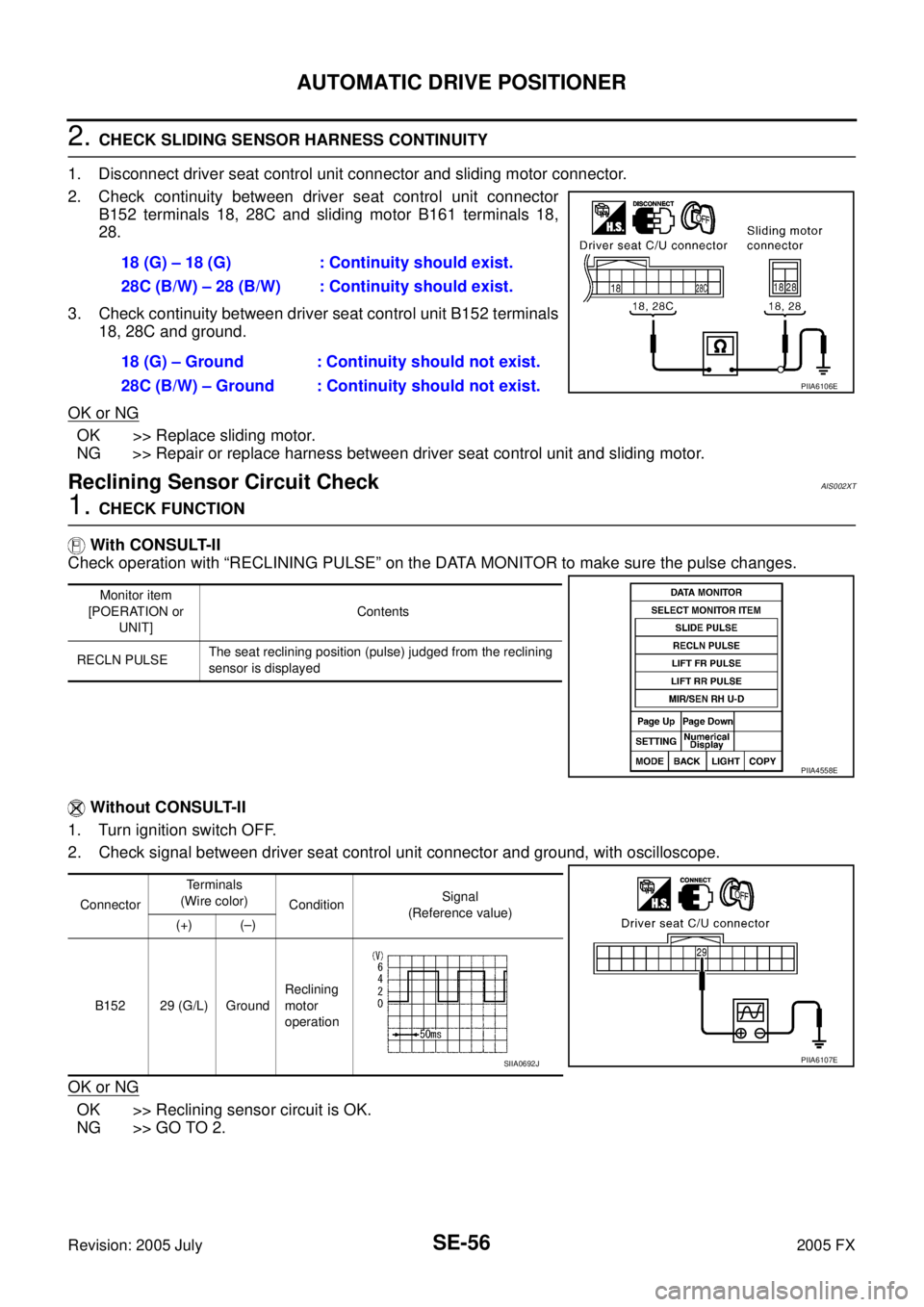

2. CHECK SLIDING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and sliding motor connector.
2. Check continuity between driver seat control unit connector B152 terminals 18, 28C and sliding motor B161 terminals 18,
28.
3. Check continuity between driver seat control unit B152 terminals 18, 28C and ground.
OK or NG
OK >> Replace sliding motor.
NG >> Repair or replace harness between driver seat control unit and sliding motor.
Reclining Sensor Circuit CheckAIS002XT
1. CHECK FUNCTION
With CONSULT-II
Check operation with “RECLINING PULSE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and ground, with oscilloscope.
OK or NG
OK >> Reclining sensor circuit is OK.
NG >> GO TO 2. 18 (G) – 18 (G) : Continuity should exist.
28C (B/W) – 28 (B/W) : Continuity should exist.
18 (G) – Ground : Continuity should not exist.
28C (B/W) – Ground : Continuity should not exist.
PIIA6106E
Monitor item
[POERATION or UNIT] Contents
RECLN PULSE The seat reclining position (pulse) judged from the reclining
sensor is displayed
PIIA4558E
Connector Te r m i n a l s
(Wire color) Condition Signal
(Reference value)
(+) (–)
B152 29 (G/L) Ground Reclining
motor
operation
PIIA6107ESIIA0692J

AUTOMATIC DRIVE POSITIONER SE-57
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX

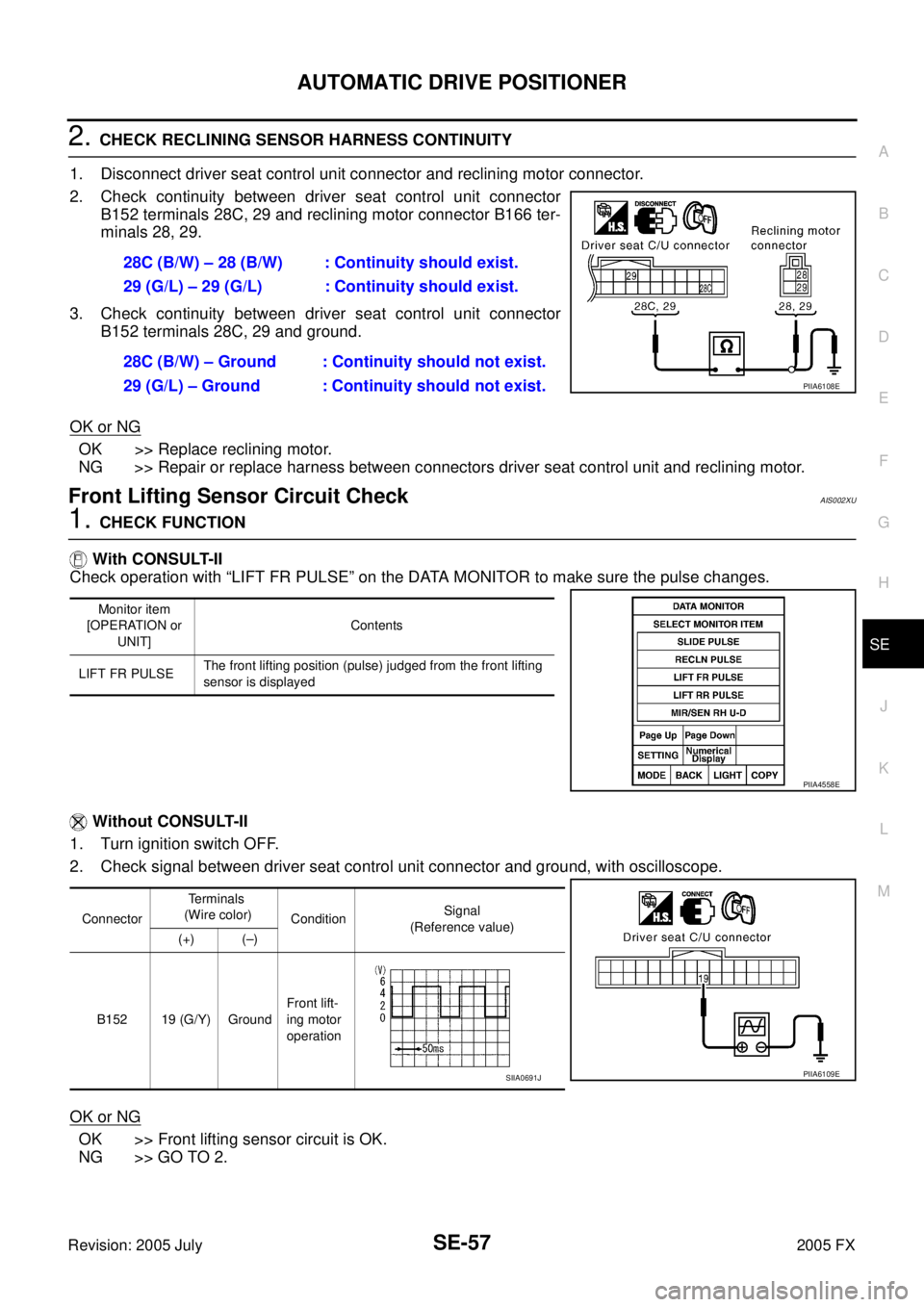

2. CHECK RECLINING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and reclining motor connector.
2. Check continuity between driver seat control unit connector B152 terminals 28C, 29 and reclining motor connector B166 ter-
minals 28, 29.
3. Check continuity between driver seat control unit connector B152 terminals 28C, 29 and ground.
OK or NG
OK >> Replace reclining motor.
NG >> Repair or replace harness between connectors driver seat control unit and reclining motor.
Front Lifting Sensor Circuit CheckAIS002XU
1. CHECK FUNCTION
With CONSULT-II
Check operation with “LIFT FR PULSE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and ground, with oscilloscope.
OK or NG
OK >> Front lifting sensor circuit is OK.
NG >> GO TO 2. 28C (B/W) – 28 (B/W) : Continuity should exist.
29 (G/L) – 29 (G/L) : Continuity should exist.
28C (B/W) – Ground : Continuity should not exist.
29 (G/L) – Ground : Continuity should not exist.
PIIA6108E
Monitor item
[OPERATION or UNIT] Contents
LIFT FR PULSE The front lifting position (pulse) judged from the front lifting
sensor is displayed
PIIA4558E
Connector Terminals
(Wire color) Condition Signal
(Reference value)
(+) (–)
B152 19 (G/Y) Ground Front lift-
ing motor
operation
PIIA6109ESIIA0691J

SE-58
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX
2. CHECK FRONT LIFTING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and front lifting motor connector.
2. Check continuity between driver seat control unit connector B152 terminals 19, 28C and front lifting motor connector B164
terminals 19, 28A.
3. Check continuity between driver seat control unit connector B152 terminals 19, 28C and ground.
OK or NG
OK >> Replace front lifting motor.
NG >> Repair or replace harness between driver seat control unit and front lifting motor.
Rear Lifting Sensor Circuit CheckAIS002XV
1. CHECK REAR END LIFTING SENSOR INPUT/OUTPUT SIGNAL
With CONSULT-II
Check operation with “LIFT RP PULSE” on the DATA MONITOR to make sure pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector ground, with oscilloscope.
OK or NG
OK >> Rear lifting sensor circuit is OK.
NG >> GO TO 2. 19 (G/Y) – 19 (G/Y) : Continuity should exist.
28C (B/W) – 28A (B/W) : Continuity should exist.
19 (G/Y) – Ground : Continuity should not exist.
28C (B/W) – Ground : Continuity should not exist.
PIIA6110E
Monitor item
[OPERATION or UNIT Contents
LIFT RR PULSE The rear lifting position (pulse) judged from the rear lifting
sensor is displayed.
PIIA4558E
Connector Te r m i n a l s
(Wire color) Condition Signal
(Reference value)
(+) (–)
B152 30 (G/W) Ground Rear lift-
ing motor
operation
P I I A 6 111 ESIIA0693J

AUTOMATIC DRIVE POSITIONER SE-59
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX

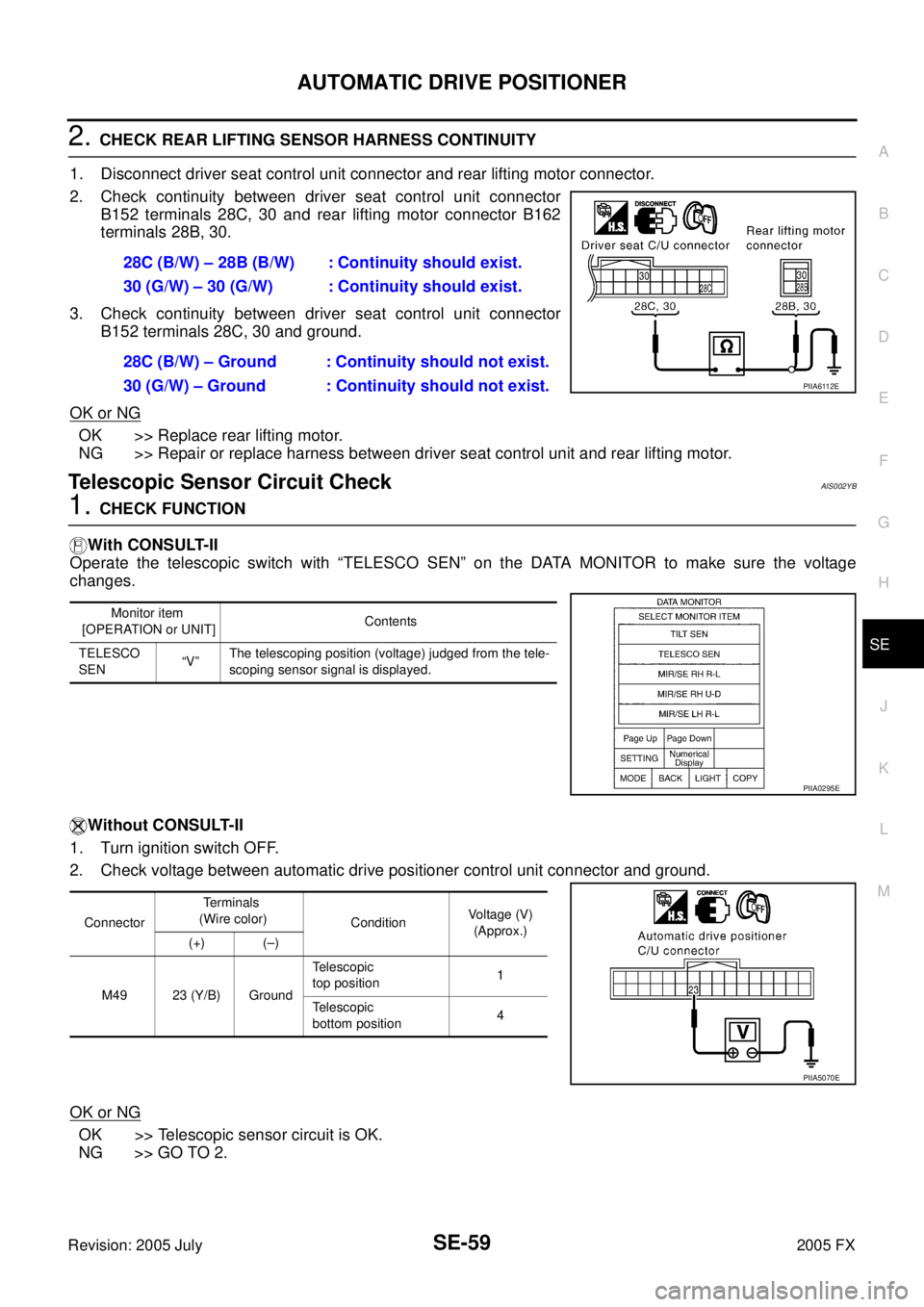

2. CHECK REAR LIFTING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and rear lifting motor connector.
2. Check continuity between driver seat control unit connector B152 terminals 28C, 30 and rear lifting motor connector B162
terminals 28B, 30.
3. Check continuity between driver seat control unit connector B152 terminals 28C, 30 and ground.
OK or NG
OK >> Replace rear lifting motor.
NG >> Repair or replace harness between driver seat control unit and rear lifting motor.
Telescopic Sensor Circuit CheckAIS002YB
1. CHECK FUNCTION
With CONSULT-II
Operate the telescopic switch with “TELESCO SEN” on the DATA MONITOR to make sure the voltage
changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Telescopic sensor circuit is OK.
NG >> GO TO 2. 28C (B/W) – 28B (B/W) : Continuity should exist.
30 (G/W) – 30 (G/W) : Continuity should exist.
28C (B/W) – Ground : Continuity should not exist.
30 (G/W) – Ground : Continuity should not exist.
PIIA6112E
Monitor item
[OPERATION or UNIT] Contents
TELESCO
SEN “V” The telescoping position (voltage) judged from the tele-
scoping sensor signal is displayed.
PIIA0295E
Connector Terminals
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M49 23 (Y/B) Ground Telescopic
top position 1
Telescopic
bottom position 4
PIIA5070E

SE-60
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX

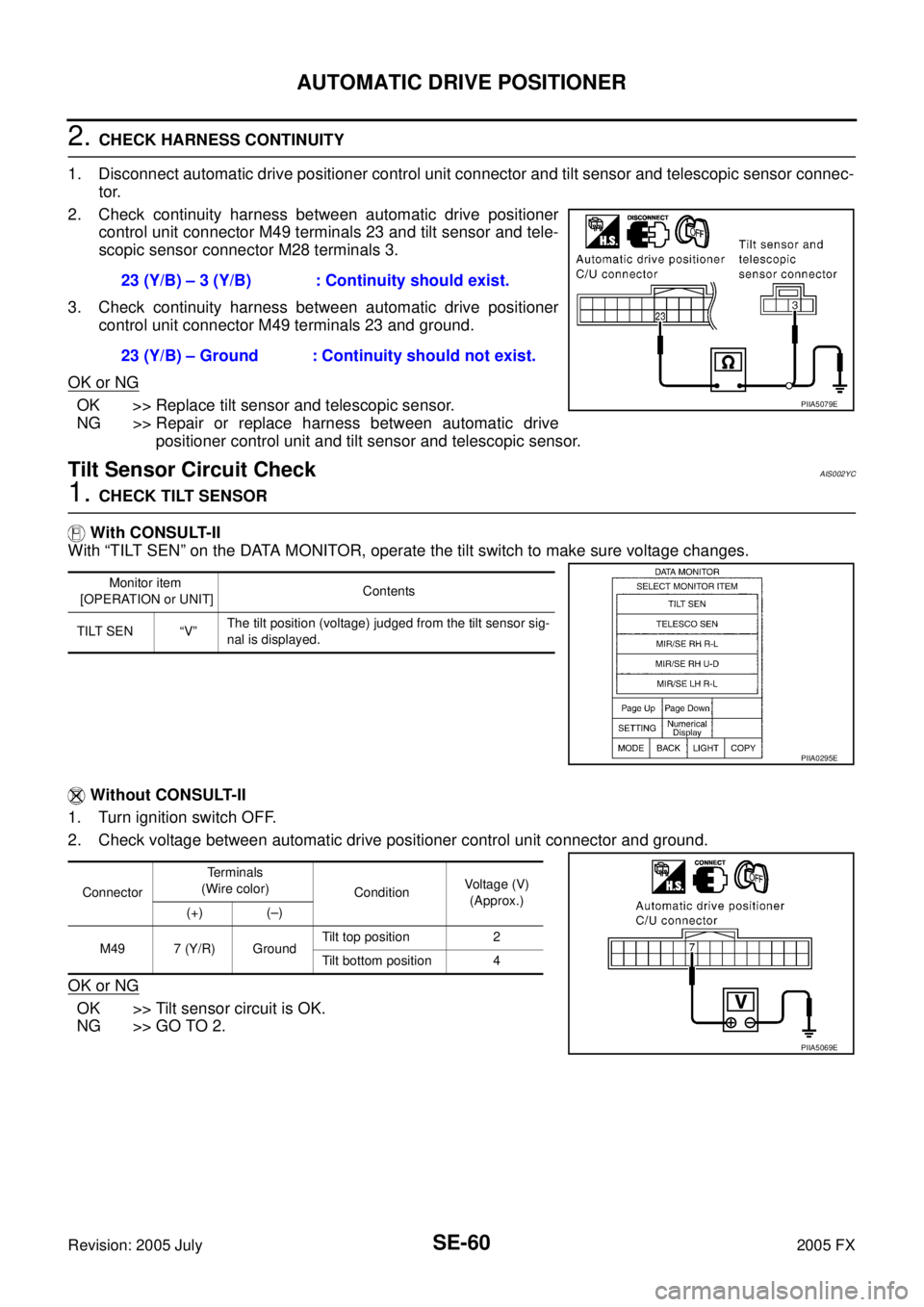

2. CHECK HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connec- tor.
2. Check continuity harness between automatic drive positioner control unit connector M49 terminals 23 and tilt sensor and tele-
scopic sensor connector M28 terminals 3.
3. Check continuity harness between automatic drive positioner control unit connector M49 terminals 23 and ground.
OK or NG
OK >> Replace tilt sensor and telescopic sensor.
NG >> Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.
Tilt Sensor Circuit CheckAIS002YC
1. CHECK TILT SENSOR
With CONSULT-II
With “TILT SEN” on the DATA MONITOR, operate the tilt switch to make sure voltage changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Tilt sensor circuit is OK.
NG >> GO TO 2. 23 (Y/B) – 3 (Y/B) : Continuity should exist.
23 (Y/B) – Ground : Continuity should not exist.
PIIA5079E
Monitor item
[OPERATION or UNIT] Contents
TILT SEN “V” The tilt position (voltage) judged from the tilt sensor sig-
nal is displayed.
PIIA0295E
Connector Terminals
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M49 7 (Y/R) Ground Tilt top position 2
Tilt bottom position 4
PIIA5069E
