3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between harness connector E211 terminals 15G (L), 14G (R) and ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver
Seat Control Unit Circuit
AKS00CCM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and harness side).
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E56 terminals 11 (L), 15 (R) and har-
ness connector E205 terminals 3 (L), 10 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness. 15G (L) - 11 (L) : Continuity should exist.
14G (R) - 15 (R) : Continuity should exist.
SKIA6864E
11 (L) - 3 (L) : Continuity should exist.
15 (R) - 10 (R) : Continuity should exist.
SKIA6880E

LAN-290
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B8.
2. Check continuity between harness connector B5 terminals 3 (L), 10 (R) and harness connector B8 terminals 14 (L), 15 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
ECM Circuit InspectionAKS00CCN
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ECM for damage, bend and loose connection (control module side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M90 termi- nals 94 (L) and 86 (R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and harness connector M82.
TCM Circuit InspectionAKS00CCO
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side and harness side).
–A/T assembly connector
–Harness connector F102
–Harness connector M82
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 3 (L) - 14 (L) : Continuity should exist.
10 (R) - 15 (R) : Continuity should exist.
SKIA6881E
94 (L) - 86 (R) : Approx. 108 - 132 Ω
PKIA9860E

CAN SYSTEM (TYPE 6) LAN-291
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display con-
trol unit.
Display Unit Circuit InspectionAKS00CCP
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of display unit for damage, bend and loose connection (unit side and har- ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display unit connector.
2. Check resistance between display unit harness connector M62 terminals 14 (L) and 16 (R).
OK or NG
OK >> Replace display unit.
NG >> Repair harness between display unit and harness con- nector M82.
AWD Control Unit Circuit InspectionAKS00CCQ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of AWD control unit for damage, bend and loose connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 3 (L) - 8 (R) : Approx. 54 - 66
Ω
SKIA6866E
14 (L) - 16 (R) : Approx. 54 - 66Ω
SKIA6867E

LAN-292
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AWD control unit connector.
2. Check resistance between AWD control unit harness connector M92 terminals 8 (L) and 16 (R).
OK or NG
OK >> Replace AWD control unit.
NG >> Repair harness between AWD control unit and harness
connector M82.
Data Link Connector Circuit InspectionAKS00CCR
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har- ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-7, "TROUBLE DIAG-
NOSES WORK FLOW" .
NG >> Repair harness between data link connector and BCM.
BCM Circuit InspectionAKS00CCS
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 8 (L) - 16 (R) : Approx. 54 - 66
Ω
SKIA6889E
6 (L) - 14 (R) : Approx. 54 - 66Ω
PKIA9865E

CAN SYSTEM (TYPE 6) LAN-293
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector M3 termi- nals 39 (L) and 40 (R).
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and data link connector.
Steering Angle Sensor Circuit InspectionAKS00CCT
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con- nector M14 terminals 4 (L) and 5 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data link connector.
LDW Camera Unit Circuit InspectionAKS00CCU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (unit side and harness side).
–LDW camera unit connector
–Harness connector R1
–Harness connector M31
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector. 39 (L) - 40 (R) : Approx. 54 - 66
Ω
SKIA6869E
4 (L) - 5 (R) : Approx. 54 - 66 Ω
PKIA9864E

LAN-294
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect LDW camera unit connector.
2. Check resistance between LDW camera unit harness connector R9 terminals 10 (L) and 5 (R).
OK or NG
OK >> Replace LDW camera unit.
NG >> GO TO 3.
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector R1.
2. Check resistance between harness connector M31 terminals 2 (L) and 3 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-7, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Replace harness between LDW camera unit and har-
ness connector R1.
Unified Meter and A/C Amp. Circuit InspectionAKS00CCV
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of unified meter and A/C amp. for damage, bend and loose connection (meter side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C amp. harness connector M55 terminals 1 (L) and 11 (R).
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness between unified meter and A/C amp. and harness connector M41.

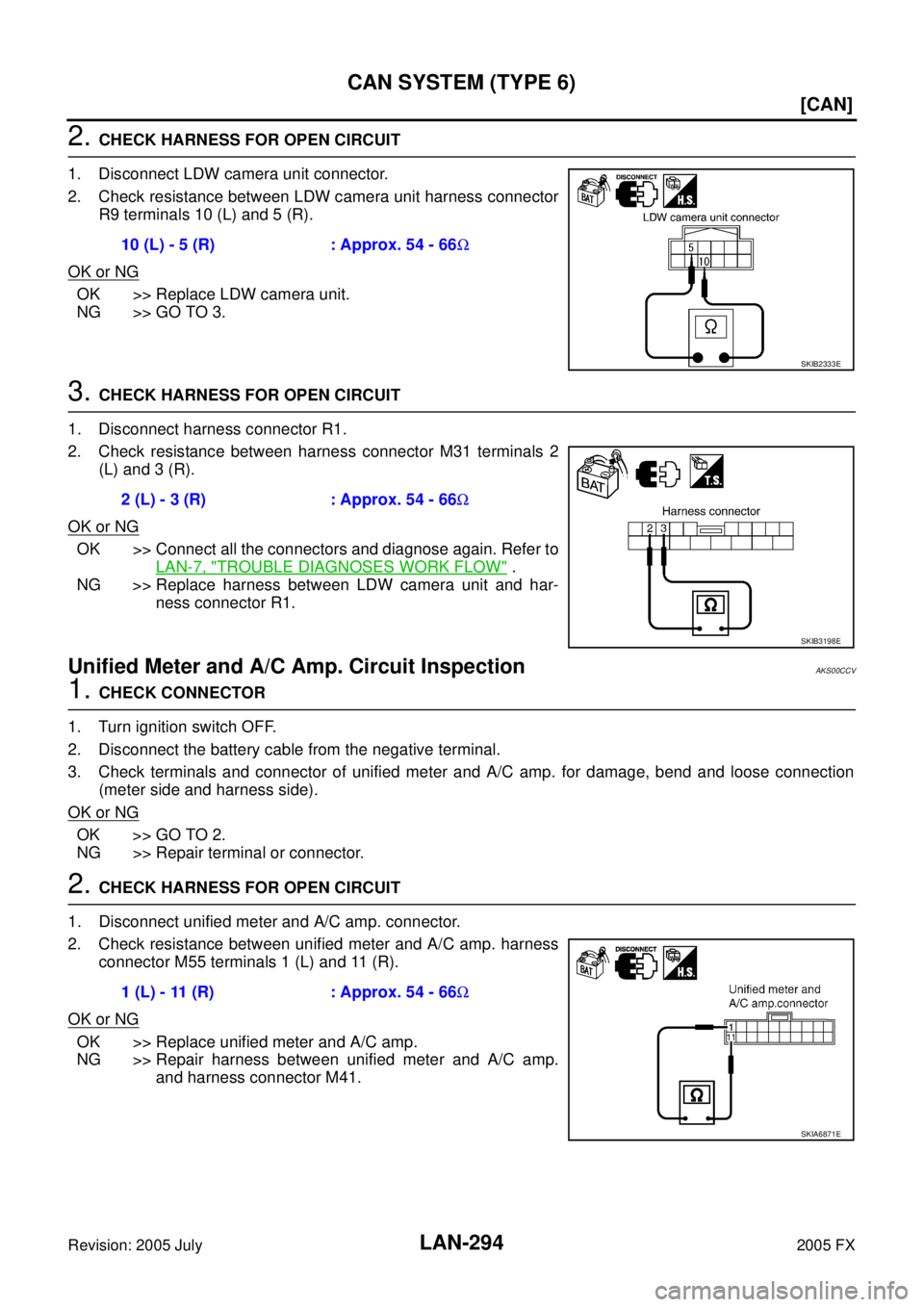

10 (L) - 5 (R) : Approx. 54 - 66
Ω
SKIB2333E
2 (L) - 3 (R) : Approx. 54 - 66Ω
SKIB3198E
1 (L) - 11 (R) : Approx. 54 - 66Ω
SKIA6871E

CAN SYSTEM (TYPE 6) LAN-295
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
ABS Actuator and Electric Unit (Control Unit) Circuit InspectionAKS00CCW
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con- trol unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit (control unit) and harness connector E205.
Driver Seat Control Unit Circuit InspectionAKS00CCX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and harness side).
–Driver seat control unit connector
–Harness connector B151
–Harness connector B8
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con- nector B152 terminals 14 (OR) and 15 (SB).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har- ness connector B5.

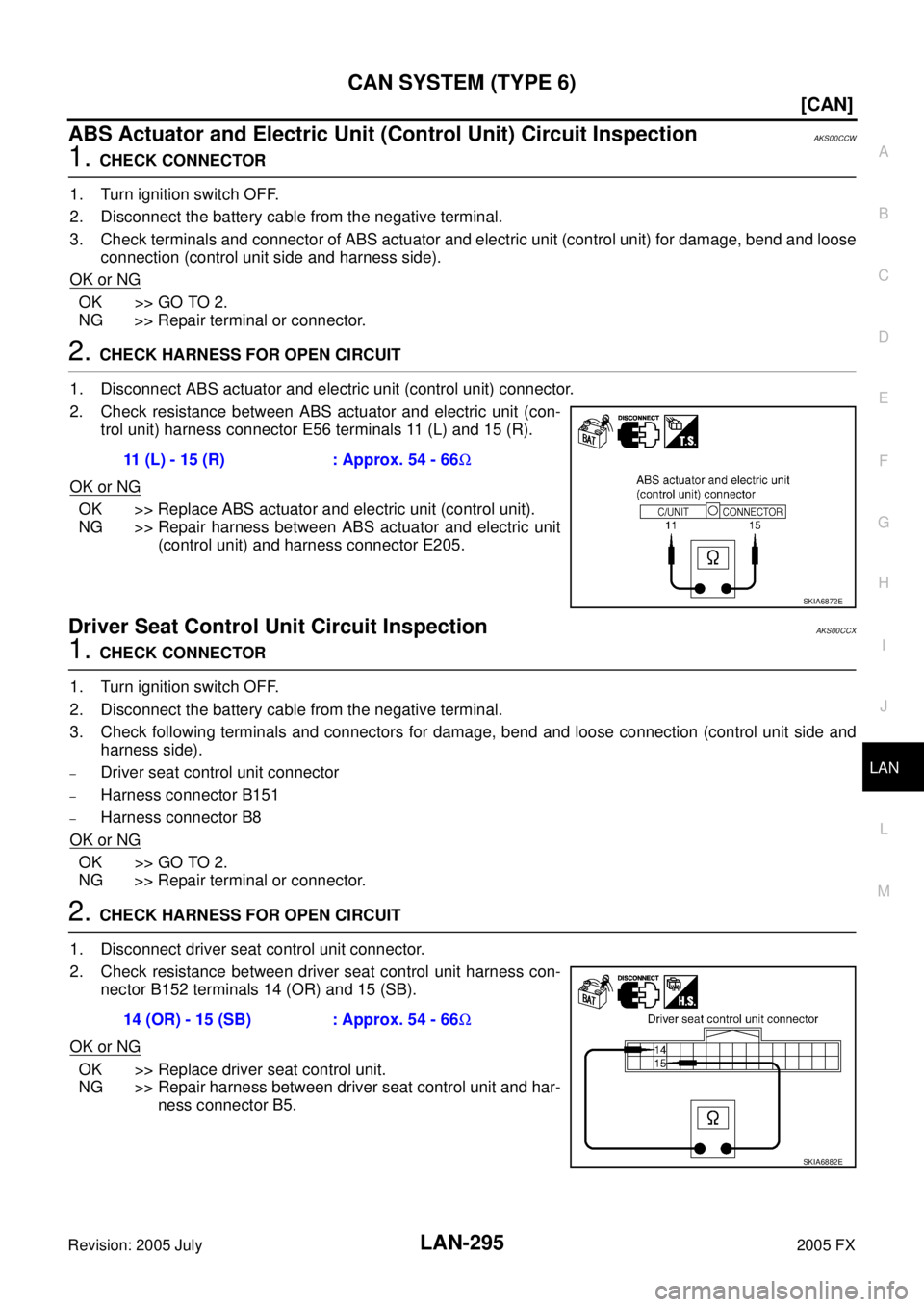

11 (L) - 15 (R) : Approx. 54 - 66
Ω
SKIA6872E
14 (OR) - 15 (SB) : Approx. 54 - 66Ω
SKIA6882E

LAN-296
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2005 July 2005 FX
IPDM E/R Circuit InspectionAKS00CCY
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter- minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con- nector B8.

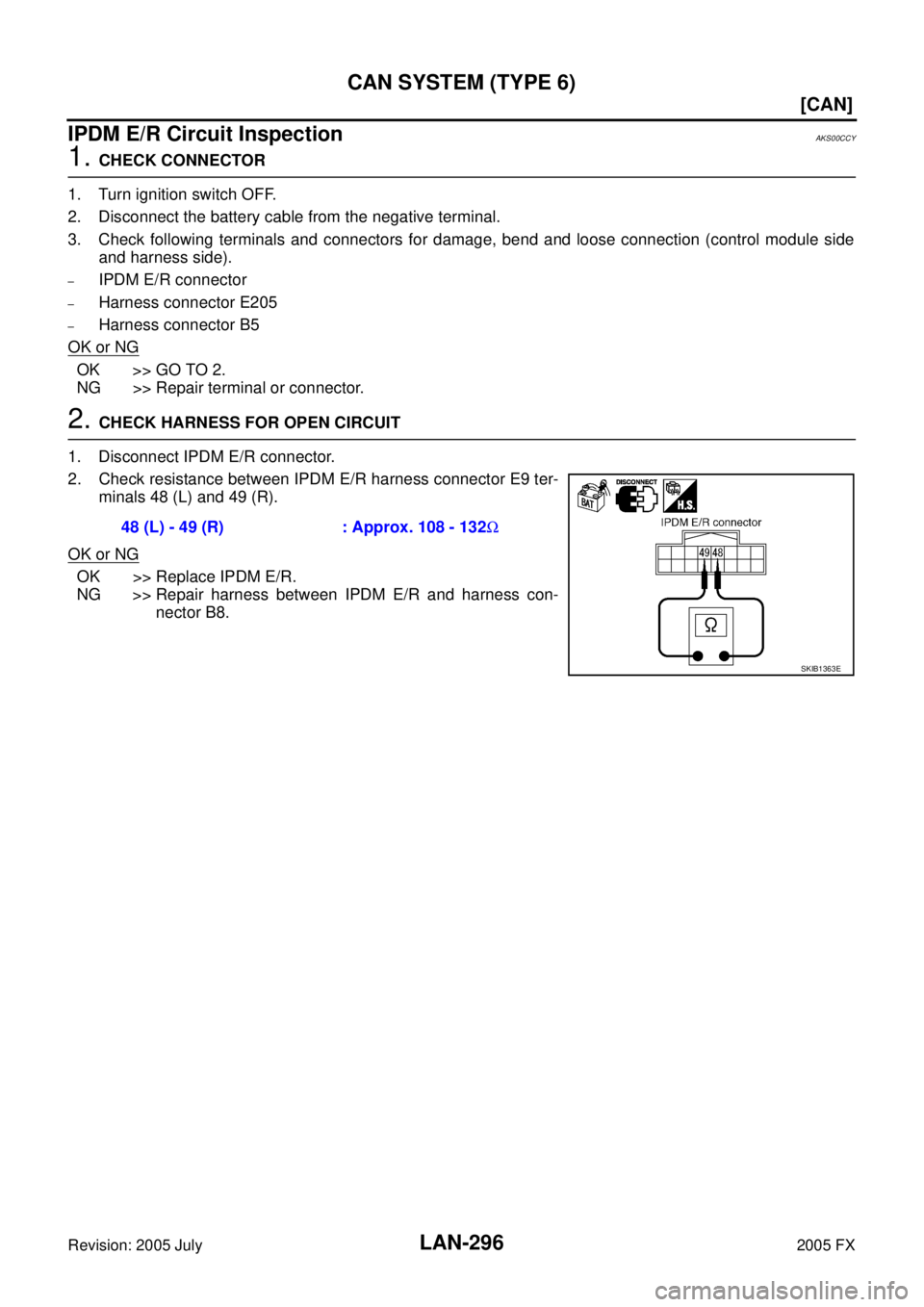

48 (L) - 49 (R) : Approx. 108 - 132
Ω
SKIB1363E
