2005 INFINITI FX35 warning

DI-4
PRECAUTION
Revision: 2005 July 2005 FX
PRECAUTION PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AKS00CS7
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

COMBINATION METERS DI-5
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
COMBINATION METERSPFP:24814
System DescriptionAKS005MH
UNIFIED METER CONTROL UNIT

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled by the
unified meter control unit, which is built into the combination meter. Unified meter control unit receives sig-
nals from unified meter and A/C amp.

Warning lamp and indicator lamp of combination meter are controlled by signals drawn from the unified
meter and A/C amp.

Digital meter is adopted for odo/trip meter*.
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Odo/trip meter, A/T indicator and ICC system display segments can be checked in diagnosis mode.

Meters/gauges can be checked in diagnosis mode.
Illumination Control
The unified meter control unit outputs the odo/trip meter and A/T
indicator lighting when the ignition switch is turned on. When the
lighting switch is turned on, light on for the combination meter dial,
illumination control switch and external lighting are output. In addi-
tion, when the lighting switch is turned on, the illumination control
switch on the left side of the combination meter can be used to
adjust the brightness of each light. The brightness can be adjusted
to sixteen different levels: From 0 (no lights) to 15 (maximum).
Pressing the illumination control switch will brighten or darken the
lights. When the ignition switch is in the START position, the combi-
nation meter dial lighting and illumination control switch lighting are
turned off.
UNIFIED METER AND A/C AMP.
Refer to DI-28, "System Description" in “UNIFIED METER AND A/C AMP”.
SKIA4795E

DI-14
COMBINATION METERS
Revision: 2005 July 2005 FX
Self-Diagnosis Mode of Combination MeterAKS005MO
SELF-DIAGNOSIS FUNCTION

Odo/trip meter segment, A/T indicator segment and ICC system display segment operation can be
checked in self-diagnosis mode.

Meters/gauges can be checked in self-diagnosis mode.
OPERATION PROCEDURE
1. Turn ignition switch ON, and switch the odo/trip meter to “trip A” or “trip B”.
NOTE:
If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A will
indicate 0000.0, but the actual trip mileage will be retained. (Trip B operates the same way.)
2. Turn ignition switch OFF.
3. Turn ignition switch ON while pressing trip transfer switch and trip reset switch at the same time.
4. After ignition switch is turned ON, release trip transfer switch and trip reset switch. (With 7 seconds after the ignition switch is
turned ON.)

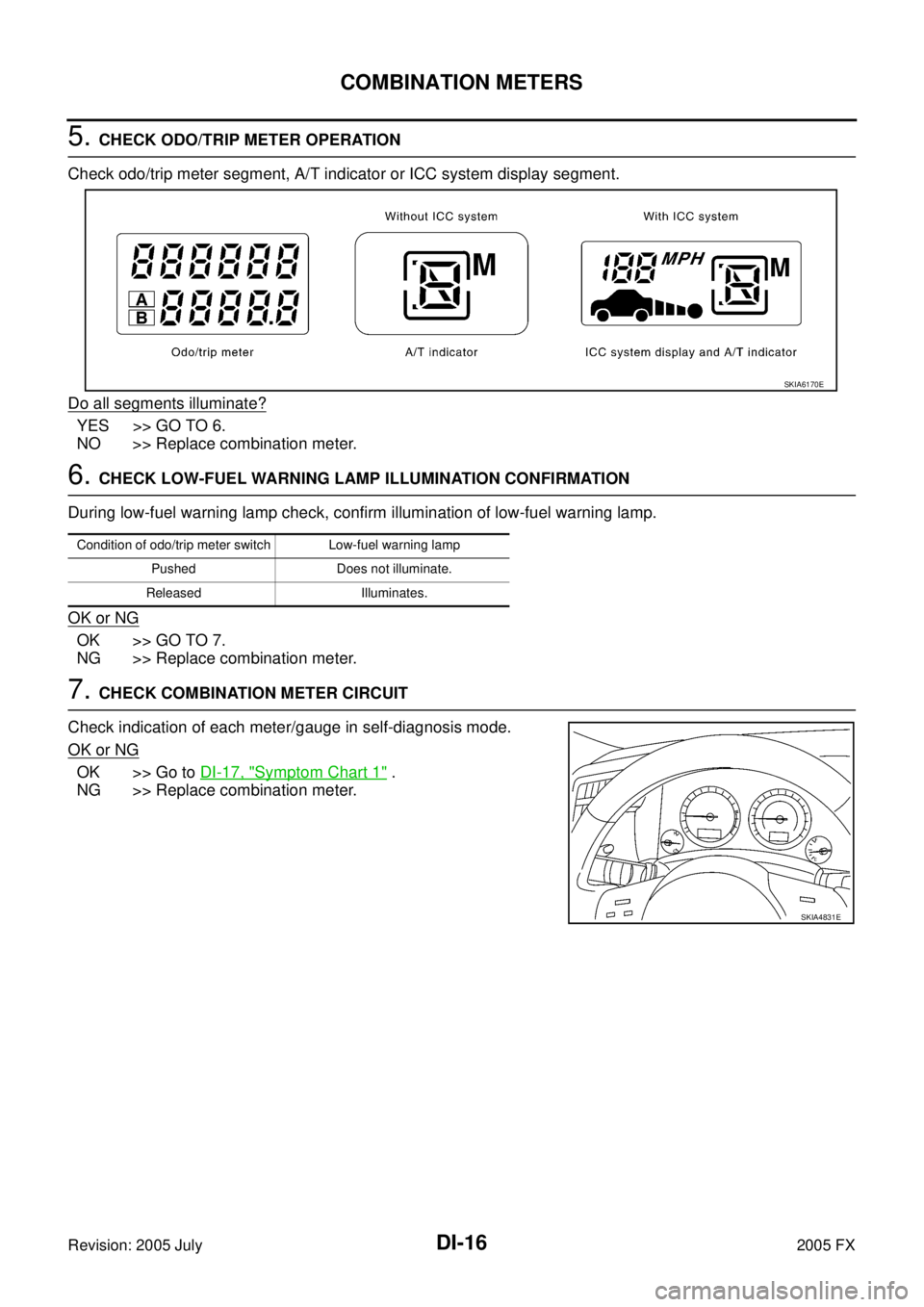

5. All the segments on the odo/trip meter, A/T indicator and ICC system display illuminates, and simultaneously the low-fuel
warning lamp indicator illuminates. At this time, the unified meter
control unit is turned to diagnosis mode.
NOTE:
If any of the segments is not displayed, replace combination
meter.
6. Push the trip reset switch. Each meter/gauge should indicate as shown in the figure while pushing trip reset switch. (At this time,
the low-fuel warning lamp goes off.)
CONSULT-II Function (METER A/C AMP)AKS005MP
Refer to DI-31, "CONSULT-II Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
SKIA4817E
SKIA6170E
SKIA4831E

COMBINATION METERS DI-15
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Trouble DiagnosisAKS005MQ
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Confirm the symptom or customer complaint.
2. Perform preliminary check. Refer to DI-15, "
PRELIMINARY CHECK" .
3. According to the symptom chart, repair or replace the cause of the symptom. Refer to DI-17, "
Symptom
Chart 1" .
4. Does the meter operate normally? If so, GO TO 5. If not, GO TO 2.
5. INSPECTION END
PRELIMINARY CHECK
1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to
DI-31, "
CONSULT-II Function (METER A/C AMP)" .
Self-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>> Go to DI-17, "
Symptom Chart 2" .
2. CHECK WARNING LAMP ILLUMINATION
Turn ignition switch ON. (Engine stopped)
Do warning lamps (such as malfunction indicator lamp and oil pressure warning lamp) illuminate?
YES >> GO TO 3.
NO >> Check power supply circuit of combination meter when ignition switch is ON. Refer to DI-18,
"Power Supply and Ground Circuit Inspection" .
3. CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-14, "
SELF-DIAGNOSIS FUNCTION" .
Does self-diagnosis function operate?
YES >> GO TO 5.
NO >> GO TO 4.
4. CHECK POWER SUPPLY AND GROUND CIRCUIT OF COMBINATION METER
Check power supply and ground circuit of combination meter. Refer to DI-18, "
Power Supply and Ground Cir-
cuit Inspection" .
OK or NG
OK >> Replace combination meter.
NG >> Repair as need.

DI-16
COMBINATION METERS
Revision: 2005 July 2005 FX
5. CHECK ODO/TRIP METER OPERATION
Check odo/trip meter segment, A/T indicator or ICC system display segment.
Do all segments illuminate?
YES >> GO TO 6.
NO >> Replace combination meter.
6. CHECK LOW-FUEL WARNING LAMP ILLUMINATION CONFIRMATION
During low-fuel warning lamp check, confirm illumination of low-fuel warning lamp.
OK or NG
OK >> GO TO 7.
NG >> Replace combination meter.
7. CHECK COMBINATION METER CIRCUIT
Check indication of each meter/gauge in self-diagnosis mode.
OK or NG
OK >> Go to DI-17, "Symptom Chart 1" .
NG >> Replace combination meter.
SKIA6170E
Condition of odo/trip meter switch Low-fuel warning lamp
Pushed Does not illuminate.
Released Illuminates.
SKIA4831E

COMBINATION METERS DI-17
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Symptom Chart 1 AKS005MT
Symptom Chart 2AKS005MU
Trouble phenomenon Possible cause
Indication is irregular for the speedometer and odo/trip meter. Refer to DI-20, "
Vehicle Speed Signal Inspection" .
Tachometer indication is malfunction. Refer to DI-21, "
Engine Speed Signal Inspection" .
Water temperature gauge indication is malfunction. Refer to DI-21, "
Engine Coolant Temperature Signal Inspection" .
Fuel gauge indication is malfunction. Refer to DI-22, "
Fuel Level Sensor Signal Inspection" .
Low-fuel warning lamp indication is irregular.
A/T position indicator is malfunction. Refer to DI-56, "
A/T Indicator Is Malfunction" .
Illumination control does not operate. Refer to
DI-24, "
Odo/Trip Meter and Illumination Control Switch
Inspection" .
Displayed item [Code] Inspection contents Possible cause
CAN COMM CIRC [U1000] Inspect the CAN communication. Refer to
DI-34, "
DTC [U1000] CAN Communication Circuit" .
CAUTION:
Even when there is no malfunction on CAN communica-
tion system, malfunction may be misinterpreted when bat-
tery has low voltage (when maintaining 7 - 8 V for about 2
seconds) or 10A fuse [No. 19, located in the fuse block (J/
B)] is disconnected.
METER COMM CIRC [B2202] Inspect the communication line
between combination meter and
unified meter and A/C amp. Refer to
DI-34, "
DTC [B2202] Meter Communication Circuit" .
VEHICLE SPEED CIRC [B2205] Inspect the vehicle speed input
signal. Refer to
DI-37, "
DTC [B2205] Vehicle Speed Circuit" .
CAUTION:
Even when there is no malfunction on speed signal sys-
tem, malfunction may be misinterpreted when battery has
low voltage (when maintaining 7 - 8 V for about 2 seconds).

DI-22
COMBINATION METERS
Revision: 2005 July 2005 FX
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “COOLAN TEMP/S” on “DATA MONITOR”, print out the CONSULT-II screen.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “W TEMP METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with that of the “COOLAN TEMP/S”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-132, "CON-
SULT-II Function (ENGINE)" (for VQ35DE) or EC-822,
"CONSULT-II Function (ENGINE)" (for VK45DE).
NG >> Replace unified meter and A/C amp. Refer to DI-37,
"Removal and Installation of Unified Meter and A/C
Amp." .
Fuel Level Sensor Signal InspectionAKS005MY
Symptom:

Fuel gauge indication is malfunction.

Low-fuel warning lamp indication is irregular.
NOTE:
The following symptoms are not malfunction.
Fuel level sensor unit

Depending on vehicle position or driving circumstance, the fuel level in the tank various, and the pointer
may fluctuate.

If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.
Low-fuel warning lamp

Depending on vehicle position or driving circumstance, the fuel in the tank flows and the warning lamp ON
timing may change.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Using “FUEL METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with fuel gauge pointer of combination
meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK FUEL LEVEL SENSOR
Check components. Refer to DI-25, "
CHECK FUEL LEVEL SENSOR UNIT" .
OK or NG
OK >> GO TO 3.
NG >> Replace fuel level sensor unit.
SKIA4368E
Fuel gauge pointer Reference value of data monitor [lit.]
Full Approx. 86
Three quarters Approx. 70 Half Approx. 48
A quarter Approx. 25 Empty Approx. 9
PKIA2088E

DI-28
UNIFIED METER AND A/C AMP
Revision: 2005 July 2005 FX
UNIFIED METER AND A/C AMPPFP:27760
System DescriptionAKS005N8

For the unified meter and A/C amp., the signal required for controlling the combination meter are inte-
grated in the A/C auto amp.

Unified meter and A/C amp. controls each operation for A/C auto amp. For information regarding A/C con-
trol, refer to AT C - 3 0 , "
AIR CONDITIONER CONTROL" in ATC section.

Unified meter and A/C amp. inputs necessary information for combination meter from each unit by CAN
communication and so on.

And unified meter and A/C amp. outputs these signals using communication line (TX, RX) between unified
meter and A/C amp. and combination meter.

The signals required for the distance to empty (DTE) display are centralized in the unified meter and A/C
amp., converted into data, and sent to the display unit (without NAVI) display control unit (with NAVI) using
CAN communication.

Other input signals are also sent to the ECM, TCM, AWD control unit, BCM, display unit (without NAVI)
and display control unit (with NAVI) using CAN communication.

The unified meter and A/C amp. correspond a CONSULT-II function (self-diagnostic results, CAN diag-
nostic support monitor, data monitor).
INPUT/OUTPUT SIGNALS
Between Unified Meter & A/C amp. and Combination Meter
Unit Input Output
Unified meter and A/C amp.

Seat belt buckle switch signal (Driver's side)

Parking brake signal

Illumination control nighttime required signal

Refuel status signal

Low-fuel warning lamp condition signal

Combination meter receive error signal

Delivery destination data signal

Combination meter specifications signal

Vehicle speed signal (8-pulse)

Engine speed signal

Engine coolant temperature signal

Fuel level sensor signal (resistance value)

Malfunction indicator lamp signal

ABS warning lamp signal

Low tire pressure warning lamp signal

Brake warning lamp signal

A/T CHECK warning lamp signal

ICC warning lamp signal

Oil pressure switch signal

Door switch signal

AWD warning lamp signal

VDC OFF indicator lamp signal

SLIP indicator lamp signal

CRUISE indicator lamp signal

SET indicator lamp signal

High beam request signal

Turn indicator signal

Snow mode switch signal

ICC system display signal

A/T position indicator signal

Manual mode indicator signal

Manual mode gear position signal

CAN communication condition signal of A/T

Position lights request signal

Buzzer output signal
