DI-58
WARNING CHIME
Revision: 2005 July 2005 FX
WARNING CHIMEPFP:24814
System DescriptionAKS005NL
FUNCTION
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 22, located in the fuse block (J/B)]

to key switch and ignition knob switch terminal 3 (with Intelligent Key)

to key switch terminal 2 (without Intelligent Key), and

to BCM terminal 42,

through 10A fuse [No. 38, located in the fuse and fusible link block (with Intelligent Key)]

to key switch and ignition knob switch terminal 1,

through 10A fuse [No. 19, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 21, and

to combination meter terminal 8.
When ignition switch is in ON or START position, power is supplied

through 15A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 22,

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 7.
Ground is supplied

to BCM terminals 49 and 52,

to unified meter and A/C amp. terminals 29 and 30, and

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
NOTE:
When ignition key warning chime, light warning chime, and seat belt warning chime should be performed at
the same time, the priorities for each chime are the following.
1. Seat belt warning chime
2. Light warning chime
3. Ignition key warning chime
IGNITION KEY WARNING CHIME (WITHOUT INTELLIGENT KEY)
With the key inserted into the ignition switch, and the ignition switch OFF or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied

through key switch terminal 1

to BCM terminal 37.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.

WARNING CHIME DI-59
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
IGNITION KEY WARNING CHIME (WITH INTELLIGENT KEY)
When Mechanical Key Is Used
With the key inserted into the ignition switch, and the ignition switch LOCK or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied

through key switch and ignition knob switch terminal 4

to BCM terminal 37.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
When Intelligent Key Is Carried With The Driver
When the ignition knob is in LOCK (push switch ON) or ACC, when driver's door is opened, the warning chime
will sound.
Power is supplied

through key switch and ignition knob switch terminal 2

to Intelligent Key unit terminal 27.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM sends front door switch signal to Intelligent Key unit with CAN communication line.
Intelligent Key unit detects ignition knob return is forgotten, and sends key warning signal to unified meter and
A/C amp. with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination
meter with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
LIGHT WARNING CHIME
With the key removed from the ignition switch or when the ignition knob is in LOCK (push switch OFF) [with
Intelligent Key], the driver's door is opened, and the lighting switch is in ON position, the warning chime will
sound. [Except when headlamp battery saver control operates (for 5 minutes after ignition switch is turned to
OFF or ACC position) and headlamps do not illuminate.]
Signal is supplied

from combination switch (lighting switch) terminals 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10

to BCM terminals 2, 3, 4, 5, 6, 32, 33, 34, 35 and 36.
NOTE:
BCM detected lighting switch in 1st or 2nd position, refer to BCS-3, "
COMBINATION SWITCH READING
FUNCTION" .
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects headlamps are illuminated, and sends light warning signal to unified meter and A/C amp. with
CAN communication line. Unified meter and A/C amp. sends light warning signal to combination meter with
communication line between unified meter and A/C amp. and combination meter.
When combination meter receives light warning signal, it sounds warning chime.
SEAT BELT WARNING CHIME
With ignition switch turned ON and seat belt unfastened [seat belt buckle switch (driver side) ON], warning
chime will sound for approximately 6 seconds.
Ground is supplied

DI-60
WARNING CHIME
Revision: 2005 July 2005 FX

to combination meter terminal 9

through seat belt buckle switch (driver side) terminal 60.
Seat belt buckle switch (driver side) terminal 61A is grounded through body grounds B15 and B45.
Combination meter sends seat belt unfastened [seat belt buckle switch (driver side) ON] signal to unified
meter and A/C amp. with communication line between unified meter and A/C amp. and combination meter.
BCM receives seat belt unfastened [seat belt buckle switch (driver side) ON] signal from unified meter and A/
C amp. with CAN communication line, and sends seat belt warning signal to unified meter and A/C amp. with
CAN communication line. Unified meter and A/C amp. sends seat belt warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives seat belt warning signal, it sounds warning chime.
CAN Communication System DescriptionAKS007Z2
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS007YY
Refer to LAN-30, "CAN Communication Unit" in “LAN SYSTEM”.

WARNING CHIME DI-61
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

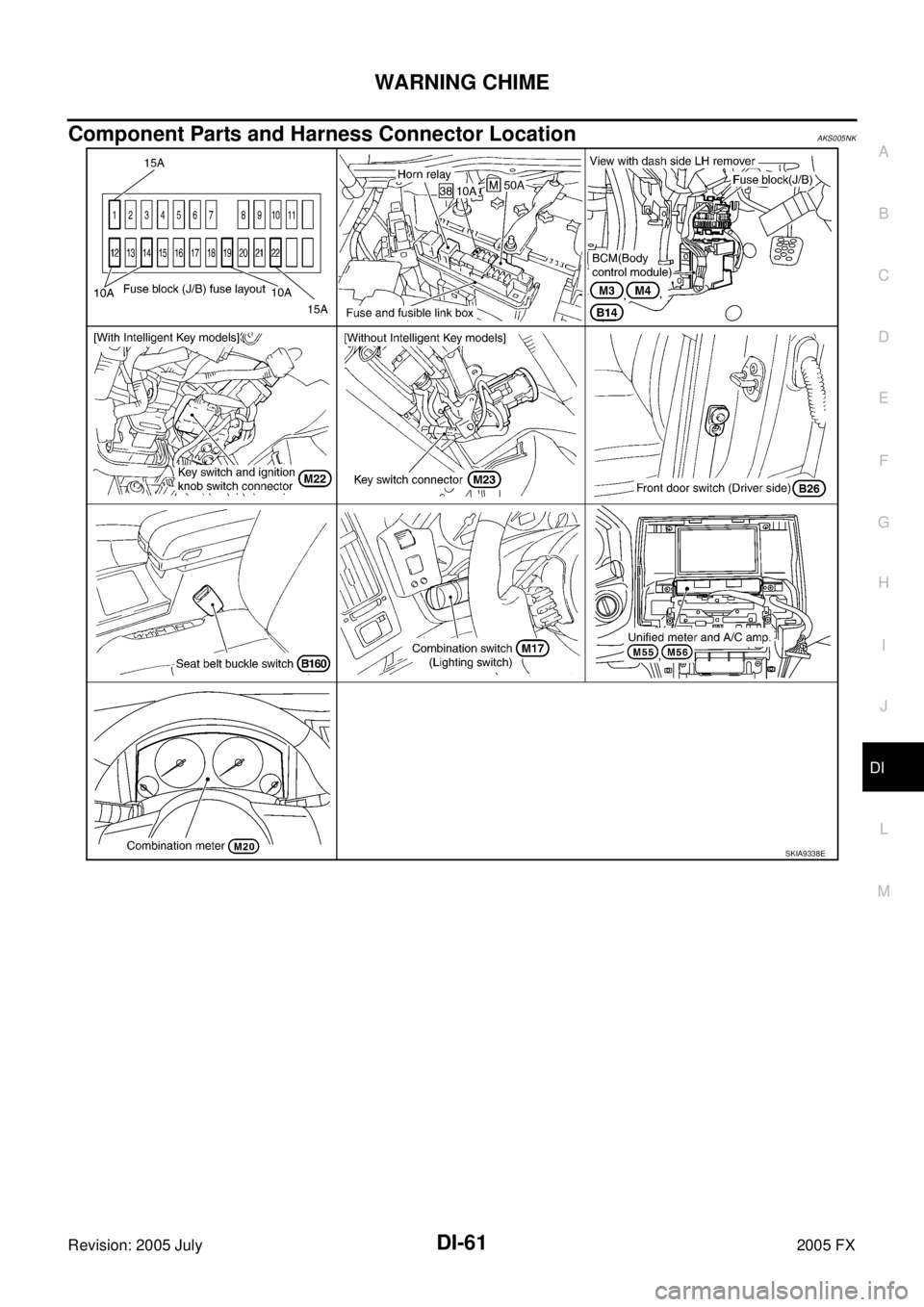

Component Parts and Harness Connector LocationAKS005NK
SKIA9338E

DI-62
WARNING CHIME
Revision: 2005 July 2005 FX

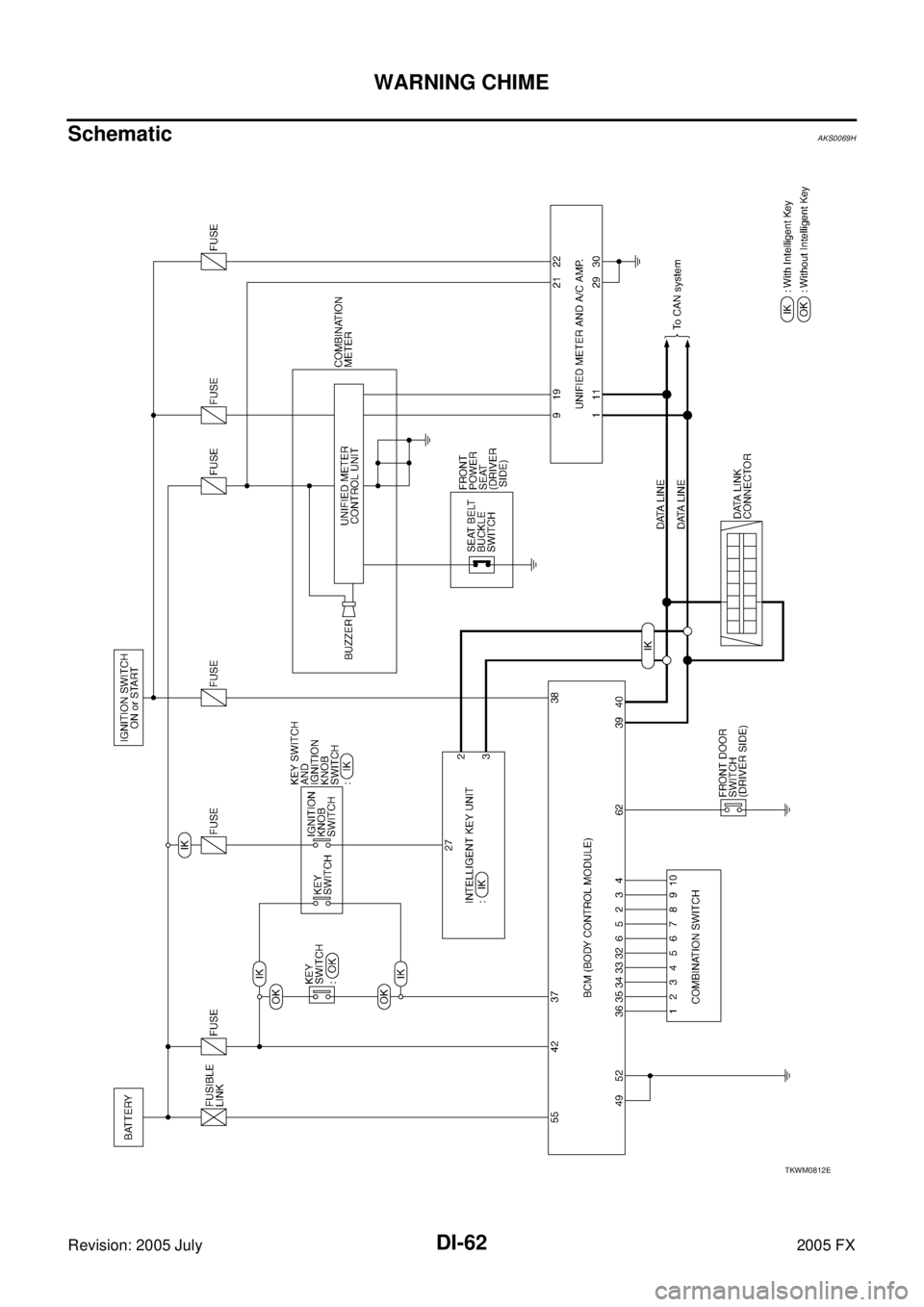

SchematicAKS0069H
TKWM0812E

WARNING CHIME DI-63
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

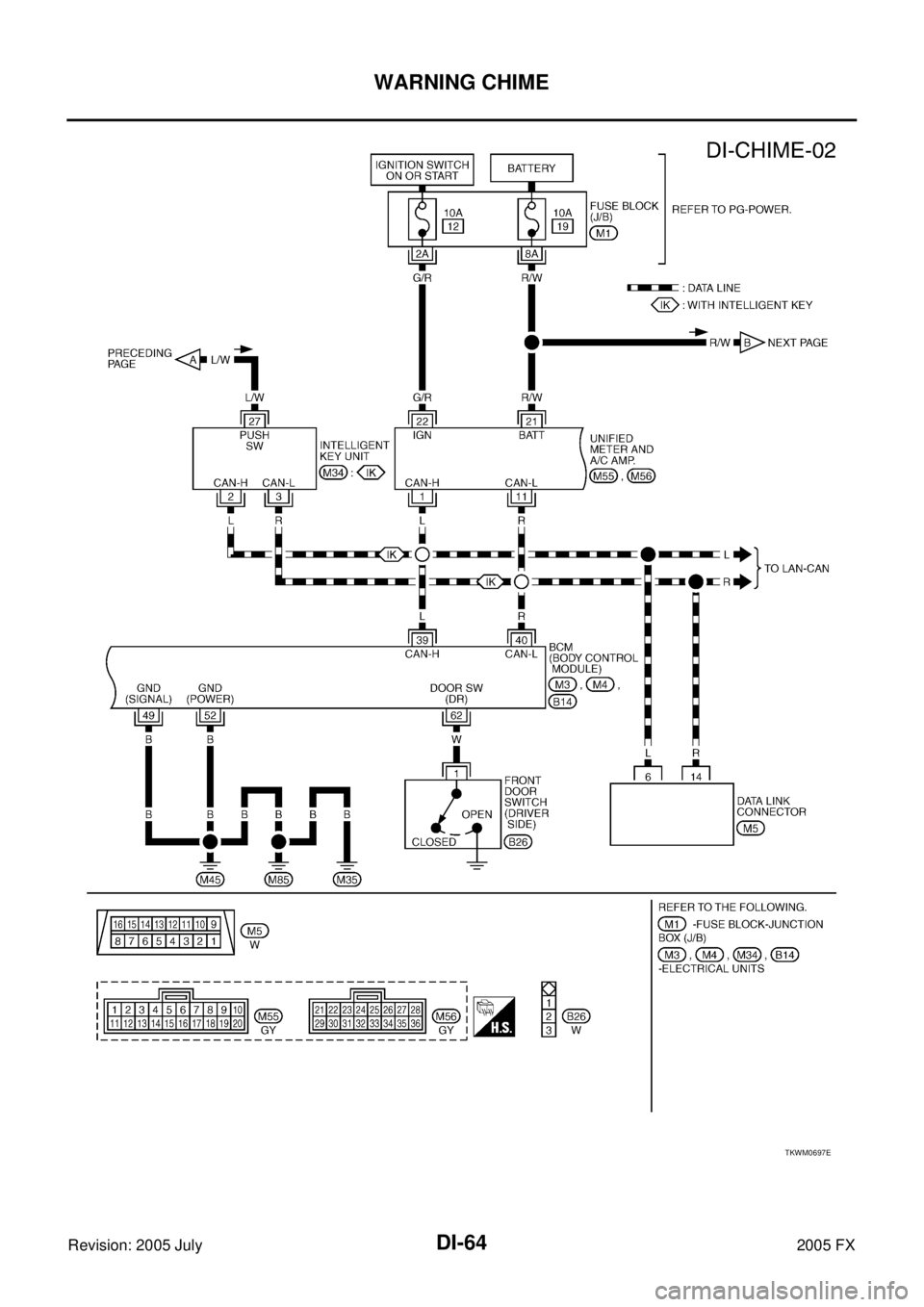

Wiring Diagram — CHIME —AKS005NN
TKWM2061E

DI-64
WARNING CHIME
Revision: 2005 July 2005 FX

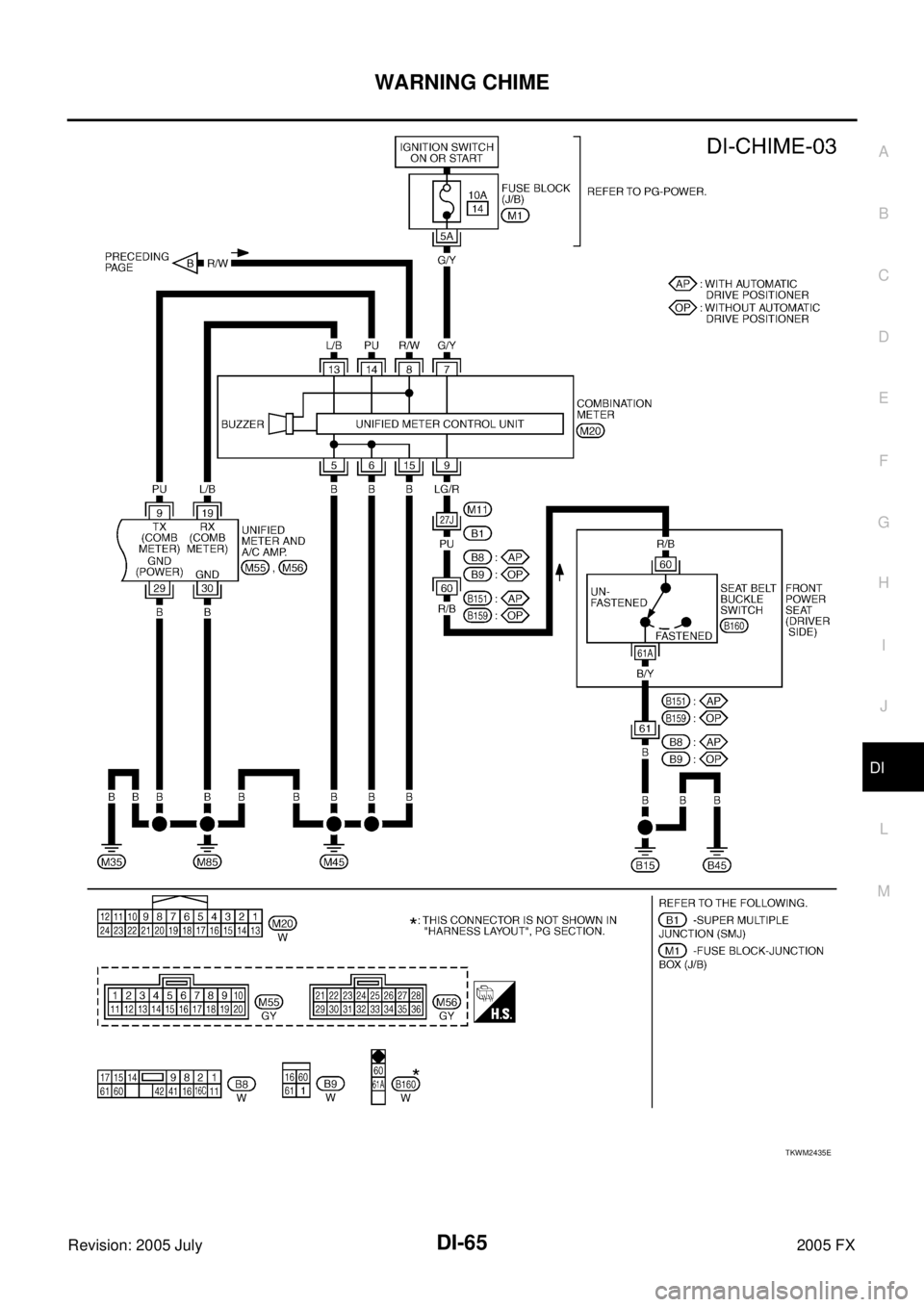

TKWM0697E

WARNING CHIME DI-65
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
TKWM2435E
