2005 INFINITI FX35 engine

HOW TO USE THIS MANUAL GI-23
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
AbbreviationsAAS000E3
The following ABBREVIATIONS are used:
ABBREVIATION DESCRIPTION
A/C Air Conditioner
A/T Automatic Transaxle/Transmission
ATF Automatic Transmission Fluid D
1Drive range 1st gear
D
2Drive range 2nd gear
D
3Drive range 3rd gear
D
4Drive range 4th gear
FR, RR Front, Rear LH, RH Left-Hand, Right-Hand M/T Manual Transaxle/TransmissionOD Overdrive
P/S Power Steering
SAE Society of Automotive Engineers, Inc.
SDS Service Data and Specifications SST Special Service Tools
2WD 2-Wheel Drive 2
22nd range 2nd gear
2
12nd range 1st gear
1
21st range 2nd gear
1
11st range 1st gear

SERVICE INFORMATION FOR ELECTRICAL INCIDENT GI-27
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
How to Perform Efficient Diagnosis for an Electrical IncidentAAS000E5
WORK FLOW
INCIDENT SIMULATION TESTS
Introduction
Sometimes the symptom is not present when the vehicle is brought in for service. If possible, re-create the
conditions present at the time of the incident. Doing so may help avoid a No Trouble Found Diagnosis. The fol-
lowing section illustrates ways to simulate the conditions/environment under which the owner experiences an
electrical incident.
The section is broken into the six following topics:

Vehicle vibration

Heat sensitive
SGI838
STEP DESCRIPTION
STEP 1 Get detailed information about the conditions and the environment when the incident occurred.
The following are key pieces of information required to make a good analysis:
WHAT Vehicle Model, Engine, Transmission/Transaxle and the System (i.e. Radio).
WHEN Date, Time of Day, Weather Conditions, Frequency.
WHERE Road Conditions, Altitude and Traffic Situation.
HOW System Symptoms, Operating Conditions (Other Components Interaction).
Service History and if any After Market Accessories have been installed.
STEP 2 Operate the system, road test if necessary.
Verify the parameter of the incident.
If the problem cannot be duplicated, refer to “Incident Simulation Tests”.
STEP 3 Get the proper diagnosis materials together including:

Power Supply Routing

System Operation Descriptions

Applicable Service Manual Sections

Check for any Service Bulletins
Identify where to begin diagnosis based upon your knowledge of the system operation and the customer comments.
STEP 4 Inspect the system for mechanical binding, loose connectors or wiring damage.
Determine which circuits and components are involved and diagnose using the Power Supply Routing and Harness
Layouts.
STEP 5 Repair or replace the incident circuit or component.
STEP 6 Operate the system in all modes. Verify the system works properly under all conditions. Make sure you have not inad-
vertently created a new incident during your diagnosis or repair steps.

GI-28
SERVICE INFORMATION FOR ELECTRICAL INCIDENT
Revision: 2005 July 2005 FX

Freezing

Water intrusion

Electrical load

Cold or hot start up
Get a thorough description of the incident from the customer. It is important for simulating the conditions of the
problem.
Vehicle Vibration
The problem may occur or become worse while driving on a rough road or when engine is vibrating (idle with
A/C on). In such a case, you will want to check for a vibration related condition. Refer to the following illustra-
tion.
CONNECTORS & HARNESS
Determine which connectors and wiring harness would affect the electrical system you are inspecting. Gently
shake each connector and harness while monitoring the system for the incident you are trying to duplicate.
This test may indicate a loose or poor electrical connection.
HINT
Connectors can be exposed to moisture. It is possible to get a thin film of corrosion on the connector termi-
nals. A visual inspection may not reveal this without disconnecting the connector. If the problem occurs inter-
mittently, perhaps the problem is caused by corrosion. It is a good idea to disconnect, inspect and clean the
terminals on related connectors in the system.
SENSORS & RELAYS
Gently apply a slight vibration to sensors and relays in the system you are inspecting.
This test may indicate a loose or poorly mounted sensor or relay.
ENGINE COMPARTMENT
There are several reasons a vehicle or engine vibration could cause an electrical complaint. Some of the
things to check for are:

Connectors not fully seated.

Wiring harness not long enough and is being stressed due to engine vibrations or rocking.

Wires laying across brackets or moving components.

Loose, dirty or corroded ground wires.

Wires routed too close to hot components.
To inspect components under the hood, start by verifying the integrity of ground connections. (Refer to Ground
Inspection described later.) First check that the system is properly grounded. Then check for loose connection
by gently shaking the wiring or components as previously explained. Using the wiring diagrams inspect the
wiring for continuity.
BEHIND THE INSTRUMENT PANEL
An improperly routed or improperly clamped harness can become pinched during accessory installation. Vehi-
cle vibration can aggravate a harness which is routed along a bracket or near a screw.
SGI839

CONSULT-II CHECKING SYSTEM GI-37
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionAAS000E7

CONSULT-II is a hand-held type tester. When it is connected with a diagnostic connector equipped on the
vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.

Refer to “CONSULT-II Software Operation Manual” for more information.
Function and System Application AAS000E8
x: Applicable
NOTE:
This item is indicated, but it is what it does not use.
Diagnostic test
mode Function
ENGINE
A/T
AIR BAG
REARVIEW CAMERA
METER A/C AMP BCM
AUTO DRIVE POS.
ABS (Including VDC) IVIS (NATS)
IPDM E/R ICC
ALL MODE AWD/4WD INTELLIGENT KEY LDW
Work support This mode enables a technician to adjust some devices
faster and more accurately by following the indications on
CONSULT-II. x - - x - xxx -- x- xx
Self-diagnostic
results Self-diagnostic results can be read and erased quickly. x x x - x x x x x x x x x x
Trouble diagnos-
tic record Current self-diagnostic results and all trouble diagnostic
records previously stored can be read. --x-----------
Data monitor Input/Output data in the ECU can be read. x x - x x x x x - x x x x x
CAN diagnosis
support monitor The condition of CAN communication line can be read. x x - - x x x x - x x x x x
Active test Diagnostic Test Mode in which CONSULT-II drives some
actuators apart from the ECUs and also shifts some param-
eters in a specified range. x- -- - xxx -xxxxx
DTC & SRT con-
firmation The results of SRT (System Readiness Test) and the self-
diagnosis status/result can be confirmed. x- -- ----------
DTC work sup-
port The operating condition to confirm Diagnosis Trouble
Codes can be selected. xx-- ----------
ECU (ECM/TCM)
part number ECU (ECM/TCM) part number can be read. x x - x - x x x - - x x x x
ECU discrimi-
nated No. Classification number of a replacement ECU can be read to
prevent an incorrect ECU from being installed. -- x- ----------
Function test This mode can show results of self-diagnosis of ECU with
either 'OK' or 'NG'. For engines, more practical tests
regarding sensors/switches and/or actuators are available. xxx- ---x------
Control unit ini-
tialization All registered ignition key IDs in NATS components can be
initialized and new IDs can be registered. -- -- - - - - x- - - - -
Configuration
Note— -----x------- -
Pin read Individual control unit number can be read.
For future information, refer to “CONSULT-II operation
manual NATS-IVIS/NVIS” -- -- - - - - x- - - - -

CONSULT-II CHECKING SYSTEM GI-39
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
2. If necessary, turn on the ignition switch.
3. Touch “START (NISSAN BASED VHCL)” or “System Shortcut” (eg: ENGINE) on the screen.
CONSULT-II Data Link Connector (DLC) CircuitAAS000EC
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.
SAIA0450E
Symptom Check item
CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4) (For detailed
circuit, refer to “MIL & Data Link Connectors Wiring Diagram” in EC section.)

CONSULT-II DLC cable and CONSULT-II CONVERTER
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

Open or short circuit CAN communication line. Refer to LAN-5, "Precautions When Using CON-
SULT-II" .

LIFTING POINT GI-41
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
LIFTING POINTPFP:00000
Special Service Tools AAS000ED
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
CAUTION:

Every time the vehicle is lifted up, maintain the complete vehicle curb condition.

Since the vehicle's center of gravity changes when removing main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or equivalent.

Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack with a mission jack or
equivalent.

Be careful not to smash or do not do anything that would affect piping parts.
Garage Jack and Safety Stand AAS000EE
WARNING:

Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes,
tubes, etc. under the vehicle.

Never get under the vehicle while it is supported only by the jack. Always use safety stands when
you have to get under the vehicle.
Tool number
(Kent-Moore No.)
Tool name Description
LM4086-0200
( - )
Board on attachment
LM4519-0000
( - )
Safety stand attachment
S-NT001
S-NT002

IDENTIFICATION INFORMATION GI-49
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
IDENTIFICATION INFORMATIONPFP:00010
Model Variation AAS000EL

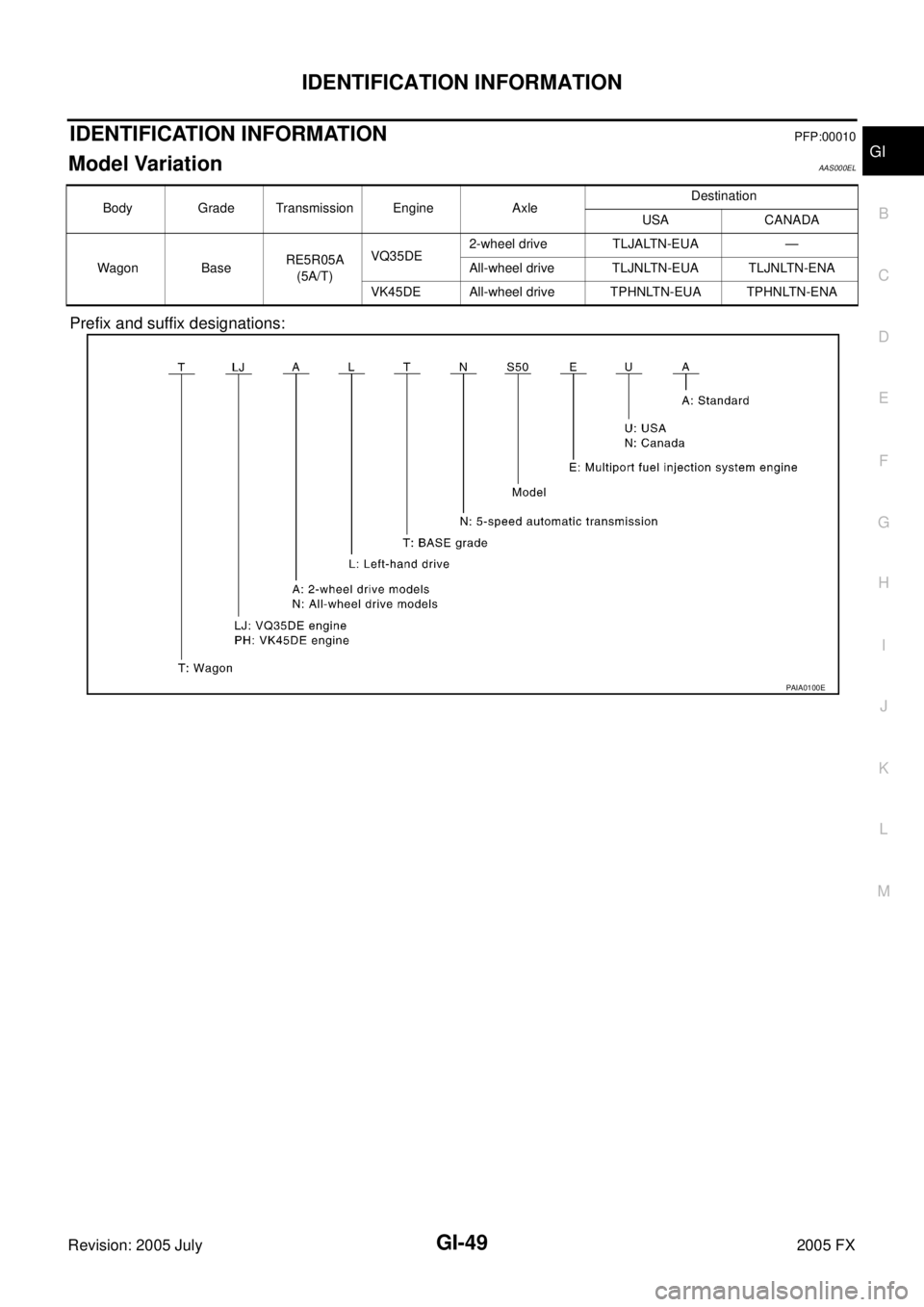

Prefix and suffix designations:
Body Grade Transmission Engine Axle Destination
USA CANADA
Wagon Base RE5R05A
(5A/T) VQ35DE
2-wheel drive TLJALTN-EUA —
All-wheel drive TLJNLTN-EUA TLJNLTN-ENA
VK45DE All-wheel drive TPHNLTN-EUA TPHNLTN-ENA
PAIA0100E

IDENTIFICATION INFORMATION GI-51
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
ENGINE SERIAL NUMBER
AUTOMATIC TRANSMISSION NUMBER
Dimensions AAS000EM
Unit: mm (in)
Wheels & Tires AAS000EN
PAIA0110E
PA I A 0 111 E
PAIA0054E
Overall length 4,803 (189.1)
Overall width 1,925 (75.8)
Overall height without roof rack rail 1,652 (65.0)
with roof rack rail 1,672.6 (65.9)
Front tread 1,592 (62.7)
Rear tread 1,642 (64.6)
Wheelbase 2,850 (112.2)
Conventional Spare
Road wheel/offset mm (in) 18 X 8JJ Aluminum/40 (1.57)
20 X 8JJ Aluminum/40 (1.57) T175/90D18
Tire size P265/60R18
P265/50R20
