2005 INFINITI FX35 engine

CYLINDER BLOCK EM-253
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
11. Using piston ring expander (commercial service tool), install pis-
ton rings.
CAUTION:

When installing piston rings, be careful not to damage
piston.

Be careful not to damage piston rings by expending them
excessively.

Position each ring with the gap as shown in the figure, refer-
ring to the piston front mark.

Install top ring and second ring with the stamped surface fac-
ing upward.
12. Install connecting rod bearings to connecting rod and connecting rod bearing cap.

Before installing connecting rod bearings, apply engine oil to the bearing surface (inside). Do not apply
engine oil to the back surface, but thoroughly clean it.

When installing, align the connecting rod bearing stopper pro-
trusion with the cutout of connecting rod and connecting rod
bearing cap to install.

Ensure the oil holes on connecting rod and that on the corre-
sponding bearing are aligned.
13. Install piston and connecting rod assembly to crankshaft.

Position the crankshaft pin corresponding to connecting rod to be installed onto the bottom dead center.

Apply engine oil sufficiently to the cylinder bore, piston and crankshaft pin journal.

Match the cylinder position with the cylinder No. on connecting rod to install.

Be sure that front mark on piston head is facing front of engine.

Using piston ring compressor [SST: EM03470000 (J8037)],
install piston with the front mark on the piston head facing the
front of engine.
CAUTION:
Be careful not to damage cylinder wall and crankshaft pin,
resulting from an interference of the connecting rod big
end.
PBIC0087E
Stamped mark
To p r i n g : R
Second ring : 2R
PBIC0100E
PBIC2370E
PBIC0102E

EM-254
[VK45DE]
CYLINDER BLOCK
Revision: 2005 July 2005 FX
14. Install connecting rod bearing cap.

Match the stamped cylinder number marks on connecting rod
with those on cap to install.
15. Tighten connecting rod nuts as follows:
a. Apply new engine oil to the threads and seats of connecting rod bolts and nuts.
b. Tighten connecting rod nuts.
c. Then tighten all connecting rod nuts 60 degrees clockwise. (Angle tightening)
CAUTION:
Use angle wrench (SST) to check tightening angle. Do not
make judgment by visual inspection.

After tightening connecting rod nuts, make sure that crank-
shaft rotates smoothly.

Check the connecting rod side clearance. Refer to EM-262,
"CONNECTING ROD SIDE CLEARANCE" .
16. Install knock sensor.

Install it with its connector facing the rear of engine.

Install the sub-harness with its shorter branch line to the right
bank.
CAUTION:

Do not tighten mounting bolts while holding connector.

If any impact by dropping is applied to knock sensor,
replace it with new one.
NOTE:

Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.

Make sure that knock sensor does not interfere with other parts.
17. Note the following, and assemble in the reverse order of disassembly after this step. Drive plate

When installing drive plate to crankshaft, be sure to correctly
align crankshaft side guide pin and drive plate side guide pin
hole.
–If these are not aligned correctly, engine runs roughly and
“MIL” turns on.
PBIC2164E
: 14.7 N·m (1.5 kg-m, 11 ft-lb)
PBIC0104E
PBIC0105E
PBIC0106E

CYLINDER BLOCK EM-263
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX

When replacing piston and piston pin assembly, refer to EM-255, "HOW TO SELECT PISTON" .
NOTE:

Piston is available together with piston pin as assembly.

Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts,
no piston pin grades can be selected. (Only “0” grade is available.)
PISTON RING SIDE CLEARANCE

Measure the side clearance of piston ring and piston ring groove
with feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston also.
PISTON RING END GAP

Make sure that the cylinder bore inner diameter is within the
specification. Refer to EM-266, "
Cylinder Bore Inner Diameter" .

Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure the piston ring end gap with feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings. Standard:
Top ring : 0.045 - 0.080 mm (0.0018 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.065 - 0.135 mm (0.0026 - 0.0053 in)
Limit:


Top ring : 0.11 mm (0.0043 in)


2nd ring : 0.1 mm (0.004 in)
SEM024AA
Standard:
Top ring : 0.22 - 0.32 mm (0.0087 - 0.0126 in)
2nd ring : 0.22 - 0.32 mm (0.0087 - 0.0126 in)
Oil ring : 0.20 - 0.50 mm (0.0079 - 0.0197 in)
Limit:



Top ring : 0.56 mm (0.0220 in)



2nd ring : 0.56 mm (0.0220 in)
Oil ring : 0.96 mm (0.0378 in)
PBIC0118E

CYLINDER BLOCK EM-265
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX

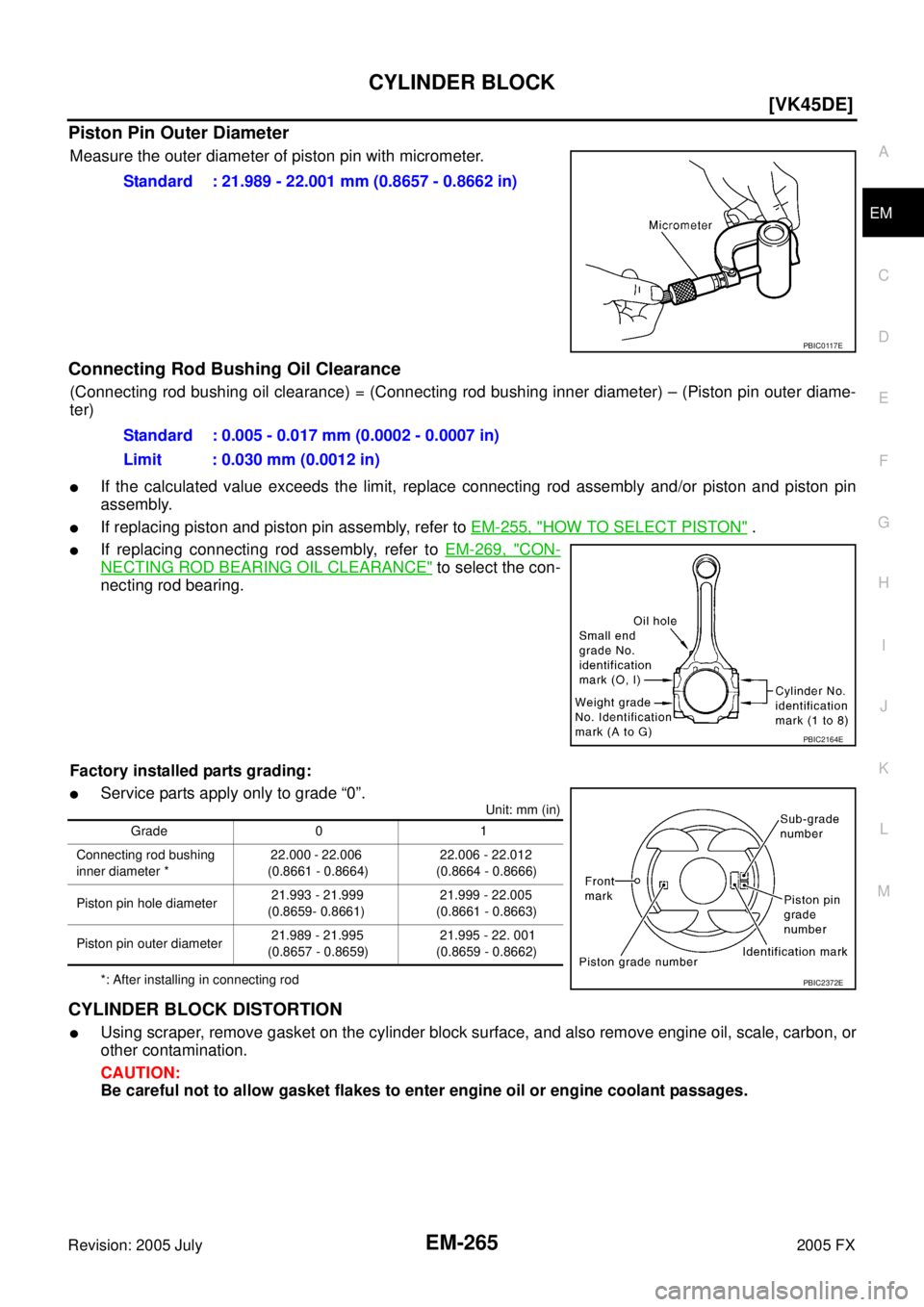

Piston Pin Outer Diameter
Measure the outer diameter of piston pin with micrometer.
Connecting Rod Bushing Oil Clearance
(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

If the calculated value exceeds the limit, replace connecting rod assembly and/or piston and piston pin
assembly.

If replacing piston and piston pin assembly, refer to EM-255, "HOW TO SELECT PISTON" .

If replacing connecting rod assembly, refer to EM-269, "CON-
NECTING ROD BEARING OIL CLEARANCE" to select the con-
necting rod bearing.
Factory installed parts grading:

Service parts apply only to grade “0”.
Unit: mm (in)
*: After installing in connecting rod
CYLINDER BLOCK DISTORTION

Using scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or
other contamination.
CAUTION:
Be careful not to allow gasket flakes to enter engine oil or engine coolant passages. Standard : 21.989 - 22.001 mm (0.8657 - 0.8662 in)
PBIC0117E
Standard : 0.005 - 0.017 mm (0.0002 - 0.0007 in)
Limit : 0.030 mm (0.0012 in)
PBIC2164E
Grade 0 1
Connecting rod bushing
inner diameter * 22.000 - 22.006
(0.8661 - 0.8664) 22.006 - 22.012
(0.8664 - 0.8666)
Piston pin hole diameter 21.993 - 21.999
(0.8659- 0.8661) 21.999 - 22.005
(0.8661 - 0.8663)
Piston pin outer diameter 21.989 - 21.995
(0.8657 - 0.8659) 21.995 - 22. 001
(0.8659 - 0.8662)
PBIC2372E

EM-266
[VK45DE]
CYLINDER BLOCK
Revision: 2005 July 2005 FX

Measure the distortion on the cylinder block upper face at some
different points in six directions with straightedge and feeler
gauge.

If it exceeds the limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER

Install main bearing caps and main bearing without installing
main bearings, and tighten main bearing cap bolts to the speci-
fied torque. Refer to EM-249, "
ASSEMBLY" for the tightening
procedure.

Measure the inner diameter of main bearing housing with bore
gauge.

If out of the standard, replace cylinder block and main bearing
caps as assembly.
NOTE:
Cylinder block cannot be replaced as a single part, because it is
machined together with main bearing caps.
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter

Using bore gauge, measure cylinder bore for wear, out-of-round
and taper at six different points on each cylinder. (“X” and “Y”
directions at “A”, “B” and “C”) (“Y” is in longitudinal direction of
engine)

If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder inner wall, hone or re-bore the
inner wall.

Oversize piston is provided. When using oversize piston, re-
bore cylinder so that the clearance of the piston-to-cylinder bore
satisfies the standard.
CAUTION:
When using oversize piston, use oversize pistons for all
cylinders with oversize piston rings. Limit : 0.1 mm (0.004 in)
SEM123C
Standard : 68.944 - 68.968 mm (2.7143 - 2.7153 in)
PBIC1643E
Standard inner diameter:
93.000 - 93.030 mm (3.6614 - 3.6626 in)
Wear limit: 0.2 mm (0.008 in)
Out-of-round (Difference between “X” and “Y”): 0.015 mm (0.0006 in)
Taper limit (Difference between “A” and “C”):
0.01 mm (0.0004 in)
Oversize (OS) : 0.2 mm (0.008 in)
PBIC0123E
PBIC0124E
