DO-IT-YOURSELF MAINTENANCE
27
HJM5016HJM5013
HJM5017 G270A02O-AAT

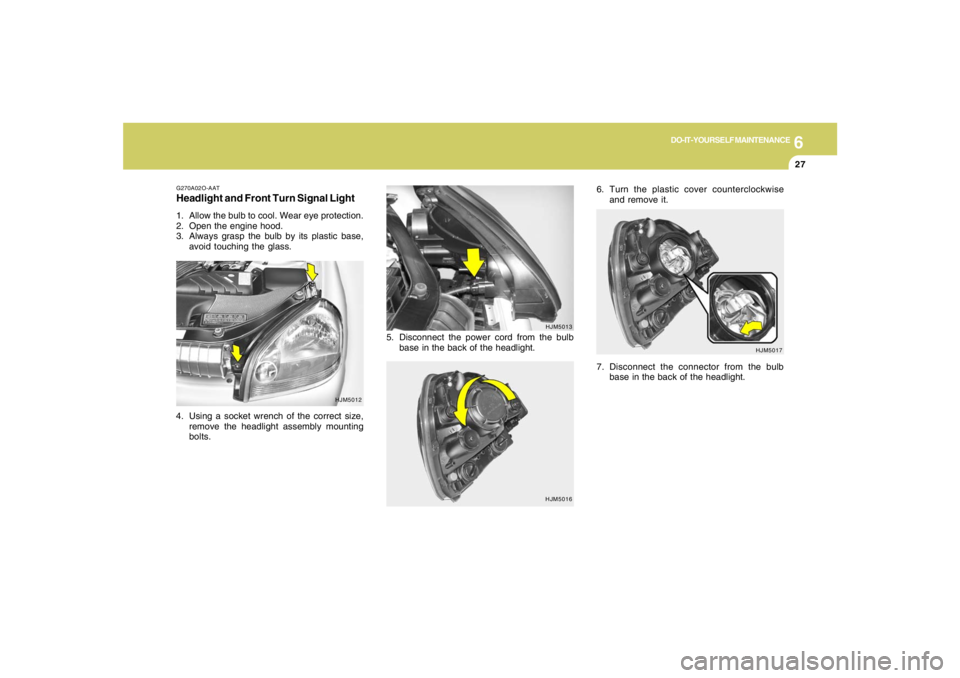

Headlight and Front Turn Signal Light1. Allow the bulb to cool. Wear eye protection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic base,
avoid touching the glass.
4. Using a socket wrench of the correct size,
remove the headlight assembly mounting
bolts.
HJM5012
6. Turn the plastic cover counterclockwise
and remove it.
5. Disconnect the power cord from the bulb
base in the back of the headlight.
7. Disconnect the connector from the bulb
base in the back of the headlight.

6
DO-IT-YOURSELF MAINTENANCE
28

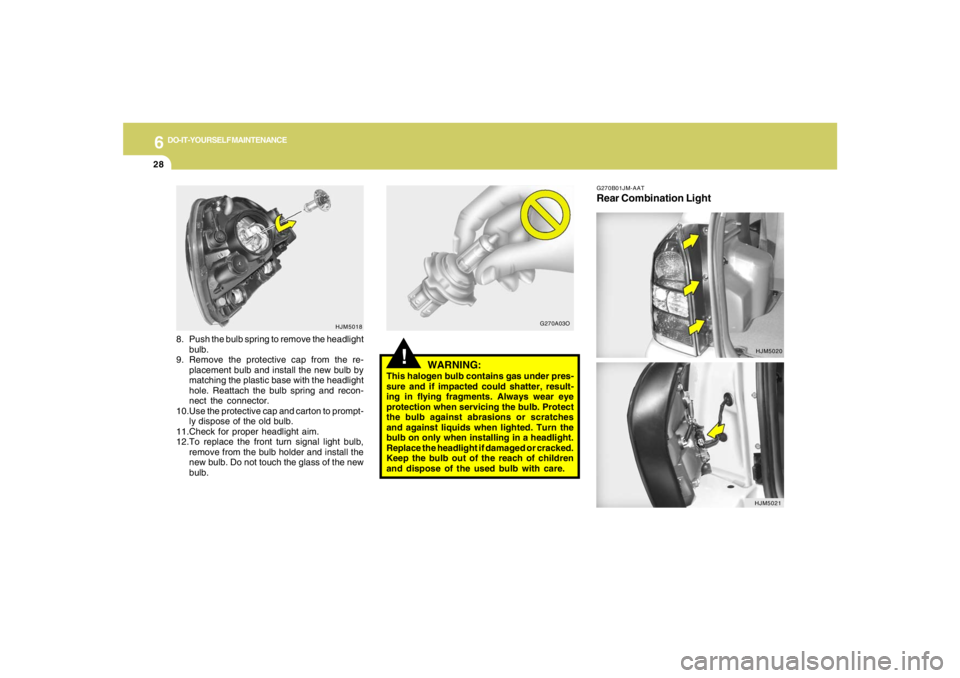

G270B01JM-AATRear Combination Light
!
WARNING:
This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care. 8. Push the bulb spring to remove the headlight
bulb.
9. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
10.Use the protective cap and carton to prompt-
ly dispose of the old bulb.
11.Check for proper headlight aim.
12.To replace the front turn signal light bulb,
remove from the bulb holder and install the
new bulb. Do not touch the glass of the new
bulb.
HJM5018
G270A03O
HJM5020
HJM5021

6
DO-IT-YOURSELF MAINTENANCE
29
HJM5022(1)
(2)
(3)
(4)

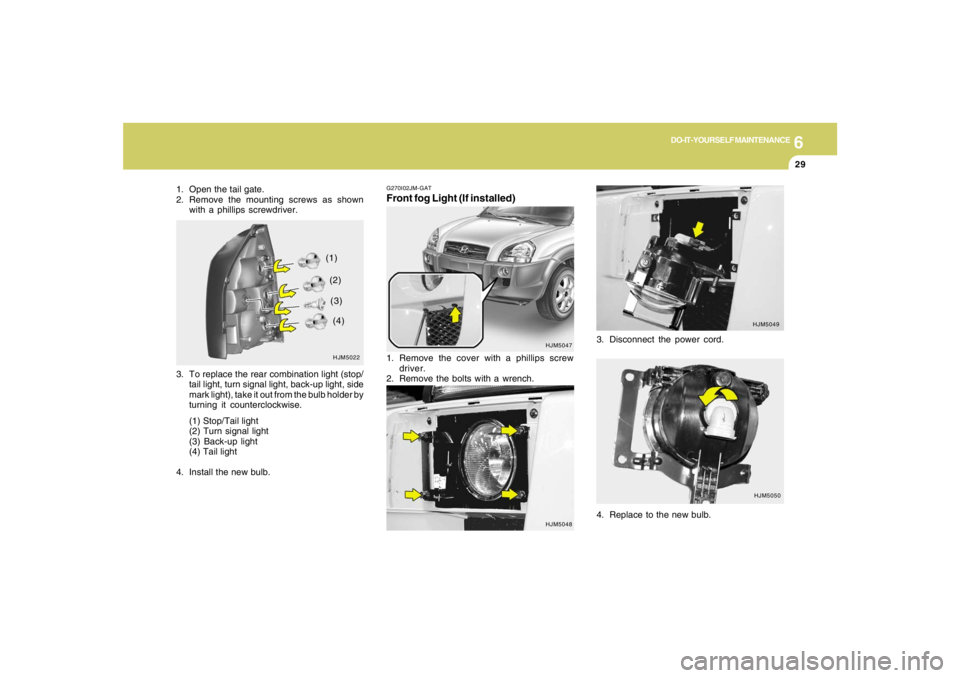

G270I02JM-GATFront fog Light (If installed)
HJM5047
1. Remove the cover with a phillips screw
driver.
2. Remove the bolts with a wrench.3. Disconnect the power cord.
HJM5049
HJM5050
4. Replace to the new bulb.
HJM5048
1. Open the tail gate.
2. Remove the mounting screws as shown
with a phillips screwdriver.
3. To replace the rear combination light (stop/
tail light, turn signal light, back-up light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Turn signal light
(3) Back-up light
(4) Tail light
4. Install the new bulb.

6
DO-IT-YOURSELF MAINTENANCE
30

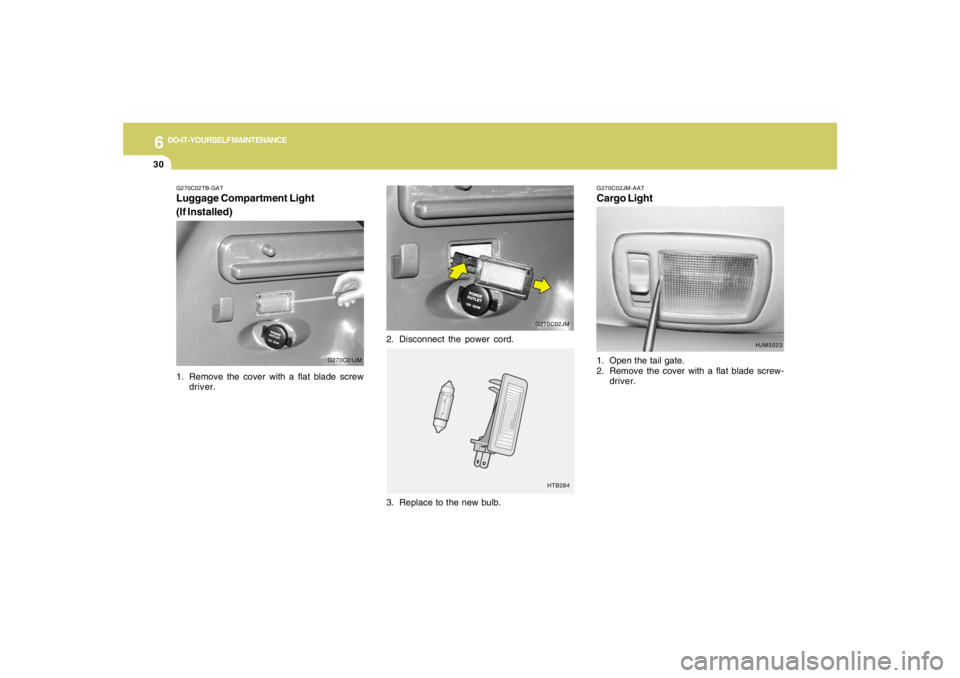

G270C02JM-AATCargo Light1. Open the tail gate.
2. Remove the cover with a flat blade screw-
driver.
3. Replace to the new bulb.
HTB284
G270C02TB-GATLuggage Compartment Light
(If Installed)
G270C01JM
1. Remove the cover with a flat blade screw
driver.2. Disconnect the power cord.
G270C02JM
HJM5023

6
DO-IT-YOURSELF MAINTENANCE
31
G270E01JM G270E01O-AAT

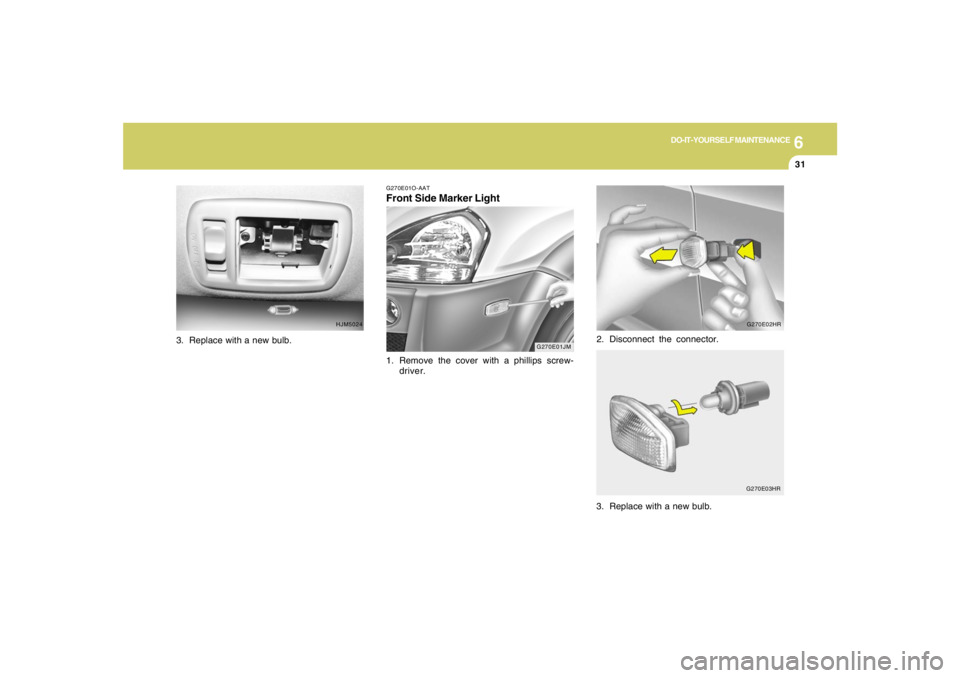

Front Side Marker Light1. Remove the cover with a phillips screw-
driver.2. Disconnect the connector.
3. Replace with a new bulb.
HJM5024G270E02HR
G270E03HR
3. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
32

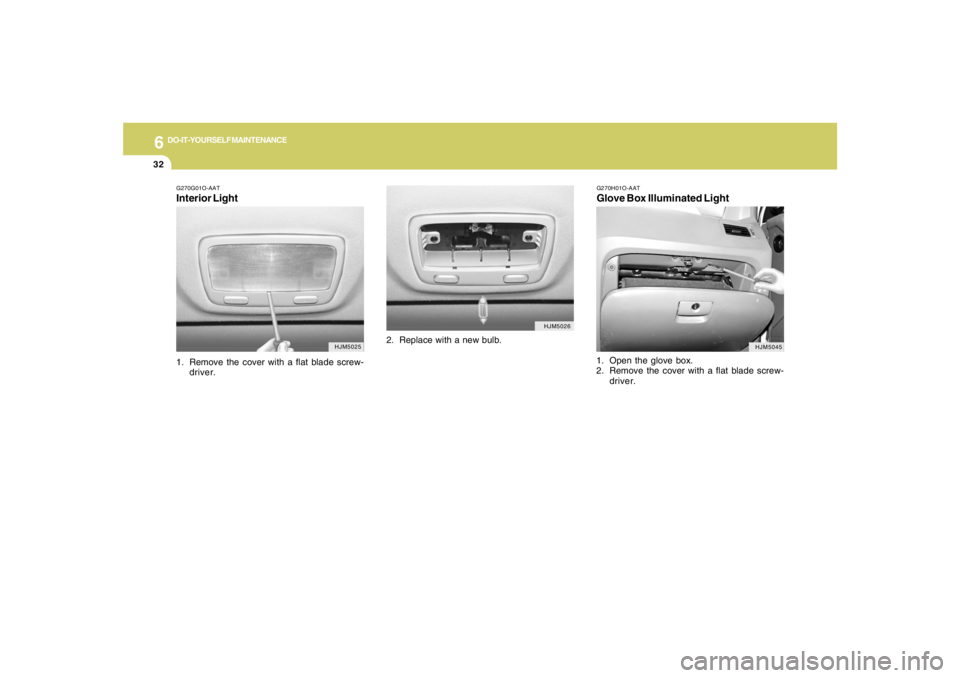

G270G01O-AATInterior Light1. Remove the cover with a flat blade screw-
driver.
G270H01O-AATGlove Box Illuminated Light1. Open the glove box.
2. Remove the cover with a flat blade screw-
driver.
HJM5025HJM5026
HJM5045
2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
33

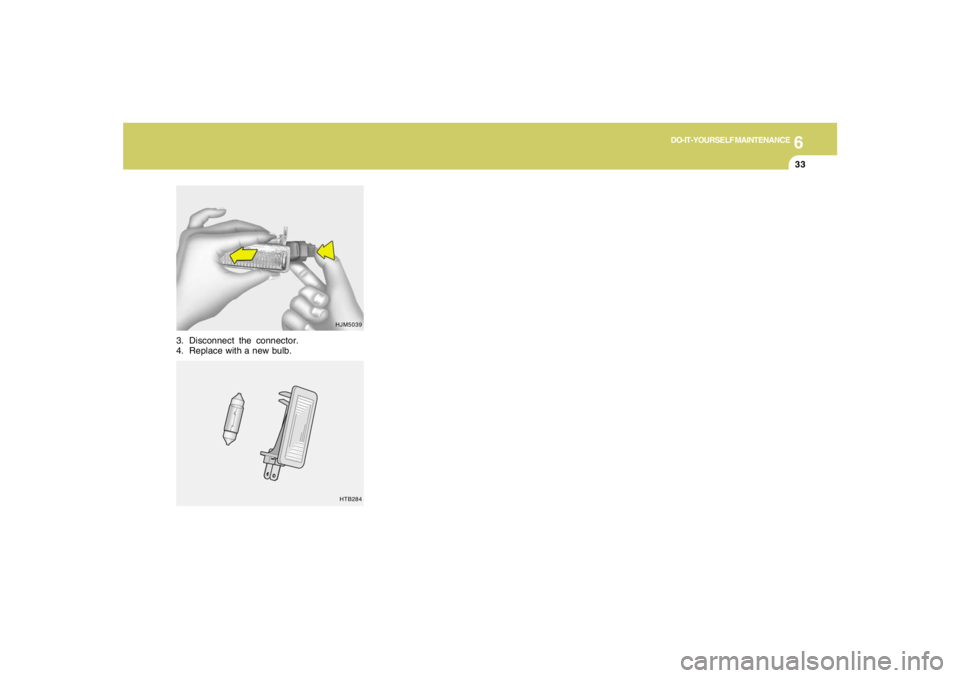

3. Disconnect the connector.
4. Replace with a new bulb.
HJM5039
HTB284

6
DO-IT-YOURSELF MAINTENANCE
34

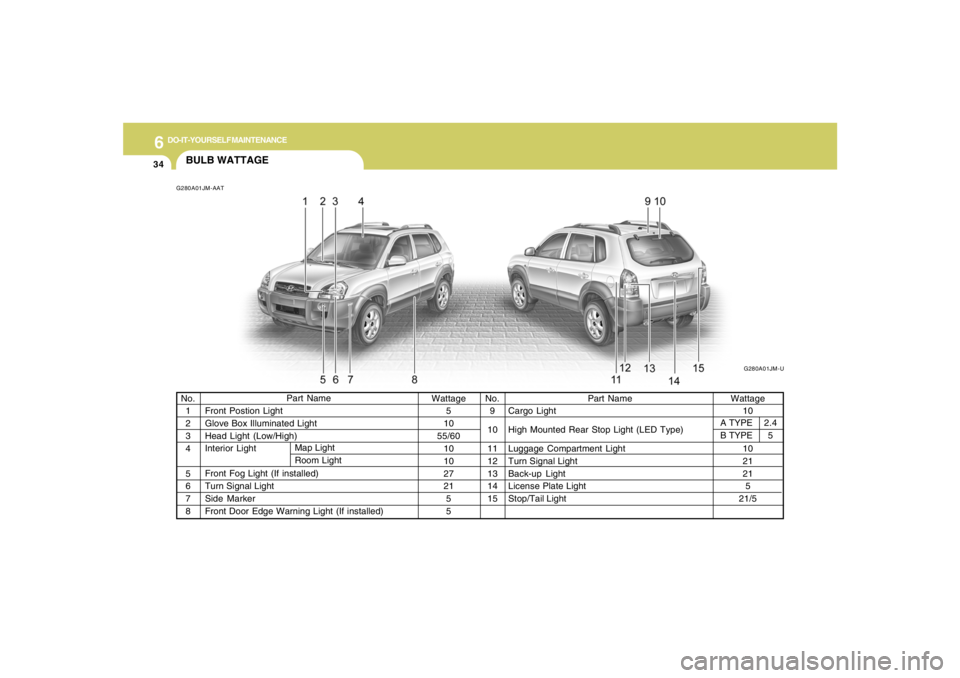

BULB WATTAGEG280A01JM-AAT
Part Name
Front Postion Light
Glove Box Illuminated Light
Head Light (Low/High)
Interior Light
Front Fog Light (If installed)
Turn Signal Light
Side Marker
Front Door Edge Warning Light (If installed) No.
1
2
3
4
5
6
7
8Wattage
5
10
55/60
10
10
27
21
5
5Wattage
10
10
21
21
5
21/5 No.
9
10
11
12
13
14
15
Part Name
Cargo Light
High Mounted Rear Stop Light (LED Type)
Luggage Compartment Light
Turn Signal Light
Back-up Light
License Plate Light
Stop/Tail Light Map Light
Room Light
A TYPE
B TYPE2.4
5
G280A01JM-U
