1FEATURES OF YOUR HYUNDAI62
B360A01O-A

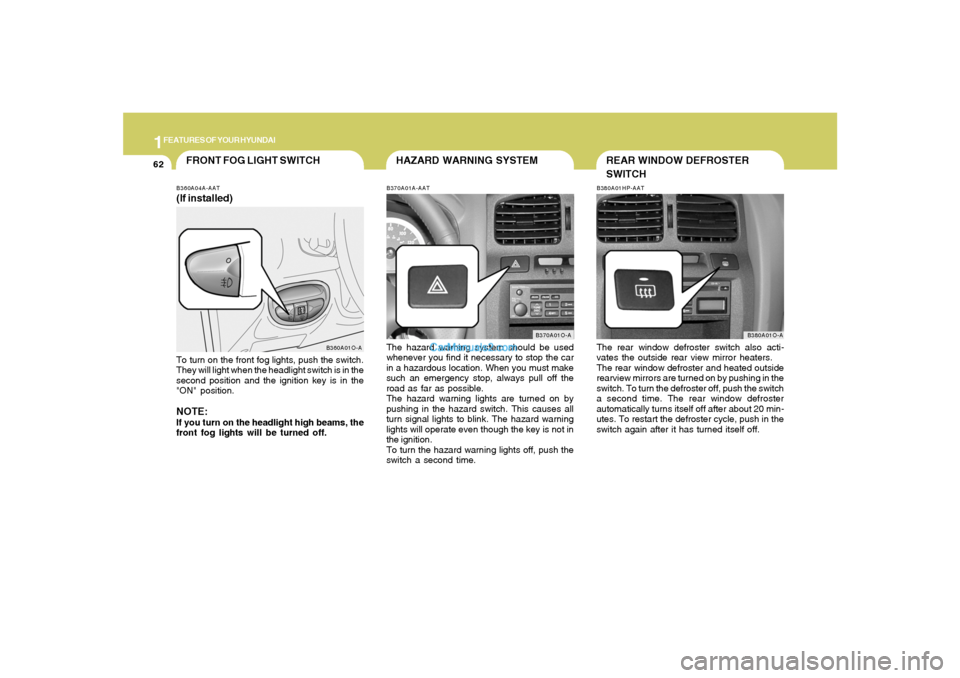

HAZARD WARNING SYSTEM
FRONT FOG LIGHT SWITCH
B370A01A-AATThe hazard warning system should be used
whenever you find it necessary to stop the car
in a hazardous location. When you must make
such an emergency stop, always pull off the
road as far as possible.
The hazard warning lights are turned on by
pushing in the hazard switch. This causes all
turn signal lights to blink. The hazard warning
lights will operate even though the key is not in
the ignition.
To turn the hazard warning lights off, push the
switch a second time.
B370A01O-A B360A04A-AAT
(If installed)To turn on the front fog lights, push the switch.
They will light when the headlight switch is in the
second position and the ignition key is in the
"ON" position.NOTE:If you turn on the headlight high beams, the
front fog lights will be turned off.
B380A01HP-AATThe rear window defroster switch also acti-
vates the outside rear view mirror heaters.
The rear window defroster and heated outside
rearview mirrors are turned on by pushing in the
switch. To turn the defroster off, push the switch
a second time. The rear window defroster
automatically turns itself off after about 20 min-
utes. To restart the defroster cycle, push in the
switch again after it has turned itself off.
B380A01O-A
REAR WINDOW DEFROSTER
SWITCH

1
FEATURES OF YOUR HYUNDAI
63
DIGITAL CLOCK
NOTE:
The ignition must be in the "ON" position
for the rear window defroster to operate.
B400A01A-AATThere are three control buttons for the digital
clock. Their functions are:
HOUR - Push "H" to advance the hour indi-
cated.
MIN - Push "M" to advance the minute indicated.
RESET - Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the correct time.
When this is done:
Pressing "R" between 10 : 30 and 11 : 29
changes the readout to 11 : 00.
Pressing "R" between 11 : 30 and 12 : 29
changes the readout to 12 : 00.
B400A01O-A
CAUTION:
Do not clean the inner side of the rear
window glass with an abrasive type of glass
cleaner or use a scraper to remove foreign
deposits from the inner surface of the glass
as this may cause damage to the defroster
elements.
!
ELECTRIC AZIMUTH COMPASSB990C01O-AAT(With sunroof) (If installed)It displays 8 azimuth according to the vehicle’s
driving direction and the angle of one graduation
is 45°.
The indication is displayed only when the ve-
hicle is in motion.
Heading Display
E : East, W: West,
S : South, N : North
ex) NW : North WestNOTE:If new vehicle is first driven or if the battery
has been disconnected, correct the azi-
muth indicator before driving.
B990C01O

1FEATURES OF YOUR HYUNDAI64
Correcting Azimuth IndicatorIt is needed to correct the error between a
current azimuth to terrestrial magnetism sen-
sor and the displayed azimuth in the vehicle
position.How to correct azimuth indicator1. If you push and hold the "M (MODE)" switch
for less than 4.5 seconds, the azimuth indi-
cator will start blinking with the vehicle's
present direction.
2. Slowly rotate the vehicle one turn(360 de-
gree) within 128 seconds.
The rotation could be made at any
direction(left or right) in an open space.3. When the rotation is finished, the azimuth
compass indicator will stop blinking and the
error correction is completed.
If the indicator continues to blink, rotate the
vehicle a bit more until the blinking stops.
The compass heading will appear after 3
seconds when the correcting error is com-
pleted.
NOTE:Rotate the vehicle one turn (90 degree) as
shown in the drawing if the vehicle has no
place to rotate.
The azimuth compass indicator correc-
tion will be cancelled:1. If you press "M (MODE)" switch for more
than 0.5 second.
2. When the vehicle is not rotated within 128
seconds after the blinking of the indicator.NOTE:The azimuth may display abnormally in
specific places (tunnel, parking lot in build-
ing, underground parking lot, near trans-
former substation, etc.). It is normal and the
azimuth is displayed normally when escap-
ing above mentioned places.How to correct terrestrial deviation.1. Press "M (MODE)" switch for more than 4.5
seconds, then the present terrestrial devia-
tion angle value will be displayed.
2. Press " (UP)" or " (DOWN)" switch for
less than 0.5 second to correct the terrestrial
deviation angle within 30 seconds.
HSM2185HSM2186

1
FEATURES OF YOUR HYUNDAI
65
For the correct terrestrial deviation angle
value for your location, refer to the contour
line map included.
If your place is located in between the terres-
trial deviation contour line, you can apply any
value (up or down value) for your location in
the contour line map.
The initial deviation angle is set to 5°W.
Terrestrial Correction Range: West 30° ~
East 30°.
3. To finish the correction, press "M (MODE)"
switch for more than 1 second.
NOTE:The terrestrial deviation setting will be re-
membered even if the battery has been
disconnected.The terrestrial deviation angle correc-
tion will be cancelled:1. If you press "M (MODE)" switch for more
than 0.5 second.
2. If you don't correct the terrestrial deviation
angle within 30 seconds.

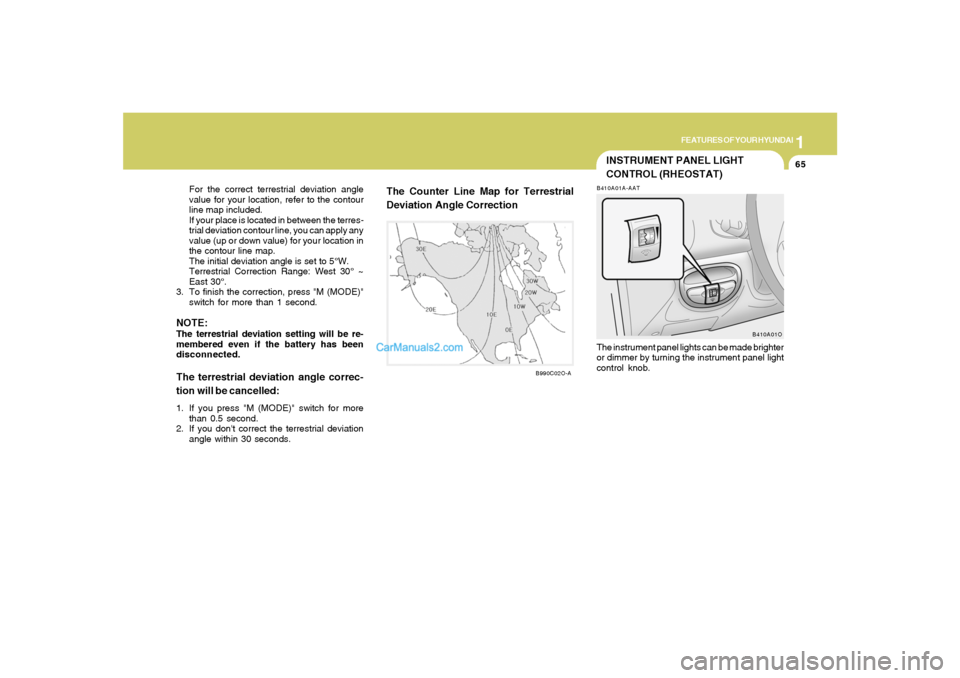

The Counter Line Map for Terrestrial
Deviation Angle Correction
INSTRUMENT PANEL LIGHT
CONTROL (RHEOSTAT)B410A01A-AATThe instrument panel lights can be made brighter
or dimmer by turning the instrument panel light
control knob.
B410A01O
B990C02O-A

1FEATURES OF YOUR HYUNDAI66

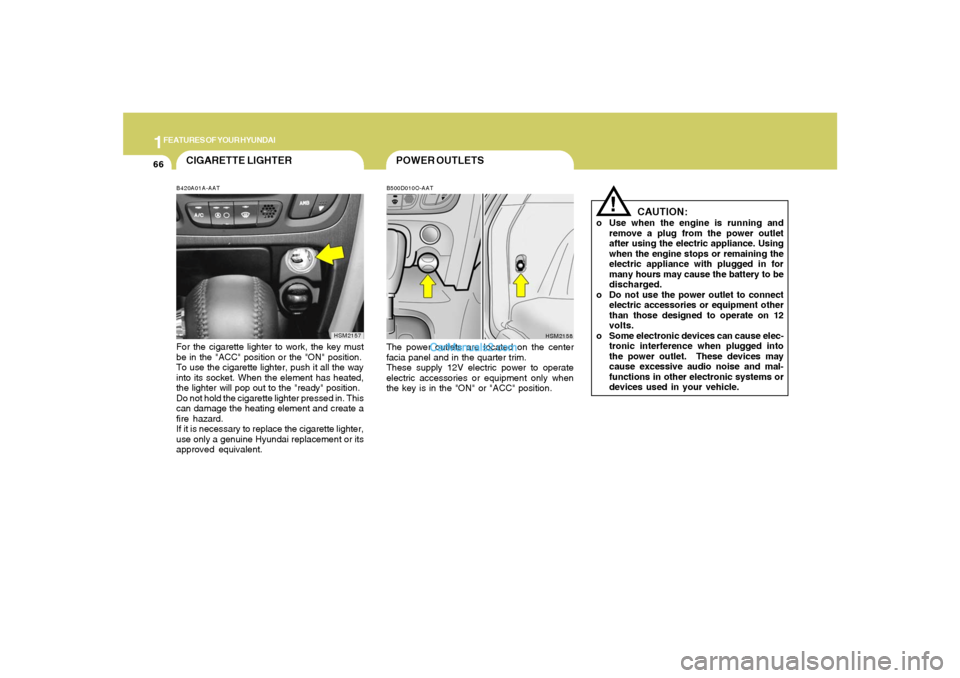

POWER OUTLETSB500D010O-AATThe power outlets are located on the center
facia panel and in the quarter trim.
These supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.
!
CAUTION:
o Use when the engine is running and
remove a plug from the power outlet
after using the electric appliance. Using
when the engine stops or remaining the
electric appliance with plugged in for
many hours may cause the battery to be
discharged.
o Do not use the power outlet to connect
electric accessories or equipment other
than those designed to operate on 12
volts.
o Some electronic devices can cause elec-
tronic interference when plugged into
the power outlet. These devices may
cause excessive audio noise and mal-
functions in other electronic systems or
devices used in your vehicle.
HSM2158
CIGARETTE LIGHTERB420A01A-AATFor the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
HSM2157

1
FEATURES OF YOUR HYUNDAI
67

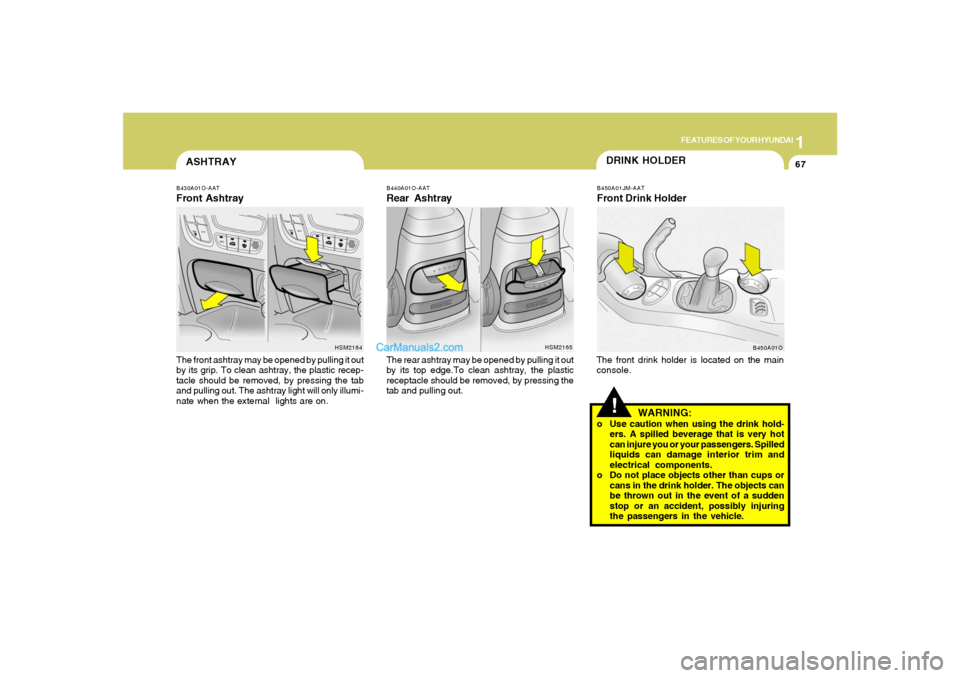

B430A01O-AATFront AshtrayThe front ashtray may be opened by pulling it out
by its grip. To clean ashtray, the plastic recep-
tacle should be removed, by pressing the tab
and pulling out. The ashtray light will only illumi-
nate when the external lights are on.
HSM2164
B440A01O-AATRear AshtrayThe rear ashtray may be opened by pulling it out
by its top edge.To clean ashtray, the plastic
receptacle should be removed, by pressing the
tab and pulling out.
HSM2165
ASHTRAY
DRINK HOLDER!
B450A01JM-AATFront Drink HolderThe front drink holder is located on the main
console.
WARNING:
o Use caution when using the drink hold-
ers. A spilled beverage that is very hot
can injure you or your passengers. Spilled
liquids can damage interior trim and
electrical components.
o Do not place objects other than cups or
cans in the drink holder. The objects can
be thrown out in the event of a sudden
stop or an accident, possibly injuring
the passengers in the vehicle.
B450A01O

1FEATURES OF YOUR HYUNDAI68
!
B450B02O-AATRear Drink HolderThe rear drink holder is located on the rear main
console and may be used for holding cups. The
rear drink holder can be used by pushing and
pulling it at its top edge.
CAUTION:
Place the drink holder in its closed position
when not in use.
B450B01O
!
!
WARNING:
Do not place objects other than cups or
cans in the drink holder. This objects can be
thrown out in the event of a sudden stop or
an accident, possibly injuring the passen-
gers in the vehicle.B450B01JM-AATRear Drink HolderThe rear drink holders is located in the rear seat
arm rest. The rear drink holder can be used by
pulling the rear seat armrest.
HSM2049
WARNING:
Do not place objects other than cups or
cans in the drink holder. The objects can be
thrown out in the event of a sudden stop or
an accident, possibly injuring the passen-
gers in the vehicle.

1
FEATURES OF YOUR HYUNDAI
69
!!
SUNROOF!

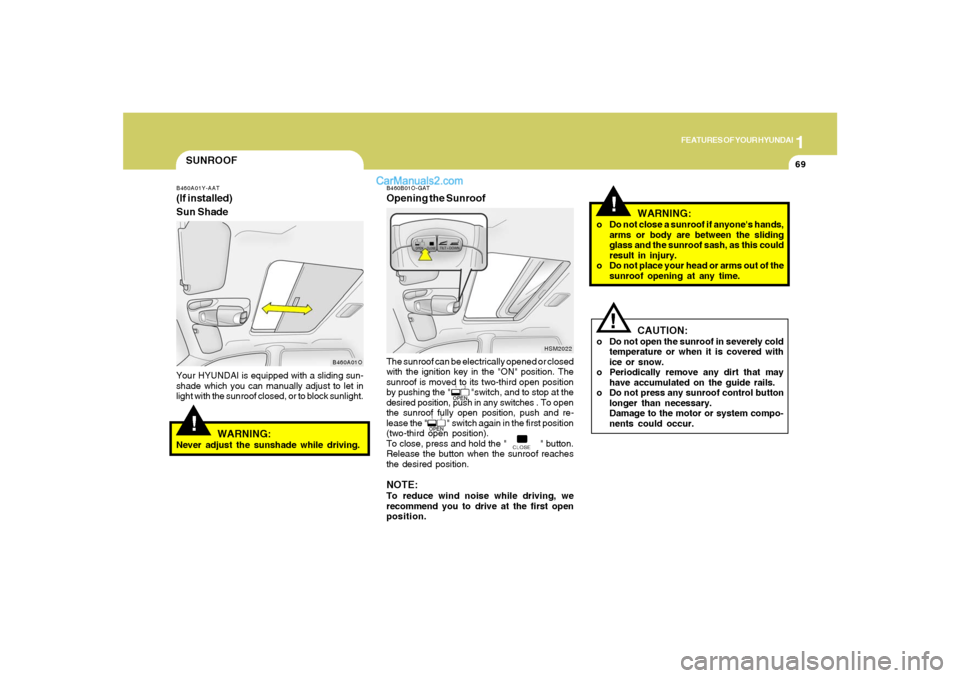

B460A01Y-AAT(If installed)
Sun ShadeYour HYUNDAI is equipped with a sliding sun-
shade which you can manually adjust to let in
light with the sunroof closed, or to block sunlight.
WARNING:
Never adjust the sunshade while driving.
B460A01OB460B01O-GAT
Opening the SunroofThe sunroof can be electrically opened or closed
with the ignition key in the "ON" position. The
sunroof is moved to its two-third open position
by pushing the " "switch, and to stop at the
desired position, push in any switches . To open
the sunroof fully open position, push and re-
lease the " " switch again in the first position
(two-third open position).
To close, press and hold the " " button.
Release the button when the sunroof reaches
the desired position.NOTE:To reduce wind noise while driving, we
recommend you to drive at the first open
position.
HSM2022
WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in injury.
o Do not place your head or arms out of the
sunroof opening at any time.
CAUTION:
o Do not open the sunroof in severely cold
temperature or when it is covered with
ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
o Do not press any sunroof control button
longer than necessary.
Damage to the motor or system compo-
nents could occur.
