2005 Hyundai Azera wiper fluid

1
FEATURES OF YOUR HYUNDAI
81
o In areas where water freezes in
winter, use windshield washer antifreeze.
Mist Wiper Operation
HTG2104-1
If a single wipe is desired in mist, pushthe windshield wiper and washer con-trol lever upwards.B350B01O-GAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steer-ing wheel. When the washer lever is operated, the wipers automatically make two passes across the wind-shield. The washer continues to oper- ate until the lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are notfrozen to the glass prior to oper-ating the wipers. HTG2103-1
!WARNING:
When the ignition switch is on and the windshield wiper switch is placed in the "AUTO" mode, please usecaution in the following cases to avoid any hand injury: As the wiper system may automati-cally activate, the fingers or hand might be caught in the wiper.
o Do not touch the upper end of the windshield glass facing the rain sensor.
o Do not wipe the upper end of the windshield glass with a cloth.
o Do not put pressure on the wind- shield glass. HTG2111
Rain Sensor

1FEATURES OF YOUR HYUNDAI
82
B350C01O-AAT Adjustable Intermittent Wiper Operation To use the intermittent wiper feature, place the wiper switch in the "INT"position. With the switch in this posi- tion, the interval between wipes can be varied from approximately 1 to 18 sec-onds by turning the interval adjuster barrel. This is also varied automati- cally depending on your road speed. HTG2102
HEADLIGHT WASHER
B345G01TG-GAT (If Installed)
HTG2103-1
The headlight washer is operated in connection with the windshield washer
lever. To operate the headlight washer, pull the wiper/washer lever toward thesteering wheel for about 1 second. It will operate when the headlight switch is in the second position and the key is in the"ON" position. The washer fluid will be sprayed on to the headlights for about 1 second. NOTE: Check the headlight washers peri- odically to confirm that the washerfluid is being sprayed properly onto the headlight lenses.HEADLIGHT LEVELING DE- VICE SYSTEM
B340G01Y-GAT (Manual Type) (If Installed)
To adjust the headlight beam level ac- cording to the number of the passengers and the loading weight in the luggagearea, turn the beam leveling switch.
B340G01TG-1
B340G01TG-1-R
Left-Hand Drive type
Right-Hand Drive type

6
DO-IT-YOURSELF MAINTENANCE
3GENERAL CHECKS
G020A01NF-GAT
Engine Compartment
The following should be checked regu- larly:
o Engine oil level and condition
o Transaxle fluid level and condition
o Brake fluid level
o Engine coolant level
o Windshield washer fluid level
o Accessory drive belt condition
o Engine coolant hose condition
o Fluid leaks (on or below compo- nents)
o Power steering fluid level
o Battery condition
o Air filter condition
o Immediate repairing when engine trembling occurs
o Limit to restart more than 3 times when engine cannot start o Defroster, heating system operation
(and air conditioning, If Installed)
o Steering operation and condition
o Mirror condition and operation
o Turn signal operation
o Accelerator pedal operation
o Brake operation, including parking brake
o Automatic transaxle operation, in- cluding "Park" mechanism opera- tion
o Seat control condition and opera- tion
o Seat belt condition and operation
o Sun visor operation If you notice anything that does not operate correctly or appears to befunctioning incorrectly, inspect it care- fully and seek assistance from your Hyundai dealer if service is needed.
G020B01A-AAT
Vehicle Exterior
The following should be checked
monthly:
o Overall appearance and condition
o Wheel condition and wheel nut
torque
o Exhaust system condition
o Light condition and operation
o Windshield glass condition
o Wiper blade condition
o Paint condition and body corrosion
o Fluid leaks
o Door and hood lock condition
o Tire pressure and condition (including spare tire)
G020C01TG-AAT
Vehicle Interior
The following should be checked each
time when the vehicle is driven:
o Lights operation
o Windshield wiper operation
o Horn operation

6
DO-IT-YOURSELF MAINTENANCE
13

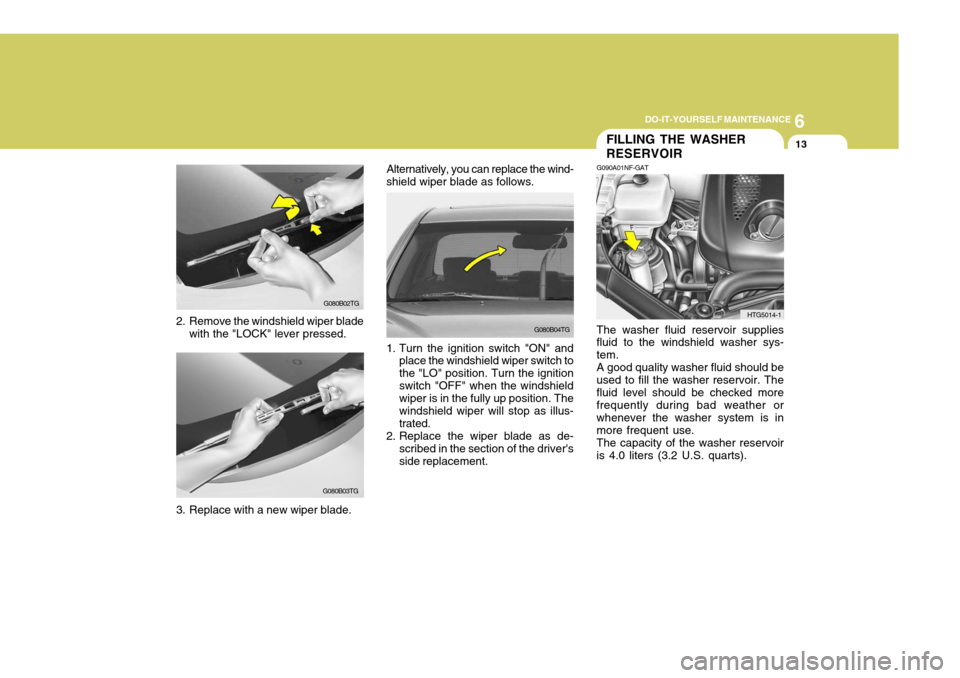

G080B04TG
2. Remove the windshield wiper blade
with the "LOCK" lever pressed.
G080B02TG
G080B03TG
FILLING THE WASHER RESERVOIR
G090A01NF-GAT
HTG5014-1
The washer fluid reservoir supplies fluid to the windshield washer sys- tem.A good quality washer fluid should beused to fill the washer reservoir. Thefluid level should be checked more frequently during bad weather or whenever the washer system is inmore frequent use.The capacity of the washer reservoiris 4.0 liters (3.2 U.S. quarts).
3. Replace with a new wiper blade. Alternatively, you can replace the wind-
shield wiper blade as follows.
1. Turn the ignition switch "ON" and place the windshield wiper switch to the "LO" position. Turn the ignitionswitch "OFF" when the windshield wiper is in the fully up position. The windshield wiper will stop as illus-trated.
2. Replace the wiper blade as de-
scribed in the section of the driver'sside replacement.

10INDEX
6
TransaxleAutoma tic ................................................................. 2-5
Automatic transaxle fluid checking ......................... 6-14
Trip Computer ............................................................ 1-73
Trunk Lid ................................................................. 1-100
Trunk lid control button ......................................... 1-101
V Vehicle Identification Number (VIN) ............................. 8-2
Vehicle Specifica tions ................................................. 9-1
WWarning and Indicator Lights ..................................... 1-62
Window Defroster Switch .... .......................................1-84
Windows
Power ..................................................................... 1-17
Windshield Wiper and Washer ...................................1-80
Windshield Wiper Blades .... .......................................6-11
