2005 HONDA PILOT window

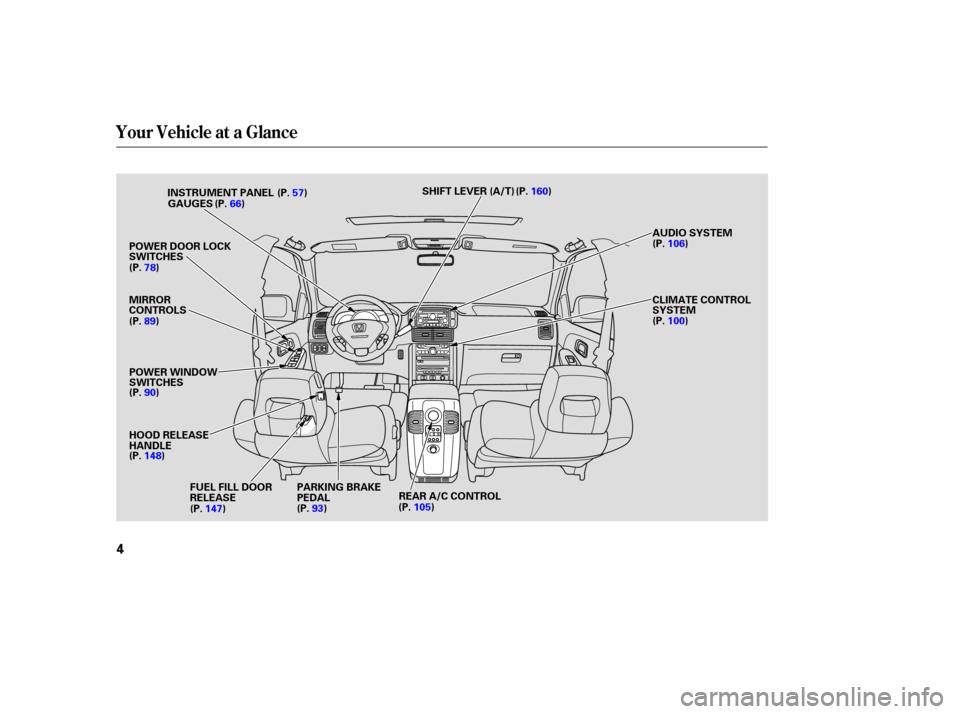

Your Vehicle at a Glance
4
GAUGES
POWER DOOR LOCK
SWITCHES
MIRROR
CONTROLS
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLE AUDIO SYSTEM
CLIMATE CONTROL
SYSTEM
FUEL FILL DOOR
RELEASE PARKING BRAKE
PEDAL
REAR A/C CONTROL
INSTRUMENT PANEL
SHIFT LEVER (A/T)
(P. 57)
(P. 66)
(P. 78)
(P. 89)
(P. 90)
(P. 148)
(P.147) (P.
93) (P.
105) (P.
100 )
(P.
106 )
(P.
160)

Your Vehicle at a Glance
Your Vehicle at a Glance
5
HEADLIGHTS/TURN SIGNALS
LIGHT CONTROL
SWITCH
REMOTE AUDIO
CONTROLS STEERING WHEEL
ADJUSTMENT CRUISE CONTROL
WINDSHIELD WIPERS/
WASHERS REAR WINDOW
DEFOGGER VTM-4
LOCK
HORN
CRUISE
CONTROL
MASTER
SWITCH HAZARD WARNING
BUTTON
VSA OFF
SWITCH PASSENGER AIRBAG
OFF INDICATOR
(P.
71) (P.73)
(P.164 )
(P. 31)
(P. 73)
(P. 70)
(P.
138)
(P. 74)
(P. 122)
(P.
138)
(P.
172)
(P.
97)
(P.
92)
MOONROOF BUTTONS

Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
With the tailgate open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system/climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
53
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .56
............................
Instrument Panel .57
.............................................
Gauges .66
...............
Odometer/Trip Meter . 66
..................................
Fuel Gauge .66
...................
Temperature Gauge . 67
....
Outside Temperature Gauge . 67
..........
Check Fuel Cap Indicator . 68
Controls Near the Steering ...........................................
Wheel .69
.
Windshield Wipers and Washers . 70
...........
Turn Signal and Headlights . 71
................
Daytime Running Lights . 72
........
Instrument Panel Brightness . 72
.................
Hazard Warning Button . 73
.................
Rear Window Def ogger . 73
..........
Steering Wheel Adjustment . 74
...............................
Keys and Locks .75
........................
Immobilizer System .75
................................
Ignition Switch .77
......................................
Door Locks .78
......................
Power Door Locks .78
..............
Childproof Door Locks . 79
.......................
Remote Transmitter .79
..................................
Seats Heaters .82
.................................................
Seats .83 ......
Detachable Seat Belt Anchors . 88
.............................................
Mirrors .88
..............................
Power Windows .90
.........................................
Moonroof .92
.................................
Parking Brake .93
...........
Interior Convenience Items . 94
.......................
Beverage Holders .95
..........
Accessory Power Sockets . 95
...............
Console Compartment . 95
......................
Sunglasses Holder .96
....................................
Glove Box .96
......................................
Sun Visor .96
...............................................
Lights .97
Instruments and Controls
Inst rument s and Cont rols
55

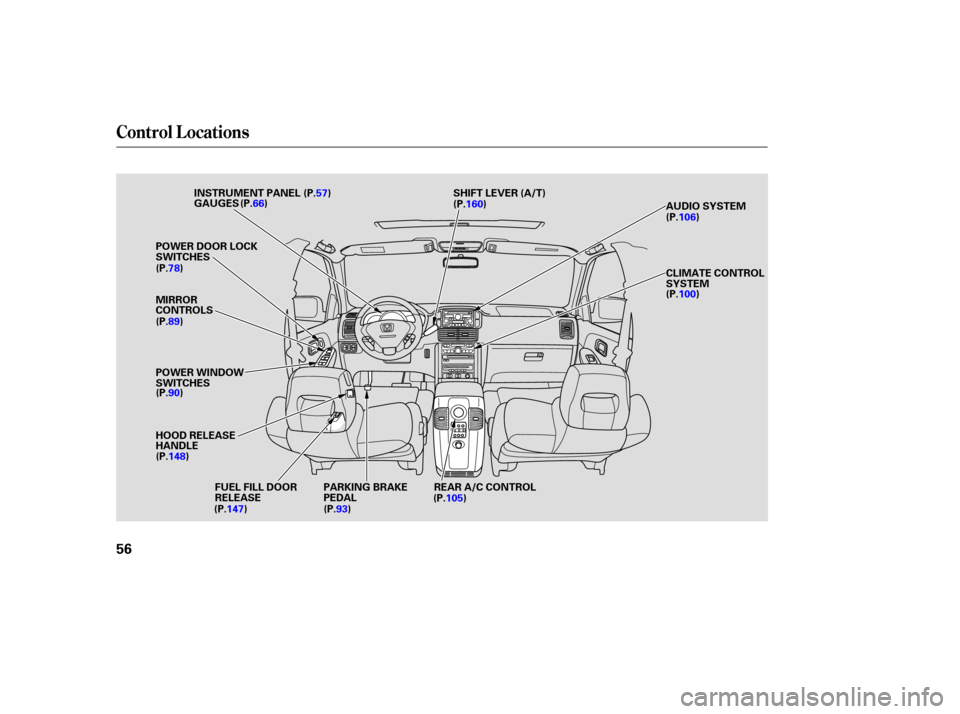

Control L ocations
56
POWER DOOR LOCK
SWITCHES
MIRROR
CONTROLS
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLEAUDIO SYSTEM
CLIMATE CONTROL
SYSTEM
FUEL FILL DOOR
RELEASE PARKING BRAKE
PEDAL REAR A/C CONTROL
INSTRUMENT PANEL
GAUGES
SHIFT LEVER (A/T)
(P.57)
(P.66)
(P.78)
(P.89)
(P.90)
(P.148) (P.147) (P.93) (P.105) (P.100) (P.106)
(P.160)

ÎTo use the horn, press the pad around the ‘‘H’’ logo.
Controls Near the Steering Wheel
Inst rument s and Cont rols
69
VTM-4LOCK
LIGHT CONTROL
SWITCH
CRUISE CONTROLHAZARD WARNING BUTTON
HEADLIGHTS/TURN SIGNALS
REAR WINDOW
DEFOGGER
CRUISE CONTROL
MASTER SWITCH
REMOTE AUDIO
CONTROLS WINDSHIELD WIPERS/
WASHERS
VSA OFF SWITCH
MOON ROOF
STEERING WHEEL
ADJUSTMENT HORN
PASSENGER AIRBAG
OFF INDICATOR
(P.92)
(P.97) (P.172)
(P.138)
(P.122) (P.74) (P.138) (P.70)(P.
73)
(P.
31)
(P.164)
(P.73)
(P.71)

µ
µ
µ
µ µµ
µ
µ µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield Washers
Push the right lever up or down to
select a position. The wipers run at high
speed until you release the lever. Rotate the switch clockwise to
turn the rear window wiper ON.
Hold past ON to turn the window
wiper on and to spray the window
washer.
OFF
Rotate the switch
counterclockwise to spray the
window washer without activating
the wiper.
The wipers run at low speed. The wipers are not activated.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wipers will
change to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h).
The wipers run at high speed. Pull the
wiper control lever toward you and
hold it. The washers spray until
you release the lever. The wipers
run at low speed, then complete
one more sweep af ter you release
the lever.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4. Rear Window Wiper and Washer
MIST LO OFF
INT
HI
Windshield Washer
Windshield Wipers and Washers
70

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The def ogger wires on the inside of
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator
above the button comes on to show
the def ogger is on. If you do not turn
it of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Pushtheredbuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled. Hazard Warning Button
Hazard Warning Button, Rear Window Def ogger
Inst rument s and Cont rols
73
LX model
HAZARD WARNING BUTTON EX and EX-L models
