2005 HONDA ODYSSEY Owners Manual

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
384
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

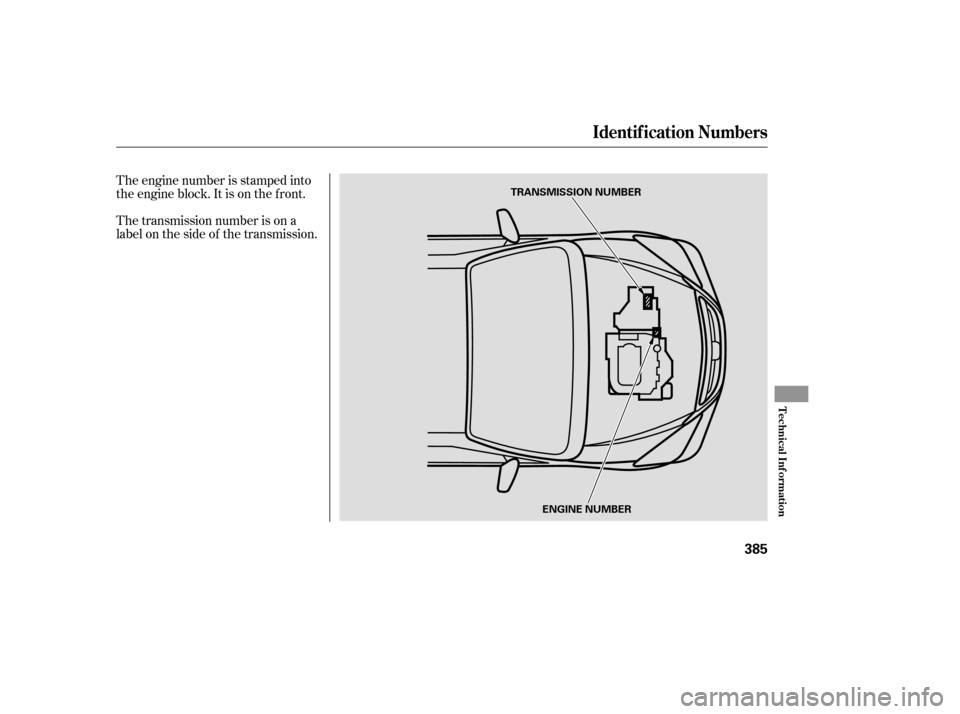

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on the side of the transmission.
Identif ication Numbers
T echnical Inf ormation
385
TRANSMISSION NUMBERENGINE NUMBER

µµ
Î
Î
Î
ÎÎ
Î Î
Î
Specif ications
386
Dimensions
WeightsCapacities Air Conditioning
Engine 201.0 in (5,106 mm)
77.1 in (1,958 mm)
66.8 in (1,697 mm) 66.7 in (1,694 mm)
118.1 in (3,000 mm) 68.8 in (1,748 mm)
70.0 in (1,778 mm)
8,210 lbs (9,815 kg)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
See the tire information label atta-
ched to the driver’s doorjamb.
Excluding the oil remaining in the engine. 0.16 US gal (0.6
)
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Windshield
washer
reservoir
4.8 US qt (4.5
)
2.6 US qt (2.5)
8.5 US qt (8.0
)
3.3 US qt (3.1)
5.3 US qt (5.0)
4.2 US qt (4.0
)
4.5 US qt (4.3
)
2.48 US gal (9.4
)
1.85 US gal (7.0)
Refrigerant type
Charge quantity
Lubricant type
32 34 oz (850 900 g)
ND-OIL8
HFC-134a (R-134a)
Water cooled 4-stroke
SOHC VTEC, 6-cylinder, gasoline engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
PKJ16DR-M11 IZFR5K-11
10.0 : 1
212 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm)
Front
Rear
1: LX
2 : EX, Touring
1:
2:Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
U.S. Vehicles
Canada Vehicles Approx.
21 US gal (80
)
NGK:
DENSO:
1
2 1
2

µ
Î
Î
Î
µ
µ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Î
Specif ications
T echnical Inf ormation
387
Alignment
Tires Fuses
Battery Lights 60 W (HB3)
12 V
12 V
21 W 51 W (HB4)
21 W
12 V 12 V
Toe-in
Camber
Caster 0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
0°30’
2°32’
Size
Pressure 235/65R16 103T
235-710R460A 104T T135/80D17 103M
33 psi (230 kPa , 2.3 kgf/cm
)
12 V 35 W
60 psi (420 kPa , 4.2 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm)
35 psi (240 kPa , 2.4 kgf/cm)
12 V 12 V
12 V 12 V 12 V
21 W 21/5 W 21 W
12 V
12 V
12 V 2 W 12 V
12 V 1.5 CP
3CP
5W
16 W
5W
5W Interior
Under-hood
See page
379or the fuse label
attached to the dashboard.
See page 380or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 378or the fuse box
cover.
Capacity 12 V 12 V72 AH/20 HR
60 AH/5 HR
12 V
12 V
8W
4W(2CP)
Headlights
Front turn signal
Front fog lights
Front turn signal lights
Front parking/side marker
lights
Rear turn signal lights
Stop/Taillights
Taillights
Back-up lights
License plate light
High-mount brake light
Individual map lights
Vanity mirror lights
Cargo area light
Door courtesy light
Front
Rear
Front
Rear
Front
U.S. Touring model Front/Rear
Spare
Front
Rear
Spare
(Amber)
(Amber) Driver’s side
Passenger’s side
1:
2:
3: LX, EX, and Canadian Touring models
EX with Leather and Canadian Touring models
Front
Rear High
Low
1
2
3

µ
The tires on your car meet all U.S.
Federal Saf ety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT T ire Quality Grading (U.S. Vehicles)
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear
Traction AA, A, B, C
388

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
DOT T ire Quality Grading (U.S. Vehicles)
Temperature A,B,C
T echnical Inf ormation
389

µ
µ
µ
µ
µ
µµ µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN. Date of manuf acture.
Tire type code. Manuf acturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation. Max Press The maximum air
pressurethetirecan
hold.
The maximum load the
tire can carry at
maximum air pressure.
Max Load
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
R 16
DOT
B97R
FW6X 2202
235
65 103
T
Tire Labeling
Tire Size
T ire Ident if icat ion NumberMaximum T ire Pressure
Maximum T ire L oad
390
235/65R16 103T DOT B97R FW6X 2202

The PAX system tires have dif f erent
markings f rom conventional tire
markings. Following is an example of
PAX system tire size with an
explanation of what each component
means.Tire width in millimeters.
Outside diameter of the tire in
millimeters.
Tire construction code (R
indicates radial)
Nominal diameter at the rim
seat in millimeters.
Symmetric Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
A
235
710
R
460 104
T
Tire Labeling (PAX System Tires)
PA X System T ire L abeling
T echnical Inf ormation
391
235-710R460A 104T
