2005 HONDA ODYSSEY light

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition. This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .369
Temperature Gauge
Fuel Gauge
Gauges
Inst rument s and Cont rols
71
SPEEDOMETER
FUEL GAUGE
SPEEDOMETER
ODOMETER/OUTSIDE
TEMPERATURE TEMPERATURE
GAUGE
FUEL GAUGE
MULTI-INFORMATION
DISPLAY TEMPERATURE
GAUGE
TACHOMETER
TACHOMETER TRIP METER
LX and EX models
Touring model TRIP METER
SELECT/RESET
KNOB
TRIP METER SELECT/
RESET KNOB
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

Check DRL System
If there is a problem with the
Daytime Running Light (DRL)
System, you will see ‘‘CHECK DRL
SYSTEM’’ in the multi-inf ormation
display. If you see this message,
have your vehicle checked by a
dealer.For more inf ormation, see page .
Your vehicle is equipped with the
Michelin PAX system. The PAX
system uses the multi-inf ormation
display to show you one of three
messages while you are driving with
a f lat tire. 356
Canadian model only
U.S. Touring model only
PA X Warning Messages
Multi-Inf ormation Display
88

You can customize some of the
vehicle control settings to your
pref erence. Here are the settings
you can customize.METER SET UP
POSITION SET UP
LIGHTING SET UP
DOOR/WINDOW SET UP
WIPER SET UP
While the multi-information display
is showing ‘‘CHANGE SETTING,’’
press the SEL/RESET button. The
display will change to the initial
display of CUSTOMIZE GROUP.
Then, each time you press the INFO
button, the display changes as shown
in the next column.
Press the INFO button until you see
the setup you want to customize, and
press the SEL/RESET button to
enter your selection. Change Setting
Multi-Inf ormation Display
92
Press SEL/RESET button

While the multi-information display
shows ‘‘METER SETUP,’’ press the
SEL/RESET button on the steering
wheel. The display changes to the
‘‘CUSTOMIZE MENU.’’ Press the
INFO button twice, and you will see
‘‘ADJ. OUTSIDE TEMP. DISPLAY’’
as shown above.Press the SEL/RESET button. The
display changes as shown above.
The highlighted number is the
current adjustment above or below
the outside temperature. Press the
INFO button repeatedly until the
appropriate number appears, and
press the SEL/RESET button to
enter your selection.
If you sometimes f ind that the
temperature reading is always
several degrees below or above the
actual temperature, adjust it as
described on the f ollowing pages.
Out side T emperat ure Display
A djust ment
Multi-Inf ormation Display
96

While the multi-information display
shows ‘‘METER SETUP,’’ press the
SEL/RESET button on the steering
wheel. The display changes to the
‘‘CUSTOMIZE MENU.’’ Press the
INFO button repeatedly until you see
‘‘COMPASS ZONE SELECTION’’ in
the lower segment as shown above.Press the SEL/RESET button. The
display changes as shown above.
The highlighted ‘‘- -’’ display in the
lower segment is the zone number; it
changes f rom ‘‘1’’ thru ‘‘15’’ each
time you press the INFO button.
In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone set into the compass, do the
procedure on the f ollowing pages.
On models without Navigation System
Compass Zone Select ion
Multi-Inf ormation Display
100

There are two custom settings in the
Lighting Setup:The interior lights f ade out when you
close all doors and the tailgate. You
can change the time that the interior
lights f ade out.
While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. The display changes
to ‘‘INTERIOR LIGHT DIMMING
TIME’’ as shown above.Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘15 sec,’’ to ‘‘30 sec,’’
andthento‘‘60sec.’’
INTERIOR LIGHT
DIMMING TIME
HEADLIGHT AUTO OFF TIMER
While the ‘‘LIGHTING SETUP’’ is
displayed, press the SEL/RESET
buttononthesteeringwheel.The
display changes between
‘‘INTERIOR LIGHT DIMMING
TIME’’ and ‘‘HEADLIGHT AUTO
OFF TIMER.’’
CONT INUED
Lighting SetupInt erior L ight Dimming T ime
Multi-Inf ormation Display
Inst rument s and Cont rols
105

Press the INFO button repeatedly
until the desired time appears, then
press the SEL/RESET button to
enter your selection.

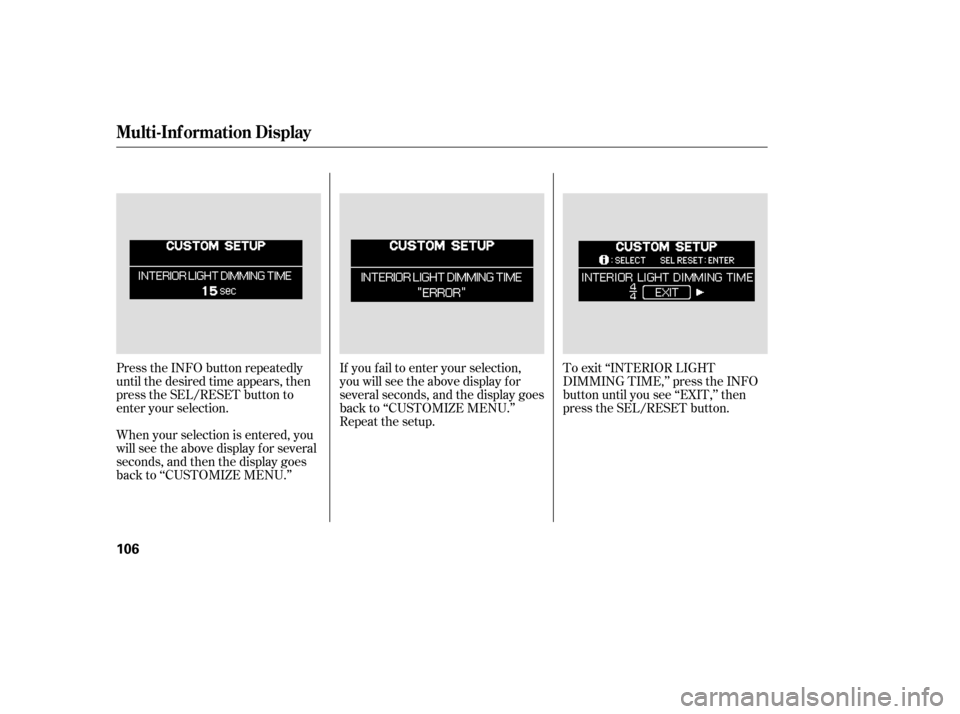

When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
To exit ‘‘INTERIOR LIGHT
DIMMING TIME,’’ press the INFO
button until you see ‘‘EXIT,’’ then
press the SEL/RESET button.
Multi-Inf ormation Display
106

While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. Then press the
INFO button to display
‘‘HEADLIGHT AUTO OFF TIMER’’
as shown above.Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘0 sec,’’ to ‘‘15 sec,’’ to
‘‘30 sec,’’ and then to ‘‘60 sec.’’Press the INFO button repeatedly
until the desired time appears, then
press the SEL/RESET button to
enter your selection.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
CONT INUED
Headlight A ut o Of f T imer
Multi-Inf ormation Display
Inst rument s and Cont rols
107
