2005 HONDA ODYSSEY interior lights

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60 ............................
Instrument Panel .61
..........
Instrument Panel Indicators . 63
.............................................
Gauges .71
.............
Multi-Inf ormation Display . 74
Controls Near the Steering .........................................
Wheel .120
Windshield Wipers and .....................................
Washers .121
Rear Window Wiper and .......................................
Washer .122
.........
Turn Signal and Headlights . 122
......
Instrument Panel Brightness . 125
...............
Hazard Warning Button . 126
...............
Rear Window Def ogger . 126
........
Steering Wheel Adjustment . 127
.............................
Keys and Locks .128
......................
Immobilizer System .129
..............................
Ignition Switch .130
.....................
Remote Transmitter .131
....................................
Door Locks .137
....................
Power Door Locks . 137
............
Childproof Door Locks . 138
......................................
Tailgate .138
..........................
Power Tailgate .139
.................................
Sliding Doors .142
...............................................
Seats .148 ..................................
Seat Heaters .160
Driver’s Seat Position Memory ........................................
System .161
............................
Power Windows .163
.......................................
Moonroof .166
...........................................
Mirrors .167
...............................
Parking Brake .169
.
Adjustable Driver’s Foot Pedals . 169
.........
Interior Convenience Items . 170
..........
Retractable Center Tray . 171
.....................
Beverage Holders .171
................
Integrated Sunshade . 173
....................
Sunglasses Holder .174
................
Conversation Mirror . 174
...................................
Sun Visor .175
............................
Vanity Mirror .175
...................
Rear Compartment . 175
Removable Second Row ..................................
Console .176
...............
In-Floor Storage Area . 177
......................
Lower Glove Box .180
......................
Upper Glove Box .180
...........................
Center Pocket .181
........
Accessory Power Sockets . 182
.......................
AC Power Outlet .182
...............................
Interior Lights .183
Instruments and Controls
Inst rument s and Cont rols
59

There are two custom settings in the
Lighting Setup:The interior lights f ade out when you
close all doors and the tailgate. You
can change the time that the interior
lights f ade out.

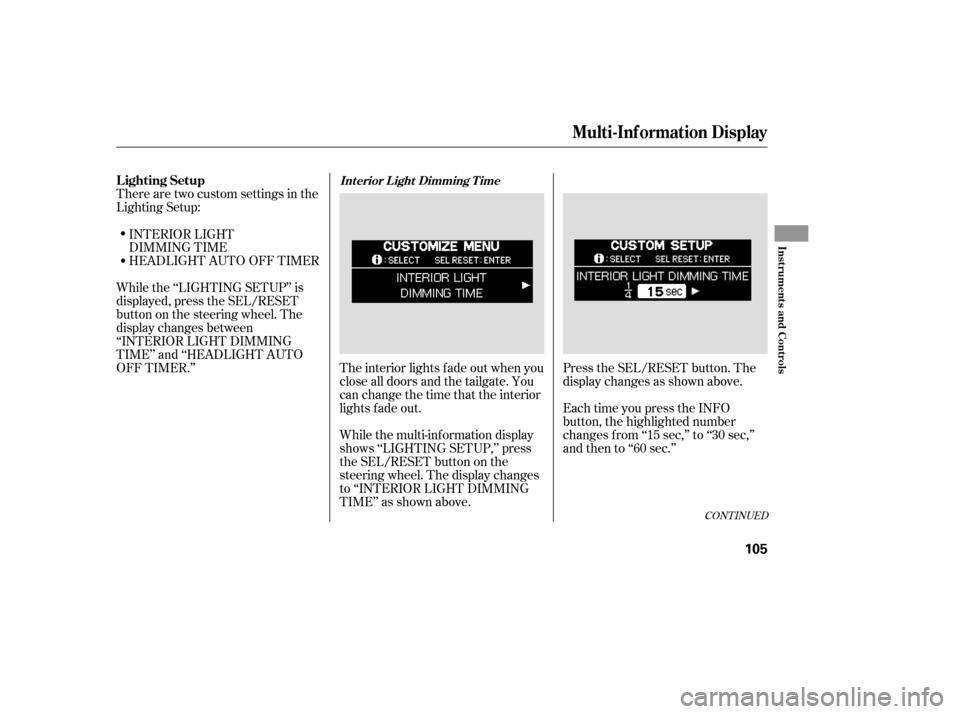

While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. The display changes
to ‘‘INTERIOR LIGHT DIMMING
TIME’’ as shown above.Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘15 sec,’’ to ‘‘30 sec,’’
andthento‘‘60sec.’’
INTERIOR LIGHT
DIMMING TIME
HEADLIGHT AUTO OFF TIMER
While the ‘‘LIGHTING SETUP’’ is
displayed, press the SEL/RESET
buttononthesteeringwheel.The
display changes between
‘‘INTERIOR LIGHT DIMMING
TIME’’ and ‘‘HEADLIGHT AUTO
OFF TIMER.’’
CONT INUED
Lighting SetupInt erior L ight Dimming T ime
Multi-Inf ormation Display
Inst rument s and Cont rols
105

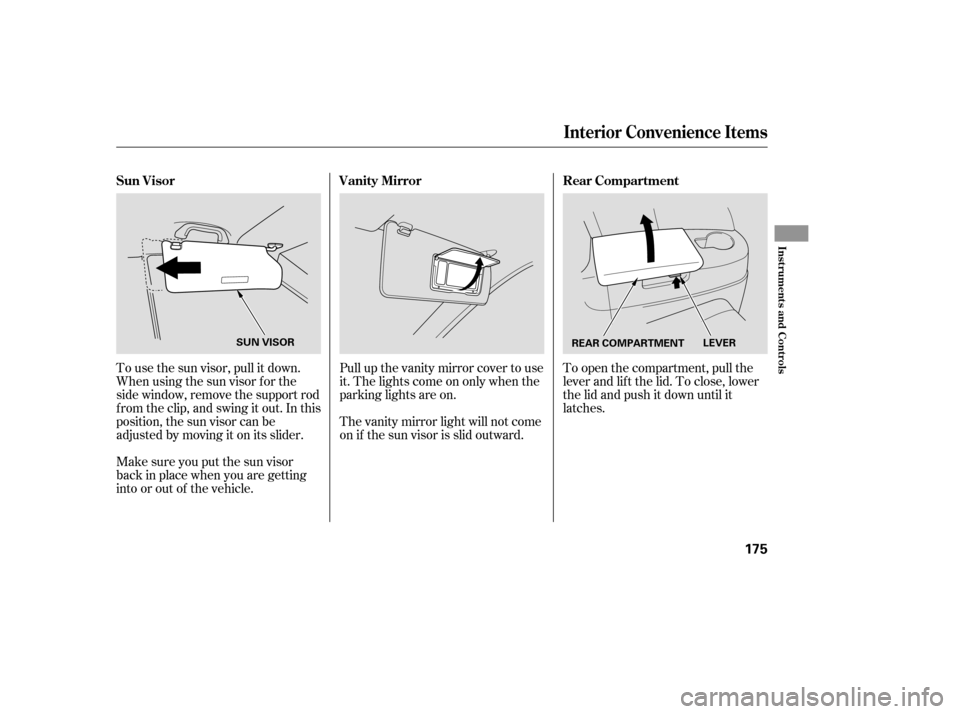

Pull up the vanity mirror cover to use
it. The lights come on only when the
parking lights are on.To open the compartment, pull the
lever and lif t the lid. To close, lower
the lid and push it down until it
latches.
To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out. In this
position, the sun visor can be
adjusted by moving it on its slider.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle. The vanity mirror light will not come
on if the sun visor is slid outward.
Sun Visor
Vanity Mirror Rear Compartment
Interior Convenience Items
Inst rument s and Cont rols
175
REAR COMPARTMENTLEVER
SUN VISOR

The individual map lights in the
second and third rows cannot be
turned on.
The cargo area light can be turned
on with the switch in the light.Door
Activated
The light control switch has three
positions: OFF, Door Activated, and
ON. OFF
None of the lights come on when a
door or the tailgate is opened.
The individual map lights in the
f ront can be turned on and of f by
pressing the lenses.
The maximum capacity f or this
power outlet is 115 volt AC at 100
watts or less. If you use an appliance
which requires more than 100 watts,
it automatically stops supplying the
power. If this happens, turn the
ignition switch of f and turn it on
again.
The AC power outlet is not
designed f or electric appliances
which require high initial peak
wattage such as cathode-ray tube
type televisions, ref rigerators,
electric pumps, etc. It is also not
suitable f or devices that process
precise data such as medical
equipment or measuring instruments.
Any appliances that require an
extremely stable power supply such
as microcomputer-controlled electric
blankets, touch sensor lamps, etc.,
should not be connected to this
outlet. The individual map lights in the
f ront come on when any door is
opened. When the doors are
closed, each light can be turned on
and of f by pressing the lenses.
The individual map lights in the
second and third rows come on
when any door is opened. When
the doors are closed, each light
canbeturnedonandoff by
pushingonthelens.
When the switch is in the
position:
When this switch is in the position:
CONT INUED
L ight Control Switch
Interior Convenience Items, Interior L ights
Inst rument s and Cont rols
183
NOTE:
ON DOOR ACTIVATED
POSITION
OFF
LIGHT CONTROL
SWITCH

Turn on the f ront and rear individual
map lights by pushing the lens of
each light. Push the lens again to
turn it of f . You can also operate
these lights with the light control
switch (see page ).
The lights go out about 30 seconds
after all the doors and the tailgate
are closed. They go out immediately
af ter all doors are locked.
With the light control switch in the
Door Activated position, all the
individual map lights come on when
you unlock the door with the remote
transmitter (see page ).
Withanydoororthetailgateleft
open, the lights stay on about 3
minutes, then go out.
ON
All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
183
133
When the light control switch is in the
position: On EX and Touring modelsIndividual Map L ights
Interior Lights
184
FRONT

The ignition switch light comes on
when you open the driver’s door, and
stays on several seconds af ter you
close the door.
The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate. In the ON
position, it stays on continuously. Ignition Switch L ight
Cargo Area Light
Interior Lights
Inst rument s and Cont rols
185
OFF
ON
REAR

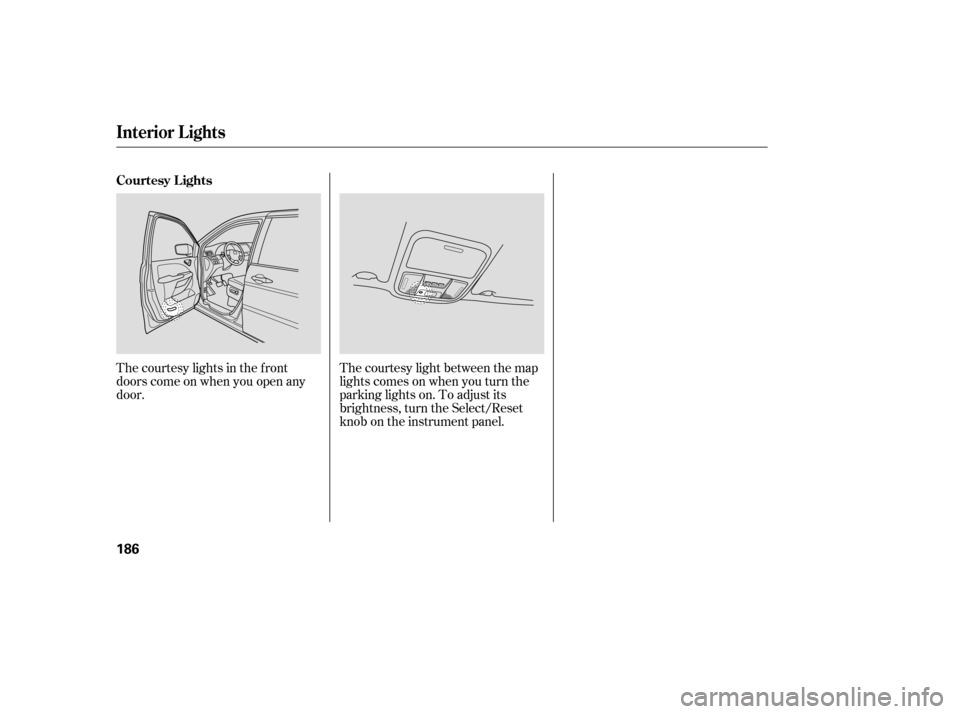

The courtesy lights in the f ront
doors come on when you open any
door.The courtesy light between the map
lights comes on when you turn the
parking lights on. To adjust its
brightness, turn the Select/Reset
knob on the instrument panel.
Interior Lights
Courtesy Lights
186

Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the primary
under-hood f use box.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box. Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Removing these f uses
requires a Phillips-head
screwdriver.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
through , or the diagram on
thefuseboxlid,whichfuseorfuses
control that device. The diagram f or
theinteriordriver’ssidefuseboxis
on the kick panel below the f use box.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
1.
2. 3.
4.
378 380
Checking and Replacing Fuses
Fuses
376
FUSE
BLOWN FUSE PULLER
