2005 GMC SAFARI Owner's Manual

Power Seat
If your vehicle has this feature, there will be controls
located on the inboard side of the driver’s seat.
To raise or lower the front of the seat cushion, raise or
lower the lever located toward the front of the vehicle.
To raise or lower the rear of the seat cushion, raise
or lower the lever located toward the rear of the vehicle.
To move the entire seat backwards, forward, or up or
down, move the center knob.
Manual Lumbar
If your vehicle has this feature, there will be a knob
located on the inboard side of the driver’s and
passenger’s bucket seats.
Turn the knob toward the front of the vehicle to increase
lumbar support. Turn the knob toward the rear of the
vehicle to decrease lumbar support.
1-3

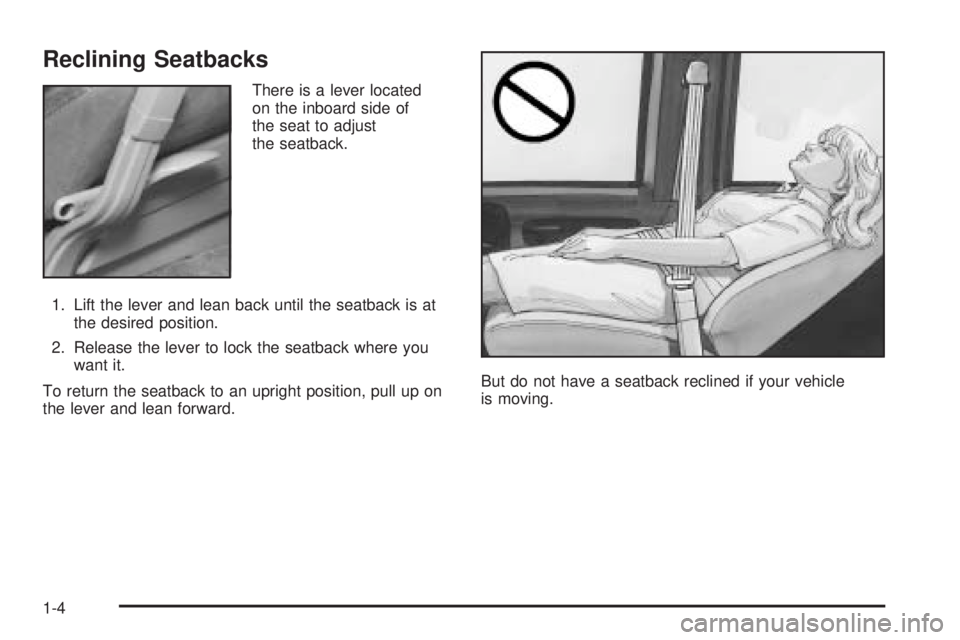

Reclining Seatbacks
There is a lever located
on the inboard side of
the seat to adjust
the seatback.
1. Lift the lever and lean back until the seatback is at
the desired position.
2. Release the lever to lock the seatback where you
want it.
To return the seatback to an upright position, pull up on
the lever and lean forward.But do not have a seatback reclined if your vehicle
is moving.
1-4

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
1-5

Rear Seats
Bench Seat
Each bench seat can carry up to three passengers.
They can also be removed to increase storage space.
See “Removing the Rear Seats” following.
Only the third row bench seat can be adjusted forward
or rearward.
Move the seat adjustment
lever located at the front
of the seat toward the
passenger’s side to unlock
it. Slide the seat to
where you want it and
release the lever. Try to
move the seat with
your body, to make
sure the seat is locked
into place.The center bench seat has a pivoting right armrest.
The optional bench seats come with moveable armrests,
individual reclining seatbacks, adjustable headrests
and a fold-down center armrest console.
To adjust your seatback, pull up on the lever located on
the outboard sides of the seat cushion.
1-6

Entering the Third Row Seat
The second row seat has
a seatback lever that
makes it easier to enter
the third row seat, if
equipped. The lever is
located on the right rear of
the second row seat.
1. Pull up on the seatback release lever while pulling
the seatback toward the rear of the vehicle.
2. After the lever has been released, push the
seatback toward the front of the vehicle until it locks
into place.To raise the seatback, do the following:
1. Unlock the seatback lever by pulling up on the
lever while pushing down on the upper edge of
the seatback.
2. Move the seatback into the upright position.
3. Make sure the seatback is locked when it is back
in the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
1-7

Removing the Rear Seats
To remove the rear bench seats, do the following:
1. If you are removing the
center seat, remove
the right lap-shoulder
belt. To do this,
press the tip of a key
into the release
hole of the safety belt
attachment while
pulling up on the
safety belt.2. If you have a safety
belt guide on your
seat, pull the safety belt
all the way out
through the guide.
3. To store the safety belt while the second row bench
seat is removed, pull the belt out and put both
buckles in the passenger’s side rear storage bin.
Route the belt out of the forward edge of the storage
bin. Close the cover to retain the belt.
4. Pull up on the seatback latch on the right rear of
the seat. Push the seatback down until it locks
into place.
1-8

5. Lift up on the left and the right seat release levers
at the same time. The latches are near the oor on
the rear legs of the seat.6. Lift up on the rear of the seat to remove the seat
assembly from the rear latch pins. Then, pull the
whole seat back to remove the seat from the
front retainers and then lift the seat out of the
vehicle.
1-9

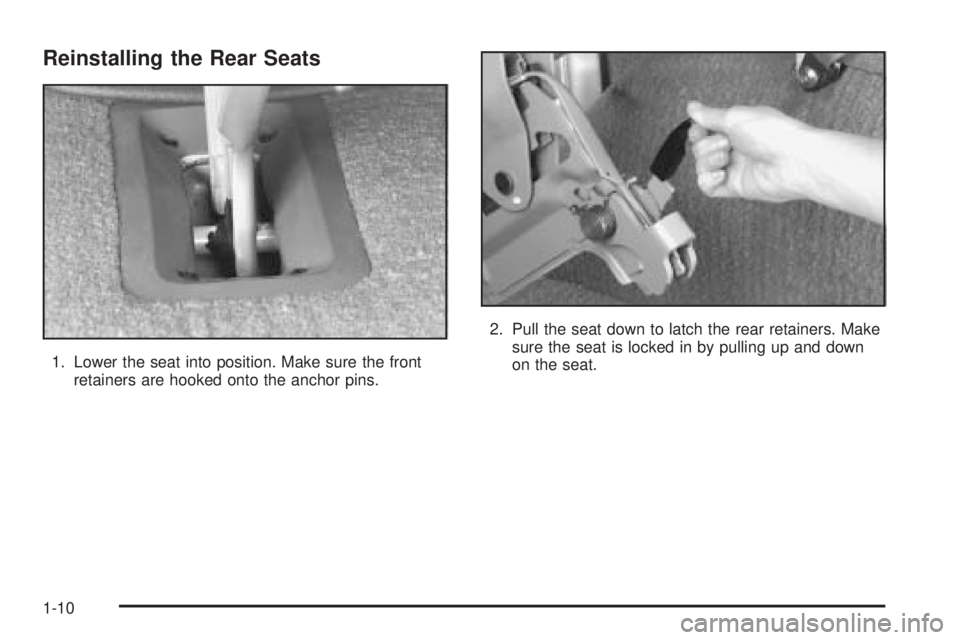

Reinstalling the Rear Seats
1. Lower the seat into position. Make sure the front
retainers are hooked onto the anchor pins.2. Pull the seat down to latch the rear retainers. Make
sure the seat is locked in by pulling up and down
on the seat.
1-10
