Front Axle
When to Check and Change Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant and when to change it. See
Part A: Scheduled Maintenance Services on page 6-4.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the
bottom of the ller plug
hole, you may need to
add some lubricant.When the differential is cold, add enough lubricant to
raise the level to 1/2 inch (12 mm) below the ller
plug hole.
When the differential is at operating temperature
(warm), add enough lubricant to raise the level to
the bottom of the ller plug hole.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeePart D: Recommended
Fluids and Lubricants on page 6-30.
5-49

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-56.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
Headlamps and Sidemarker Lamps
Sealed Beam Headlamp
1. Remove the
four retainer screws
and the retainer
from the headlamp.
5-50

2. Pull the connector out
and unplug the lamp.
3. Plug the new lamp into the connector.
4. Reverse Steps 1 and 2 to reinstall the headlamp.Composite Headlamps
1. Open the hood. SeeHood Release on page 5-11
for more information.
2. Remove the
two screws from the
sidemarker/turn
signal lamp assembly.
5-51

3. Completely remove the sidemarker/turn signal lamp
assembly by pulling it out and disconnecting the
sidemarker/turn signal lamp sockets from the lamp.
Replace the sidemarker/turn signal bulb with a
new one if it needs to be replaced.4. Remove the screw
located behind the
corner reector
to remove the entire
corner reector.
5-52

5. Remove the remaining three screws, the rst
one from the corner reector pocket and the
two remaining from the composite assembly.
6. Remove the composite assembly.7. Turn the halogen bulb
counterclockwise to
remove it from
the assembly.
8. Install the new bulb into the composite assembly by
turning it clockwise until it is completely tightened.
9. Reinstall the composite assembly by installing and
tightening all of the screws previously removed.
5-53

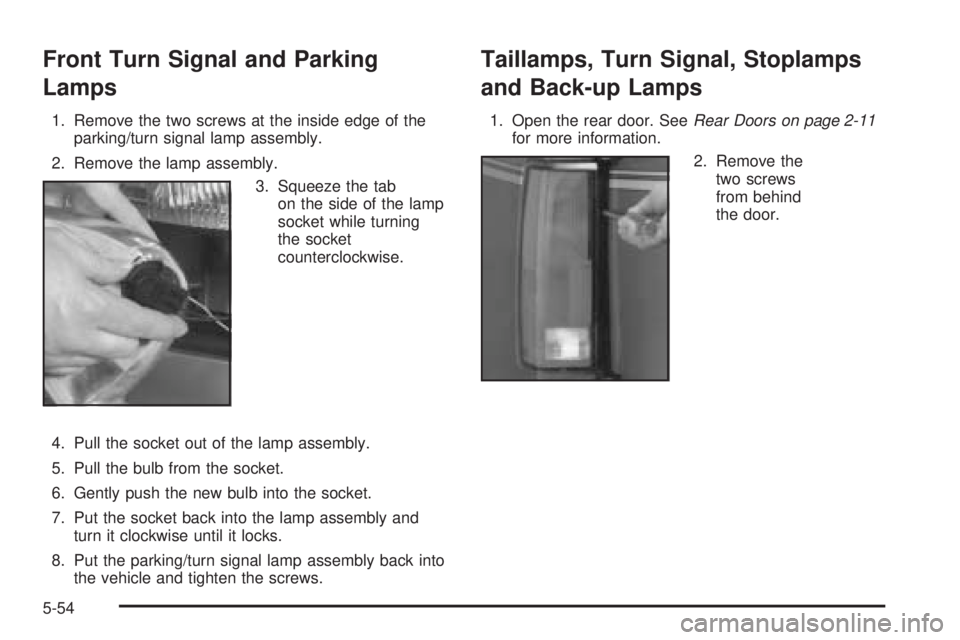

Front Turn Signal and Parking
Lamps
1. Remove the two screws at the inside edge of the
parking/turn signal lamp assembly.
2. Remove the lamp assembly.
3. Squeeze the tab
on the side of the lamp
socket while turning
the socket
counterclockwise.
4. Pull the socket out of the lamp assembly.
5. Pull the bulb from the socket.
6. Gently push the new bulb into the socket.
7. Put the socket back into the lamp assembly and
turn it clockwise until it locks.
8. Put the parking/turn signal lamp assembly back into
the vehicle and tighten the screws.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
1. Open the rear door. SeeRear Doors on page 2-11
for more information.
2. Remove the
two screws
from behind
the door.
5-54

3. Pull out the taillamp assembly so you can see
the socket.4. Press the tab and
turn the socket
counterclockwise to
remove the socket from
the bezel. If the
socket does not have a
tab, turn the socket
counterclockwise
to remove the socket
from the bezel.
5. Remove the old bulb from the socket and replace it
with a new one.
6. Reverse Steps 1 through 4 to reinstall the taillamp.
5-55

Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamps 1156
Headlamps
Composite High-Beam 9005
Composite Low-Beam 9006
Sealed-Beam Headlamps H6054
Parking, Turn Signal Lamps 3157NA
Sidemarker Lamps 194
Stoplamps 2057
For replacement bulbs not listed here, contact
your dealer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear and cracking. See “Wiper
Blade Check” inAt Least Twice a Year on page 6-24for
more information.To replace your windshield
wiper blade inserts, do
the following:
1. Lift the wiper arm away from the windshield.
2. Pinch the two tabs on the wiper arm and slide the
insert out of the blade.
3. Slide the new one in place.
Make sure the tabs are locked into position. SeeNormal
Maintenance Replacement Parts on page 5-102for
the proper type of replacement blade.
Rear Window Wiper Blade Replacement
If your vehicle is equipped with a rear window wiper
blade, follow the procedure above to replace the
wiper blade.
